E Series Straight-Illumination Artificial Skylights

E Series recessed artificial skylights use straight illumination through an enclosed optical face to create a direct overhead ceiling feature. Square, rectangular and round formats support meeting rooms, reception areas, hospitality and retail interiors.

Straight Illumination: The optical surface directs light downward for a direct overhead skylight effect rather than the angled effect of the D Series.
Three Body Formats: Square, rectangular and round bodies support different ceiling geometries and room layouts.
Recessed Ceiling Feature: The visible optical face and slim trim sit within the finished ceiling plane.
Adjustable White Scenes: The specified CCT range supports warmer and cooler interior lighting scenes.

Installation	Recessed / slider retention + safety rope
Formats	600 x 600 / 600 x 1200 / Dia. 600 / Dia. 1200 mm
Power / Output	150-500 W / 5000-15000 lm

CCT / CRI	2100-7500 K / Ra95
Electrical	100-240 V / PF 0.5
Operation	No flicker / 30,000 h rated life

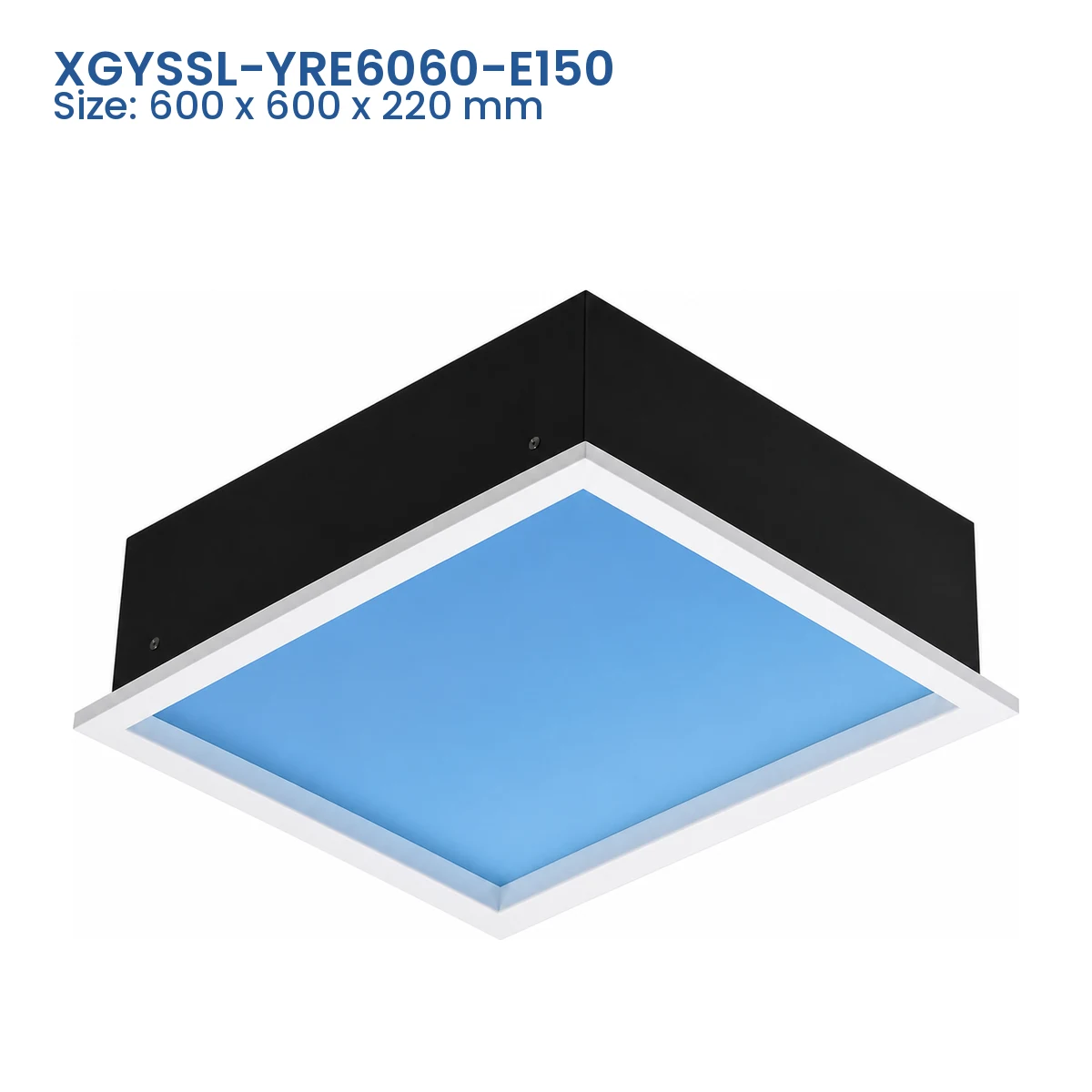

XGYSSL-YRE6060-E150 E Series recessed artificial skylight, Size 600 x 600 x 220 mm

E Series rectangular artificial skylight recessed into a modern hospitality corridor ceiling

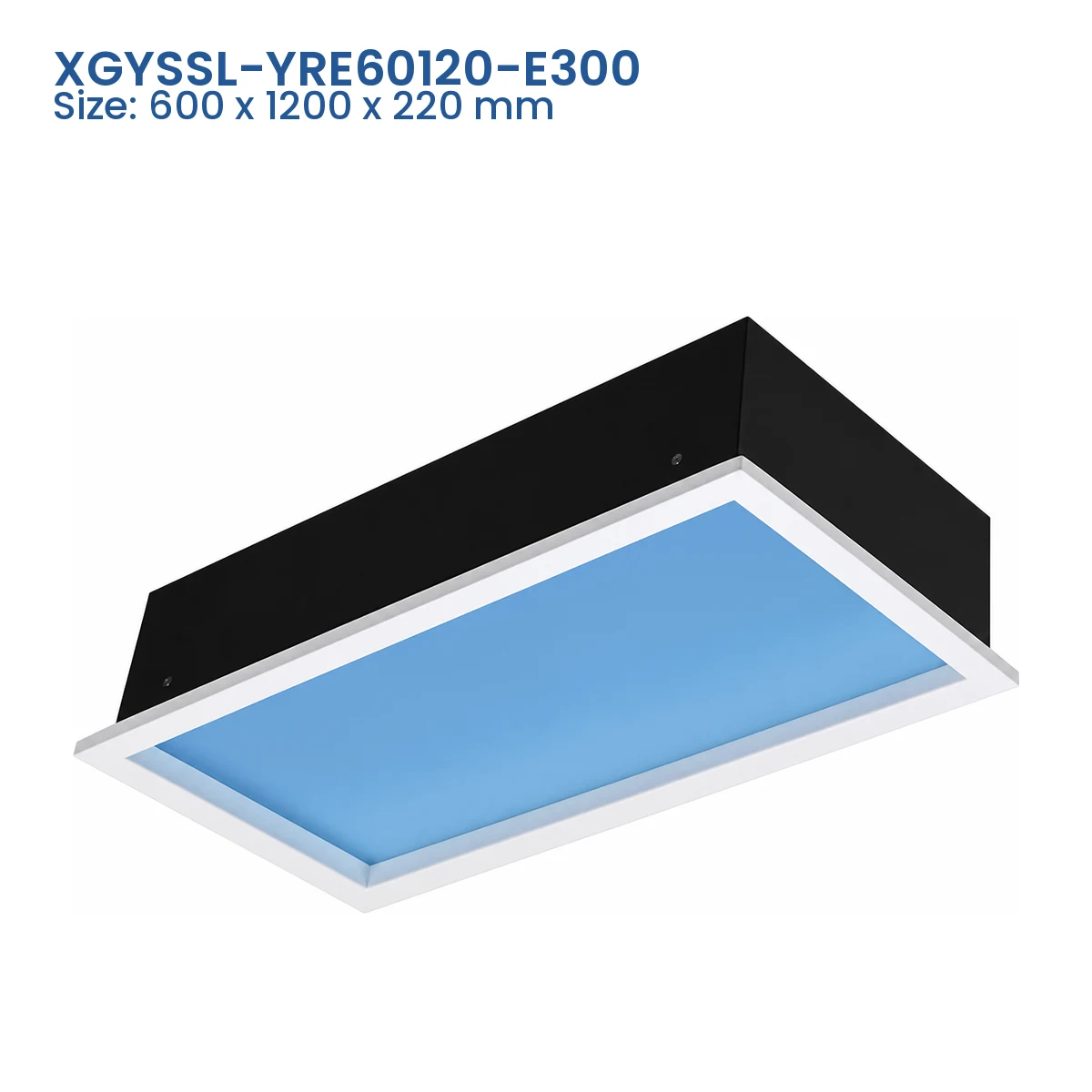

XGYSSL-YRE60120-E300 E Series recessed artificial skylight, Size 600 x 1200 x 220 mm

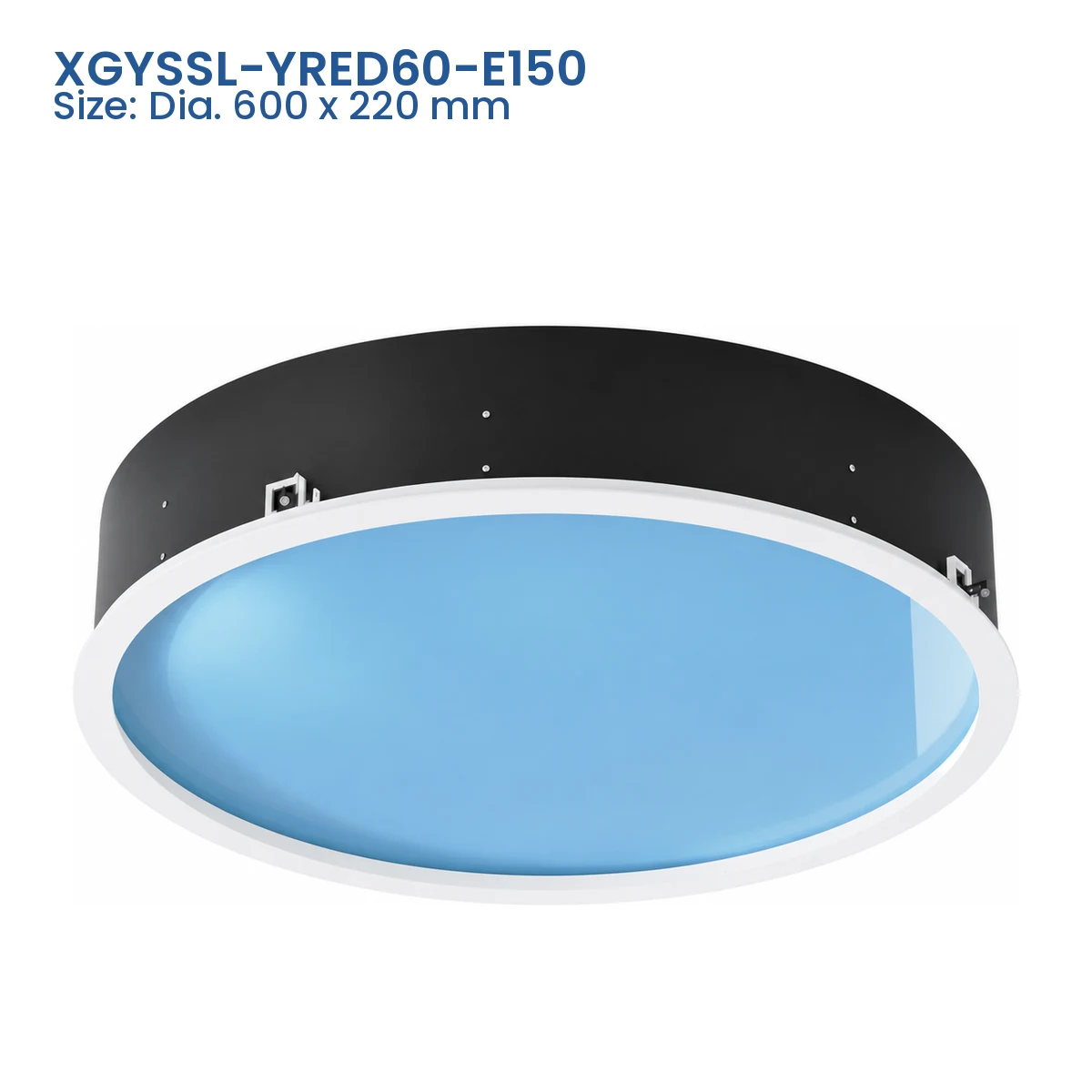

XGYSSL-YRED60-E150 E Series recessed artificial skylight, Size Dia. 600 x 220 mm

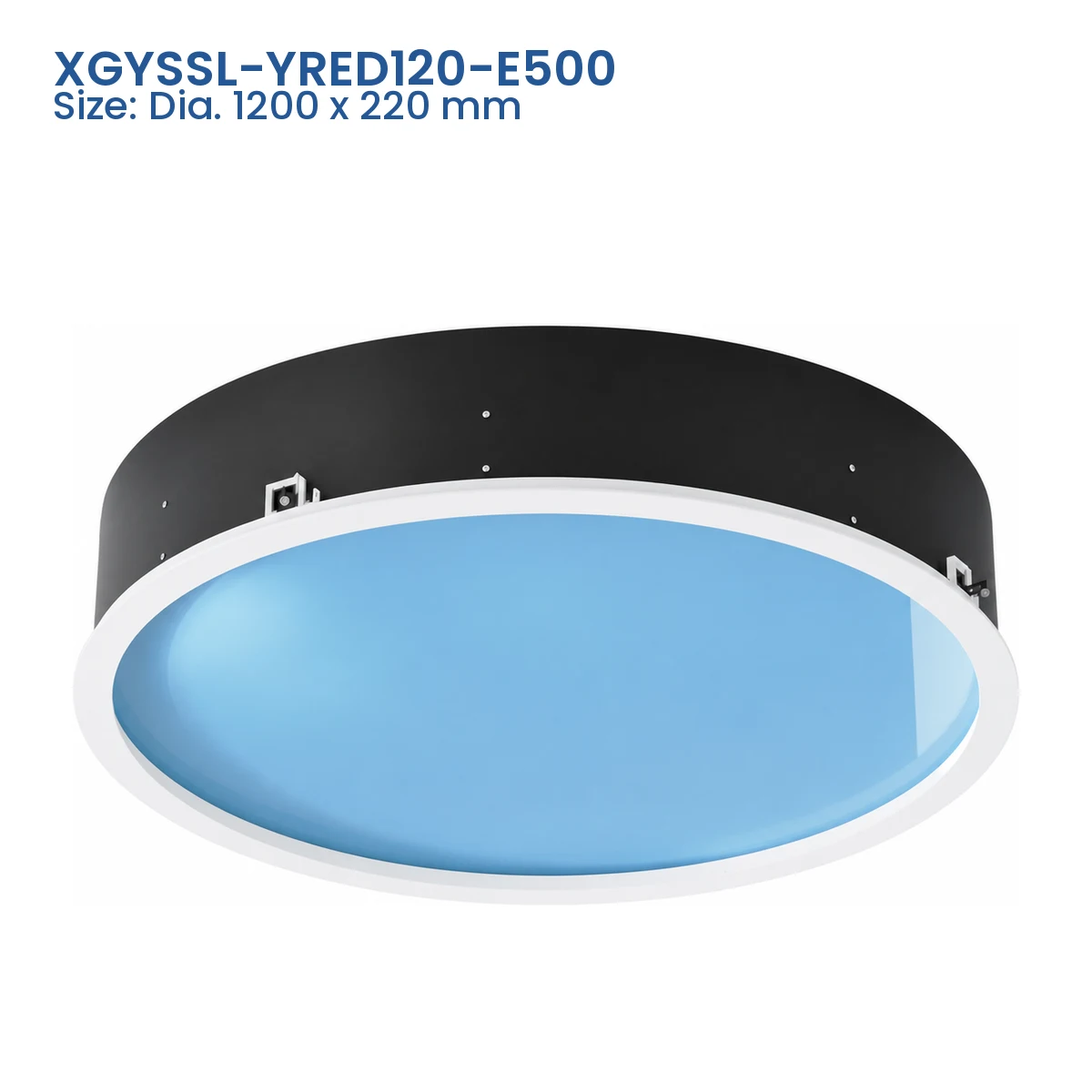

XGYSSL-YRED120-E500 E Series recessed artificial skylight, Size Dia. 1200 x 220 mm

Technical Specifications

Model Specifications

Model No.	Body Size (W x H x T)	Opening	Light Surface	Power	Output	CCT	CRI
XGYSSL-YRE6060-E150	600 x 600 x 220 mm	585 x 585 mm	500 x 500 mm	150 W	5000 lm	2100-7500 K	Ra95
XGYSSL-YRE60120-E300	600 x 1200 x 220 mm	585 x 1185 mm	500 x 1100 mm	300 W	10000 lm	2100-7500 K	Ra95
XGYSSL-YRED60-E150	Dia. 600 x 220 mm	Dia. 585 mm	Dia. 500 mm	150 W	5000 lm	2100-7500 K	Ra95
XGYSSL-YRED120-E500	Dia. 1200 x 220 mm	Dia. 1185 mm	Dia. 1100 mm	500 W	15000 lm	2100-7500 K	Ra95

Shared series data: 100-240 V input, PF 0.5, no flicker and 30,000 h rated life.

Product Description

Product Details

Product Construction

The luminaire uses a deep black enclosure with the driver and controller housed in the upper assembly. Slider supports and safety retention secure the unit to the supporting construction.

Selection & Installation Notes

Select the exact row by cutout, vertical clearance and required output. Coordinate the attachment hardware and safety rope with the supporting grid, and preserve access to the upper components. Define the control interface, scene behavior and restart setting with the ordered driver and controller. Compare related products in our artificial skylight range.

Recommended Application

Applications

Enclosed Meeting Rooms: Straight overhead illumination creates a defined ceiling feature above conference and collaboration areas.
Reception Ceiling Features: Square or round formats provide a recessed focal point in lobbies and waiting areas.
Hospitality Circulation Areas: Artificial skylights integrate with hotel, lounge and restaurant circulation ceilings.
Retail Display Interiors: Direct overhead illumination adds ambient light around displays and customer circulation zones.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

How is the E Series different from the D Series?

The E Series uses straight illumination and includes square, rectangular and round formats. The D Series uses oblique illumination in rectangular formats.

Which E Series model provides 15000 lm?

The round XGYSSL-YRED120-E500 model is listed at 500 W and 15000 lm.

How much ceiling depth is required?

Use the listed body depth, then allow additional room for slider supports, safety retention, the driver, controller and future service access.

Can the color temperature change during the day?

The series supports adjustable color temperature. Scheduling, scenes and restart behavior depend on the ordered driver and controller package.

Is the E Series a medical daylight-therapy device?

No medical-device, spectral-distribution or therapeutic rating is specified. It is an architectural artificial-skylight luminaire.

What should be confirmed before ordering?

Confirm the model, body format, ceiling opening, available depth, retention hardware, required output and control package before production and installation.
