UV-A/BLB Blacklight Fluorescent Lamps

UV-A/BLB blacklight fluorescent lamps use black glass and a 365 nm peak for compatible fluorescence-viewing and indoor blacklight equipment. The family includes straight T5, T8, T10 and T12 tubes plus compact PL-S and PL-L forms.
  • Fluorescence Visibility: The optical output reveals compatible fluorescent markings while limiting distracting visible lamp glow.
  • Fixture Geometry Choice: Linear and folded shapes support both long housings and space-conscious equipment layouts.
  • Separate Lamp Replacement: The light source can be serviced without replacing a suitable fixture enclosure.
  • Defined Illumination Role: The lamp supplies excitation light while the complete instrument and operator determine the inspection result.
Lamp TypeUV-A/BLB blacklight fluorescent lamp
Peak Wavelength365 nm
GlassBlack glass
Available FormsT5, T8, T10, T12, PL-S and PL-L
InstallationMatch the lamp form and base to the holder
Operating GearCompatible external fluorescent control gear required
Request a Quote
XGYT5-BLB-8W T5 UV-A BLB black-glass fluorescent lamp, 16 mm tube diameter, 288.3 mm overall length, G5 base

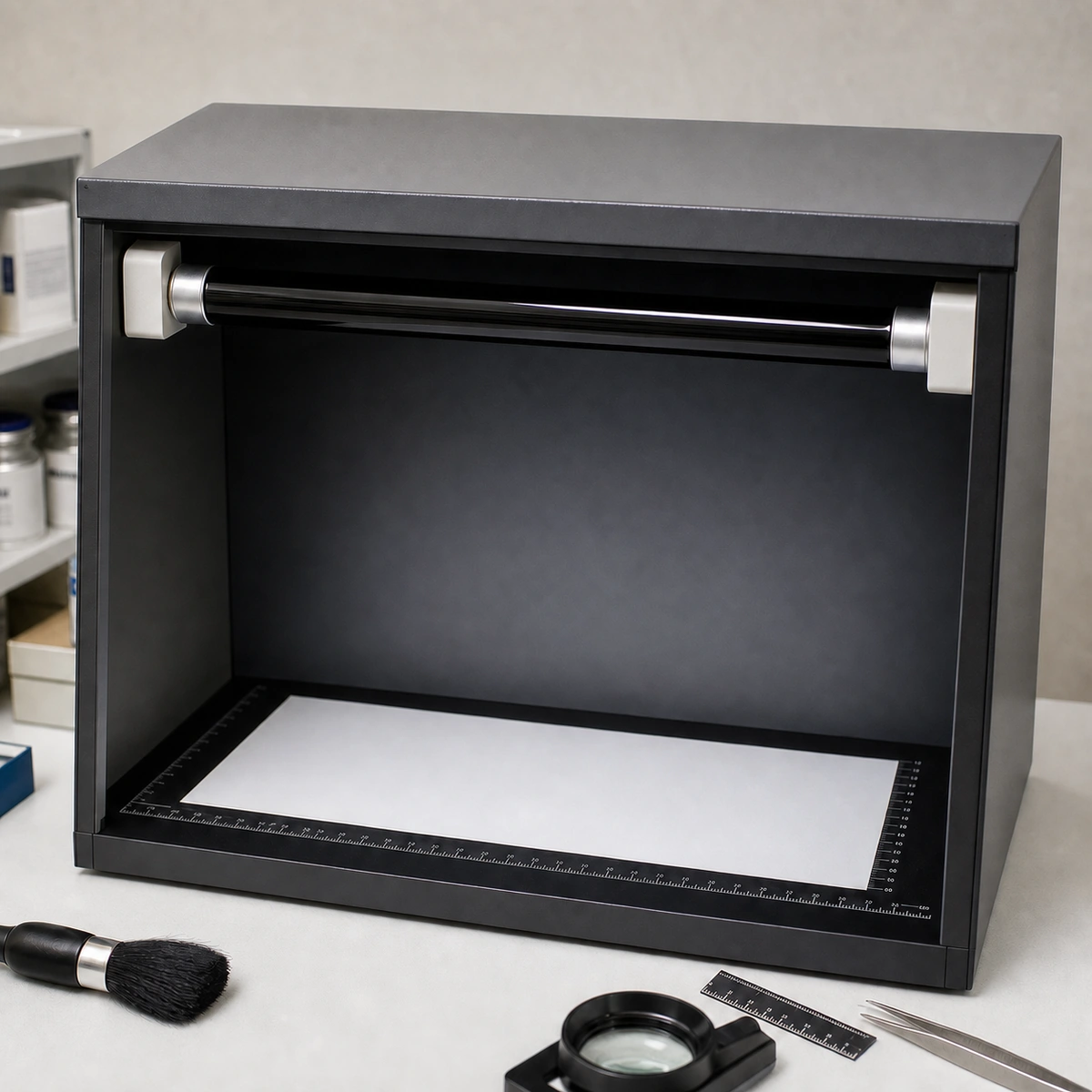

Unlit black-glass UV-A BLB fluorescent tube seated in G13 holders inside an indoor benchtop viewing enclosure

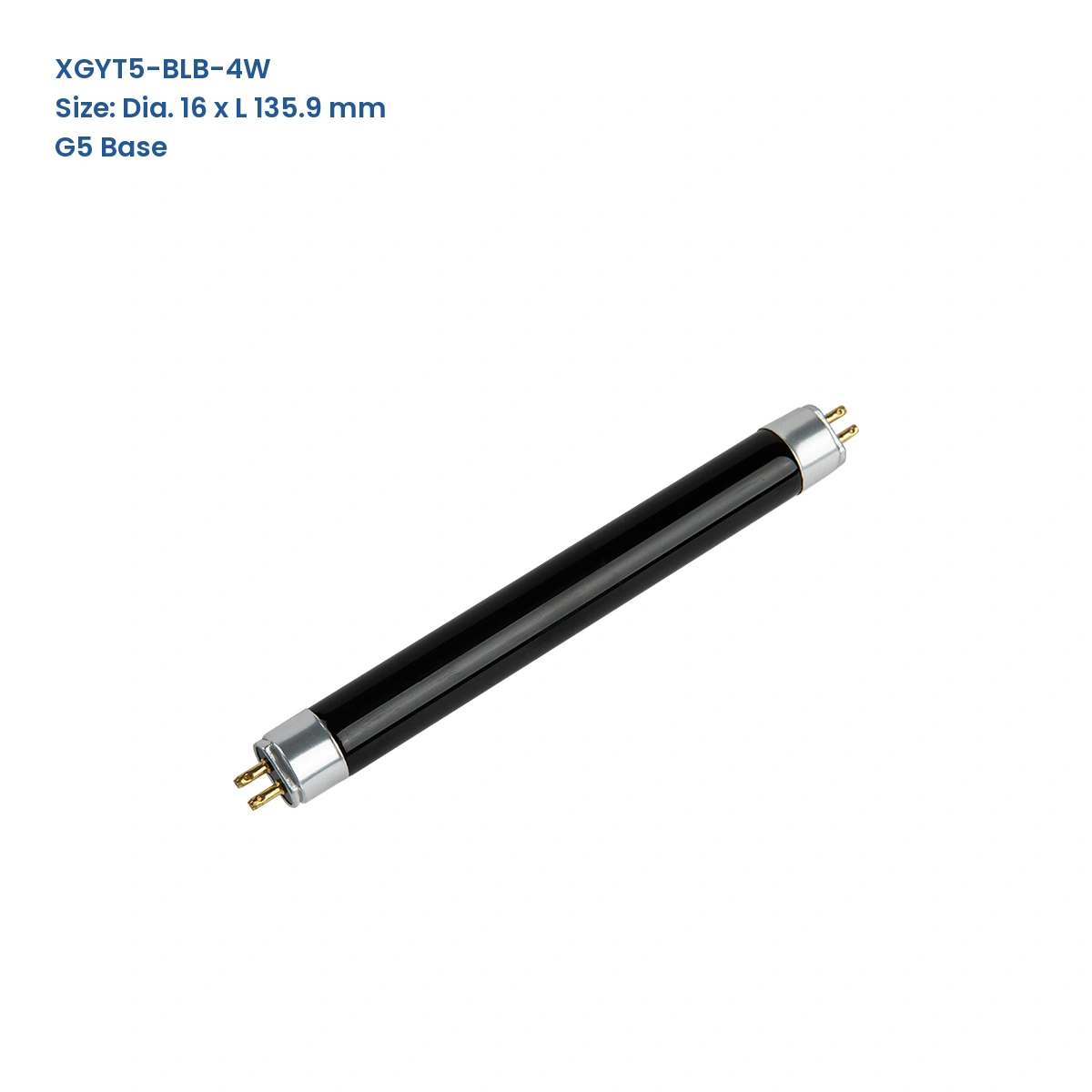

XGYT5-BLB-4W T5 UV-A BLB black-glass fluorescent lamp, 16 mm tube diameter, 135.9 mm overall length, G5 base
XGYT5-BLB-6W T5 UV-A BLB black-glass fluorescent lamp, 16 mm tube diameter, 212.1 mm overall length, G5 base

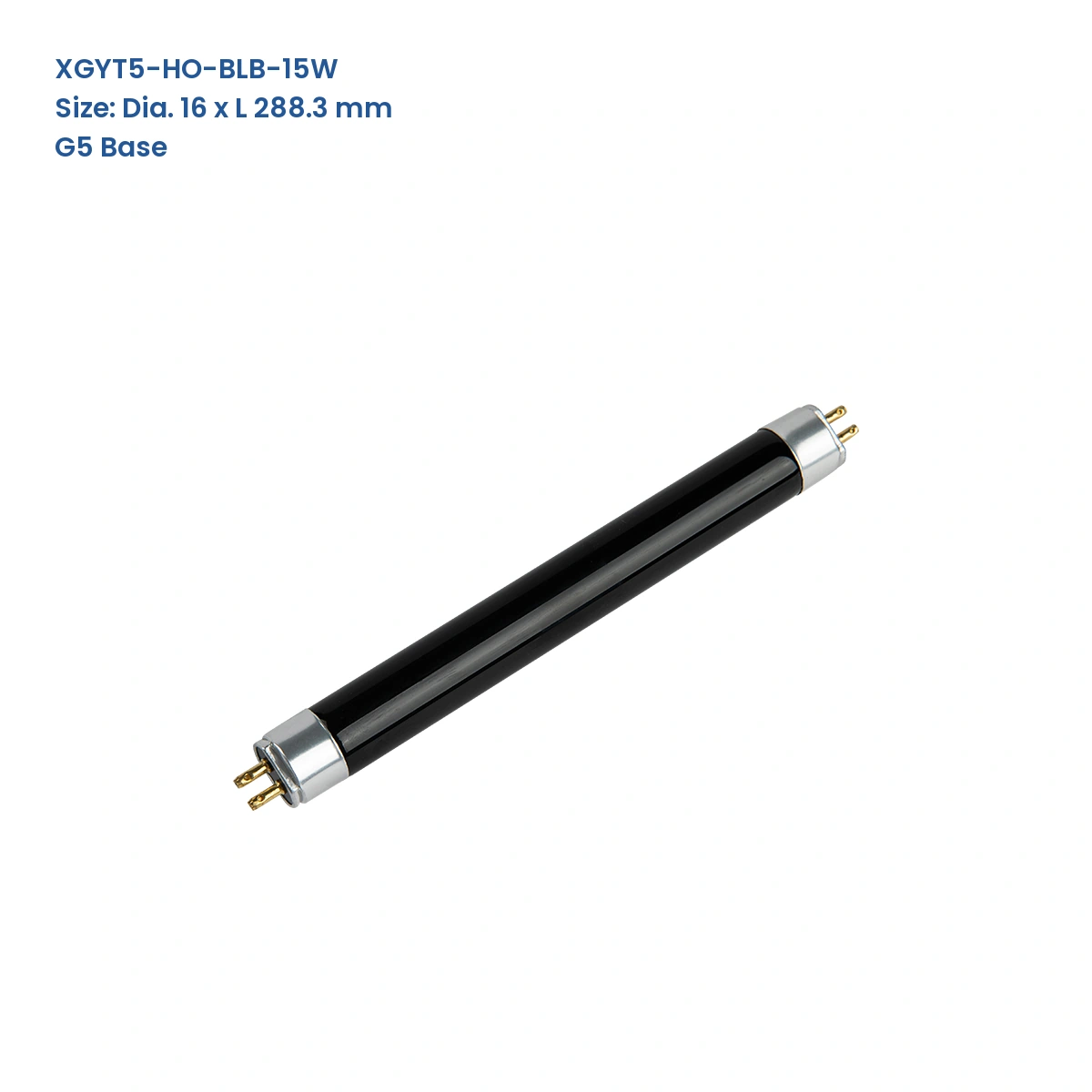

XGYT5-HO-BLB-15W T5 HO UV-A BLB black-glass fluorescent lamp, 16 mm tube diameter, 288.3 mm overall length, G5 base
XGYT5-BLB-14W T5 UV-A BLB black-glass fluorescent lamp, 16 mm tube diameter, 549 mm overall length, G5 base
XGYT5-BLB-21W T5 UV-A BLB black-glass fluorescent lamp, 16 mm tube diameter, 849 mm overall length, G5 base
XGYT5-BLB-28W T5 UV-A BLB black-glass fluorescent lamp, 16 mm tube diameter, 1149 mm overall length, G5 base
XGYT8-BLB-10W T8 UV-A BLB black-glass fluorescent lamp, 26 mm tube diameter, 331 mm overall length, G13 base

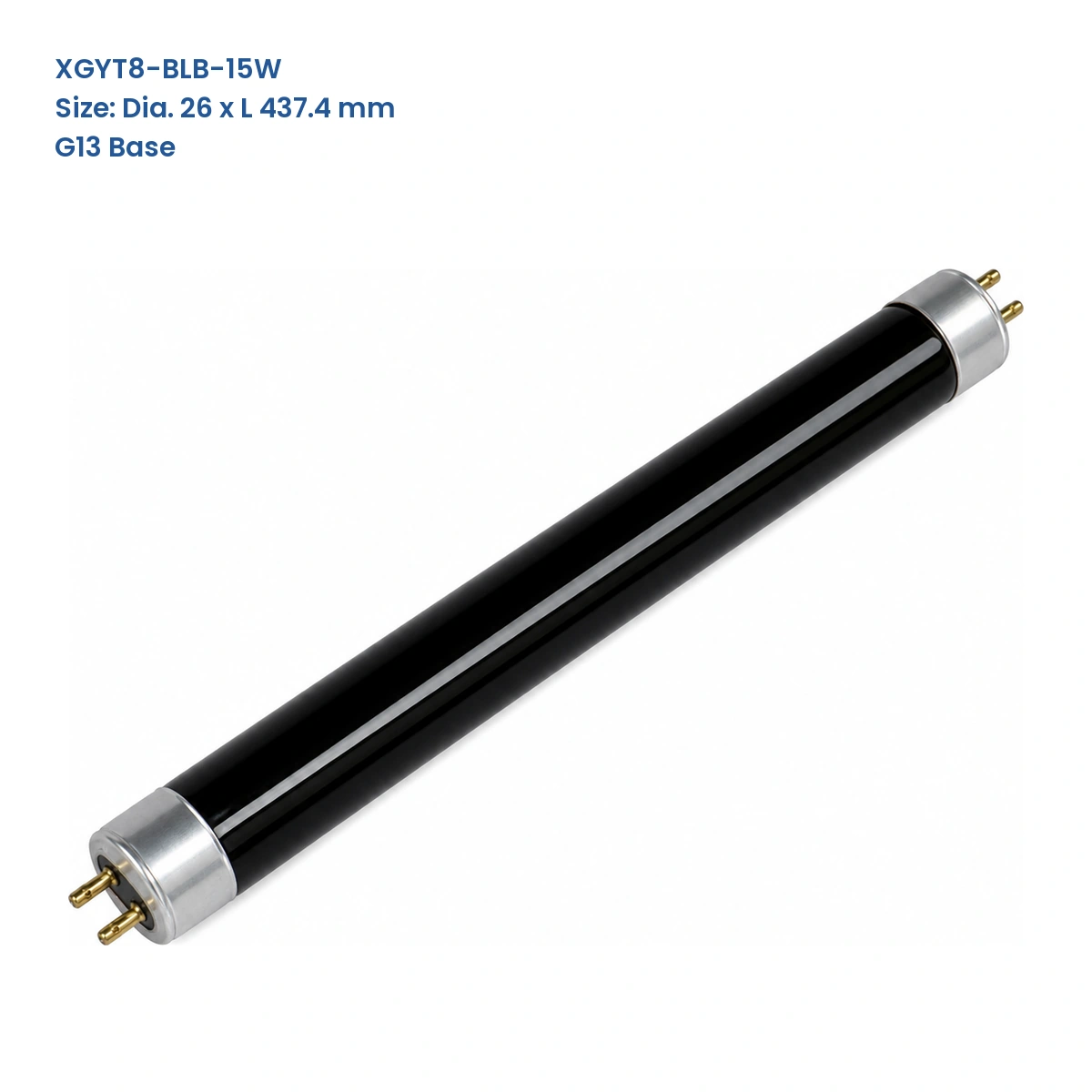

XGYT8-BLB-15W T8 UV-A BLB black-glass fluorescent lamp, 26 mm tube diameter, 437.4 mm overall length, G13 base
XGYT8-BLB-18W T8 UV-A BLB black-glass fluorescent lamp, 26 mm tube diameter, 589.8 mm overall length, G13 base

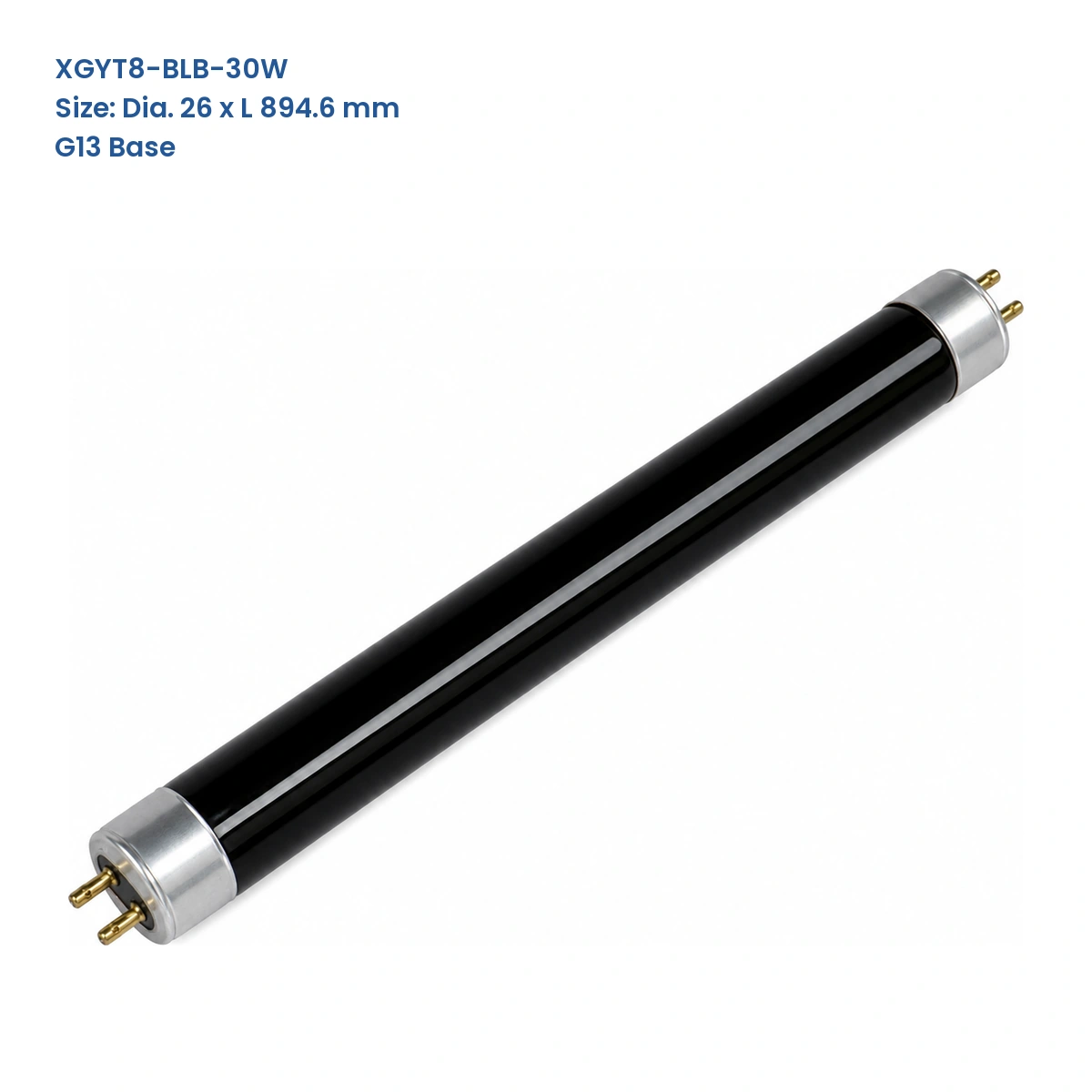

XGYT8-BLB-30W T8 UV-A BLB black-glass fluorescent lamp, 26 mm tube diameter, 894.6 mm overall length, G13 base
XGYT8-BLB-36W T8 UV-A BLB black-glass fluorescent lamp, 26 mm tube diameter, 1199.4 mm overall length, G13 base
XGYT8-BLB-58W T8 UV-A BLB black-glass fluorescent lamp, 26 mm tube diameter, 1500 mm overall length, G13 base
XGYT10-BLB-20W T10 UV-A BLB black-glass fluorescent lamp, 32 mm tube diameter, 589.8 mm overall length, G13 base
XGYT10-BLB-40W T10 UV-A BLB black-glass fluorescent lamp, 32 mm tube diameter, 1199.4 mm overall length, G13 base
XGYT12-BLB-20W T12 UV-A BLB black-glass fluorescent lamp, 38 mm tube diameter, 589.8 mm overall length, G13 base
XGYT12-BLB-40W T12 UV-A BLB black-glass fluorescent lamp, 38 mm tube diameter, 1199.4 mm overall length, G13 base
XGYPLS-5W-BLB PL-S UV-A BLB black-glass fluorescent lamp, 12 mm tube diameter, 85 mm overall length, G23 / 2G7 base
XGYPLS-7W-BLB PL-S UV-A BLB black-glass fluorescent lamp, 12 mm tube diameter, 115 mm overall length, G23 / 2G7 base

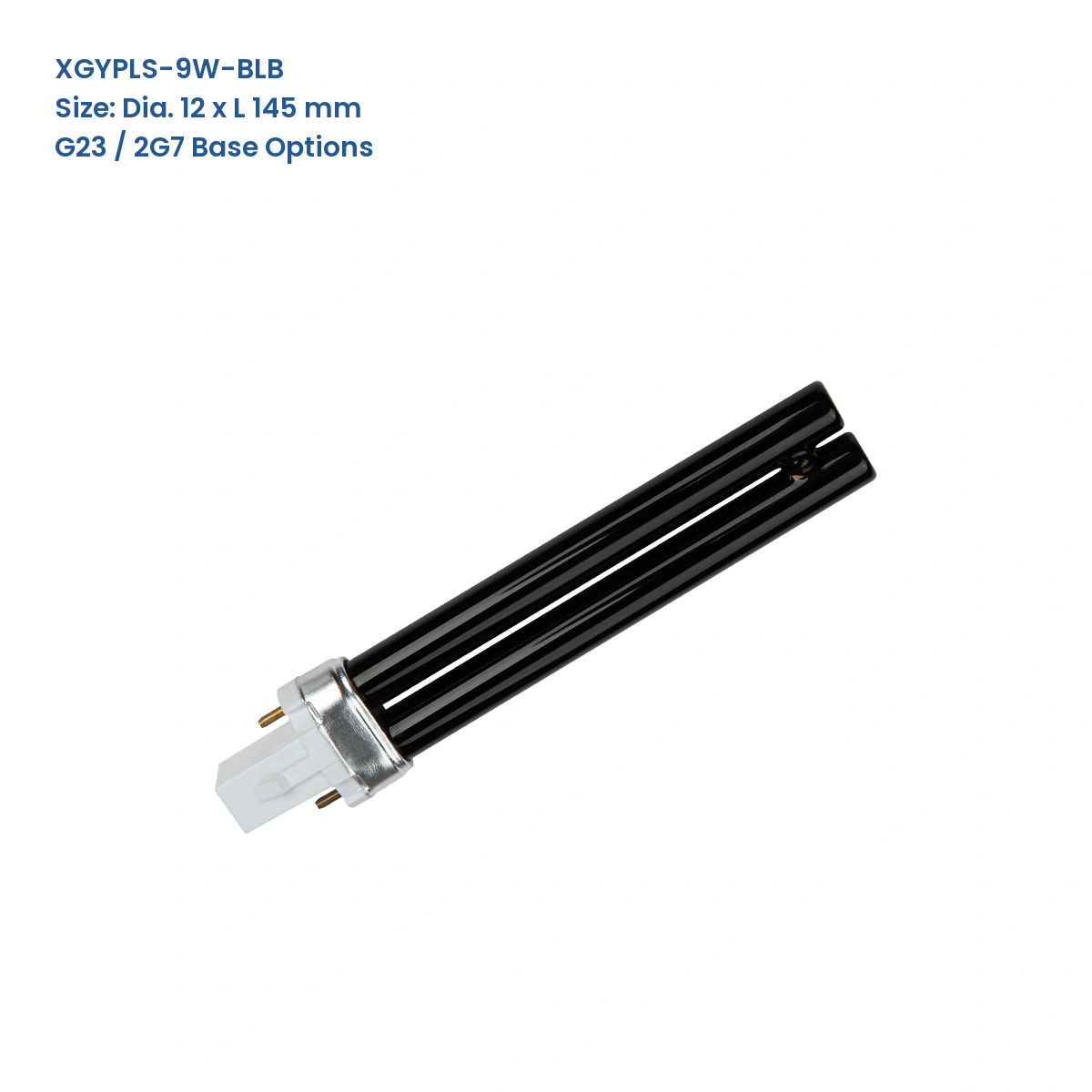

XGYPLS-9W-BLB PL-S UV-A BLB black-glass fluorescent lamp, 12 mm tube diameter, 145 mm overall length, G23 / 2G7 base
XGYPLS-11W-BLB PL-S UV-A BLB black-glass fluorescent lamp, 12 mm tube diameter, 215 mm overall length, G23 / 2G7 base
XGYPLS-13W-BLB PL-S UV-A BLB black-glass fluorescent lamp, 12 mm tube diameter, 155 mm overall length, GX23 / 2G7 base

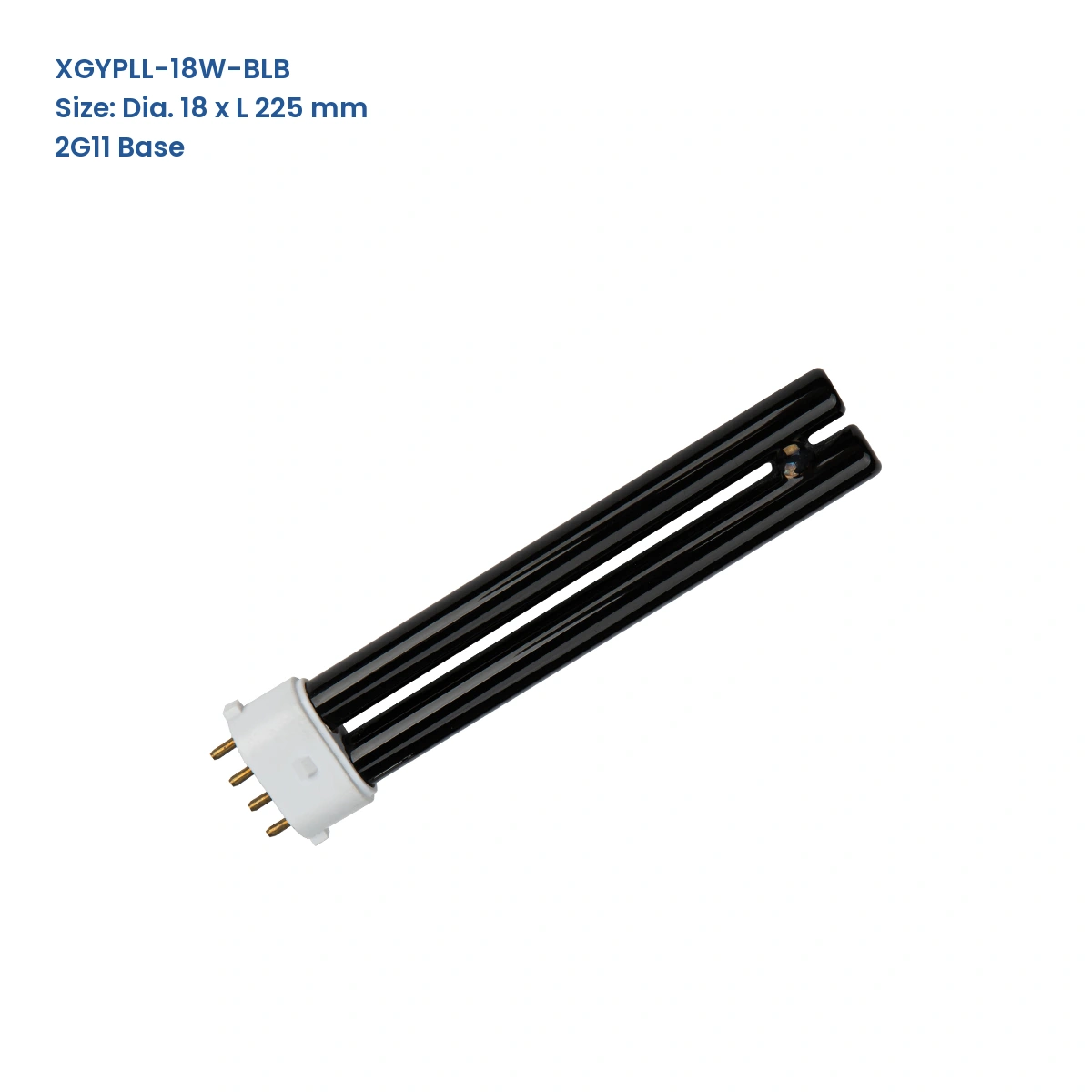

XGYPLL-18W-BLB PL-L UV-A BLB black-glass fluorescent lamp, 18 mm tube diameter, 225 mm overall length, 2G11 base
XGYPLL-24W-BLB PL-L UV-A BLB black-glass fluorescent lamp, 18 mm tube diameter, 320 mm overall length, 2G11 base
XGYPLL-55W-BLB PL-L UV-A BLB black-glass fluorescent lamp, 18 mm tube diameter, 535 mm overall length, 2G11 base
XGYPLL-36W-BLB PL-L UV-A BLB black-glass fluorescent lamp, 18 mm tube diameter, 415 mm overall length, 2G11 base

Technical Specifications

Model Specifications

ModelLamp FormTube Diameter (mm)Overall Length (mm)Cap / BaseRated Power
XGYT5-BLB-4WT516135.9G54 W
XGYT5-BLB-6WT516212.1G56 W
XGYT5-BLB-8WT516288.3G58 W
XGYT5-HO-BLB-15WT5 HO16288.3G515 W
XGYT5-BLB-14WT516549G514 W
XGYT5-BLB-21WT516849G521 W
XGYT5-BLB-28WT5161149G5Confirm with project sheet
XGYT8-BLB-10WT826331G1310 W
XGYT8-BLB-15WT826437.4G1315 W
XGYT8-BLB-18WT826589.8G1318 W
XGYT8-BLB-30WT826894.6G1330 W
XGYT8-BLB-36WT8261199.4G1336 W
XGYT8-BLB-58WT8261500G1358 W
XGYT10-BLB-20WT1032589.8G1320 W
XGYT10-BLB-40WT10321199.4G1340 W
XGYT12-BLB-20WT1238589.8G1320 W
XGYT12-BLB-40WT12381199.4G1340 W
XGYPLS-5W-BLBPL-S1285G23 / 2G75 W
XGYPLS-7W-BLBPL-S12115G23 / 2G77 W
XGYPLS-9W-BLBPL-S12145G23 / 2G79 W
XGYPLS-11W-BLBPL-S12215G23 / 2G711 W
XGYPLS-13W-BLBPL-S12155GX23 / 2G713 W
XGYPLL-18W-BLBPL-L182252G1118 W
XGYPLL-24W-BLBPL-L183202G1124 W
XGYPLL-55W-BLBPL-L185352G1155 W
XGYPLL-36W-BLBPL-L184152G1136 W

Product Description

Product Details

Product Construction

The lamp combines a UV-A phosphor system with a black-glass envelope that absorbs most visible output. Straight T5, T8, T10 and T12 versions use bi-pin end caps, while PL-S and PL-L versions fold the discharge tube into a compact plug-in format.

Selection & Installation Notes

Select the lamp by physical form, tube diameter, overall length and holder interface, then confirm the rated electrical specification and compatible external control gear for the final order reference. Plug-in base options require project confirmation because different holder interfaces are not interchangeable. Compare adjacent products in our UV-A and blacklight lamp range.

Recommended Application

Applications

  • Document Fluorescence Viewers: Provides UV-A/BLB illumination in compatible equipment used to reveal fluorescent document features.
  • Laboratory Fluorescence Viewing: Supports enclosed laboratory viewing equipment designed around a 365 nm blacklight source.
  • Process Inspection Equipment: Excites fluorescent markers in compatible indoor inspection systems and viewing stations.
  • Indoor Blacklight Fixtures: Serves replacement and OEM fixture programs that use straight or compact fluorescent blacklight lamps.
Keep
in touch
  • No.5 Fenghuang Road Qianjiang Industrial Area Dingqiao Town Haining Zhejiang 314413 China
  • +86-18358315743
  • R.KOO@NEW-LIGHTS.COM

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

By submitting this form, you ask New Lights Lighting Technology Co., Ltd. to use the information you provide to respond to your inquiry and manage related business communications. See our Privacy Policy. Optional marketing emails require the separate choice below.

Facebook Youtube Linkedin Instagram

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

How should I choose the correct UV-A/BLB lamp format?

Match the physical lamp form, tube diameter, overall length and holder interface first. Then confirm the rated electrical specification and external control gear for the final order reference.

What is the difference between this BLB lamp and a germicidal lamp?

This family is a 365 nm UV-A blacklight source with a black-glass envelope. It is not a UV-C germicidal lamp and should not be selected for disinfection.

Does the lamp authenticate banknotes or documents by itself?

No. It provides UV-A/BLB illumination that can reveal fluorescent features. Authentication depends on the complete viewing system, reference features and the procedure used by the operator.

Do these fluorescent lamps require external control gear?

Yes. Use compatible fluorescent control gear and the holder specified for the selected lamp configuration.

Are the plug-in base options interchangeable?

No. Confirm the exact plug-in base and holder interface for the order because different base configurations are not interchangeable.

Which product certifications are listed for this family?

The exact official product page lists CE and RoHS. Confirm the applicable certificate file for the ordered model and destination market.
