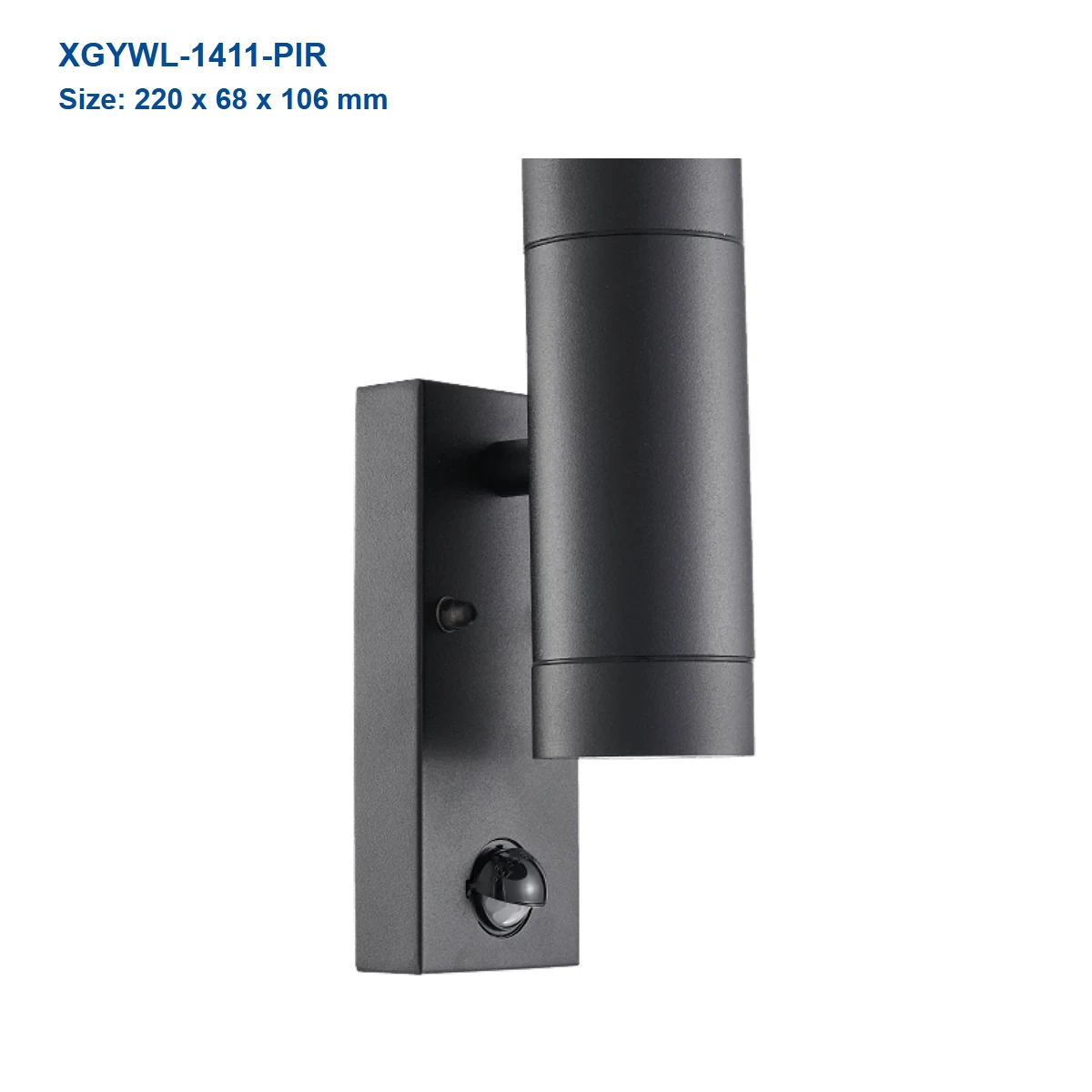

IP44 PIR GU10 Wall Light
- Motion-Triggered Entry Lighting: The PIR version responds to movement along approach routes.
- Opposed Lamp Positions: One GU10 position at each end supports light from both ends of the vertical body.
- Clear Sensor Field: The sensor window sits below the main housing in the intended mounting orientation.
- Compact Wall Footprint: The narrow vertical form keeps two lamp positions and the sensor in one assembly.
| Dimensions | 220 × 68 × 106 mm |
|---|---|
| Lamp Positions | GU10 × 2 |
| Control | PIR motion sensor |
| Specified CCT | 3000 K |
|---|---|
| Electrical / Protection | PF 0.5 / IP44 / Class I |
Technical Specifications
Model Specifications
| Model | Dimensions | Lamp Configuration | Control | Specified CCT | PF | Protection |
|---|---|---|---|---|---|---|
| XGYWL-1411-PIR | 220 x 68 x 106 mm | GU10 x 2 | PIR motion sensor | 3000 K | 0.5 | IP44, Class I |
Product Description
Product Details
Product Construction
The 220 × 68 × 106 mm wall fitting uses two GU10 lampholders and PIR control. Electrical selection data are 3000 K specified CCT, PF 0.5, IP44 and Class I.
Selection & Installation Notes
Confirm whether the two GU10 lamps are included and select compatible lamps before ordering. Maintain the intended wall orientation, Class I electrical arrangement and IP44 enclosure during installation. Detection distance, hold time and adjustment ranges are not specified and require project confirmation. Compare related products in our wall light housings range.
Recommended Application
Applications

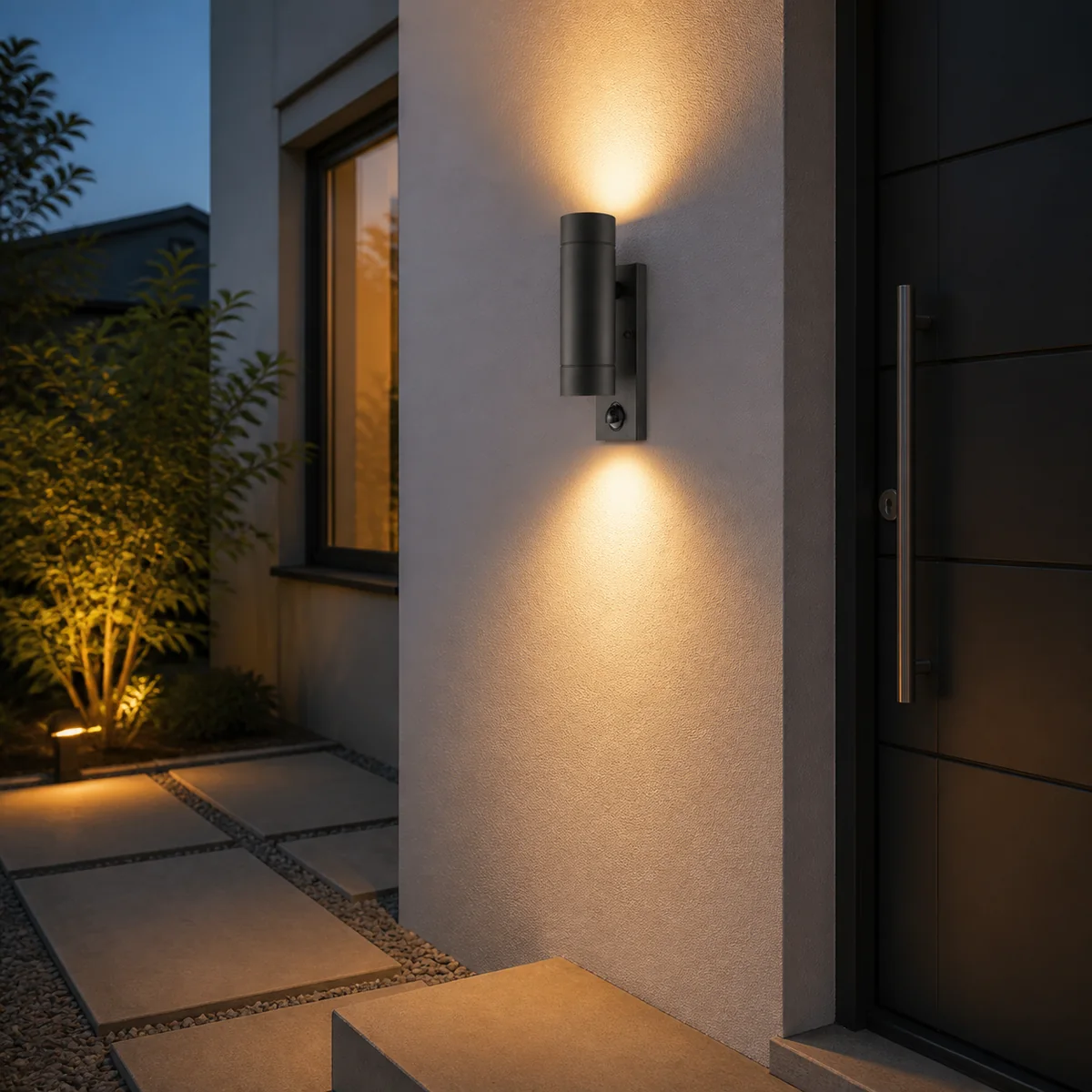

- Sheltered Entrances: Provides motion-triggered wall lighting beside exterior doorways and approach routes.
- Covered Walkways: Adds sensor-controlled light along protected exterior wall sections.
- Garage Access: Places PIR-controlled wall lighting near pedestrian access points.
- Courtyard Walls: Supports dual-ended wall lighting where the sensor retains an open detection field.
