External-Driver T5/T6 LED Tubes
- External Driver Architecture: Locating the driver outside the tube separates the electronic control from the slim lamp body.
- Paired T5 and T6 Range: Each listed length is available in both a 16 mm T5 body and a 19 mm T6 body.
- Wide Tubular Distribution: A 320-degree beam supports broad linear illumination from compatible fixtures.
- High-CRI Options: CRI selections extend from 70 to 97 for different color-rendering requirements.
- Defined Service Rating: The series lists a 25,000-hour rated lifetime with a two-year warranty.
| Tube Formats | T5 Dia. 16 mm / T6 Dia. 19 mm |
|---|---|
| Length & Rated Power | L 288-1449 mm / 5-22 W |
| Replacement Range | 8-35 W fluorescent equivalent |
| Input / Power Factor | S: AC 180-265 V / PF >0.5; U: AC 85-265 V / PF >0.9 |
|---|---|
| Light Options | 80-150 lm/W; 3000-8000 K; CRI 70 / 80 / 90 / 95 / 97 |
| Construction & Connection | Glass + PET; G5 PC or aluminum caps; single- or double-ended input |
Technical Specifications
Model Specifications
| Model No. | Tube | Dimensions D x L (mm) | Rated / EqV. | Input / PF | Efficacy | CCT | CRI |
|---|---|---|---|---|---|---|---|
| XGYT5B301ED-E5 | T5 | 16 x 288 | 5 W / 8 W | S: 180-265 V / >0.5; U: 85-265 V / >0.9 | 80-150 lm/W | 3000-8000 K | 70 / 80 / 90 / 95 / 97 |
| XGYT6B301ED-E5 | T6 | 19 x 288 | 5 W / 8 W | S: 180-265 V / >0.5; U: 85-265 V / >0.9 | 80-150 lm/W | 3000-8000 K | 70 / 80 / 90 / 95 / 97 |
| XGYT5B302ED-E9 | T5 | 16 x 549 | 9 W / 14 W | S: 180-265 V / >0.5; U: 85-265 V / >0.9 | 80-150 lm/W | 3000-8000 K | 70 / 80 / 90 / 95 / 97 |
| XGYT6B302ED-E9 | T6 | 19 x 549 | 9 W / 14 W | S: 180-265 V / >0.5; U: 85-265 V / >0.9 | 80-150 lm/W | 3000-8000 K | 70 / 80 / 90 / 95 / 97 |
| XGYT5B303ED-E12 | T5 | 16 x 849 | 12 W / 21 W | S: 180-265 V / >0.5; U: 85-265 V / >0.9 | 80-150 lm/W | 3000-8000 K | 70 / 80 / 90 / 95 / 97 |
| XGYT6B303ED-E12 | T6 | 19 x 849 | 12 W / 21 W | S: 180-265 V / >0.5; U: 85-265 V / >0.9 | 80-150 lm/W | 3000-8000 K | 70 / 80 / 90 / 95 / 97 |
| XGYT5B304aED-E16 | T5 | 16 x 1000 | 16 W / 26 W | S: 180-265 V / >0.5; U: 85-265 V / >0.9 | 80-150 lm/W | 3000-8000 K | 70 / 80 / 90 / 95 / 97 |
| XGYT6B304aED-E16 | T6 | 19 x 1000 | 16 W / 26 W | S: 180-265 V / >0.5; U: 85-265 V / >0.9 | 80-150 lm/W | 3000-8000 K | 70 / 80 / 90 / 95 / 97 |
| XGYT5B304ED-E18 | T5 | 16 x 1149 | 18 W / 28 W | S: 180-265 V / >0.5; U: 85-265 V / >0.9 | 80-150 lm/W | 3000-8000 K | 70 / 80 / 90 / 95 / 97 |
| XGYT6B304ED-E18 | T6 | 19 x 1149 | 18 W / 28 W | S: 180-265 V / >0.5; U: 85-265 V / >0.9 | 80-150 lm/W | 3000-8000 K | 70 / 80 / 90 / 95 / 97 |
| XGYT5B305ED-E22 | T5 | 16 x 1449 | 22 W / 35 W | S: 180-265 V / >0.5; U: 85-265 V / >0.9 | 80-150 lm/W | 3000-8000 K | 70 / 80 / 90 / 95 / 97 |
| XGYT6B305ED-E22 | T6 | 19 x 1449 | 22 W / 35 W | S: 180-265 V / >0.5; U: 85-265 V / >0.9 | 80-150 lm/W | 3000-8000 K | 70 / 80 / 90 / 95 / 97 |
All listed models use a glass-and-PET body, G5 caps and single- or double-ended input. PC and aluminum cap constructions, clear or frosted diffusion finishes and dimmable versions are available by confirmed configuration. The series uses SMD2835 LEDs with a 320-degree beam and lists a 25,000-hour rated lifetime with a two-year warranty.
Product Description
Product Details
Product Construction

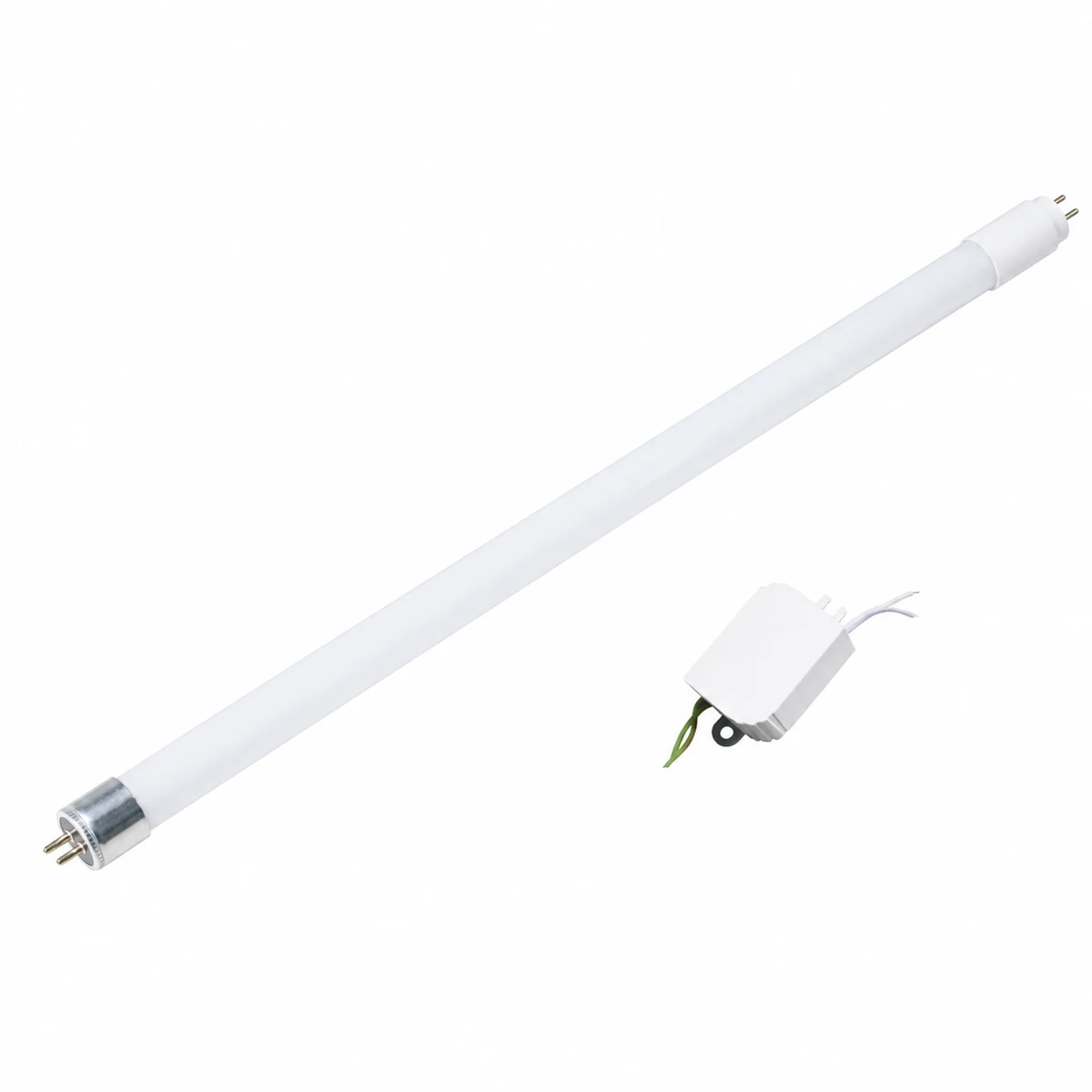

The lamp combines SMD2835 LEDs with a glass-and-PET tube body, G5 bi-pin caps and a separate external IC driver. Clear or frosted diffusion finishes and fire-resistant PC or aluminum cap constructions provide the visible build options.
Selection & Installation Notes
Select the exact model by diameter, length, rated power, S or U input version, power factor, cap construction, diffusion finish and single- or double-ended connection. For fluorescent-fixture conversion, remove the existing ballast and install the specified external-driver system according to its supplied wiring diagram. Dimmable versions are available only when configured for the order.
Recommended Application
Applications

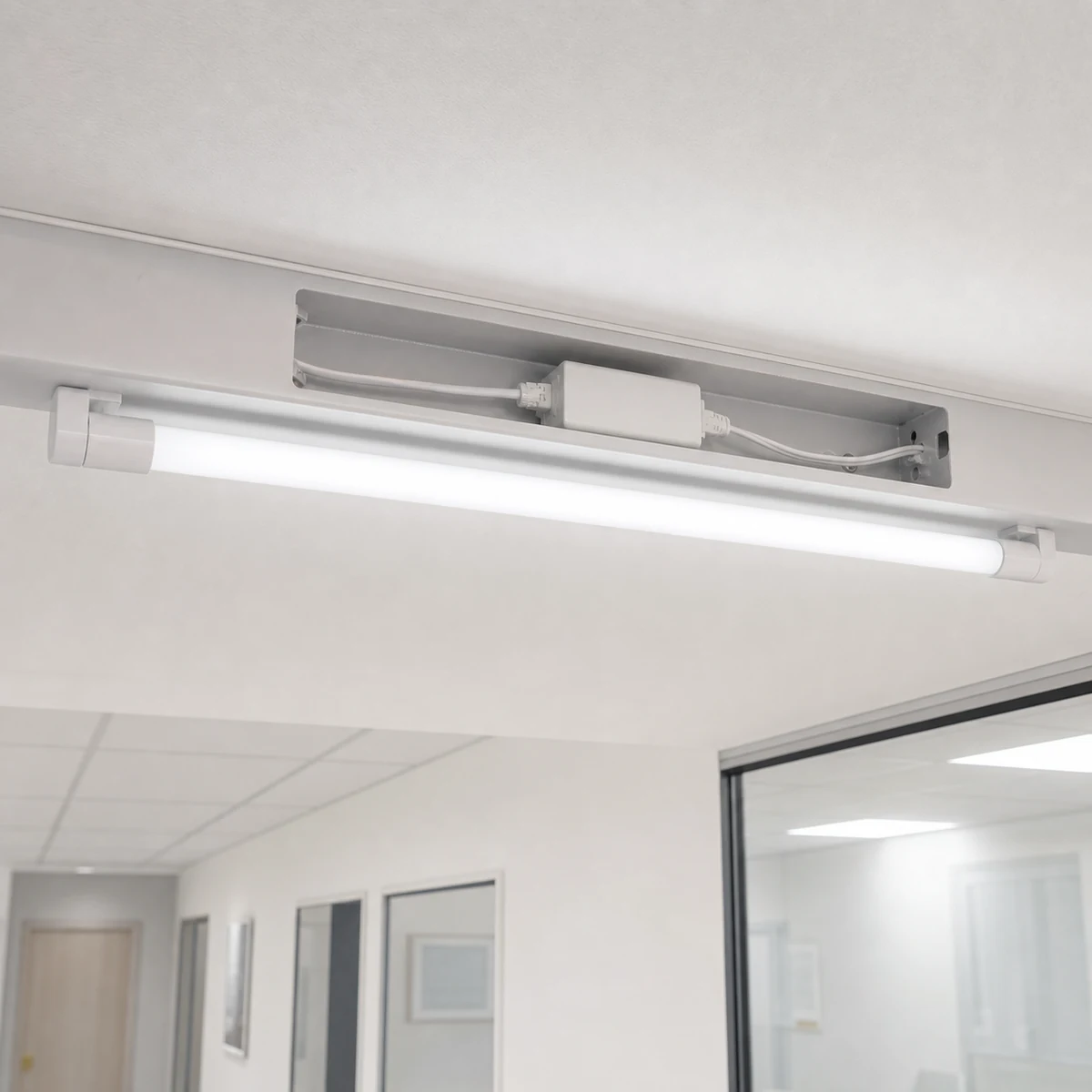

- Offices and Homes: Provide slim linear general lighting in offices, corridors and residential utility spaces.
- Retail Stores: Illuminate supermarket aisles, shelving zones and shopping areas with continuous linear light.
- Hotels and Restaurants: Use compact linear fixtures for back-of-house, corridor and service-area lighting.
- Schools and Healthcare: Provide general indoor illumination in classrooms, circulation areas and non-procedure support spaces.
- Parking and Garages: Install the matched tube-and-driver system in protected indoor parking and garage fixtures.
