LED Small Panel Light – Aluminium

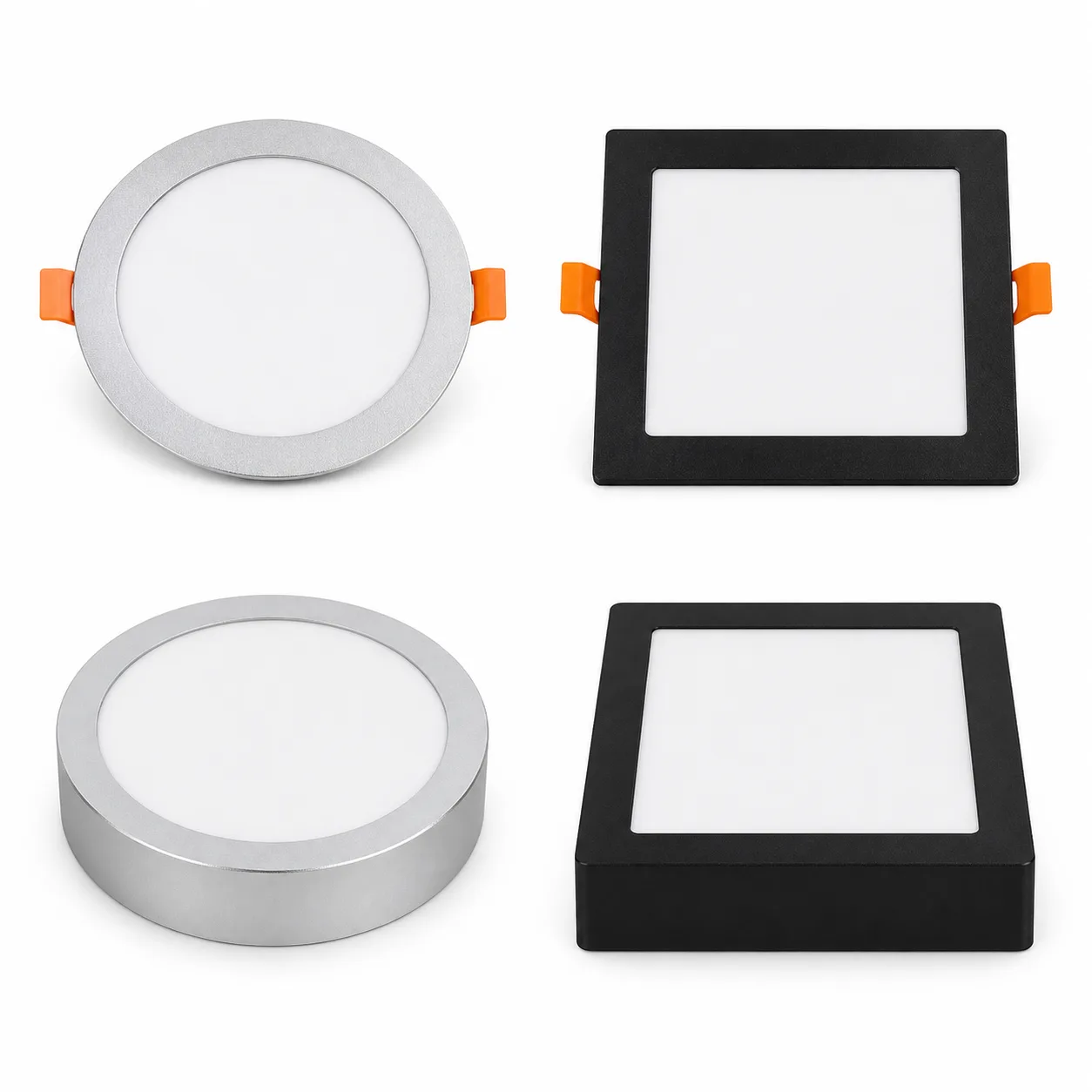

- Surface and Recessed Families: Separate housings support mounting below the ceiling or within a prepared opening.
- Round and Square Housings: Two trim shapes cover different ceiling layouts and interior details.
- 3-24 W Model Range: Multiple fixture sizes provide dedicated ratings across compact lighting applications.
- White or Silver Frames: Two listed finishes support coordination with the surrounding ceiling.
| Mounting | Surface / recessed |
|---|---|
| Shapes | Round / square |
| Rated power | 3–24 W by configuration |
| Housing depth | 28 mm surface / 12 mm recessed |
|---|---|
| CCT | 3000–6500 K |
| Frame finish | White / silver |
Technical Specifications
Model Specifications
| Model No. | Mounting | Shape | Outer Dimensions (mm) | Rated Power | Efficacy |
|---|---|---|---|---|---|
| XGYSPLSR-ALU-E6 | Surface | Round | Ø120×28 | 6 W | 60 lm/W |
| XGYSPLSS-ALU-E6 | Surface | Square | 120×120×28 | 6 W | 60 lm/W |
| XGYSPLSR-ALU-E12 | Surface | Round | Ø170×28 | 12 W | 65 lm/W |
| XGYSPLSS-ALU-E12 | Surface | Square | 172×172×28 | 12 W | 65 lm/W |
| XGYSPLSR-ALU-E18 | Surface | Round | Ø223×28 | 18 W | 65 lm/W |
| XGYSPLSS-ALU-E18 | Surface | Square | 220×220×28 | 18 W | 65 lm/W |
| XGYSPLSR-ALU-E24 | Surface | Round | Ø300×28 | 24 W | 60 lm/W |
| XGYSPLSS-ALU-E24 | Surface | Square | 295×295×28 | 24 W | 60 lm/W |
| XGYSPLRR-ALU-E3 | Recessed | Round | Ø85×12 | 3 W | 50 lm/W |
| XGYSPLRS-ALU-E3 | Recessed | Square | 85×85×12 | 3 W | 50 lm/W |
| XGYSPLRR-ALU-E4 | Recessed | Round | Ø109×12 | 4 W | 60 lm/W |
| XGYSPLRS-ALU-E4 | Recessed | Square | 105×105×12 | 4 W | 60 lm/W |
| XGYSPLRR-ALU-E6 | Recessed | Round | Ø120×12 | 6 W | 60 lm/W |
| XGYSPLRS-ALU-E6 | Recessed | Square | 120×120×12 | 6 W | 60 lm/W |
| XGYSPLRR-ALU-E9 | Recessed | Round | Ø145×12 | 9 W | 60 lm/W |
| XGYSPLRS-ALU-E9 | Recessed | Square | 145×145×12 | 9 W | 60 lm/W |
| XGYSPLRR-ALU-E12 | Recessed | Round | Ø172×12 | 12 W | 60 lm/W |
| XGYSPLRS-ALU-E12 | Recessed | Square | 172×172×12 | 12 W | 60 lm/W |
| XGYSPLRR-ALU-E15 | Recessed | Round | Ø192×12 | 15 W | 60 lm/W |
| XGYSPLRS-ALU-E15 | Recessed | Square | 192×192×12 | 15 W | 60 lm/W |
| XGYSPLRR-ALU-E18 | Recessed | Round | Ø220×12 | 18 W | 55 lm/W |
| XGYSPLRS-ALU-E18 | Recessed | Square | 220×220×12 | 18 W | 55 lm/W |
| XGYSPLRR-ALU-E24 | Recessed | Round | Ø300×12 | 24 W | 55 lm/W |
| XGYSPLRS-ALU-E24 | Recessed | Square | 300×300×12 | 24 W | 55 lm/W |
Product Description
Product Details
Product Construction
The aluminium family separates surface-mounted and recessed housings into round and square models. Surface versions use a 28 mm housing, while recessed versions use a 12 mm optical body with a separate ceiling cutout requirement.
Selection & Installation Notes
Choose the mounting method and trim shape first, then match the exact outer dimensions for the selected model. For recessed versions, confirm the approved cutout, clip clearance and driver space before ceiling work. Specify the ordered wattage, CCT, frame finish and driver before sampling. For related compact ceiling formats, compare our compact LED panels.
Recommended Application
Applications

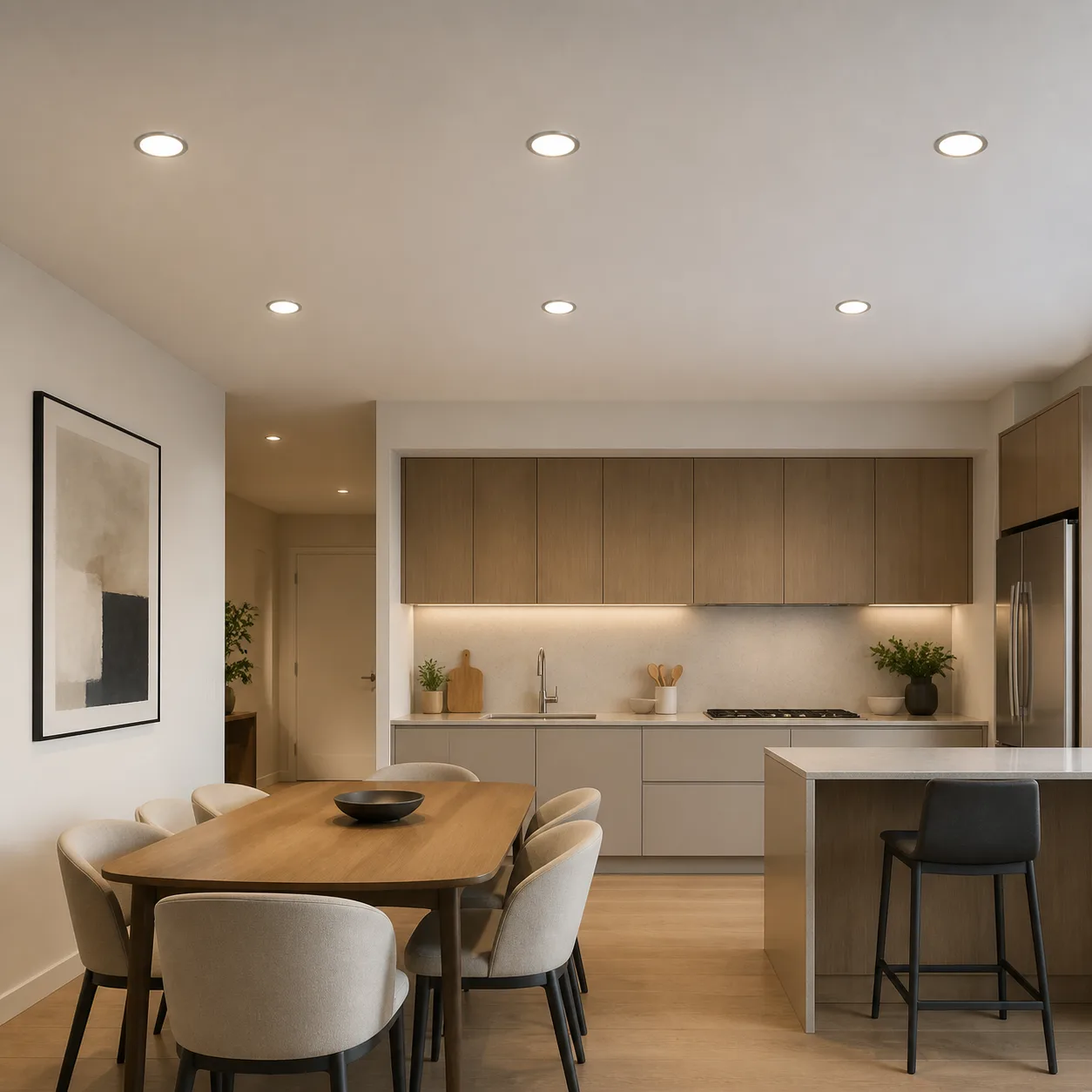

- Kitchens And Dining Areas: choose round or square trim to coordinate with the interior and ceiling layout.
- Apartment Corridors And Bedrooms: use repeated small formats with a consistent CCT and finish.
- Small Offices And Reception Areas: select power and mounting according to the ceiling construction and target light level.
- Replacement Projects: confirm outer size, recessed cutout, housing depth, clip clearance and driver space before ordering.
