Recessed LED Small Panel Lights

These recessed LED small panel lights use separate round and square model families for indoor ceiling installations. Confirm the exact model, ceiling opening and complete electrical configuration before ordering.

Wide Light Distribution: A 120-degree beam angle supports broad general illumination.
Separate Product Shapes: Round and square versions use their own model codes and dimensions.
Frame Finish Options: White and silver finishes support different ceiling schemes.
Indoor Ceiling Use: The IP20 configuration is intended for dry indoor installations.

Mounting	Recessed
Input	U: 100-240 V
CCT	3000-6500 K

Color Rendering	Ra70/80
Selection Basis	Match the exact product code to its specified face size and ceiling opening

XGYSPL-S-RI-E3R/S standard round recessed LED small panel, 3 W, face 85 mm, cutout 75 mm

Round side-emission small LED panels installed flush in a dry office corridor ceiling

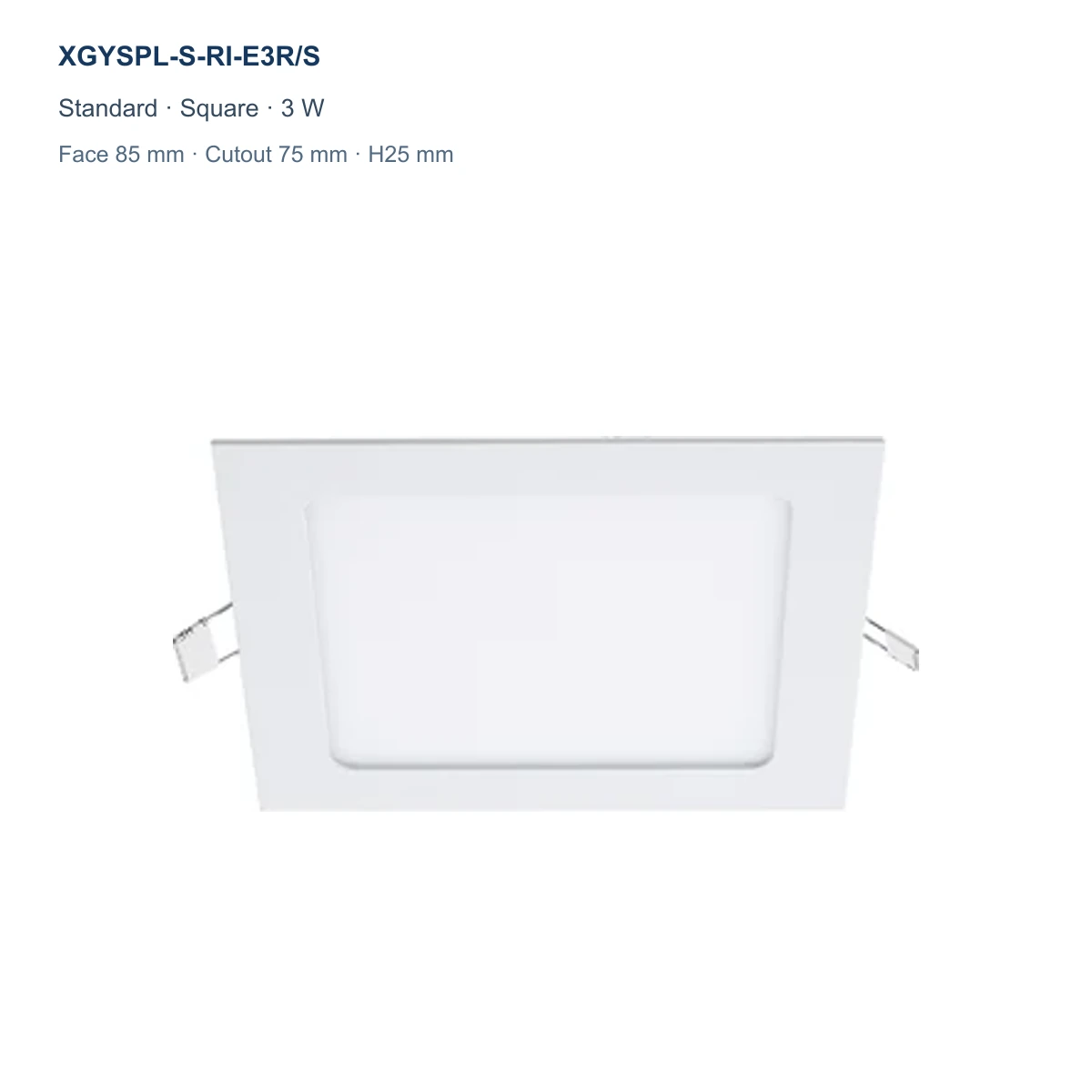

XGYSPL-S-RI-E3R/S standard square recessed LED small panel, 3 W, face 85 mm, cutout 75 mm

XGYSPL-S-RI-E12R/S standard round recessed LED small panel, 12 W, face 170 mm, cutout 155 mm

XGYSPL-S-RI-E12R/S standard square recessed LED small panel, 12 W, face 170 mm, cutout 155 mm

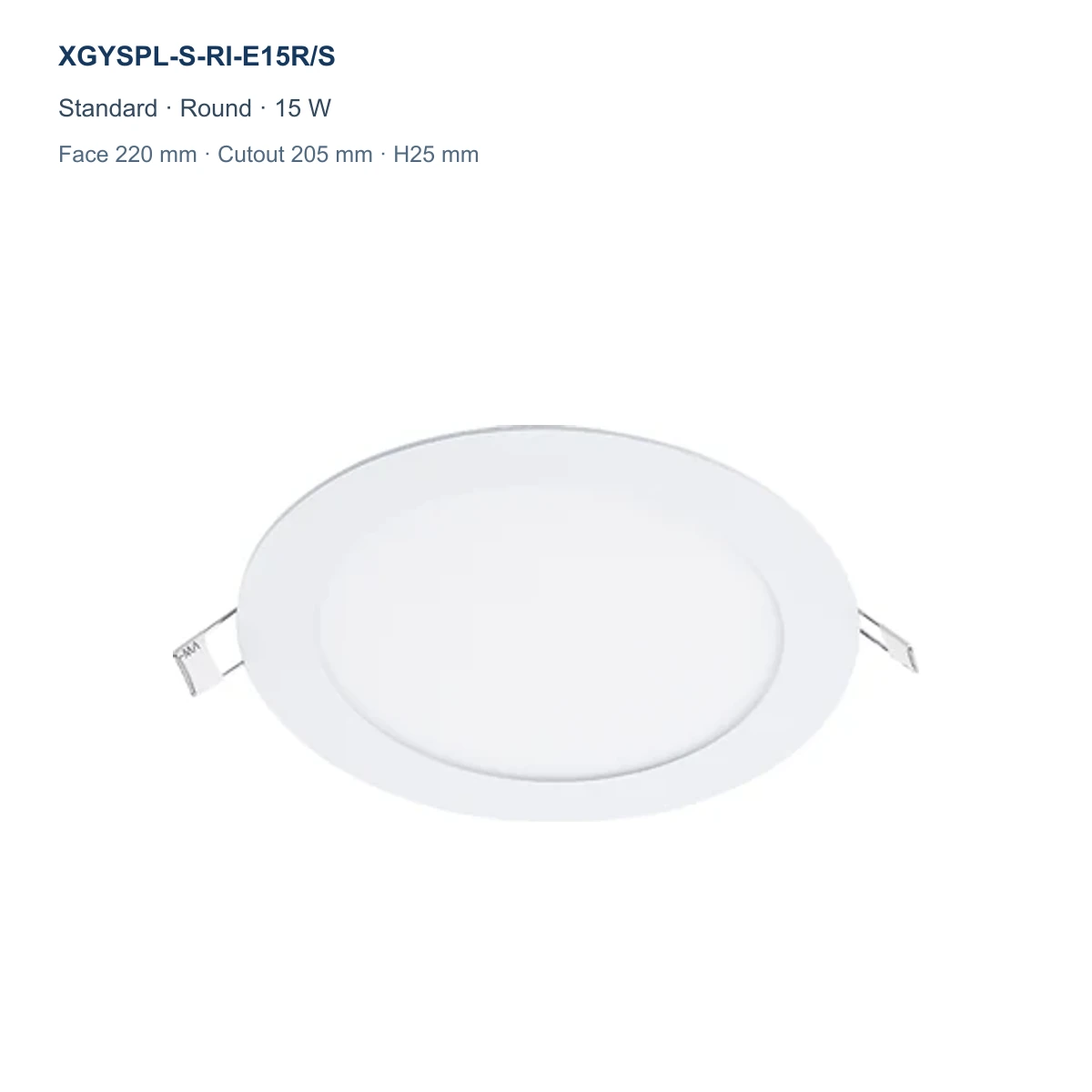

XGYSPL-S-RI-E15R/S standard round recessed LED small panel, 15 W, face 220 mm, cutout 205 mm

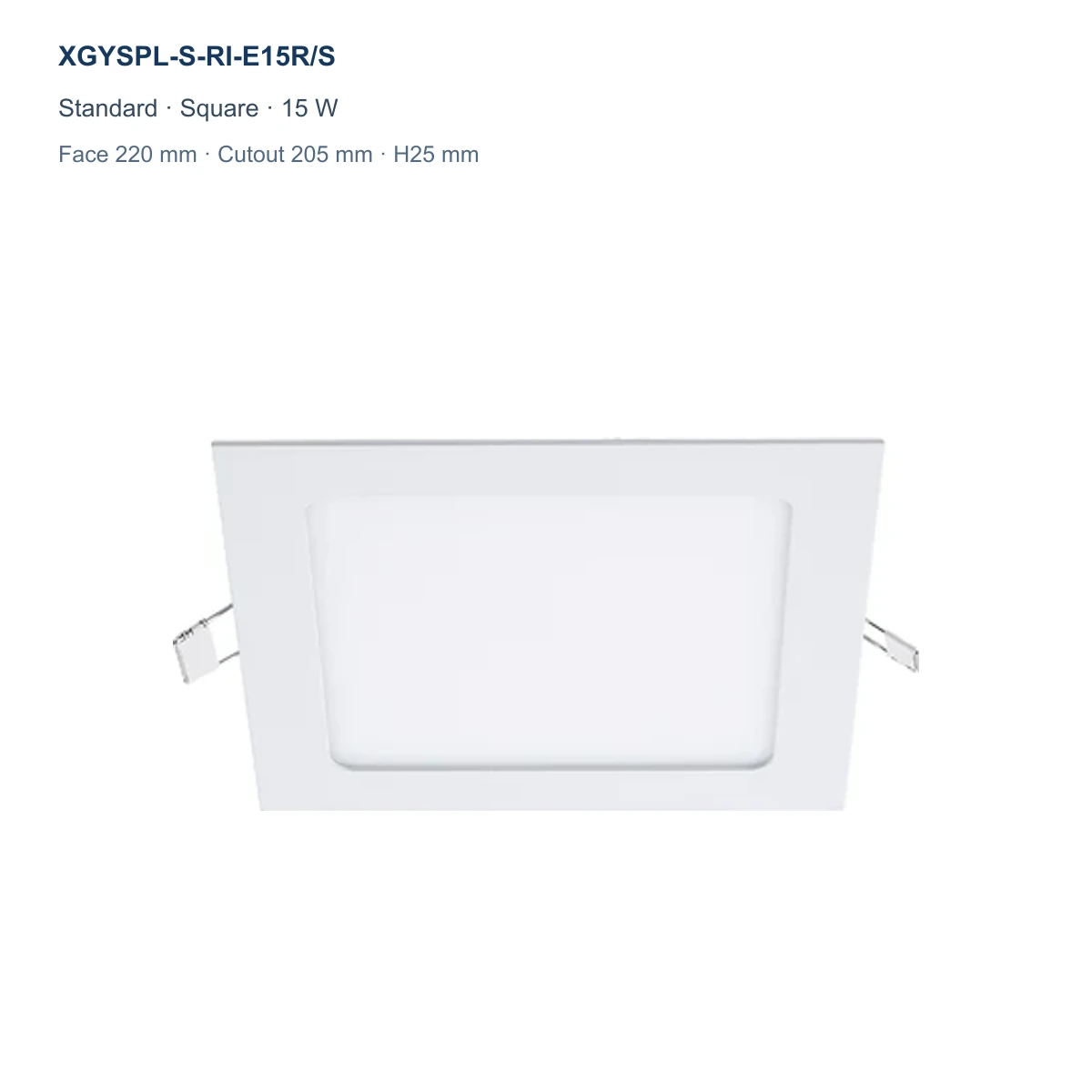

XGYSPL-S-RI-E15R/S standard square recessed LED small panel, 15 W, face 220 mm, cutout 205 mm

XGYSPL-S-RI-E18R/S standard round recessed LED small panel, 18 W, face 225 mm, cutout 205 mm

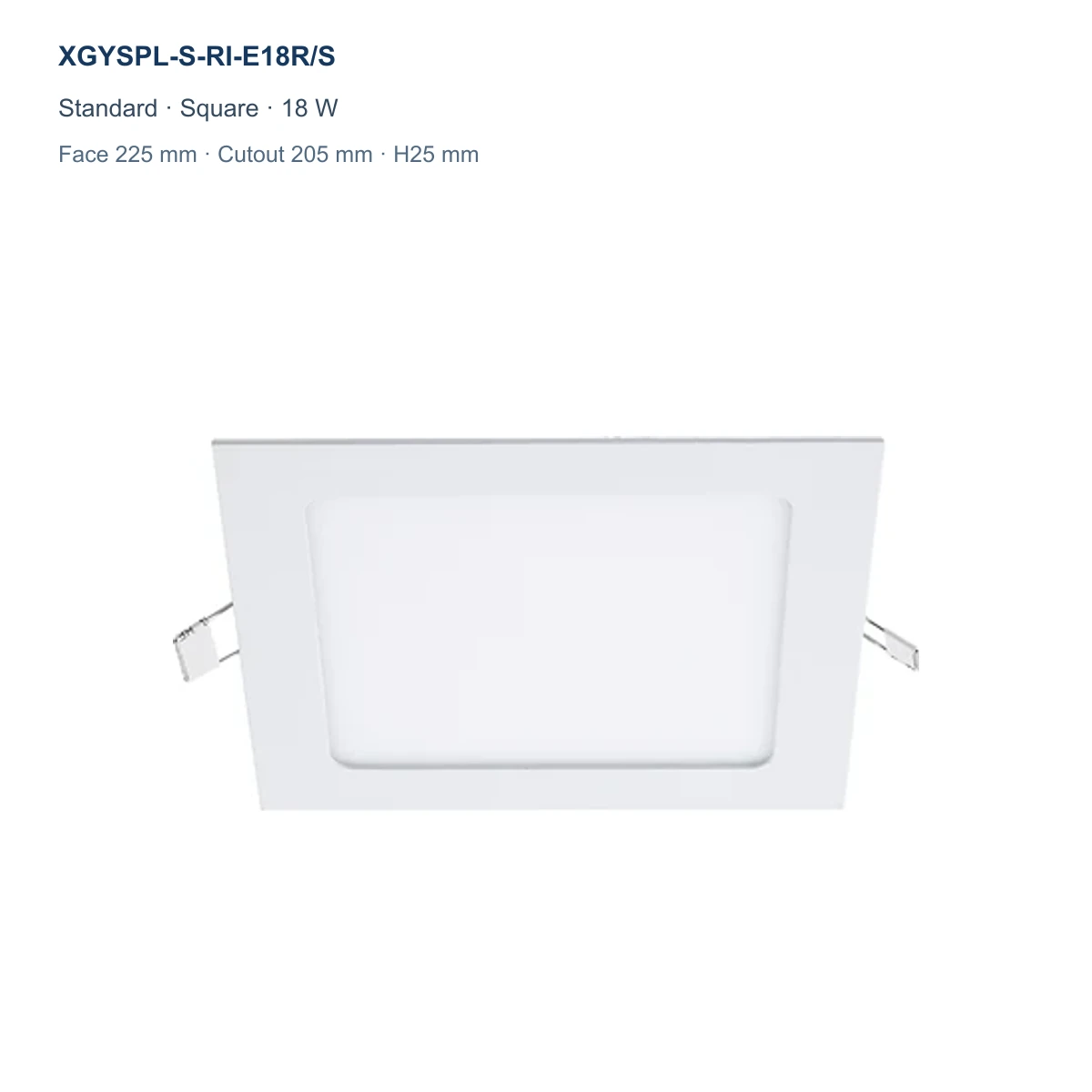

XGYSPL-S-RI-E18R/S standard square recessed LED small panel, 18 W, face 225 mm, cutout 205 mm

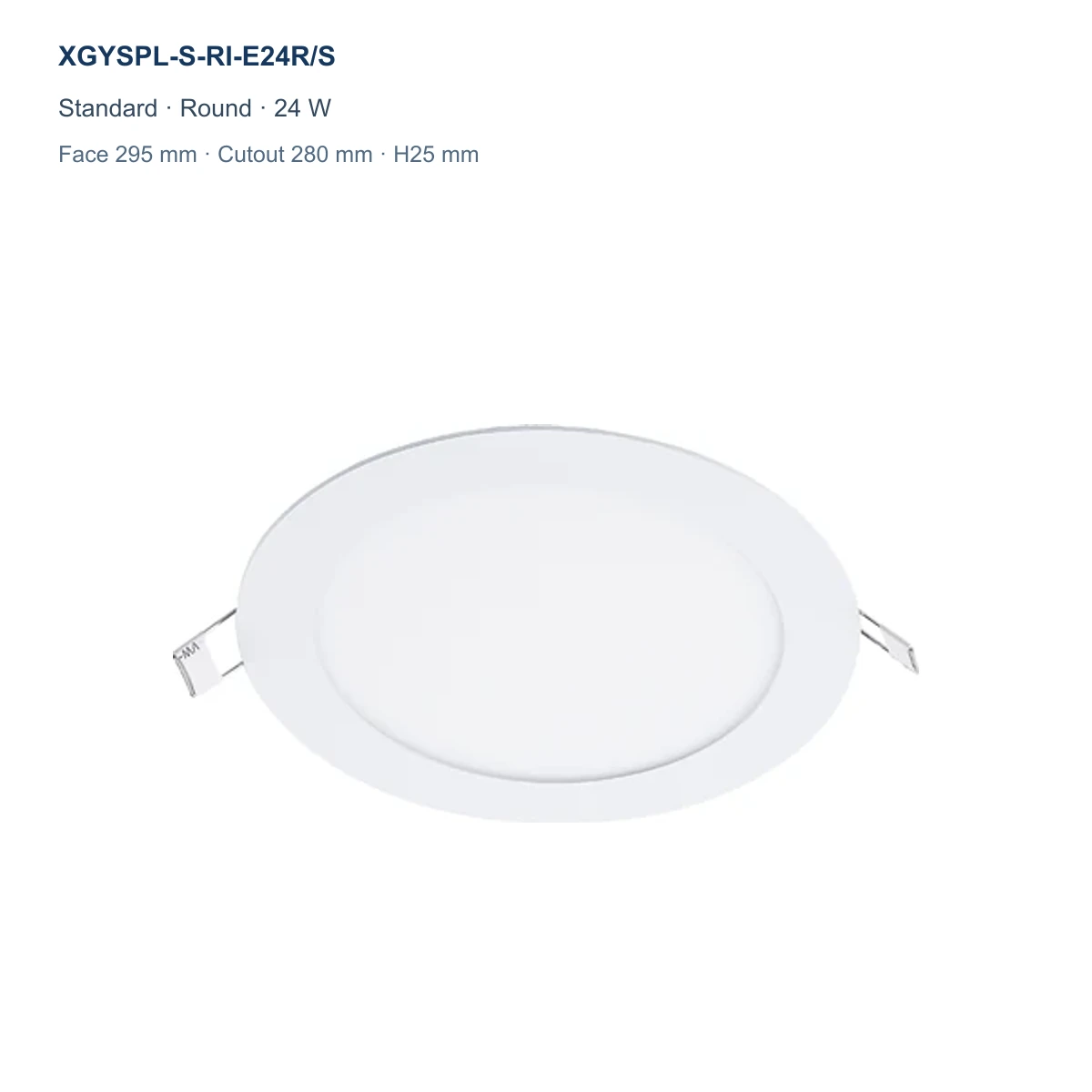

XGYSPL-S-RI-E24R/S standard round recessed LED small panel, 24 W, face 295 mm, cutout 280 mm

XGYSPL-S-RI-E24R/S standard square recessed LED small panel, 24 W, face 295 mm, cutout 280 mm

XGYSPL-S-RI-E30R/S standard round recessed LED small panel, 30 W, face 295 mm, cutout 280 mm

XGYSPL-S-RI-E30R/S standard square recessed LED small panel, 30 W, face 295 mm, cutout 280 mm

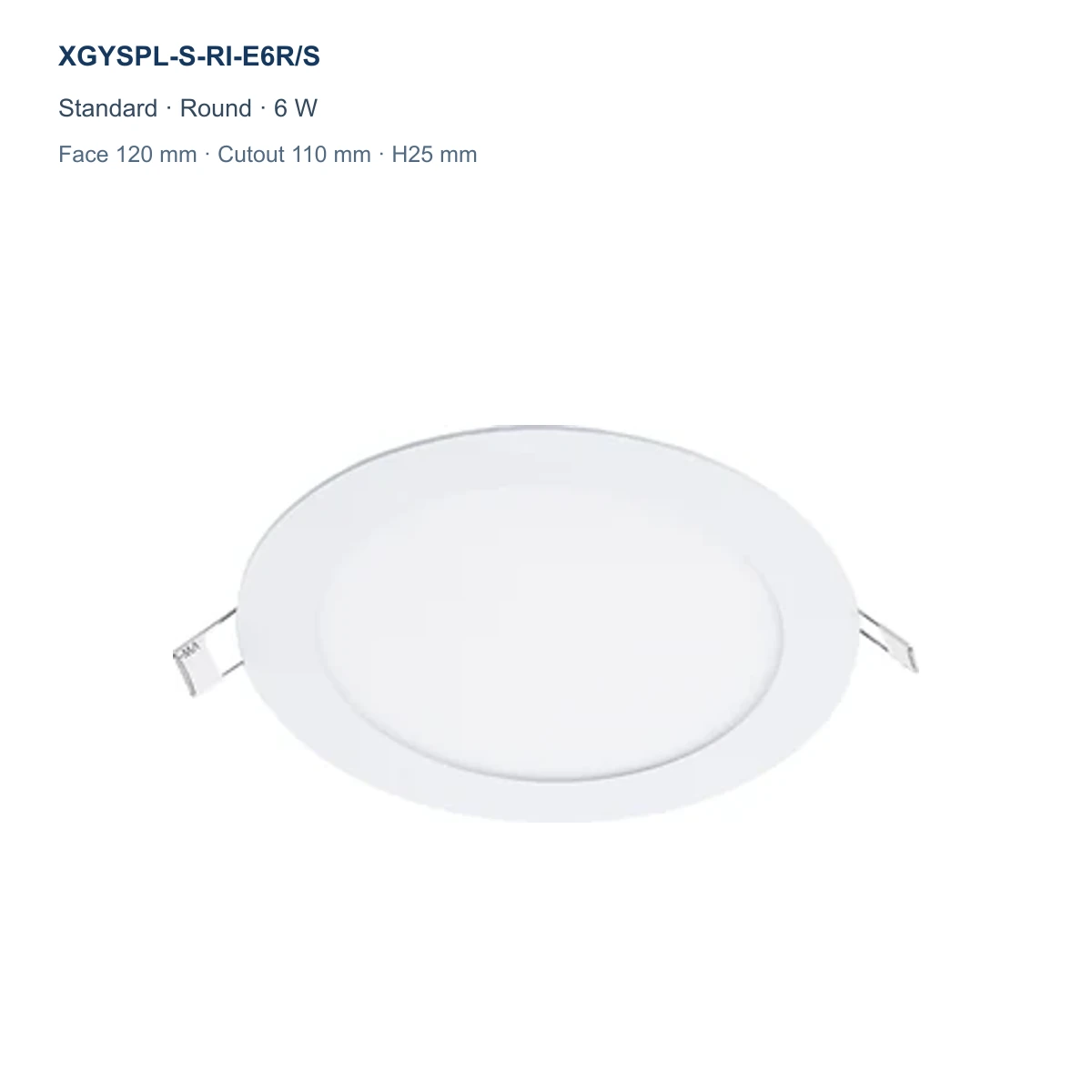

XGYSPL-S-RI-E6R/S standard round recessed LED small panel, 6 W, face 120 mm, cutout 110 mm

XGYSPL-S-RI-E6R/S standard square recessed LED small panel, 6 W, face 120 mm, cutout 110 mm

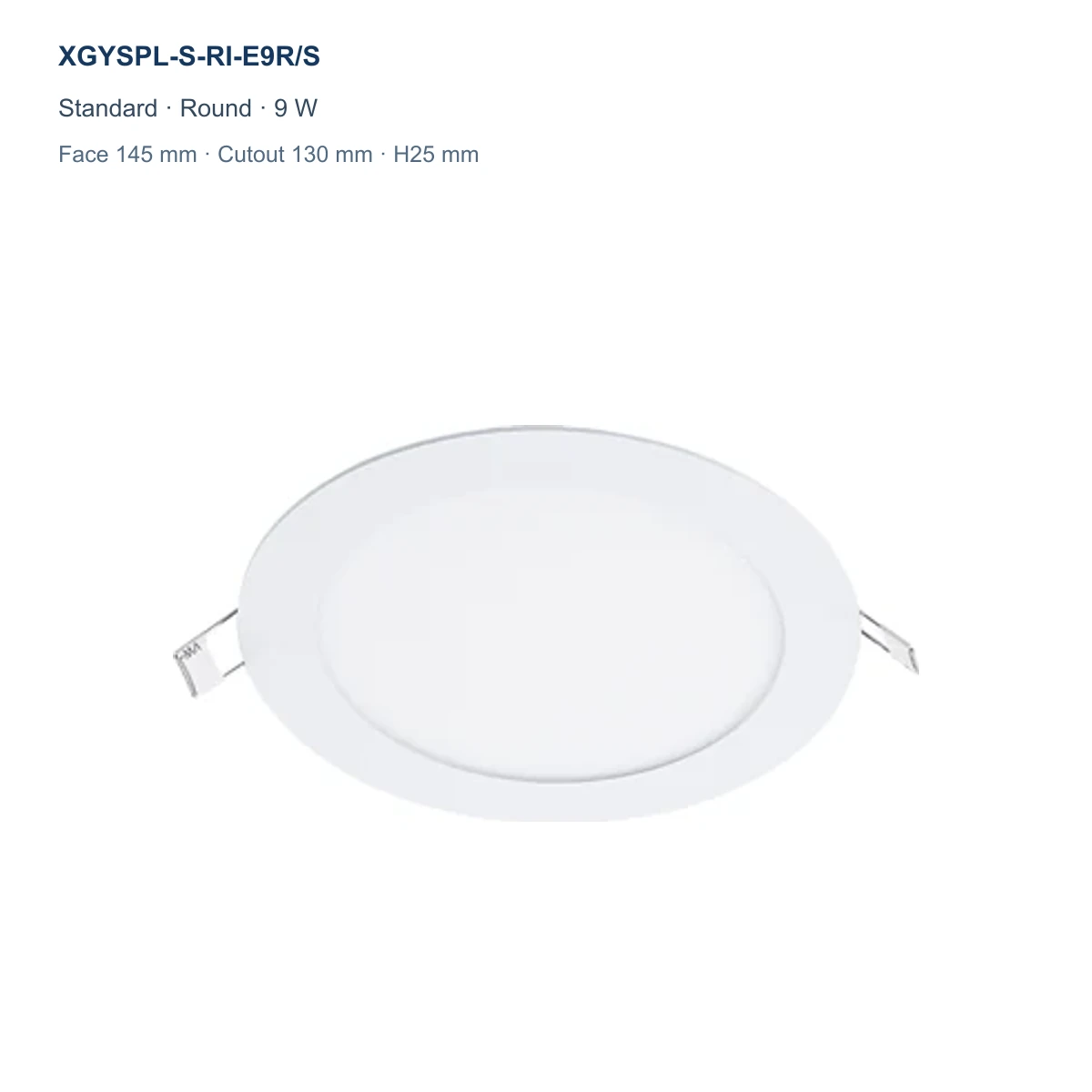

XGYSPL-S-RI-E9R/S standard round recessed LED small panel, 9 W, face 145 mm, cutout 130 mm

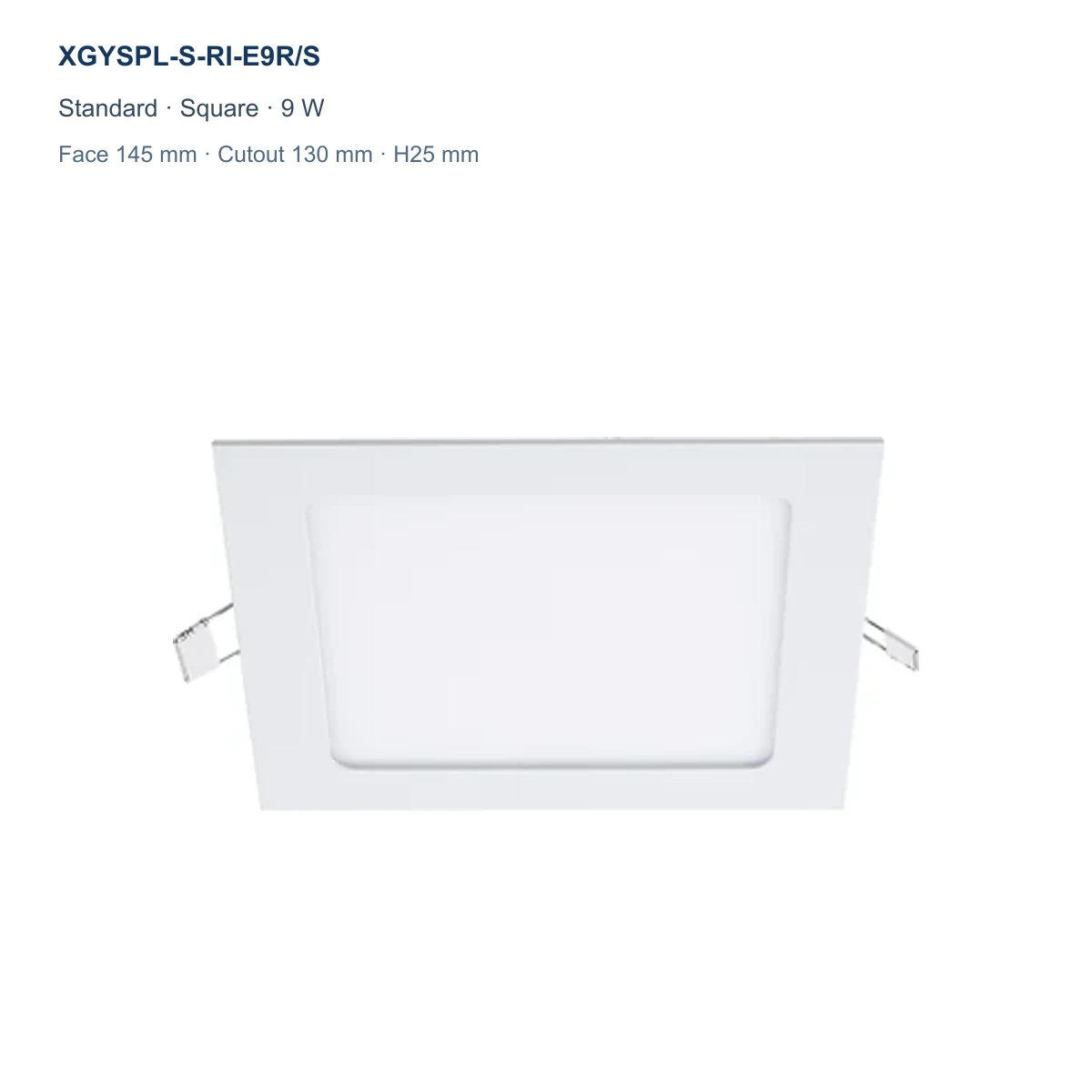

XGYSPL-S-RI-E9R/S standard square recessed LED small panel, 9 W, face 145 mm, cutout 130 mm

XGYSPL-US-RI-E12R/S ultra slim round recessed LED small panel, 12 W, face 145 mm, cutout 125 mm

XGYSPL-US-RI-E12R/S ultra slim square recessed LED small panel, 12 W, face 145 mm, cutout 125 mm

XGYSPL-US-RI-E18R/S ultra slim round recessed LED small panel, 18 W, face 175 mm, cutout 155 mm

XGYSPL-US-RI-E18R/S ultra slim square recessed LED small panel, 18 W, face 175 mm, cutout 155 mm

XGYSPL-US-RI-E24R/S ultra slim round recessed LED small panel, 24 W, face 225 mm, cutout 205 mm

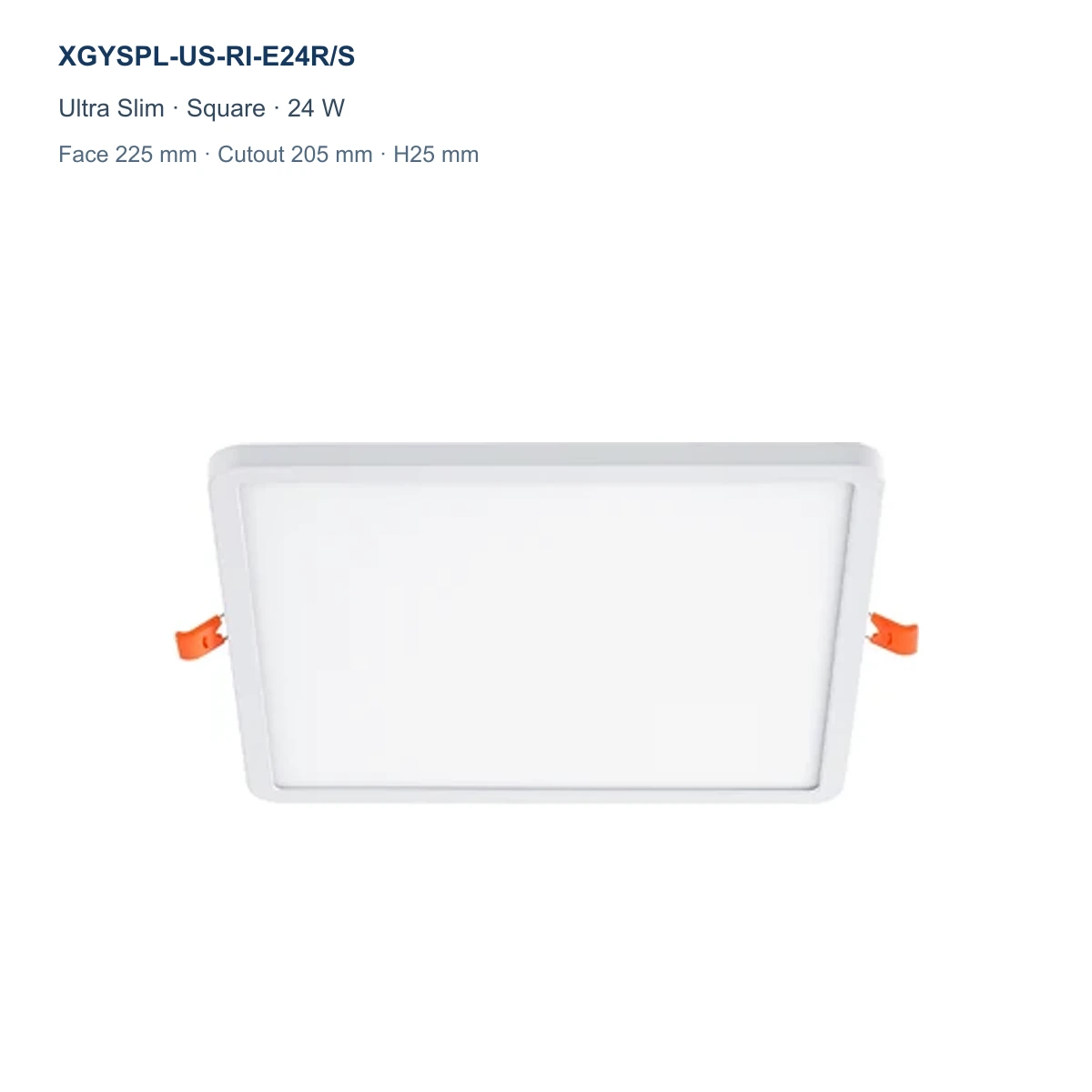

XGYSPL-US-RI-E24R/S ultra slim square recessed LED small panel, 24 W, face 225 mm, cutout 205 mm

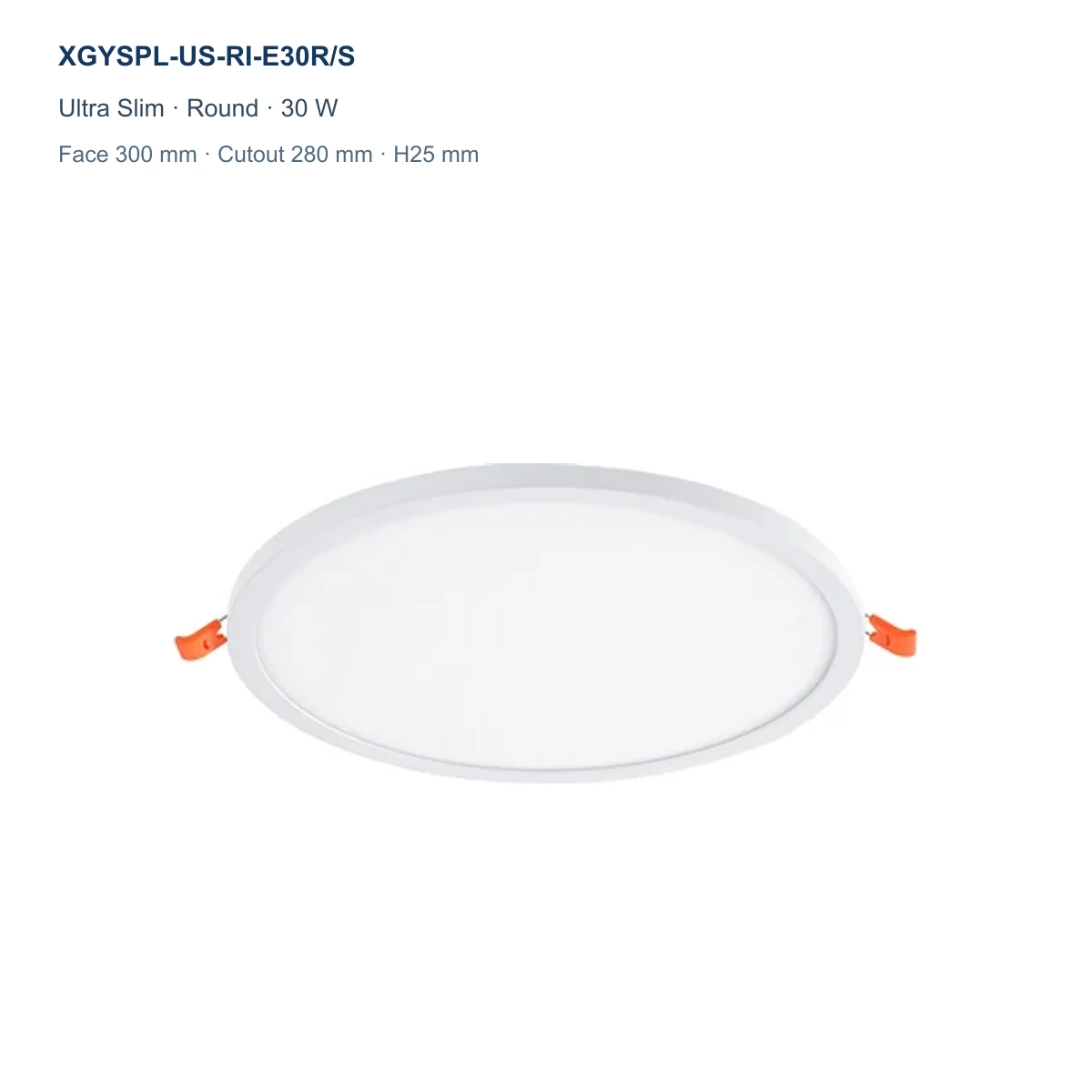

XGYSPL-US-RI-E30R/S ultra slim round recessed LED small panel, 30 W, face 300 mm, cutout 280 mm

XGYSPL-US-RI-E30R/S ultra slim square recessed LED small panel, 30 W, face 300 mm, cutout 280 mm

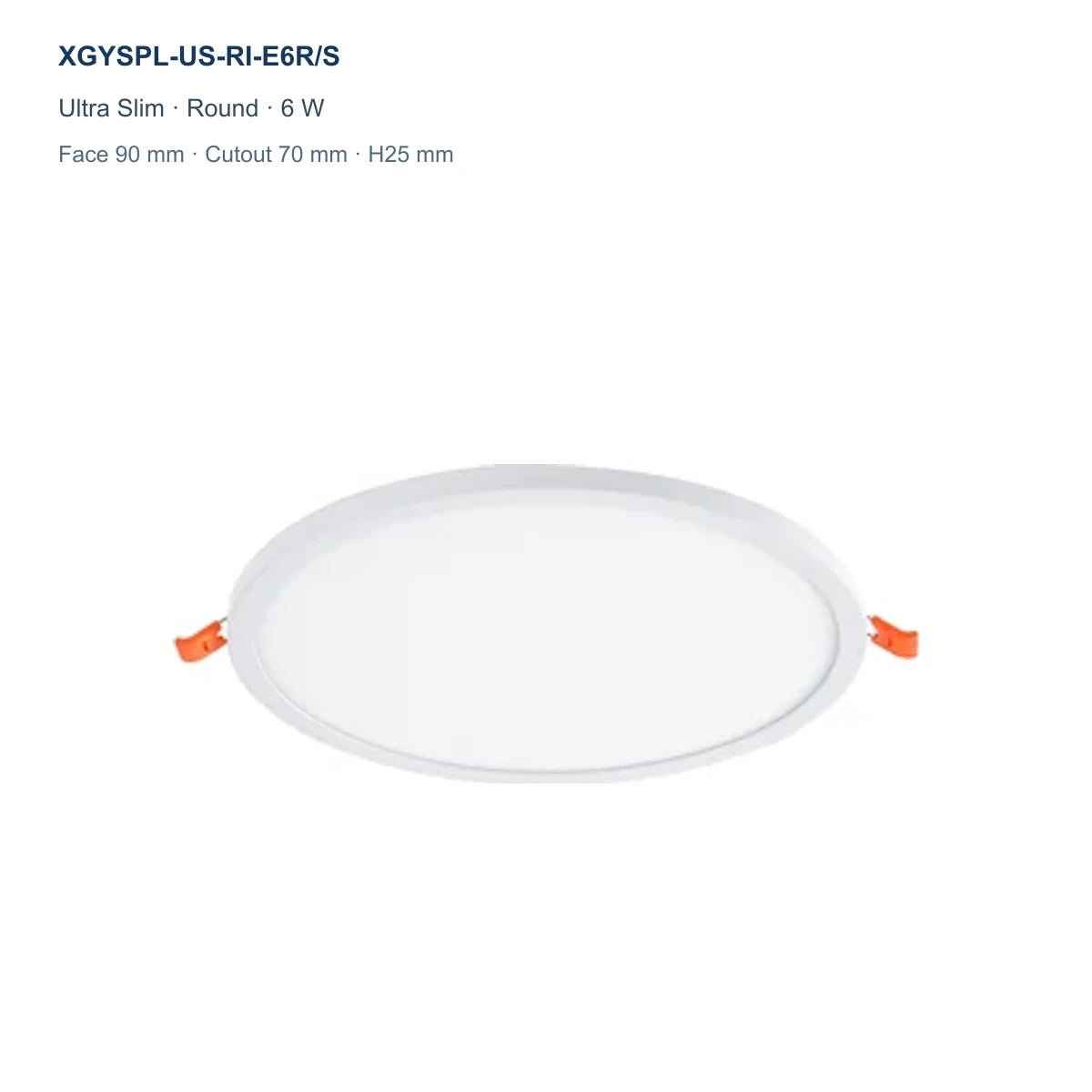

XGYSPL-US-RI-E6R/S ultra slim round recessed LED small panel, 6 W, face 90 mm, cutout 70 mm

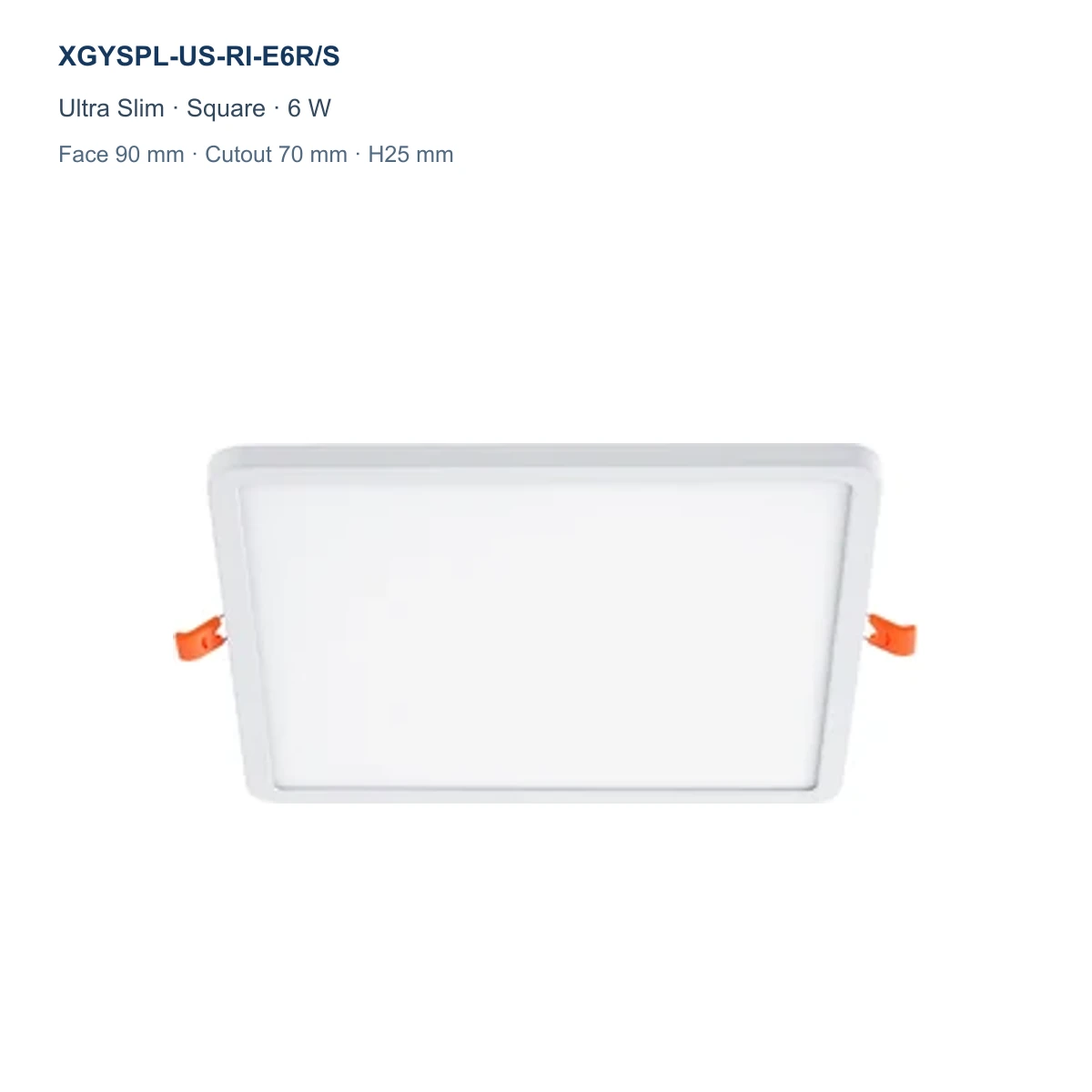

XGYSPL-US-RI-E6R/S ultra slim square recessed LED small panel, 6 W, face 90 mm, cutout 70 mm

XGYSPL-US-RI-E9R/S ultra slim round recessed LED small panel, 9 W, face 120 mm, cutout 100 mm

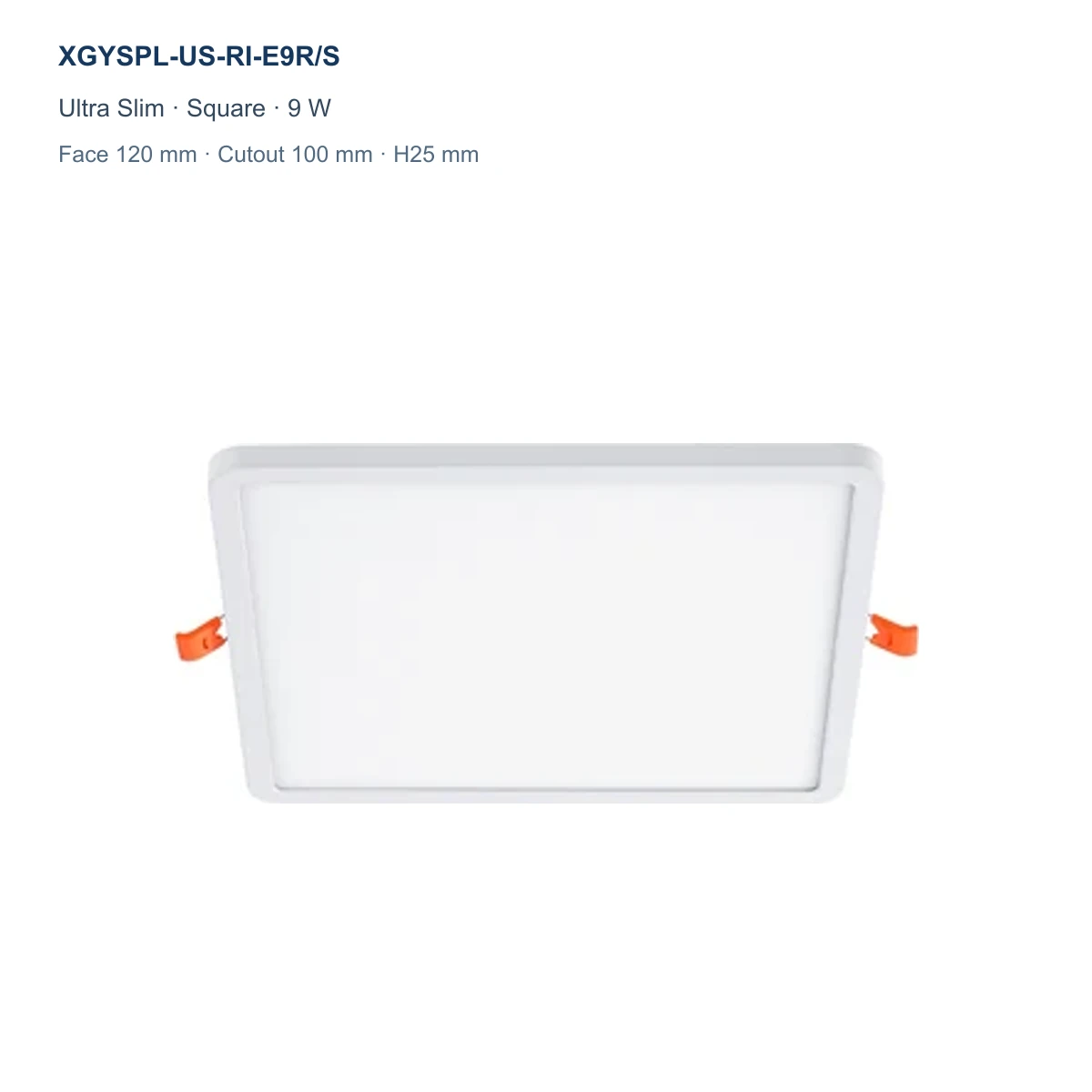

XGYSPL-US-RI-E9R/S ultra slim square recessed LED small panel, 9 W, face 120 mm, cutout 100 mm

Technical Specifications

Model Specifications

Model No.	Series / Finish	Face Size	Cutout	Height	Power	Efficacy	CCT
XGYSPL-S-RI-E3R/S	Standard / White or Silver	85 mm	75 mm	25 mm	3 W	65 lm/W	3000-6500 K
XGYSPL-S-RI-E6R/S	Standard / White or Silver	120 mm	110 mm	25 mm	6 W	70 lm/W	3000-6500 K
XGYSPL-S-RI-E9R/S	Standard / White or Silver	145 mm	130 mm	25 mm	9 W	70 lm/W	3000-6500 K
XGYSPL-S-RI-E12R/S	Standard / White or Silver	170 mm	155 mm	25 mm	12 W	75 lm/W	3000-6500 K
XGYSPL-S-RI-E15R/S	Standard / White or Silver	220 mm	205 mm	25 mm	15 W	75 lm/W	3000-6500 K
XGYSPL-S-RI-E18R/S	Standard / White or Silver	225 mm	205 mm	25 mm	18 W	75 lm/W	3000-6500 K
XGYSPL-S-RI-E24R/S	Standard / White or Silver	295 mm	280 mm	25 mm	24 W	75 lm/W	3000-6500 K
XGYSPL-S-RI-E30R/S	Standard / White or Silver	295 mm	280 mm	25 mm	30 W	75 lm/W	3000-6500 K
XGYSPL-US-RI-E6R/S	Ultra Slim / White	90 mm	70 mm	25 mm	6 W	70 lm/W	3000-6500 K
XGYSPL-US-RI-E9R/S	Ultra Slim / White	120 mm	100 mm	25 mm	9 W	70 lm/W	3000-6500 K
XGYSPL-US-RI-E12R/S	Ultra Slim / White	145 mm	125 mm	25 mm	12 W	75 lm/W	3000-6500 K
XGYSPL-US-RI-E18R/S	Ultra Slim / White	175 mm	155 mm	25 mm	18 W	75 lm/W	3000-6500 K
XGYSPL-US-RI-E24R/S	Ultra Slim / White	225 mm	205 mm	25 mm	24 W	75 lm/W	3000-6500 K
XGYSPL-US-RI-E30R/S	Ultra Slim / White	300 mm	280 mm	25 mm	30 W	75 lm/W	3000-6500 K

Product Description

Product Details

Product Construction

Each panel combines its finished frame, light-emitting assembly and recessed ceiling format in a compact housing. Round and square products are manufactured as separate physical forms.

Selection & Installation Notes

Select the round or square model first, then verify its model-specific face size and ceiling opening against the project drawings. Confirm the complete electrical specification, ceiling void, driver placement and access requirements before installation. Compare related products in our compact LED panel range.

Recommended Application

Applications

Office Corridors: Use a selected recessed model in compatible indoor suspended-ceiling layouts.
Retail Interiors: Match the round or square form and opening requirement to an indoor retail ceiling.
Apartment Common Areas: Install the confirmed recessed configuration in compatible indoor circulation spaces.
Hospitality Passages: Select the required shape and model for compatible indoor corridor ceilings.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

Is this family recessed or surface mounted?

This family is designed for recessed mounting. Surface-mounted small panels belong to a different product selection.

Are the round and square versions the same model?

No. The round and square forms have separate product codes and physical dimensions. Select the required shape before checking dimensions.

How should I select the ceiling opening?

Use the opening specified for the exact ordered model and compare it with the project drawings. Do not apply one shared opening to the whole family.

Can I use the product outdoors?

No. The IP20 configuration is intended for dry indoor locations. Select another verified product where moisture or outdoor exposure is expected.

What must be confirmed before installation?

Confirm the exact model, shape, face size, ceiling opening, electrical configuration, ceiling void, driver placement and maintenance access before installation.
