Reflector Surface-Mounted Cylinder LED Downlights
- Exposed Architectural Cylinder: The visible outer body becomes part of the ceiling composition.
- Deep-Set Front Appearance: A reflector-style component sits within the lower opening and gives the face visual depth.

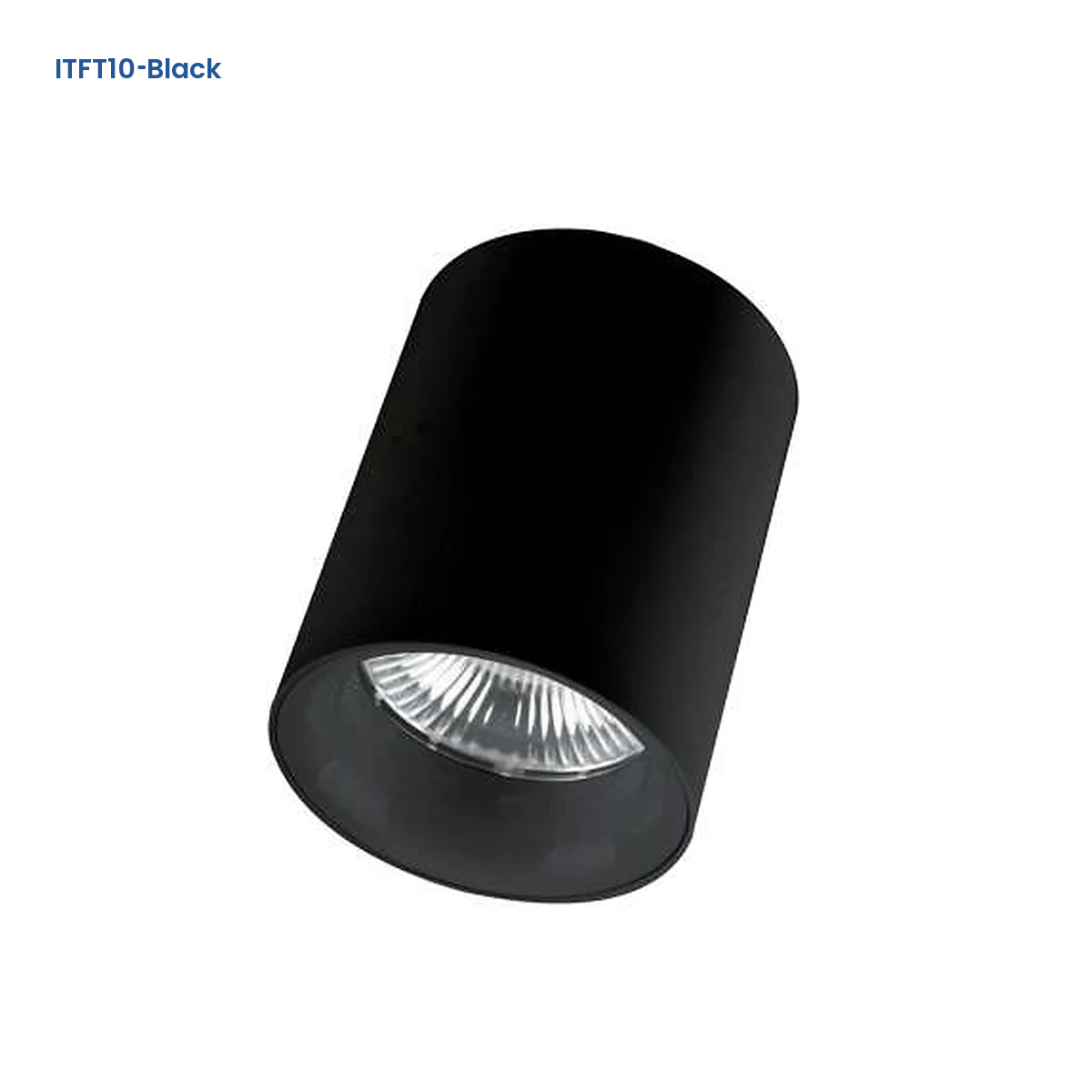

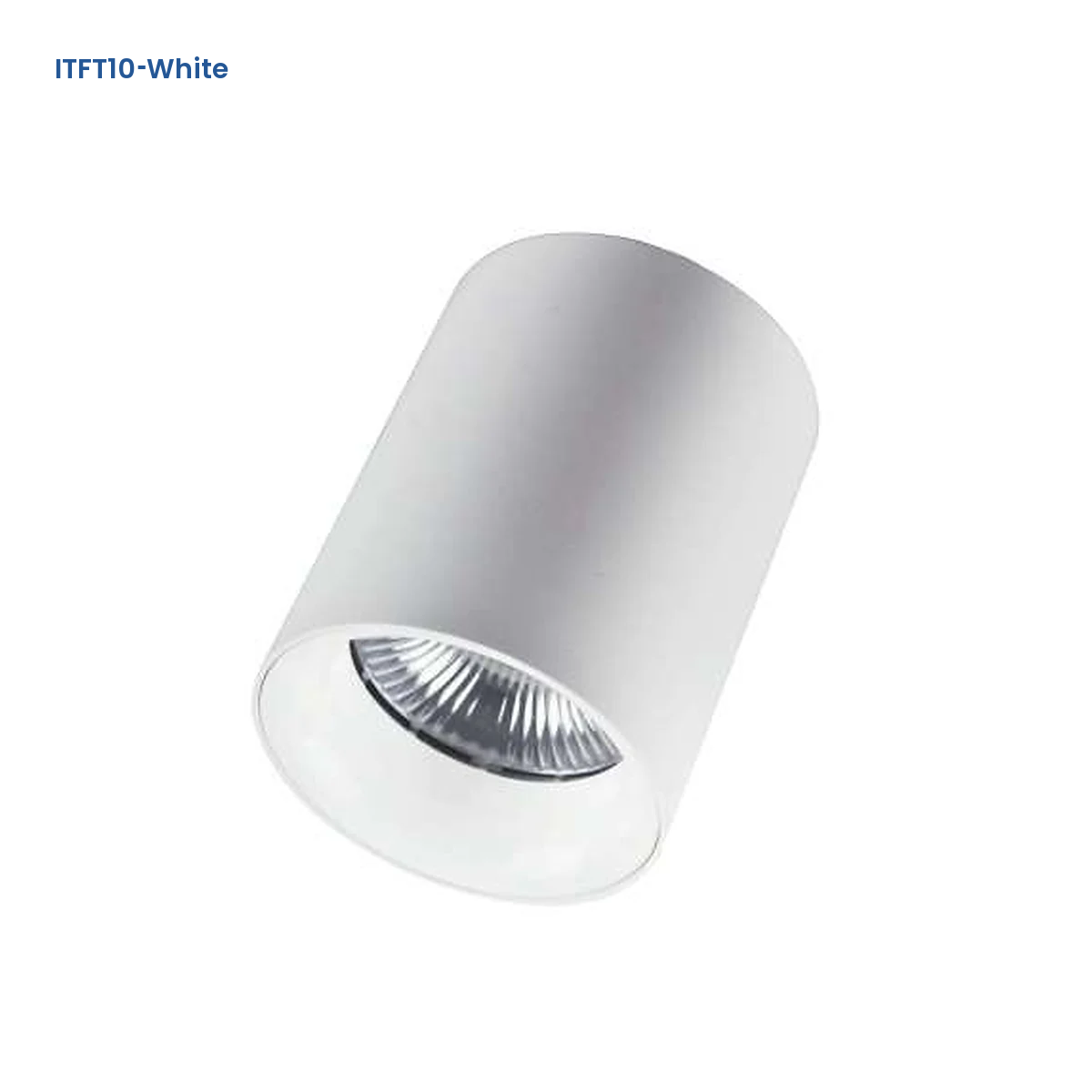

- White or Black Housing: Two exterior appearances support different interior palettes without assigning a finish to a specific size.
| Product Type | Surface-mounted cylinder LED downlight |
|---|---|
| Mounting Plane | Body remains below the ceiling surface |
| Order Check | Product reference and overall dimensions |
| Electrical Check | Supply, driver and control configuration |
|---|---|
| Site Check | Ceiling support, fixing points and cable entry |
| Service Check | Clearance and future access |
Technical Specifications
Model Specifications
| Model No. | Size DxH (mm) | Power | Efficacy | CCT | Material |
|---|---|---|---|---|---|
| XGYDL-ITFT10-E10 | D75 x 100 | 10 W | 80 lm/W | 3000-6500 K | Aluminum |
| XGYDL-ITFT10-E20 | D100 x 120 | 20 W | 80 lm/W | 3000-6500 K | Aluminum |
| XGYDL-ITFT10-E30 | D120 x 150 | 30 W | 80 lm/W | 3000-6500 K | Aluminum |
| XGYDL-ITFT10-E40 | D150 x 180 | 40 W | 80 lm/W | 3000-6500 K | Aluminum |
Product Description
Product Details
Product Construction
The cylindrical housing contains the LED light source and internal electrical assembly. A reflector-style component is positioned inside the lower opening, while the mounting interface sits against the ceiling surface.
Selection & Installation Notes
Use the complete order reference and dimensional schedule to select the body. Confirm the ceiling substrate, fixing points, cable entry, supply and driver arrangement, control requirement, clearance and future service access before installation. Select the exterior appearance separately from the electrical configuration. Compare related fixtures in our surface-mounted LED downlight range.
Recommended Application
Applications
- Retail Display Ceilings: Adds a visible cylindrical fixture form above counters and merchandise areas.
- Hotel Reception Areas: Fits interior ceiling layouts where the exposed housing complements the architectural scheme.
- Residential Dining Areas: Provides a compact surface fixture form above tables and interior feature zones.
- Commercial Corridors: Supports repeated surface-mounted fixture layouts along indoor circulation routes.
