Diffuser Surface-Mounted Cylinder LED Downlights
- No Cut-Out Body: The complete housing mounts below the finished ceiling, avoiding a body-sized recess.
- Comfortable General Illumination: The luminous face tempers direct view of the internal light source across everyday interiors.
- Coordinated Family Scaling: Seven related footprints help keep a consistent visual language across rooms with different lighting needs.
- Ceiling-Palette Coordination: Two neutral housing treatments support both light and dark interior schemes.
| Installation / optic | Fixed surface-mounted cylinder / diffuser front |
|---|---|
| Power choices | 7, 10, 15, 20, 25, 30 and 40 / 50 W |
| Body dimensions | D58-D187 mm diameter / 68-141 mm height |
| Light distribution | 90-120 degrees / 3000-6500 K / Ra80 |
|---|---|
| Input / PF / output setting | 220-240 V / PF 0.5 / 0-100% marked |
| Material / appearance | Aluminum / white or black |
Technical Specifications
Model Specifications
| Model No. | Size DxH (mm) | Power | Efficacy | CCT | Material |
|---|---|---|---|---|---|
| XGYDL-ITFT09-E7 | D58 x 68 | 7 W | 80 lm/W | 3000-6500 K | Aluminum |
| XGYDL-ITFT09-E10 | D72 x 75 | 10 W | 80 lm/W | 3000-6500 K | Aluminum |
| XGYDL-ITFT09-E15 | D83 x 86 | 15 W | 80 lm/W | 3000-6500 K | Aluminum |
| XGYDL-ITFT09-E20 | D109 x 92 | 20 W | 80 lm/W | 3000-6500 K | Aluminum |
| XGYDL-ITFT09-E25 | D131 x 102 | 25 W | 80 lm/W | 3000-6500 K | Aluminum |
| XGYDL-ITFT09-E30 | D159 x 141 | 30 W | 80 lm/W | 3000-6500 K | Aluminum |
| XGYDL-ITFT09-E40/50 | D187 x 127 | 40 / 50 W | 80 lm/W | 3000-6500 K | Aluminum |
Product Description
Product Details
Product Construction

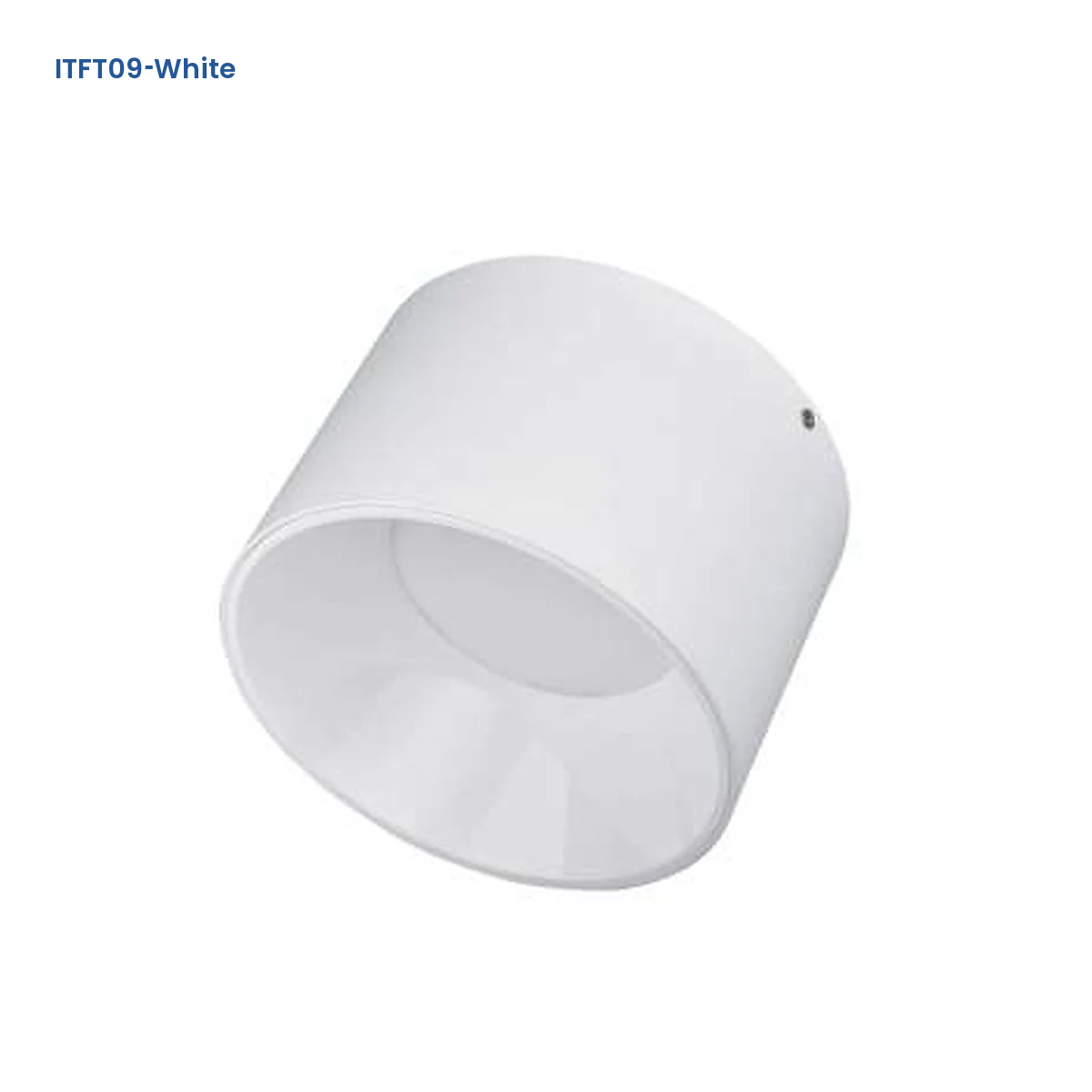

The aluminium cylinder encloses the light engine behind a broad front diffuser and fixes directly to a supporting ceiling surface.
Selection & Installation Notes
Select the exact reference by its power, diameter and height, then verify the fixing surface, wiring entry and maintenance clearance. The largest housing combines 40 W and 50 W under one reference, so state the required power in the order. The 0–100% marking does not define a control protocol; match the driver and dimming interface to the project. Compare related products in our surface-mounted LED downlights range.
Recommended Application
Applications

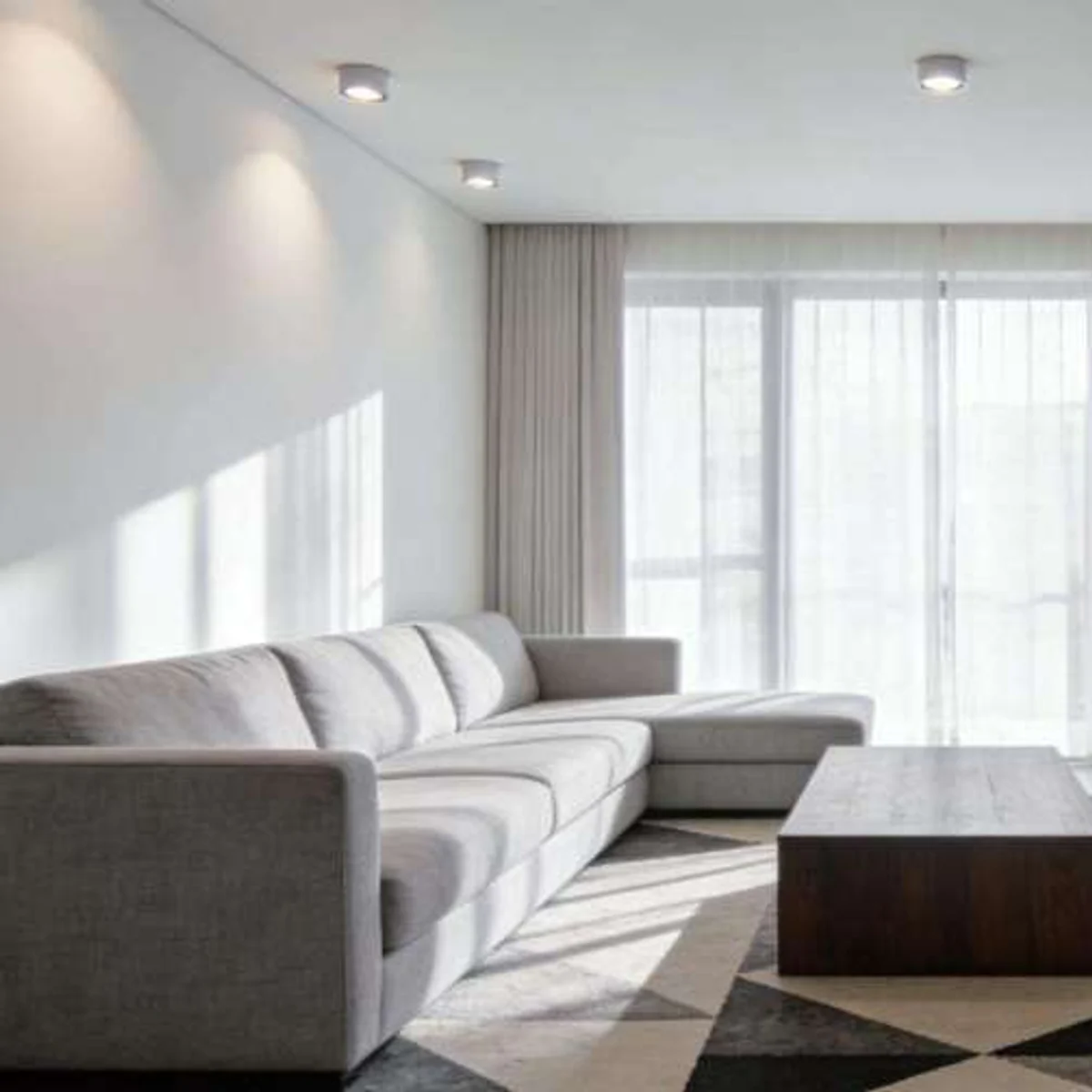

- Residential Living Rooms: Provides broad downward illumination from a visible ceiling-mounted cylinder.
- Hotel Corridors: Supports evenly spaced general lighting along indoor circulation routes.
- Commercial Interiors: Adds fixed diffuser lighting above reception, meeting and shared-use areas.
- Retrofit Ceilings: Fits projects where a recessed body opening is not planned.
