Microwave-Sensor LED Bulbs
These indoor microwave-sensor LED bulbs combine automatic motion response with C37, G45 and A60 screw-base formats. Five 5–11 W selections provide different body sizes for compatible fixtures.
- Motion-Activated Response: Detected movement switches the lamp to full light, while inactivity returns it to the sleep state.
- Three Fixture Profiles: C37, G45 and A60 bodies address candle, golf-ball and pear-shaped fixture proportions.
- Frosted Light Surface: The enclosed diffuser softens the appearance of the internal LED source.
- Broad Source Distribution: Each model uses a 270-degree beam around the bulb body.
| Sensor Type | Microwave motion sensor |
|---|---|
| Shapes | C37 / G45 / A60 |
| Rated Power | 5 / 9 / 11 W |
| Lumen Efficacy | 90 lm/W |
|---|---|
| CCT | 3000–6500 K |
| Use Boundary | Indoor |
Technical Specifications
Model Specifications
| Model No. | Dimensions | Rated Power | Lumen Efficacy | CCT | Beam |
|---|---|---|---|---|---|

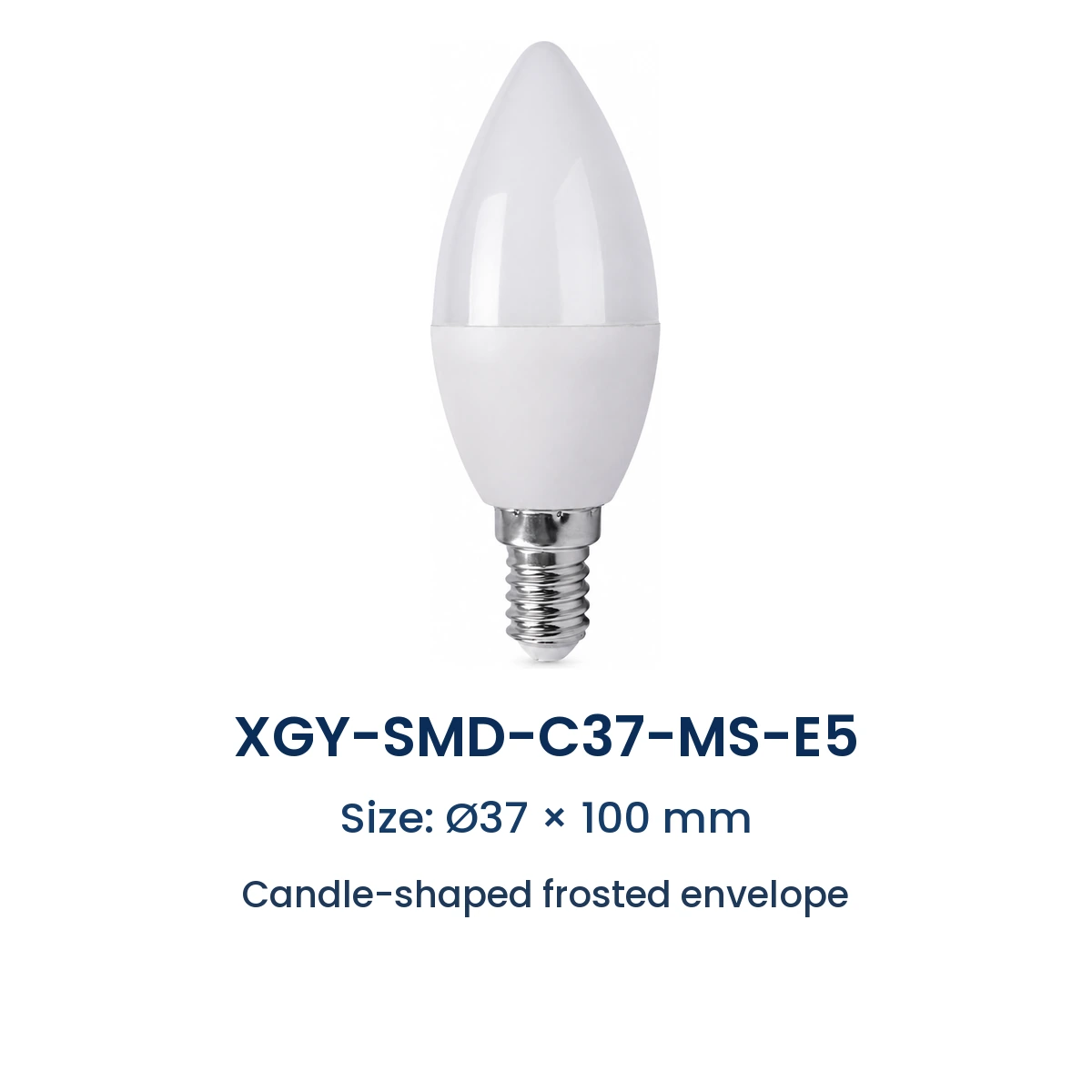

| XGY-SMD-C37-MS-E5 | Ø37 × 100 mm | 5 W | 90 lm/W | 3000–6500 K | 270° |

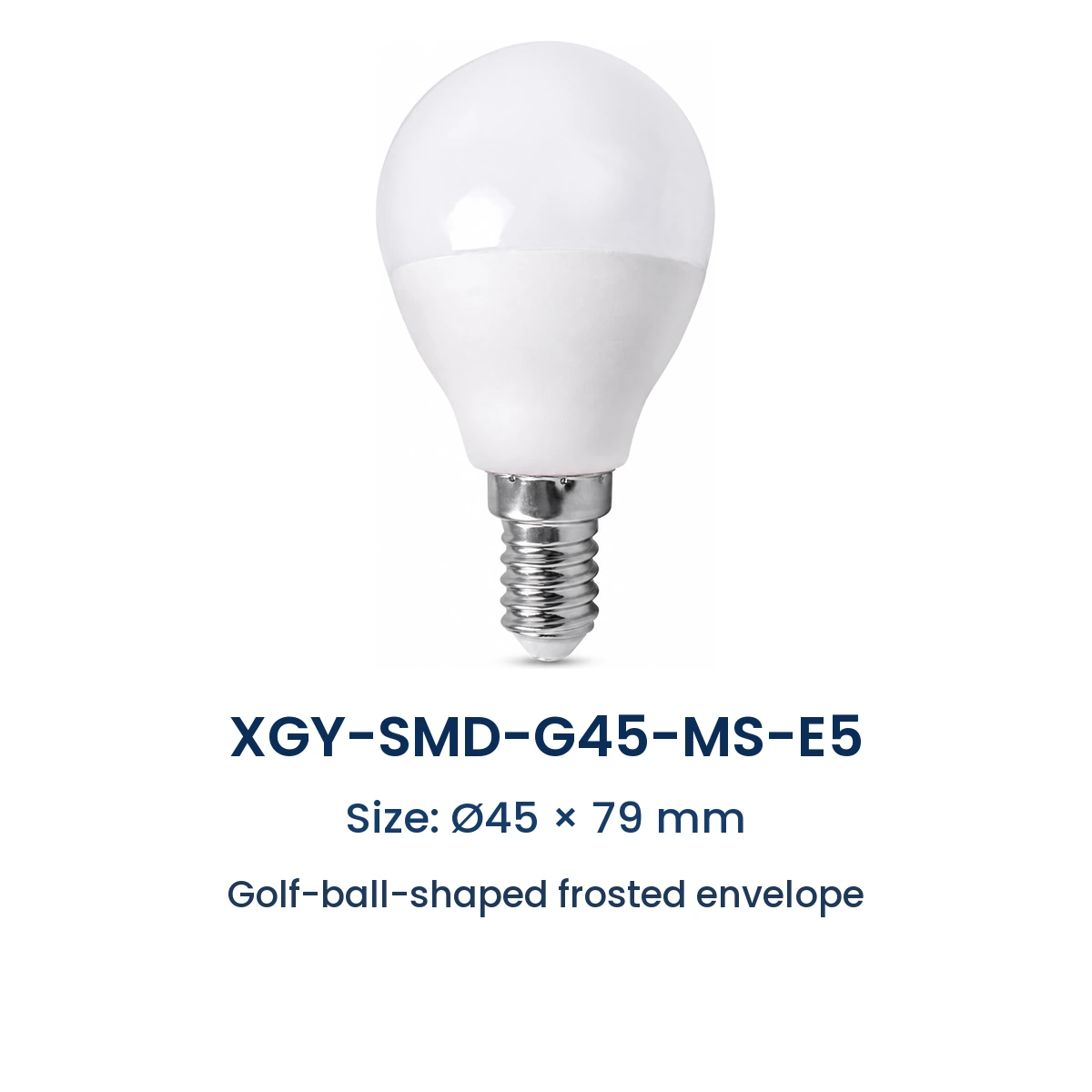

| XGY-SMD-G45-MS-E5 | Ø45 × 79 mm | 5 W | 90 lm/W | 3000–6500 K | 270° |
| XGY-SMD-A60-MS-E5 | Ø60 × 108 mm | 5 W | 90 lm/W | 3000–6500 K | 270° |

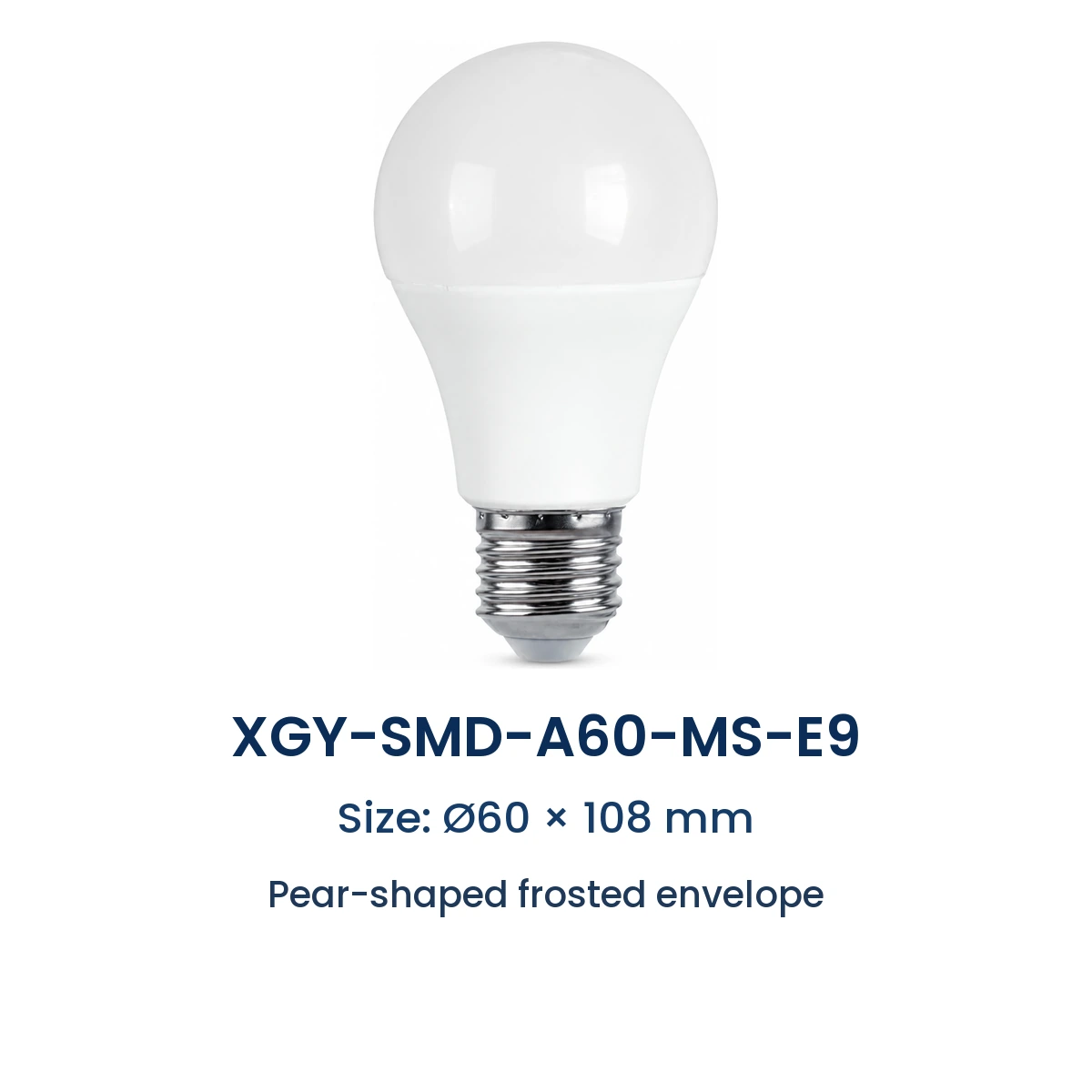

| XGY-SMD-A60-MS-E9 | Ø60 × 108 mm | 9 W | 90 lm/W | 3000–6500 K | 270° |

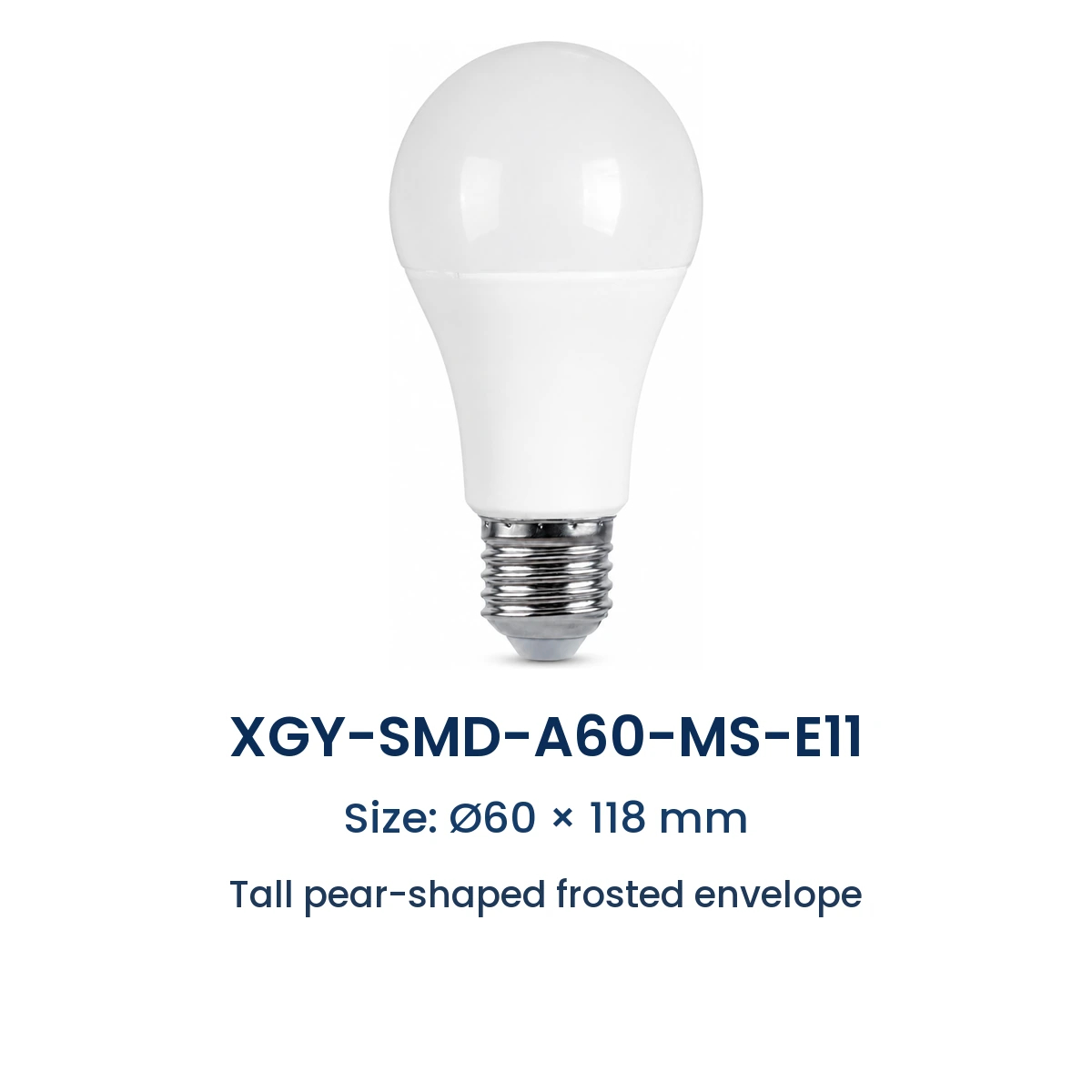

| XGY-SMD-A60-MS-E11 | Ø60 × 118 mm | 11 W | 90 lm/W | 3000–6500 K | 270° |
Product Description
Product Details
Product Construction
A light-diffusing upper envelope joins a white lower housing above the screw base, enclosing the LED source and microwave-sensing components within one lamp body.
Selection & Installation Notes
Choose the exact model by fixture clearance, overall dimensions and rated power. Keep the bulb indoors because this series has no stated ingress-protection rating. Compare related products in our smart and functional LED bulb range.
Recommended Application
Applications

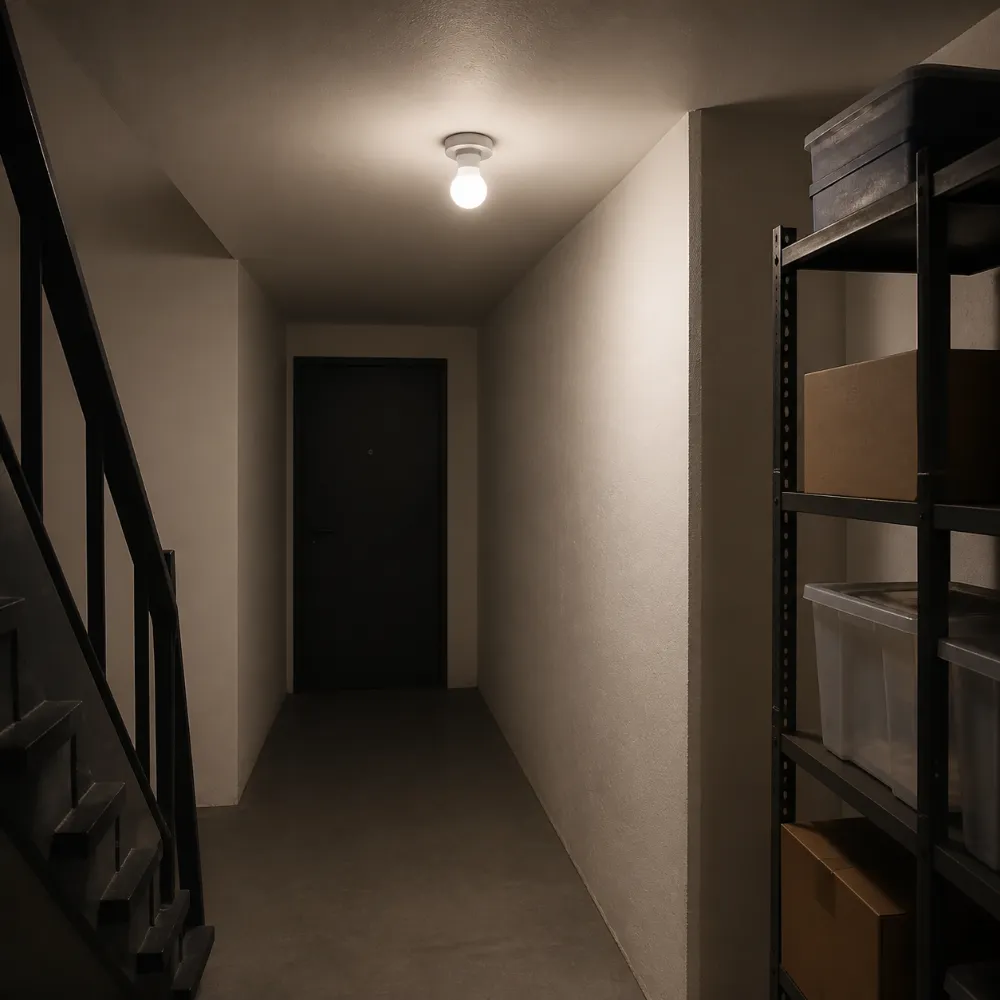

- Indoor Corridors: Integrated motion response provides local lighting when occupants enter circulation routes.
- Stair Landings: A matched bulb shape fits indoor holders serving stairs and intermediate landings.
- Storage Rooms: Movement-activated light supports indoor storage areas used intermittently.
- Utility Rooms: The selected bulb size fits compatible indoor utility-room fixtures.
