Emergency LED SMD Bulbs
- Automatic Backup Mode: The bulb changes from normal lamp operation to emergency lighting when mains power fails.
- Broad General-Light Beam: The 200-degree distribution supports room lighting from compatible open fixtures.
- No-Flicker Normal Lighting: Stable light output is specified for everyday mains-powered operation.
- Defined Service Life: The 15,000-hour rating provides a clear replacement-planning reference.
| Rated Power | 5–15 W |
|---|---|
| Base | E27 |
| Input | 85–265 V |
| Battery Capacity | 1200 mAh |
| Emergency Period | 3 hours |
|---|---|
| CCT | 3000–6500 K |
| CRI | Ra80 |
Technical Specifications
Model Specifications
| Model / Power | Dimensions | Rated Power | Efficacy | CCT | Beam | Input | Battery / Emergency |
|---|---|---|---|---|---|---|---|

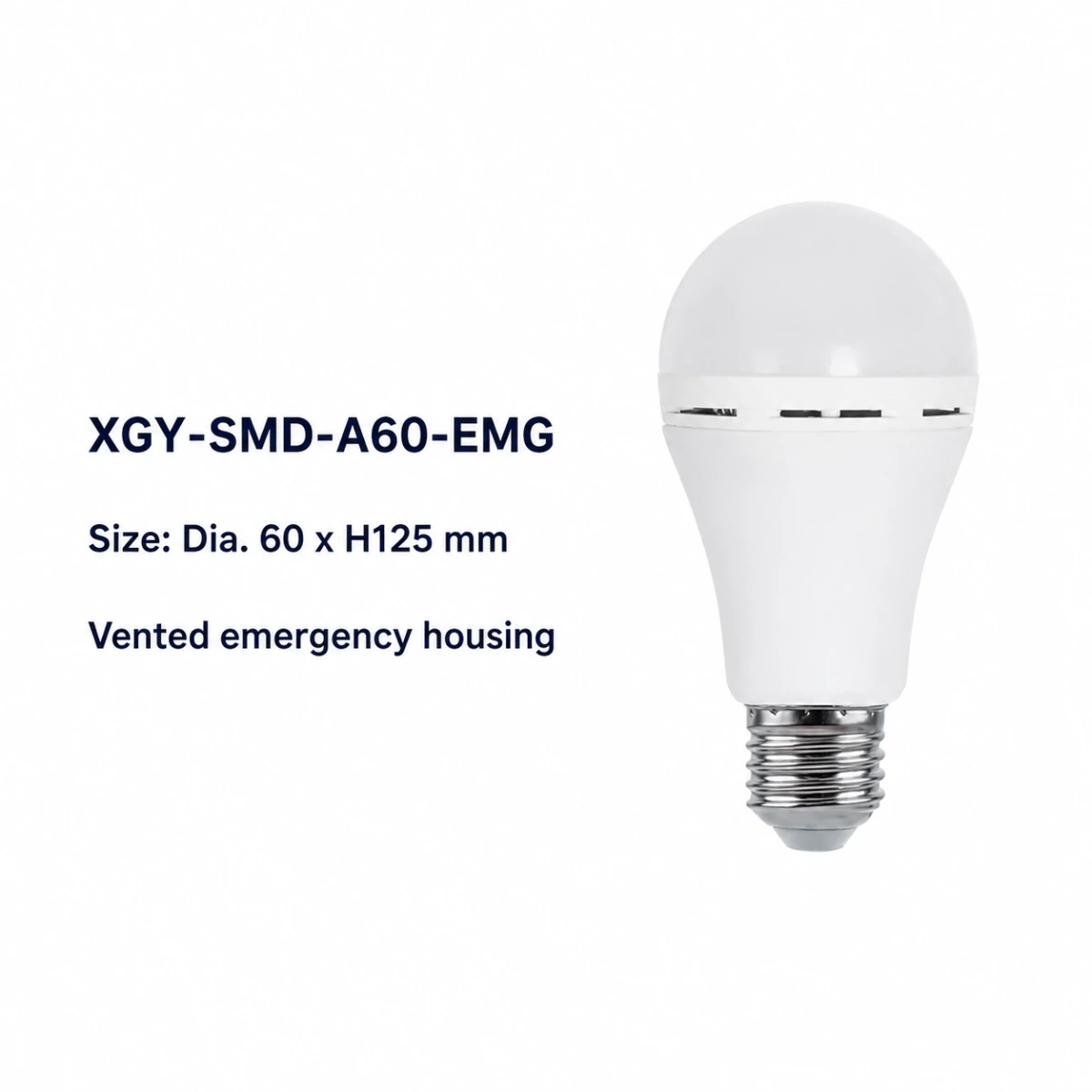

| XGY-SMD-A60-EMG (5 W) | Ø60 × 125 mm | 5 W | 90 lm/W | 3000–6500 K | 200° | 85–265 V | 1200 mAh / 3 h |

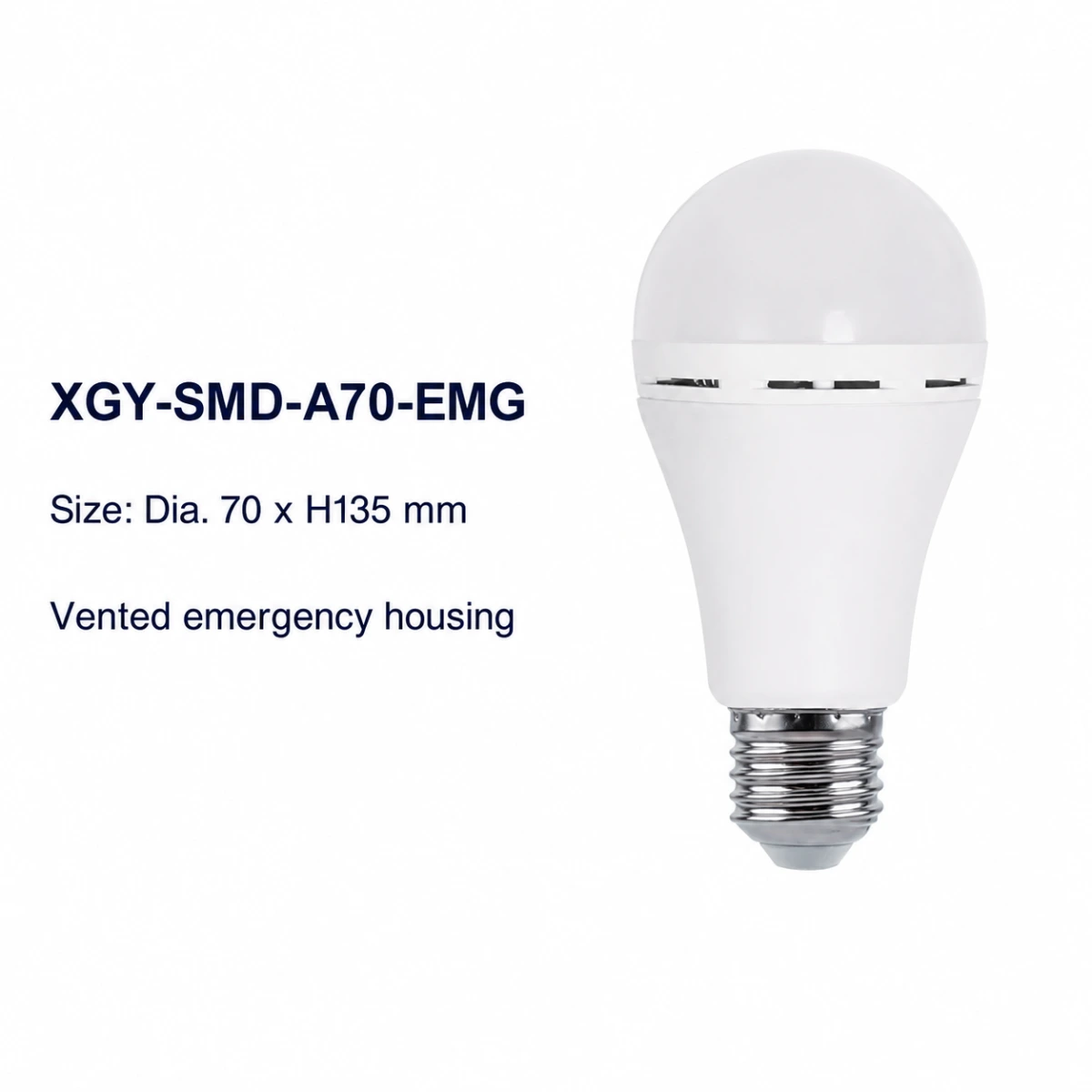

| XGY-SMD-A70-EMG (7 W) | Ø70 × 135 mm | 7 W | 90 lm/W | 3000–6500 K | 200° | 85–265 V | 1200 mAh / 3 h |
| XGY-SMD-A70-EMG (9 W) | Ø70 × 135 mm | 9 W | 90 lm/W | 3000–6500 K | 200° | 85–265 V | 1200 mAh / 3 h |
| XGY-SMD-A70-EMG (12 W) | Ø70 × 135 mm | 12 W | 90 lm/W | 3000–6500 K | 200° | 85–265 V | 1200 mAh / 3 h |

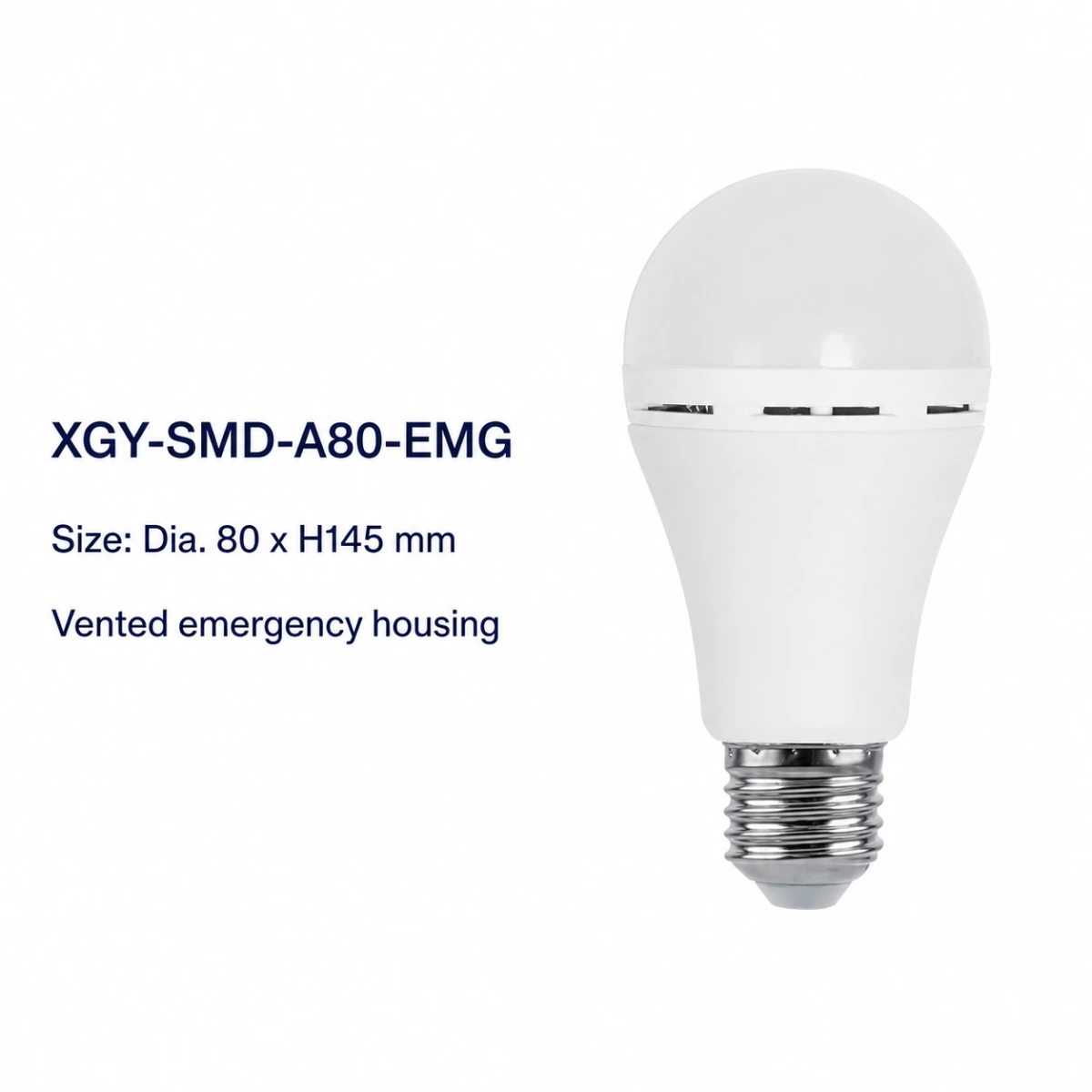

| XGY-SMD-A80-EMG (9 W) | Ø80 × 145 mm | 9 W | 90 lm/W | 3000–6500 K | 200° | 85–265 V | 1200 mAh / 3 h |
| XGY-SMD-A80-EMG (12 W) | Ø80 × 145 mm | 12 W | 90 lm/W | 3000–6500 K | 200° | 85–265 V | 1200 mAh / 3 h |
| XGY-SMD-A80-EMG (15 W) | Ø80 × 145 mm | 15 W | 90 lm/W | 3000–6500 K | 200° | 85–265 V | 1200 mAh / 3 h |
Product Description
Product Details
Product Construction
A frosted diffuser, vented white housing and E27 screw base form the lamp body. The enclosed lithium battery and emergency circuit switch the lamp to backup operation when mains power is interrupted.
Selection & Installation Notes
Select A60, A70 or A80 by fixture clearance and rated power, then match the required CCT and emergency period. Install the bulb only in a compatible indoor E27 fixture with ventilation around the body. Compare related products in our smart and functional LED bulb range.
Recommended Application
Applications

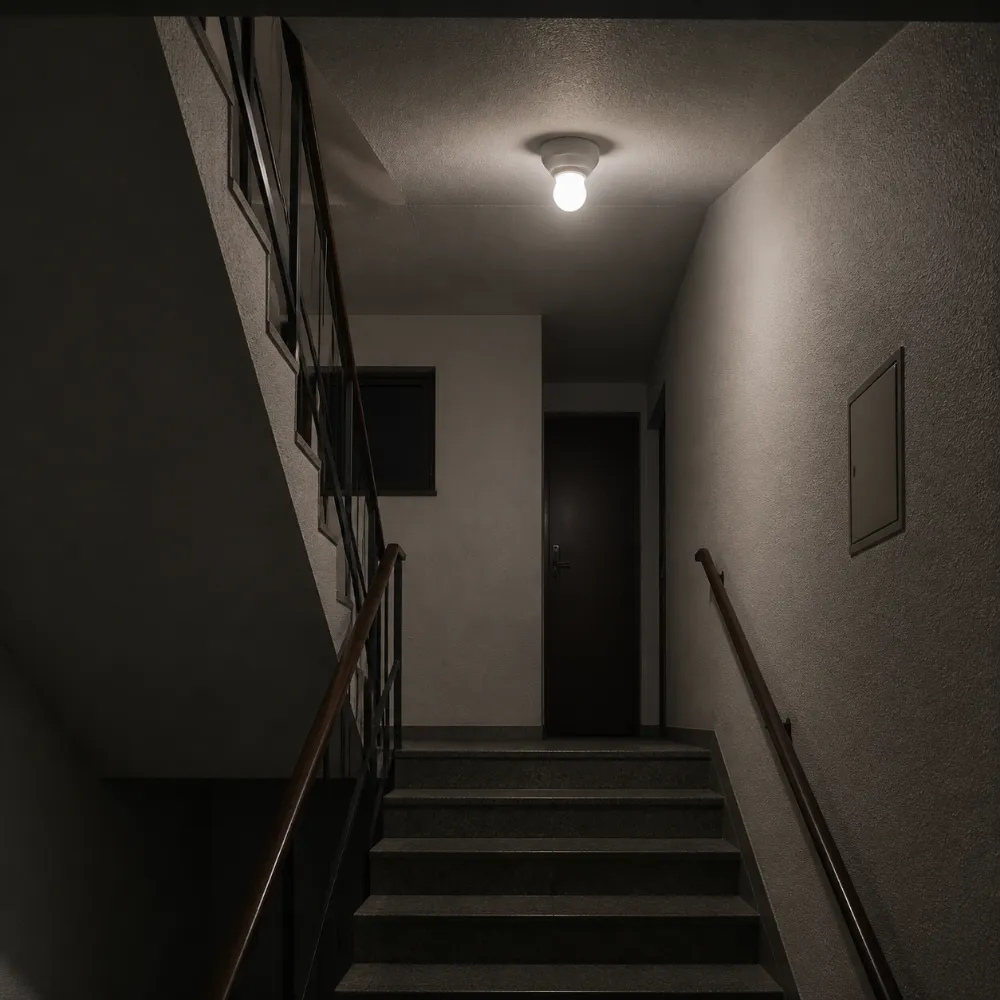

- Apartment Stairwells: Compatible indoor E27 fixtures provide normal and backup illumination across shared stair areas.
- Residential Corridors: Hallway fixtures continue short-term lighting when mains supply fails.
- Hotel Service Areas: Compatible bulbs support normal use and temporary outage lighting in indoor utility spaces.
- Small Commercial Interiors: Shops and offices use the emergency bulb in indoor E27 fixtures where backup light is required.
