LED Filament Bulbs for General Lighting
LED filament bulbs for general lighting combine a filament-style light source with familiar bulb forms. Choose the bulb form and project configuration to suit the fixture and intended room setting.
- LED Filament Format: The product family uses an LED filament bulb format.
- Fixture-Led Form Selection: The selected bulb form can be matched to fixture openings and shade proportions.
- General Lighting Role: The range is intended for general lighting projects.
| Shapes | C35 / C35T / G45 / A60 / ST64 / G80 / G95 / G125 |
|---|---|
| Rated Power | 2–12 W |
| Luminous Efficacy | 100–120 lm/W |
| CCT | 2700–6500 K |
|---|---|
| Envelope | Clear glass |
| Size Range | Dia. 35–125 mm |
Technical Specifications
Model Specifications
| Model / Power | Shape | Dimensions | Rated Power | Efficacy | CCT |
|---|---|---|---|---|---|

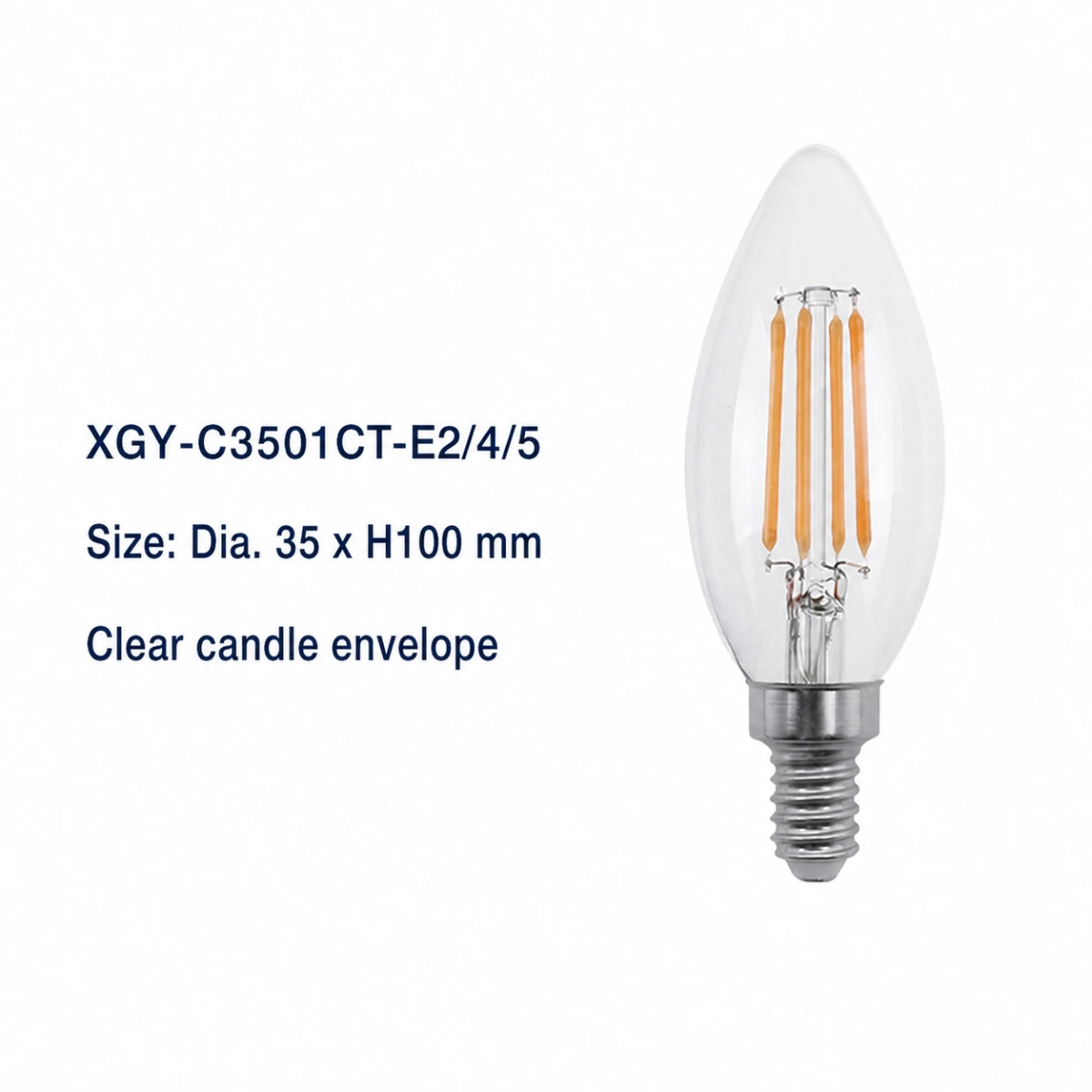

| XGY-C3501CT-E2/4/5 (2 W) | C35 | Ø35 × 100 mm | 2 W | 100–120 lm/W | 2700–6500 K |
| XGY-C3501CT-E2/4/5 (4 W) | C35 | Ø35 × 100 mm | 4 W | 100–120 lm/W | 2700–6500 K |
| XGY-C3501CT-E2/4/5 (5 W) | C35 | Ø35 × 100 mm | 5 W | 100–120 lm/W | 2700–6500 K |

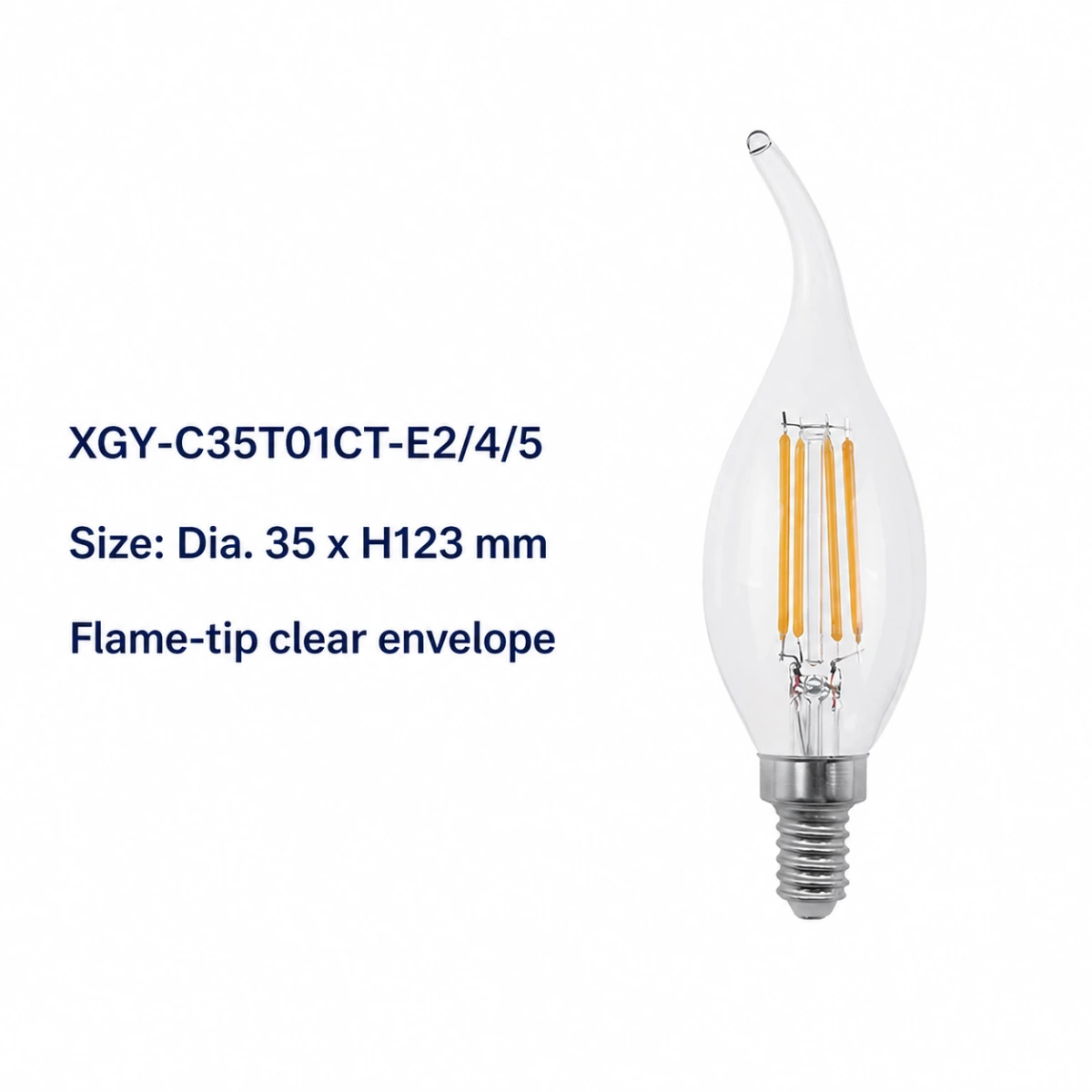

| XGY-C35T01CT-E2/4/5 (2 W) | C35T | Ø35 × 123 mm | 2 W | 100–120 lm/W | 2700–6500 K |
| XGY-C35T01CT-E2/4/5 (4 W) | C35T | Ø35 × 123 mm | 4 W | 100–120 lm/W | 2700–6500 K |
| XGY-C35T01CT-E2/4/5 (5 W) | C35T | Ø35 × 123 mm | 5 W | 100–120 lm/W | 2700–6500 K |

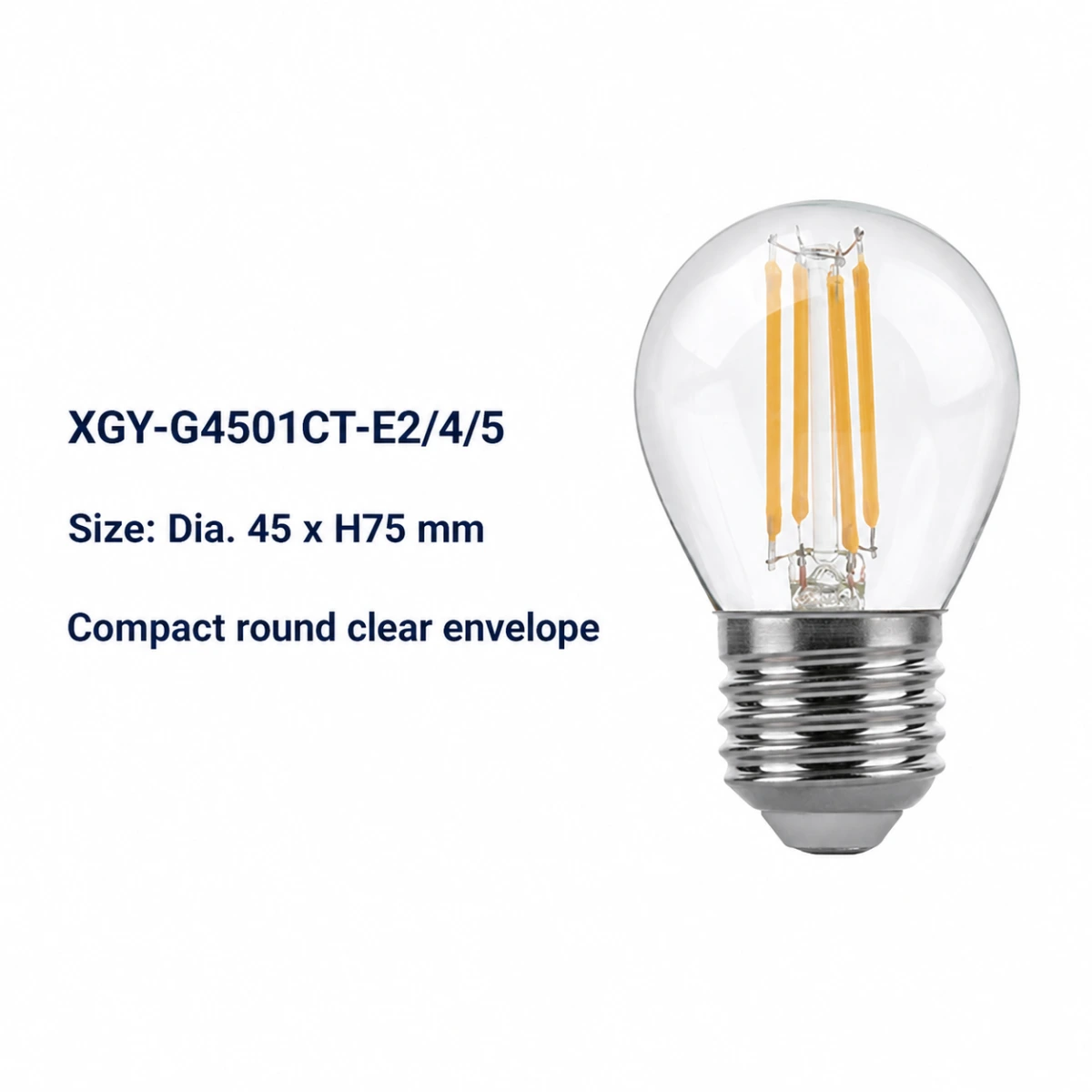

| XGY-G4501CT-E2/4/5 (2 W) | G45 | Ø45 × 75 mm | 2 W | 100–120 lm/W | 2700–6500 K |
| XGY-G4501CT-E2/4/5 (4 W) | G45 | Ø45 × 75 mm | 4 W | 100–120 lm/W | 2700–6500 K |
| XGY-G4501CT-E2/4/5 (5 W) | G45 | Ø45 × 75 mm | 5 W | 100–120 lm/W | 2700–6500 K |

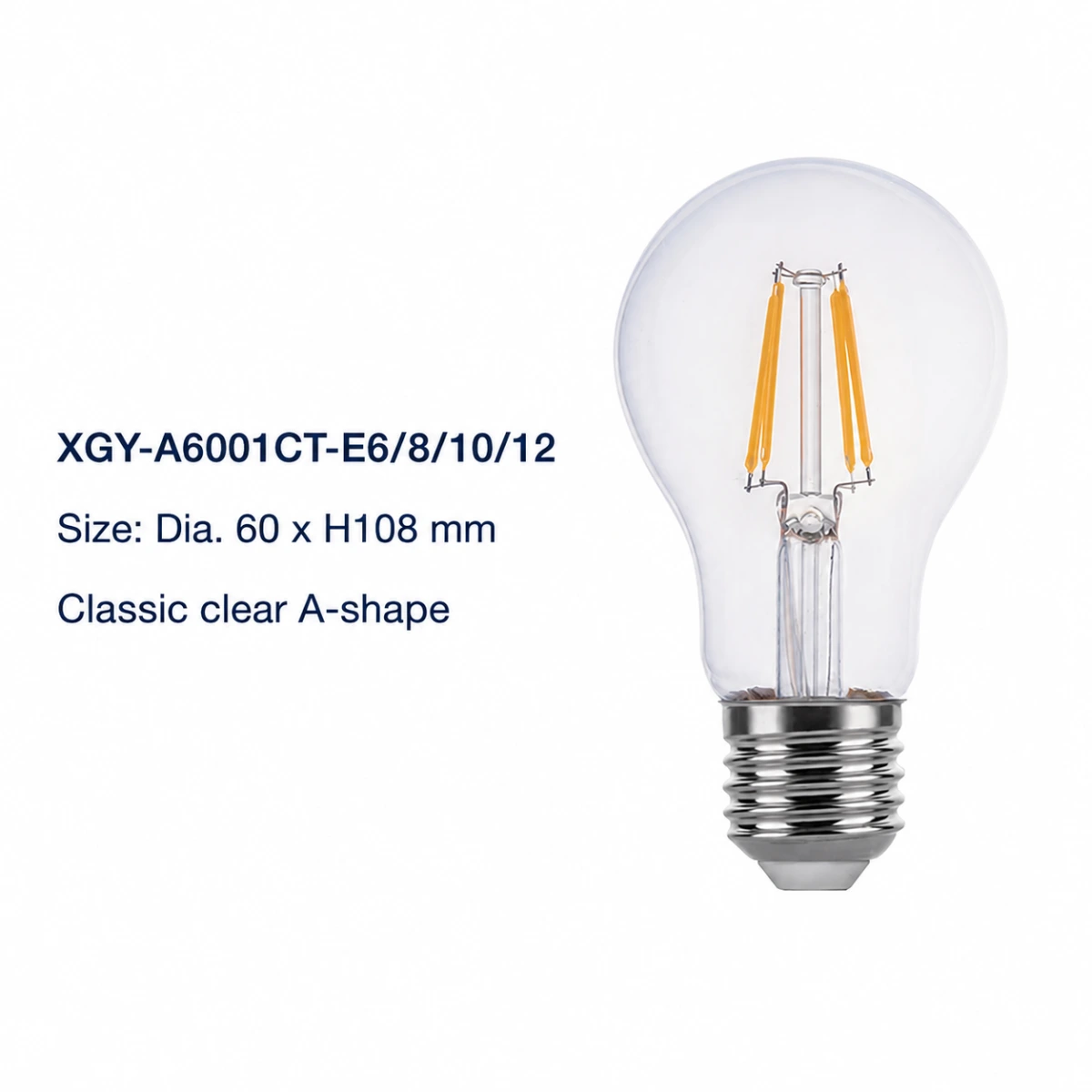

| XGY-A6001CT-E6/8/10/12 (6 W) | A60 | Ø60 × 108 mm | 6 W | 100–120 lm/W | 2700–6500 K |
| XGY-A6001CT-E6/8/10/12 (8 W) | A60 | Ø60 × 108 mm | 8 W | 100–120 lm/W | 2700–6500 K |
| XGY-A6001CT-E6/8/10/12 (10 W) | A60 | Ø60 × 108 mm | 10 W | 100–120 lm/W | 2700–6500 K |
| XGY-A6001CT-E6/8/10/12 (12 W) | A60 | Ø60 × 108 mm | 12 W | 100–120 lm/W | 2700–6500 K |

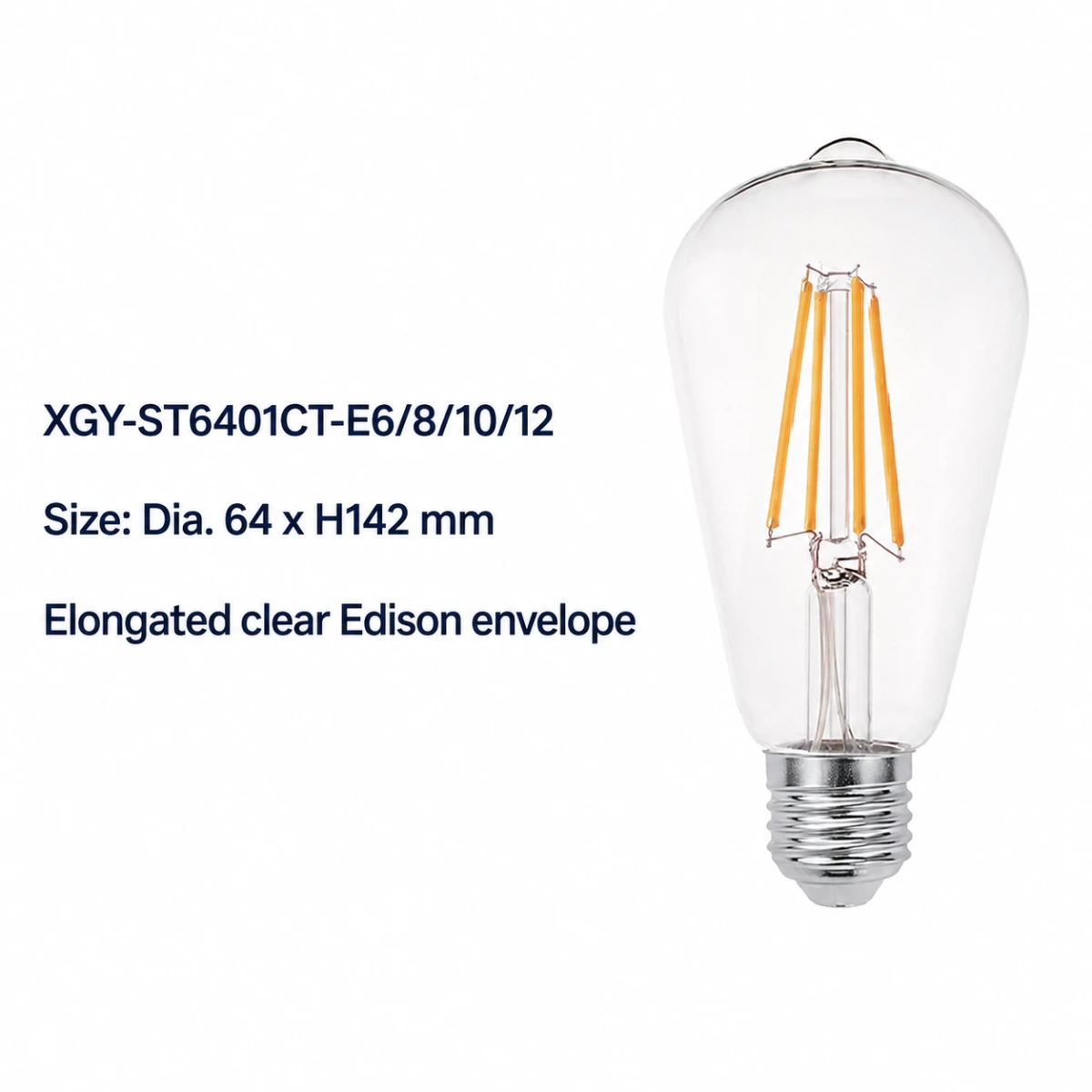

| XGY-ST6401CT-E6/8/10/12 (6 W) | ST64 | Ø64 × 142 mm | 6 W | 100–120 lm/W | 2700–6500 K |
| XGY-ST6401CT-E6/8/10/12 (8 W) | ST64 | Ø64 × 142 mm | 8 W | 100–120 lm/W | 2700–6500 K |
| XGY-ST6401CT-E6/8/10/12 (10 W) | ST64 | Ø64 × 142 mm | 10 W | 100–120 lm/W | 2700–6500 K |
| XGY-ST6401CT-E6/8/10/12 (12 W) | ST64 | Ø64 × 142 mm | 12 W | 100–120 lm/W | 2700–6500 K |

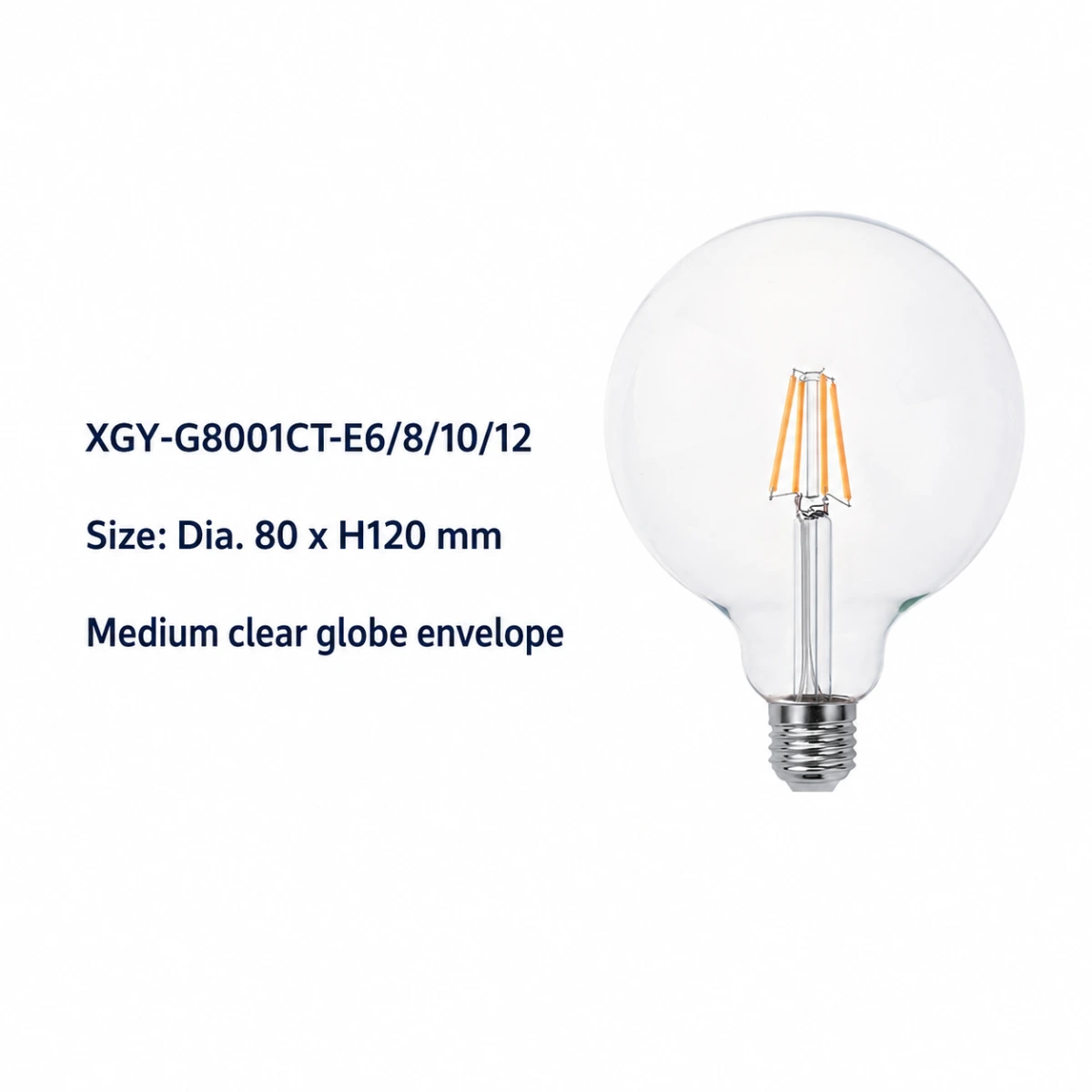

| XGY-G8001CT-E6/8/10/12 (6 W) | G80 | Ø80 × 120 mm | 6 W | 100–120 lm/W | 2700–6500 K |
| XGY-G8001CT-E6/8/10/12 (8 W) | G80 | Ø80 × 120 mm | 8 W | 100–120 lm/W | 2700–6500 K |
| XGY-G8001CT-E6/8/10/12 (10 W) | G80 | Ø80 × 120 mm | 10 W | 100–120 lm/W | 2700–6500 K |
| XGY-G8001CT-E6/8/10/12 (12 W) | G80 | Ø80 × 120 mm | 12 W | 100–120 lm/W | 2700–6500 K |

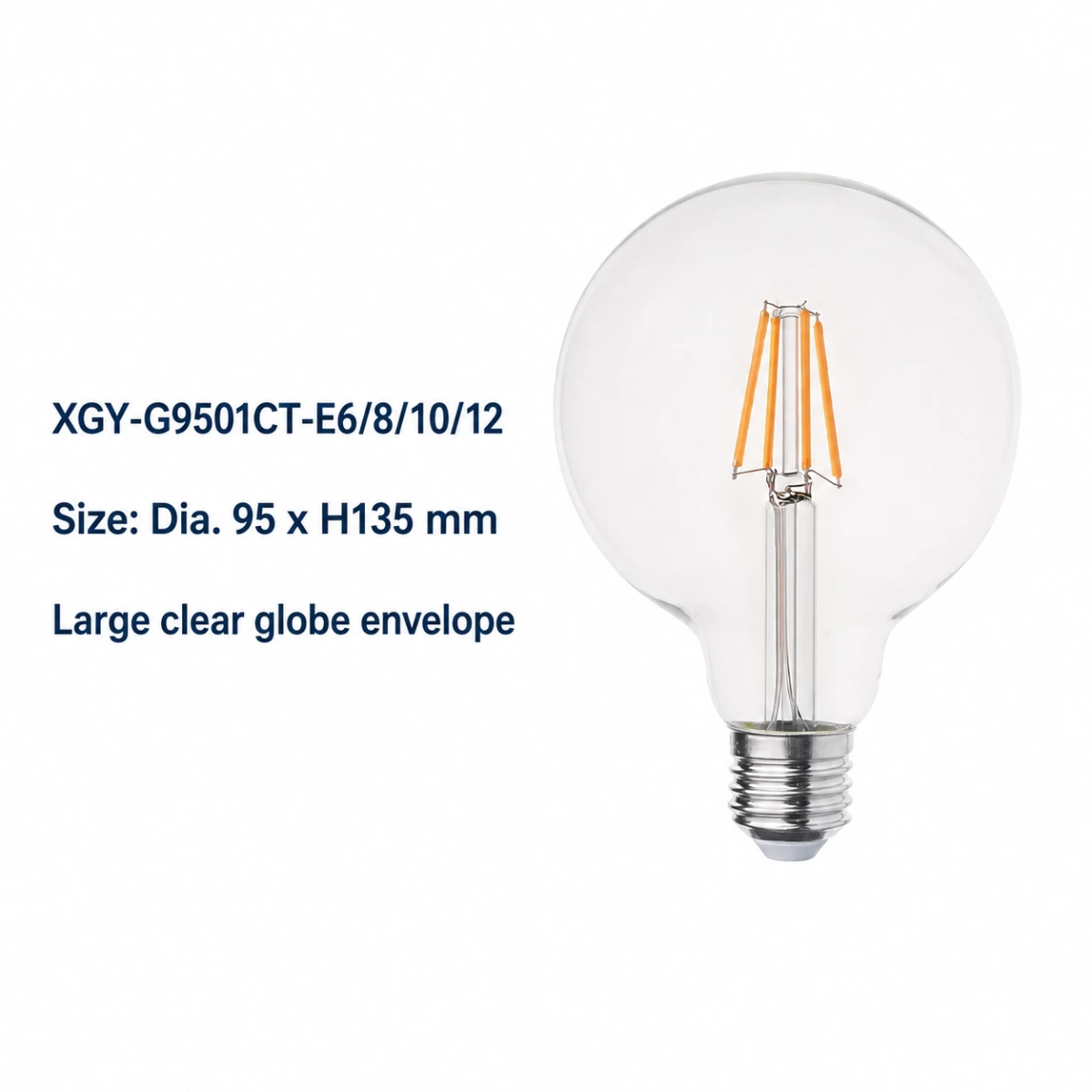

| XGY-G9501CT-E6/8/10/12 (6 W) | G95 | Ø95 × 135 mm | 6 W | 100–120 lm/W | 2700–6500 K |
| XGY-G9501CT-E6/8/10/12 (8 W) | G95 | Ø95 × 135 mm | 8 W | 100–120 lm/W | 2700–6500 K |
| XGY-G9501CT-E6/8/10/12 (10 W) | G95 | Ø95 × 135 mm | 10 W | 100–120 lm/W | 2700–6500 K |
| XGY-G9501CT-E6/8/10/12 (12 W) | G95 | Ø95 × 135 mm | 12 W | 100–120 lm/W | 2700–6500 K |

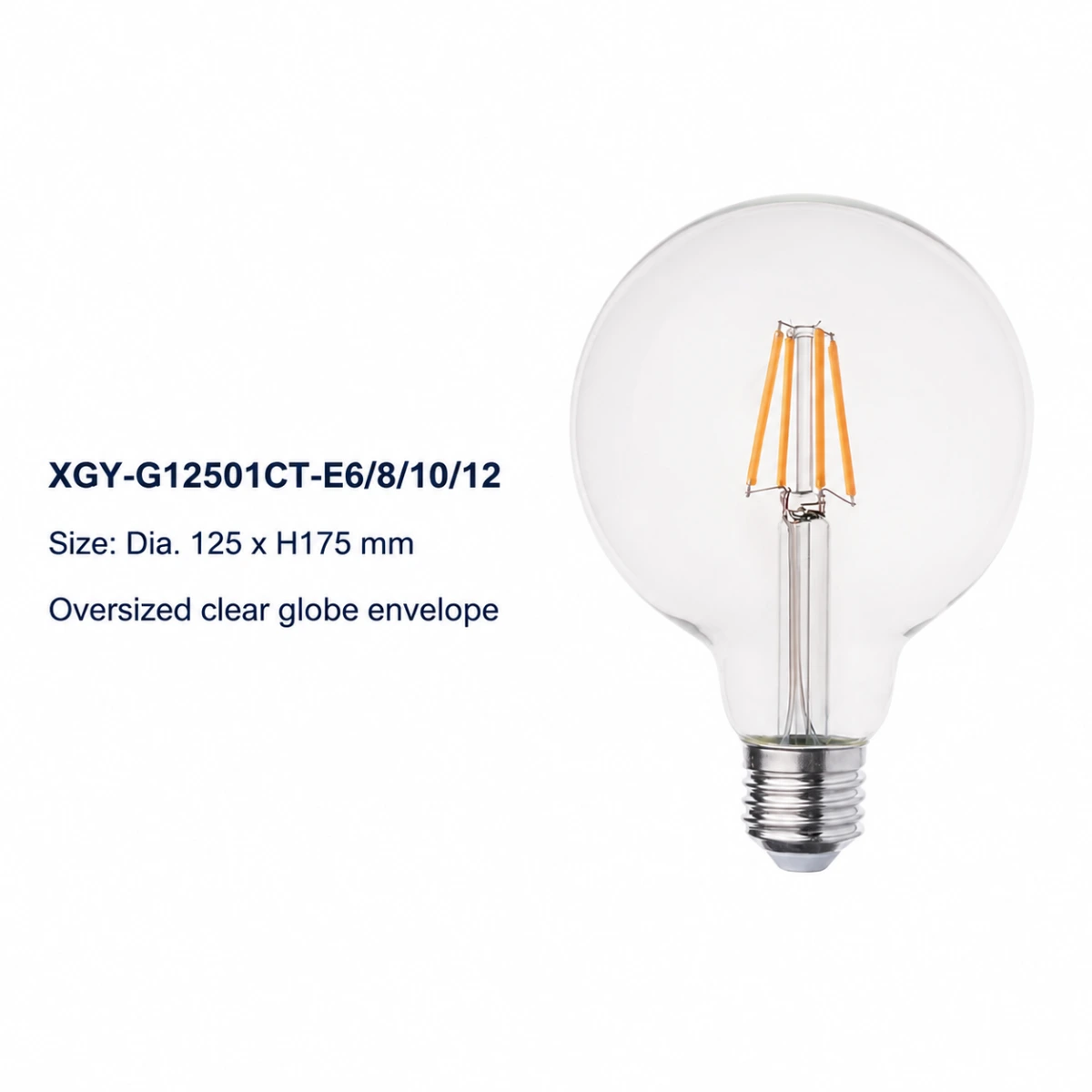

| XGY-G12501CT-E6/8/10/12 (6 W) | G125 | Ø125 × 175 mm | 6 W | 100–120 lm/W | 2700–6500 K |
| XGY-G12501CT-E6/8/10/12 (8 W) | G125 | Ø125 × 175 mm | 8 W | 100–120 lm/W | 2700–6500 K |
| XGY-G12501CT-E6/8/10/12 (10 W) | G125 | Ø125 × 175 mm | 10 W | 100–120 lm/W | 2700–6500 K |
| XGY-G12501CT-E6/8/10/12 (12 W) | G125 | Ø125 × 175 mm | 12 W | 100–120 lm/W | 2700–6500 K |
Product Description
Product Details
Product Construction
The finished unit combines the light-producing assembly, outer envelope and electrical interface. Included components follow the approved order record.
Selection & Installation Notes
Confirm socket type, available clearance, ventilation, electrical supply and control requirements against the approved installation record. See our related lighting styles for adjacent decorative formats.
Recommended Application
Applications
- Residential Living Areas: Use selected bulbs in compatible general-lighting fixtures.
- Hospitality Guest Rooms: Coordinate bulb form and light appearance with room fixtures.

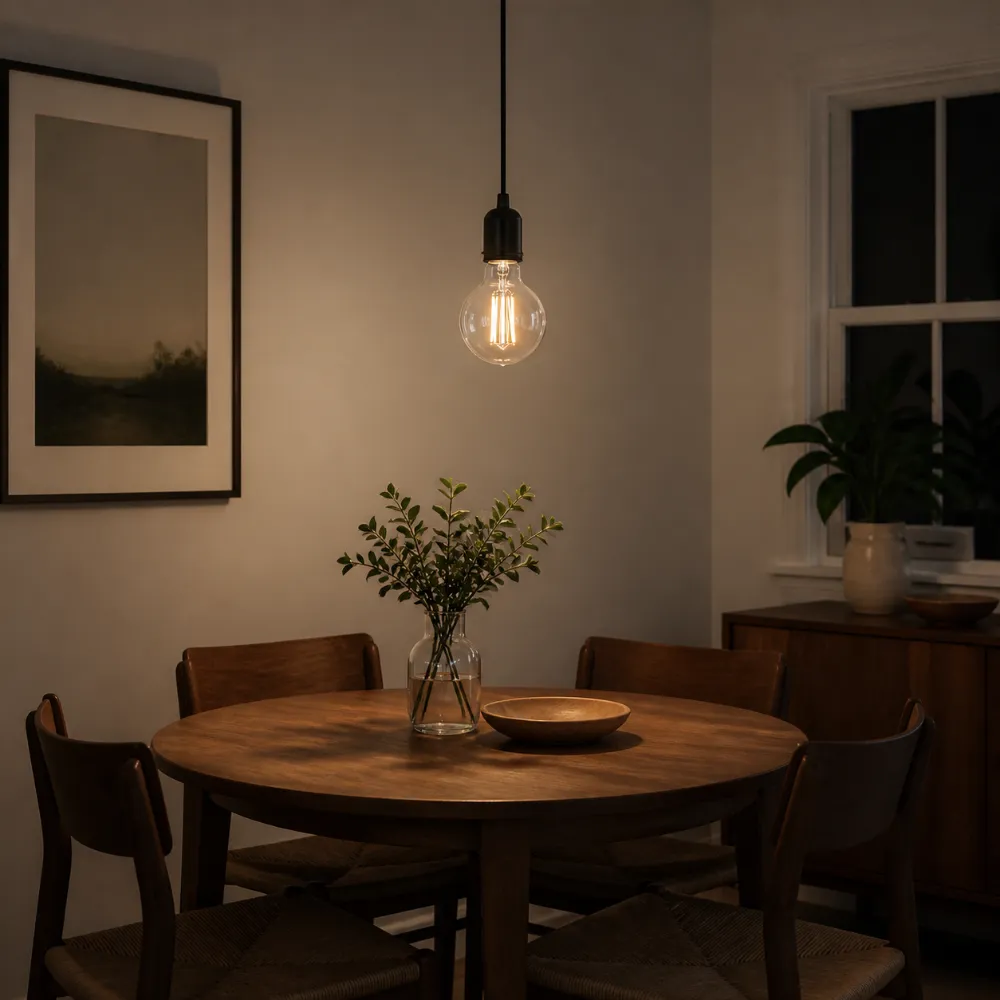

- Dining and Lounge Spaces: Match bulb proportions to pendants, table lamps and wall fixtures.
- Retail Interior Displays: Use filament bulbs in compatible ambient and decorative fixtures.
