High Power LED Filament Bulbs

This high-power LED filament bulb family combines a visible filament aesthetic with a replaceable lamp format. Select the exact envelope, base and electrical configuration for the destination fixture.

Decorative Focal Character: The illuminated internal pattern adds visual interest in open luminaires.
Flexible Visual Proportions: Several silhouettes support different fixture scales and compositions.
Straightforward Service Strategy: A removable source supports routine renewal without replacing the complete luminaire.
Coordinated Family Language: Related formats carry a consistent appearance across a project.

Product Type	LED filament bulb
Lamp Format	Replaceable light source
Fixture Fit	Confirm envelope and clearance

Holder Interface	Confirm ordered base
Electrical Package	Confirm power, voltage and control requirements

High Power LED Filament Bulbs in ED and T-Series Shapes on White Background

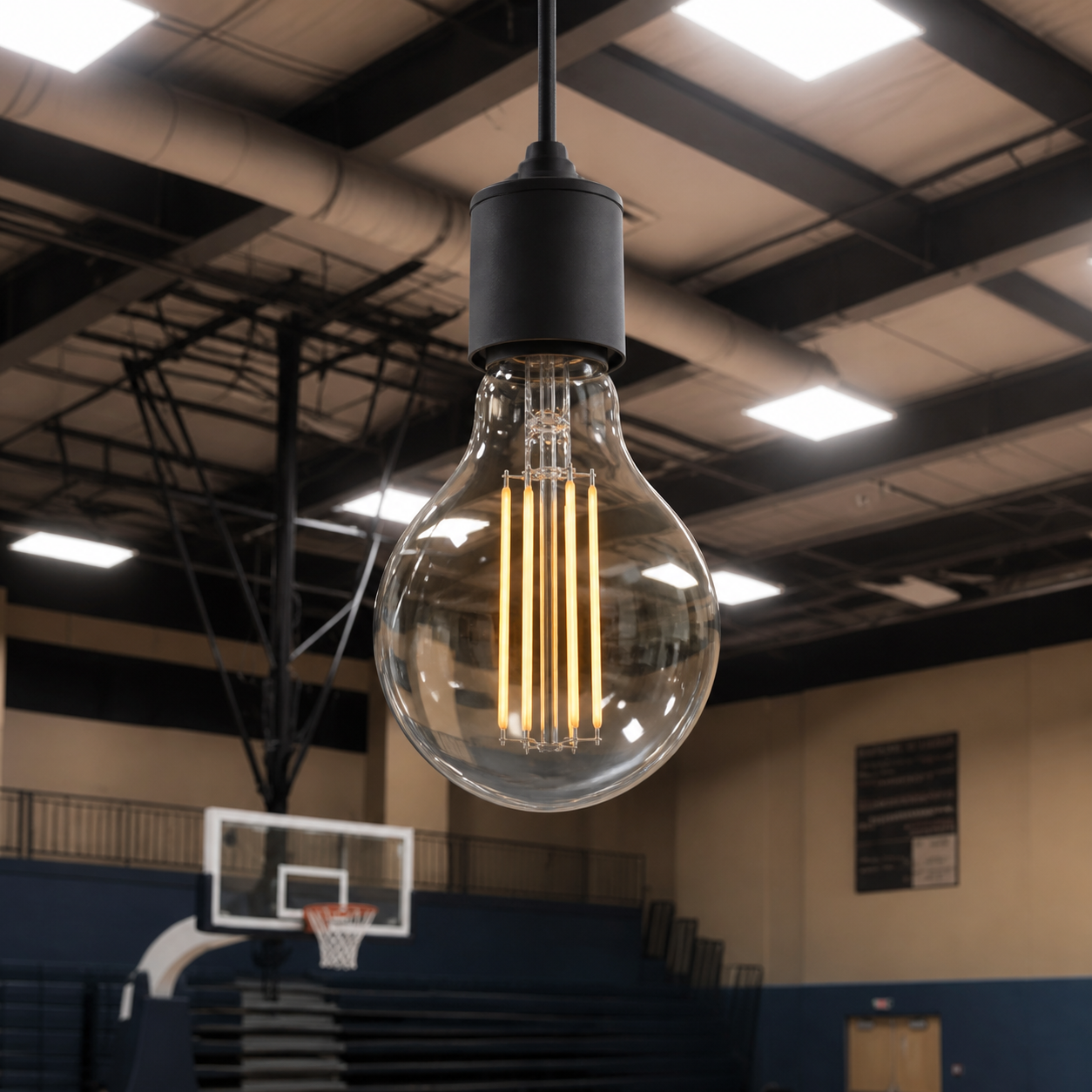

High Power LED Filament Bulbs in a realistic application setting

Technical Specifications

Model Specifications

Model / Power Code	Dimensions	Power	Calculated Output	Efficacy	CCT	Base Options
XGY-ED120CT-EXX (XX=40)	D120 x 288 mm	40 W	6400 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-ED120CT-EXX (XX=50)	D120 x 288 mm	50 W	8000 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-ED120CT-EXX (XX=60)	D120 x 288 mm	60 W	9600 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-ED120CT-EXX (XX=80)	D120 x 288 mm	80 W	12800 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-ED120CT-EXX (XX=100)	D120 x 288 mm	100 W	16000 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-ED120CT-EXX (XX=120)	D120 x 288 mm	120 W	19200 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-ED90CT-EXX (XX=30)	D90 x 238 mm	30 W	4800 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-ED90CT-EXX (XX=40)	D90 x 238 mm	40 W	6400 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-ED90CT-EXX (XX=50)	D90 x 238 mm	50 W	8000 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-ED90CT-EXX (XX=60)	D90 x 238 mm	60 W	9600 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-ED90CT-EXX (XX=80)	D90 x 238 mm	80 W	12800 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-ED75CT-EXX (XX=18)	D75 x 180 mm	18 W	2880 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-ED75CT-EXX (XX=24)	D75 x 180 mm	24 W	3840 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-ED75CT-EXX (XX=30)	D75 x 180 mm	30 W	4800 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-ED75CT-EXX (XX=40)	D75 x 180 mm	40 W	6400 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-ED75CT-EXX (XX=50)	D75 x 180 mm	50 W	8000 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-ED75CT-EXX (XX=60)	D75 x 180 mm	60 W	9600 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-T52CT-EXX (XX=18)	D52 x 232 mm	18 W	2880 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-T52CT-EXX (XX=24)	D52 x 232 mm	24 W	3840 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-T52CT-EXX (XX=30)	D52 x 232 mm	30 W	4800 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-T52CT-EXX (XX=40)	D52 x 232 mm	40 W	6400 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-T52CT-EXX (XX=50)	D52 x 232 mm	50 W	8000 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-T52CT-EXX (XX=60)	D52 x 232 mm	60 W	9600 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-T46CT-EXX (XX=18)	D46 x 210 mm	18 W	2880 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-T46CT-EXX (XX=24)	D46 x 210 mm	24 W	3840 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-T46CT-EXX (XX=30)	D46 x 235 mm	30 W	4800 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-T46CT-EXX (XX=40)	D46 x 235 mm	40 W	6400 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-T38CT-EXX (XX=18)	D38 x 165 mm	18 W	2880 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-T38CT-EXX (XX=24)	D38 x 165 mm	24 W	3840 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options
XGY-T38CT-EXX (XX=30)	D38 x 165 mm	30 W	4800 lm calculated	160 lm/W	3000-6500 K	E27 / E40 options

Product Description

Product Details

Product Construction

The finished lamp combines its visible filament structure, transparent envelope and base connection as one replaceable light source. Envelope proportions and base selection vary within the family.

Selection & Installation Notes

Match the complete item reference to the fixture holder, available clearance, permitted lamp load, site supply, control method and required appearance. Confirm the approved lamp data and physical sample before production or installation. Compare related formats in our LED filament bulb range.

Recommended Application

Applications

Decorative Pendant Fixtures: Use the visible filament appearance in compatible exposed-lamp pendant designs.
Hospitality Interior Lighting: Coordinate the lamp form with decorative fixtures in dining, lounge and reception areas.
Retail Display Lighting: Use the selected silhouette in visible fixtures near merchandise and branded interiors.
Residential Feature Fixtures: Pair the lamp with compatible statement pendants and open decorative luminaires.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What distinguishes a high-power LED filament bulb?

It combines the visible filament appearance of this lamp family with a higher-output product category. Confirm the exact electrical and photometric data for the selected reference.

How should the bulb envelope be selected?

Compare the complete model reference, envelope dimensions, fixture opening and available internal clearance before ordering.

Which lamp base should be ordered?

Match the ordered base to the destination holder and approved electrical specification. Do not select a base from the envelope shape alone.

Can the bulb be replaced separately from the fixture?

Yes. This is a replaceable lamp format, but the fixture must support the selected envelope, base and electrical load.

What should be checked for dimming or other controls?

Confirm the required control method and the compatibility of the selected lamp, driver electronics and project control equipment before ordering.

What should be confirmed for an OEM/ODM order?

Confirm the complete reference, envelope, base, electrical build, appearance sample, labeling and packaging before production.
