GU10 LED Spot Bulbs

GU10 LED spot bulbs are replaceable lamps for compatible 220–240 V twist-lock fittings. The series combines six rated-power choices with focused or wide-beam options for indoor accent and local lighting.
  • Replaceable GU10 Interface: The twist-lock base fits compatible GU10 spotlight holders while keeping the lamp separate from the fixture.
  • T1 and T2 Front Styles: The series provides open-front and textured-lens constructions for the ordered appearance.
  • Two Beam Distributions: Choose a focused 36° beam for accent tasks or a wide 110° beam for broader local illumination.
  • Ordered Control and CRI Options: No-flicker operation, Ra80 or Ra90 color rendering and optional dimming are specified by configuration.
Lamp baseGU10 twist-lock
Input220-240 V
Rated power2 W, 3 W, 5 W, 6 W, 7 W or 8 W
Lamp sizeDia. 50 x 58 mm
Beam options36° or 110°
CCT range3000-6500 K
Request a Quote

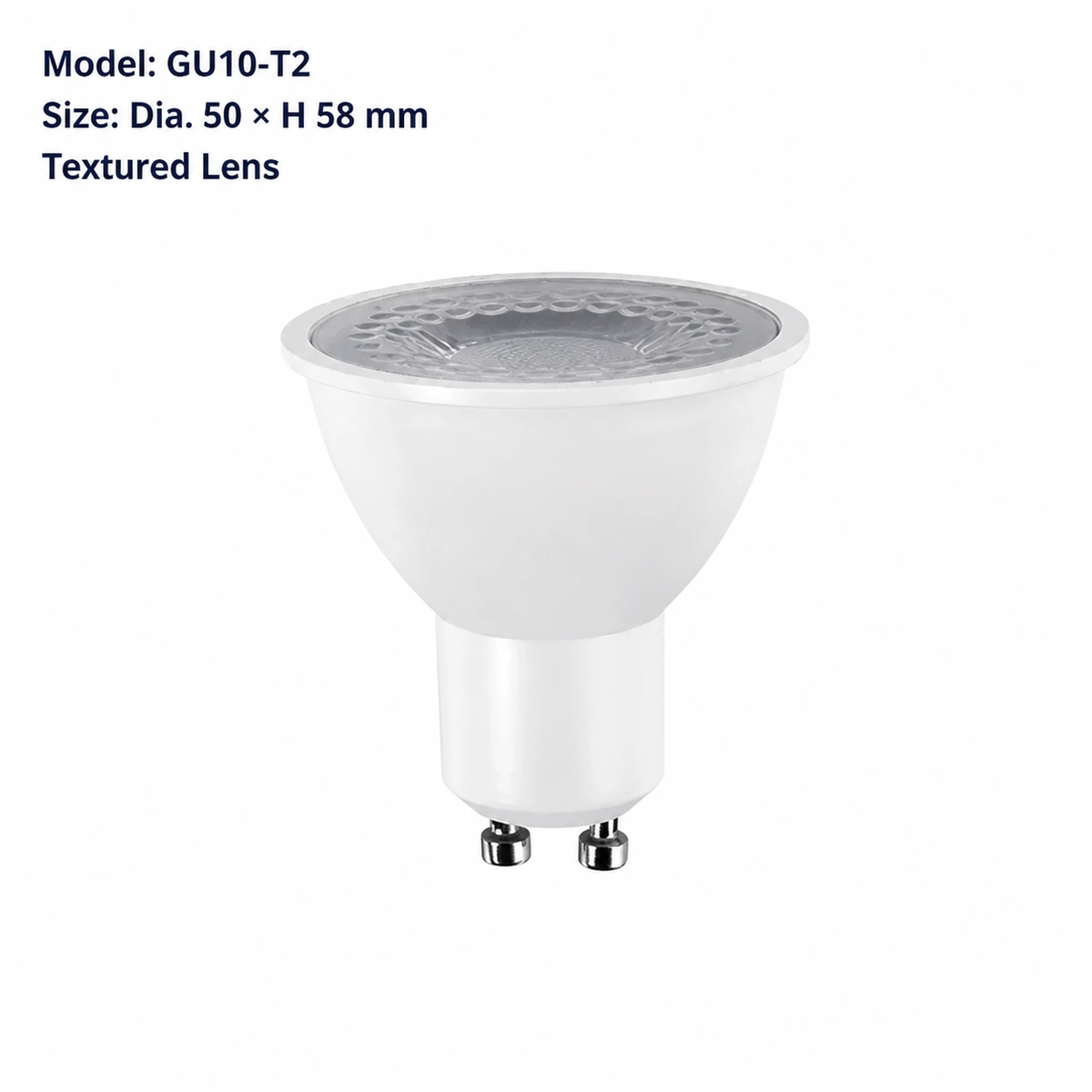

GU10-T2 GU10 LED spot bulb, 50 millimeters diameter by 58 millimeters high, textured lens
GU10 LED spot bulb installed in retail accent lighting

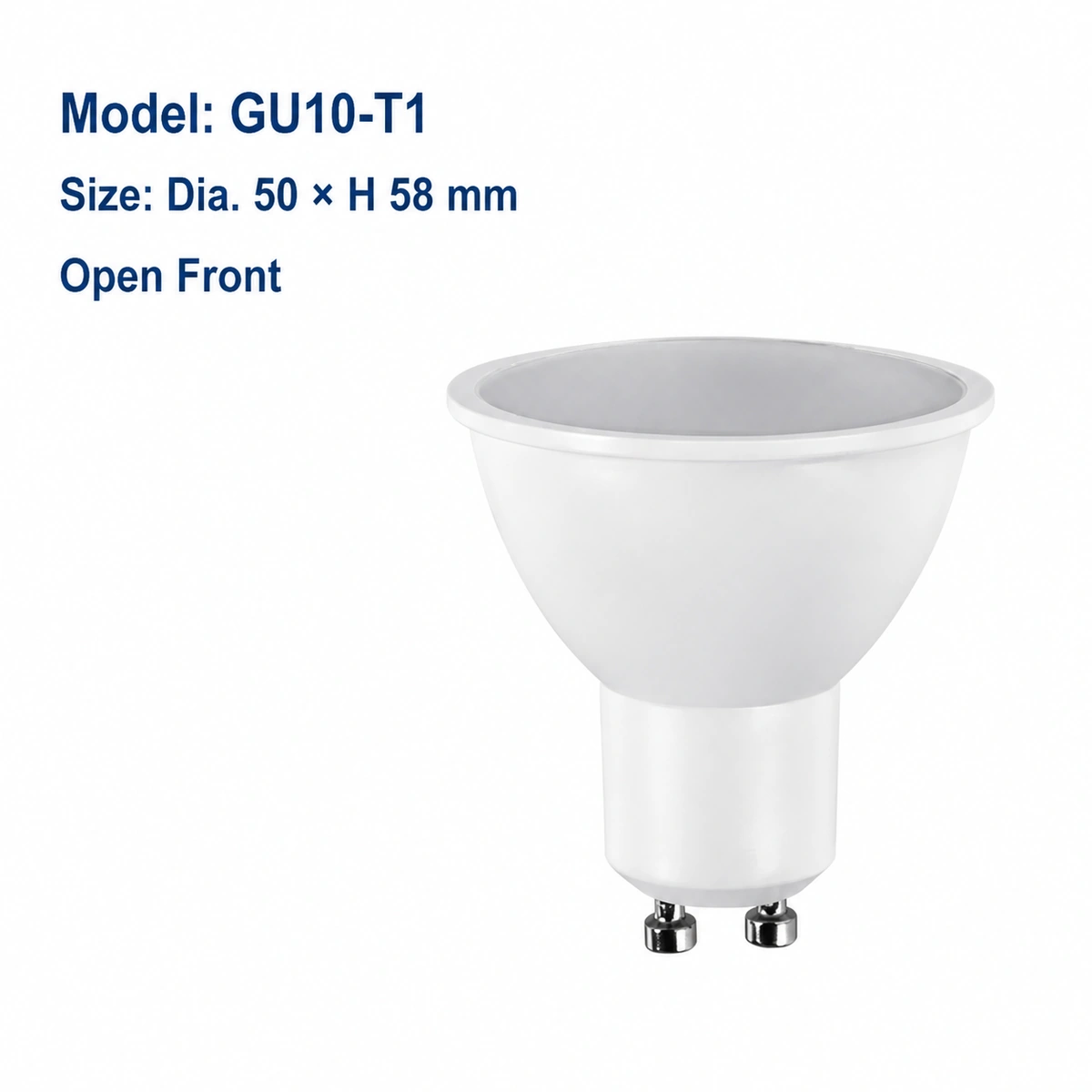

GU10-T1 GU10 LED spot bulb, 50 millimeters diameter by 58 millimeters high, open front

Technical Specifications

Model Specifications

ModelDimensions (mm)Power (W)InputEfficacy (lm/W)Beam AngleCCT
XGY-SMD-GU10-E2Dia. 50 x 582220-240 V80-18036° / 110°3000-6500 K
XGY-SMD-GU10-E3Dia. 50 x 583220-240 V80-18036° / 110°3000-6500 K
XGY-SMD-GU10-E5Dia. 50 x 585220-240 V80-18036° / 110°3000-6500 K
XGY-SMD-GU10-E6Dia. 50 x 586220-240 V80-18036° / 110°3000-6500 K
XGY-SMD-GU10-E7Dia. 50 x 587220-240 V80-18036° / 110°3000-6500 K
XGY-SMD-GU10-E8Dia. 50 x 588220-240 V80-18036° / 110°3000-6500 K

The 80-180 lm/W value is a series range. Ra80 and Ra90 are ordered options; confirm the required combination for the order.

Product Description

Product Details

Product Construction

This self-contained replaceable light source does not include the fixed holder, trim or surrounding luminaire.

Selection & Installation Notes

Before installation, verify the fitting supply, space around the lamp, ventilation and any connected dimmer. Compare adjacent lamp families in our GU10, MR16 and AR111 bulb range.

Recommended Application

Applications

  • Retail Display Lighting: Focused GU10 spot bulbs highlight merchandise in compatible track heads and recessed fittings.
  • Hospitality Guest Rooms: Replaceable GU10 lamps serve bedside, corridor and lounge spotlight fittings.
  • Residential Spotlights: Compact GU10 bulbs provide accent or local light in compatible kitchen, living-room and hallway fittings.
  • Display Cabinet Lighting: GU10 spot lamps illuminate exhibits in compatible ventilated display fittings.
Keep
in touch
  • No.5 Fenghuang Road Qianjiang Industrial Area Dingqiao Town Haining Zhejiang 314413 China
  • +86-18358315743
  • R.KOO@NEW-LIGHTS.COM

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

By submitting this form, you ask New Lights Lighting Technology Co., Ltd. to use the information you provide to respond to your inquiry and manage related business communications. See our Privacy Policy. Optional marketing emails require the separate choice below.

Facebook Youtube Linkedin Instagram

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What fitting does this GU10 LED bulb use?

It uses a GU10 twist-lock base for a compatible GU10 holder on a 220–240 V supply.

How do the GU10-T1 and GU10-T2 front styles differ?

GU10-T1 has an open-front appearance, while GU10-T2 uses a textured-lens front. Specify the required style with the order.

When should I choose the 36° or 110° beam?

Choose 36° for a concentrated accent beam or 110° for wider light across a nearby area.

Is every GU10 version dimmable?

No. Dimming is an ordered option, so confirm the required dimming version and dimmer compatibility before purchase.

What should I check before replacing an existing GU10 lamp?

Check the GU10 holder, 220–240 V supply, available clearance, ventilation, beam angle, CCT, CRI grade and any dimming requirement.

Does this page cover a complete spotlight fixture?

No. It covers the replaceable GU10 LED bulb; the holder, trim, housing and complete spotlight fixture are separate.
