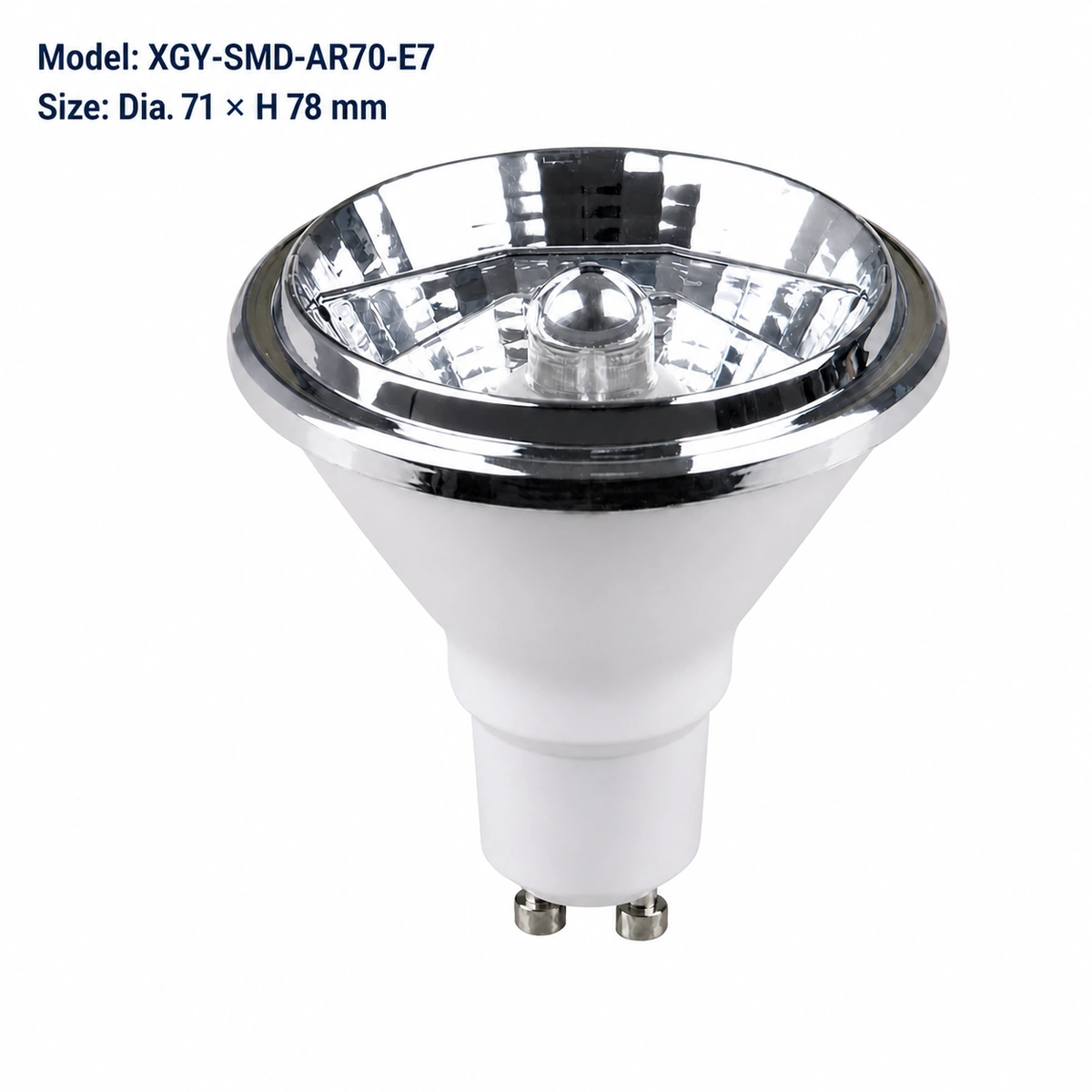

AR70 LED Reflector Bulb
A compact 7 W AR70 LED reflector bulb with a GU10 base and two directional beam choices for indoor accent lighting.
- Two Beam Choices: A 12-degree or 24-degree beam supports different indoor accent-light spreads.
- No-Flicker Series Marking: No-flicker operation supports steady directional illumination.
- CRI Selection: Ra 80 and Ra 90 options address different color-rendering requirements.
- Optional Dimming: A dimmable configuration is available for a compatible control system.
| Product format | AR70 GU10 LED reflector bulb |
|---|---|
| Dimensions | Dia. 71 x 78 mm |
| Rated power | 7 W |
| Beam options | 12 degrees / 24 degrees |
|---|---|
| CCT | 3000-6500 K |
| Dimming | Optional configuration |
Technical Specifications
Model Specifications
| Model | Variant | Dimensions | Rated Power | Luminous Efficacy | CCT | Beam | CRI |
|---|---|---|---|---|---|---|---|
| XGY-SMD-AR70-E7 | AR70F-GU10 | Dia. 71 x 78 mm | 7 W | 80-180 lm/W | 3000-6500 K | 12 / 24 degrees | Ra 80 / Ra 90 |
Product Description
Product Details
Product Construction
This is a self-contained replaceable lamp assembly; the holder and luminaire remain separate components. The series block carries a 15,000–25,000 hour life marking.
Selection & Installation Notes
Check the 71 x 78 mm envelope and GU10 holder clearance, then select the beam, CCT and Ra option. The source prints S:220-240 V without defining S or assigning its meaning by model, so confirm the supply configuration before sampling. No outdoor or IP rating is published.
Recommended Application
Applications
- Retail Display Accents: Directional light emphasizes merchandise and shelving in compatible indoor fixtures.
- Gallery Spot Lighting: The narrow reflector beam highlights artwork and exhibit details indoors.
- Hospitality Features: Focused illumination serves reception details and decorative wall surfaces.
- Residential Accents: The compact reflector format illuminates artwork, shelving and architectural details.
