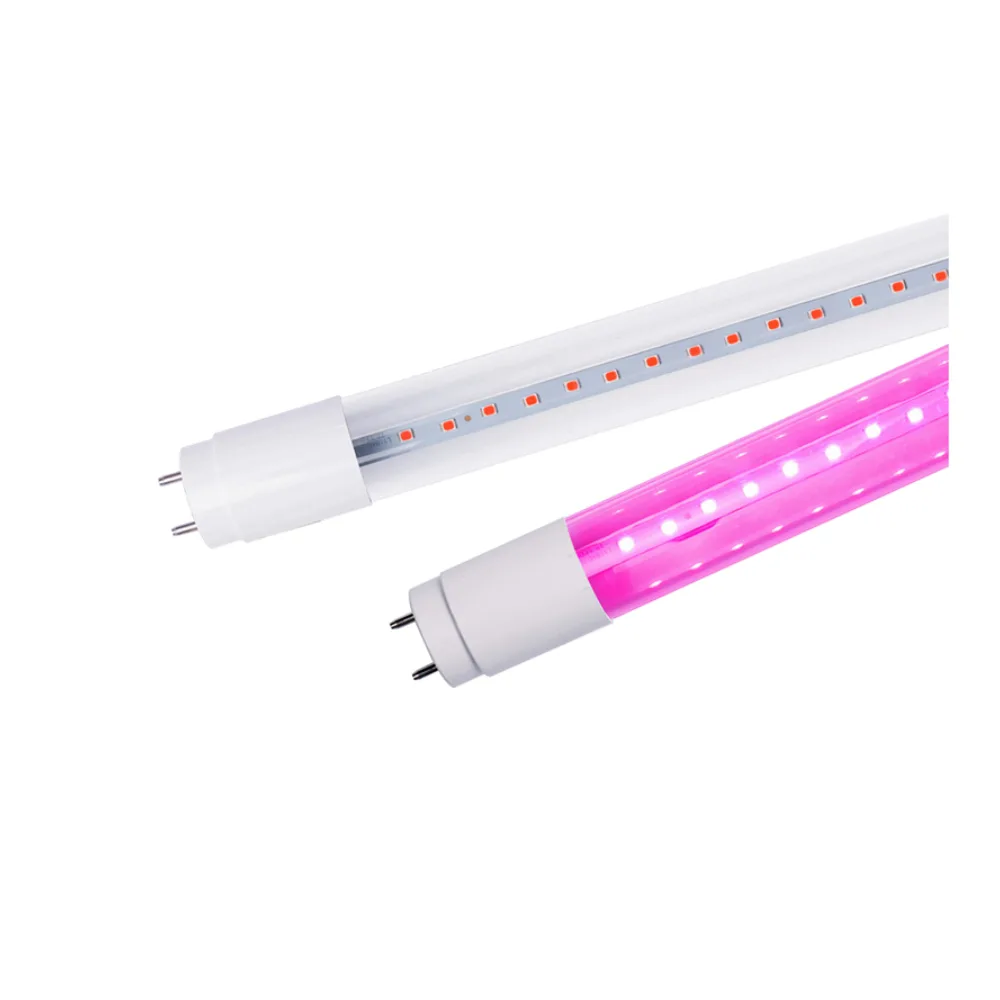

T8 Glass Horticultural LED Tube
The T8 glass horticultural LED tube provides a linear grow-light format for professional indoor planting layouts. Select the lamp and project configuration from the approved product record.
- Glass Tube Body: A glass tube forms the main lamp body.
- Linear T8 Format: The elongated tube form follows planting rows and shelf-based growing layouts.
- Indoor Crop Use: The product is intended for managed growing spaces.
| Lengths | 590 / 895 / 1199 / 1499 mm |
|---|---|
| Power | 9 / 12 / 18 / 22 W |
| Diameter | 26 mm |
| PPF | 13.5–42 μmol/s |
|---|---|
| PPE | 1.5–1.9 μmol/J |
| Input | 180–265 V or 85–265 V |
Technical Specifications
Model Specifications
| Model No. | Dimensions | Power | Input Version | Spectrum | PPF | PPE / PF |
|---|---|---|---|---|---|---|
| XGYPGL-T8102-E9 | Dia. 26 x 590 mm | 9 W | S: 180-265 V U: 85-265 V | R+B + daylight / full spectrum | 13.5 μmol/s | 1.5 μmol/J / PF 0.5 or 0.9 |
| XGYPGL-T8103-E12 | Dia. 26 x 895 mm | 12 W | S: 180-265 V U: 85-265 V | R+B + daylight / full spectrum | 21 μmol/s | 1.8 μmol/J / PF 0.5 or 0.9 |
| XGYPGL-T8104-E18 | Dia. 26 x 1199 mm | 18 W | S: 180-265 V U: 85-265 V | R+B + daylight / full spectrum | 35 μmol/s | 1.9 μmol/J / PF 0.5 or 0.9 |
| XGYPGL-T8105-E22 | Dia. 26 x 1499 mm | 22 W | S: 180-265 V U: 85-265 V | R+B + daylight / full spectrum | 42 μmol/s | 1.9 μmol/J / PF 0.5 or 0.9 |
Product Description
Product Details
Product Construction
The finished lamp is supplied as the ordered assembly, with its end interface and included components following the approved order record.
Selection & Installation Notes
Confirm lampholder compatibility, circuit wiring, available clearance, service access and breakage-control requirements before installation. Determine lamp quantity, spacing and mounting height through the project lighting calculation. See our professional grow light category for related horticultural formats.
Recommended Application

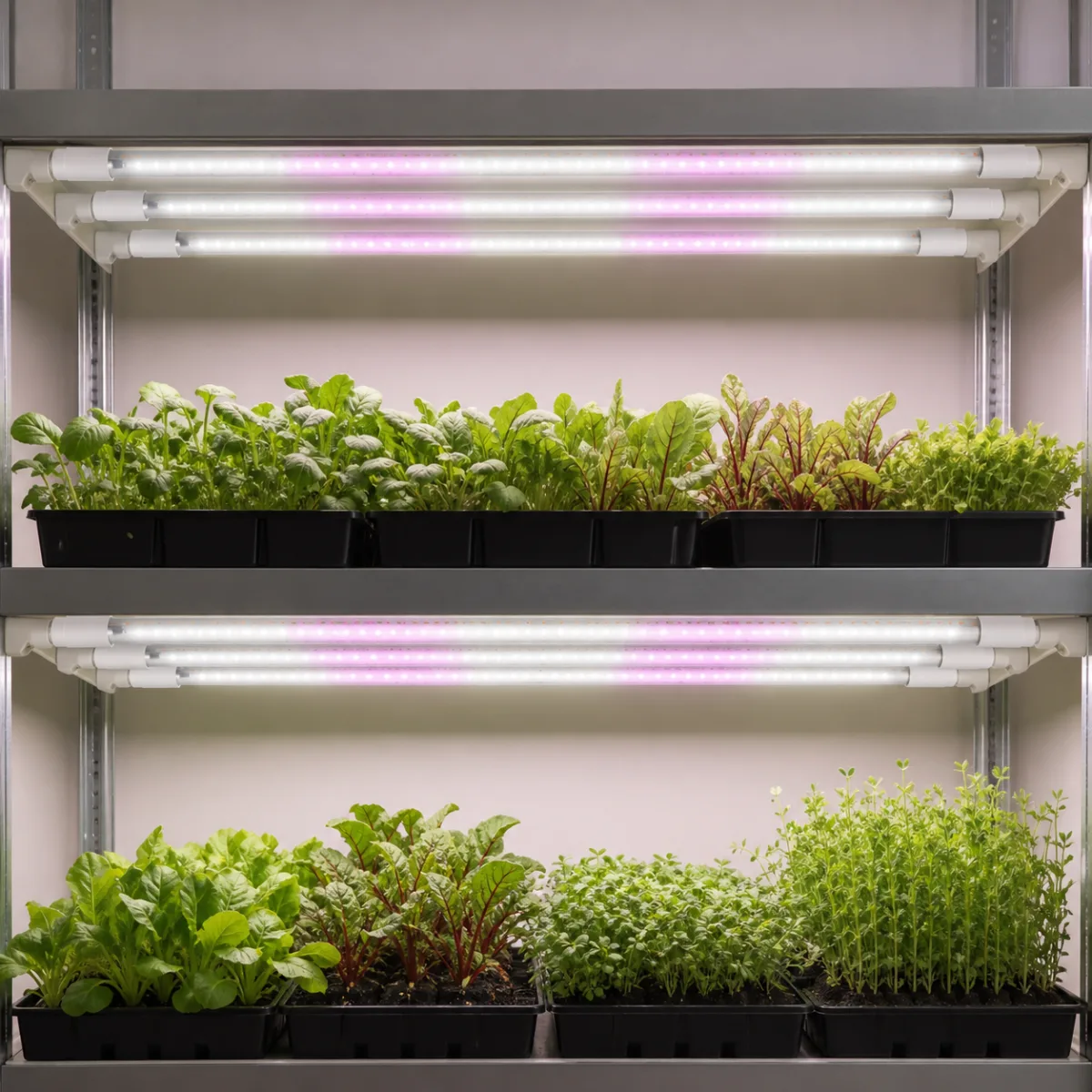

Applications
- Propagation Racks: Install linear lamps in dedicated fixtures above seedling and starter trays.
- Indoor Growing Shelves: Arrange tubes across planned planting tiers.
- Cultivation Rooms: Use a defined lamp layout for indoor crop areas.
- Plant Trial Stations: Position tubes according to the project lighting plan in controlled plant evaluation spaces.
