Multi-Bar LED Harvest Lamp
- Distributed Multi-Bar Frame: Spaced LED bars spread light sources across a broad rectangular canopy.
- Open Airflow Layout: Gaps between bars leave ventilation paths through the suspended frame.
- Level Suspension Format: Multiple support points keep the large luminous plane aligned above crop rows.
- Distinct NLE Structure: The NLE version uses a shallower square frame than the HV family.
| Power | 320 / 640 / 680 / 860 / 1075 W |
|---|---|
| PPF | 850–2600 μmol/s |
| PPE | 2.3 μmol/J |
| Input | 100–277 V |
|---|---|
| Spectrum | Full spectrum |
| Frames | 550 × 1130 to 1130 × 1130 mm |
Technical Specifications
Model Specifications
| Model No. | Dimensions | Power | Input Version | Spectrum | PPF | PPE / PF |
|---|---|---|---|---|---|---|
| XGYPGL-HV-E320 | 550 x 1130 x 114 mm | 320 W | U: 100-277 V | Full Spectrum | 850 μmol/s | 2.3 μmol/J / PF 0.5 or 0.9 |
| XGYPGL-HV-E640 | 1130 x 1130 x 114 mm | 640 W | U: 100-277 V | Full Spectrum | 1,500 μmol/s | 2.3 μmol/J / PF 0.5 or 0.9 |
| XGYPGL-HV-E860 | 1130 x 1130 x 114 mm | 860 W | U: 100-277 V | Full Spectrum | 2,000 μmol/s | 2.3 μmol/J / PF 0.5 or 0.9 |
| XGYPGL-HV-E1075 | 1130 x 1130 x 114 mm | 1075 W | U: 100-277 V | Full Spectrum | 2,600 μmol/s | 2.3 μmol/J / PF 0.5 or 0.9 |
| XGYPGL-NLE-E680 | 1100 x 1100 x 50 mm | 680 W | U: 100-277 V | Full Spectrum | 1,600 μmol/s | 2.3 μmol/J / PF 0.5 or 0.9 |
Product Description
Product Details
Product Construction
The family combines LED circuits with 100–277 V driver packages in five model-specific frame sizes. Each model forms a complete overhead luminaire for suspended horticultural layouts.
Selection & Installation Notes
Select the exact electrical load and PPF from the model table, then coordinate the fixture footprint with canopy width, aisles, irrigation, cooling capacity and suspension support. Establish mounting height and spacing from a measured PPFD plan. Compare related professional grow lights.
Recommended Application
Applications

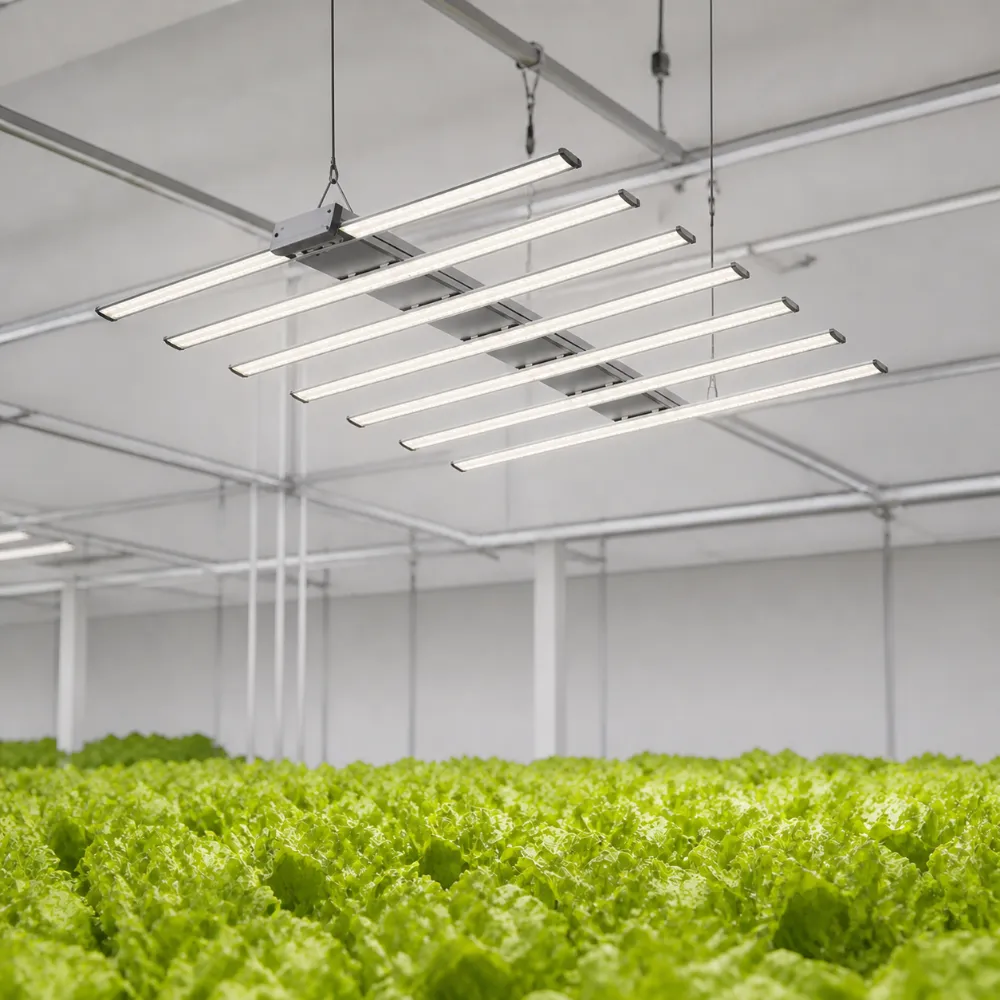

- Commercial Grow Rooms: Broad multi-bar luminaires provide overhead light across continuous crop rows.
- Protected Greenhouse Zones: Suspended open frames cover large supplemental-lighting areas within protected greenhouse structures.
- Propagation Areas: Level bar arrays serve wide nursery and starter zones with planned mounting positions.
- Horticultural Trial Bays: Fixed frame locations support repeatable lighting layouts across comparable plant groups.
