Rectangular Bladeless Ceiling-Mount LED Fan Light
- Dual Light Sections: The lighting assembly is rated as two 25 W maximum sections.
- Three White-Light Settings: The supported CCT choices are 3000 K, 4000 K and 6500 K.
- Six Fan-Speed Steps: The IR handset provides six airflow settings for room adjustment.
- Reverse and Timer Modes: The remote adds directional airflow and timed operation.
| Size | 600 × 600 × 70 mm |
|---|---|
| Light Load | Max 25 W × 2 |
| Fan Load | Max 30 W HF |
| Efficacy | 80 lm/W |
|---|---|
| CCT | 3000/4000/6500 K |
| Rating | Ra80/95 / 120° / PF 0.9 / IP20 |
Technical Specifications
Model Specifications
| Model No. | Size L×W×H | Light Power | Fan Power | Efficacy | CCT | Materials |
|---|---|---|---|---|---|---|

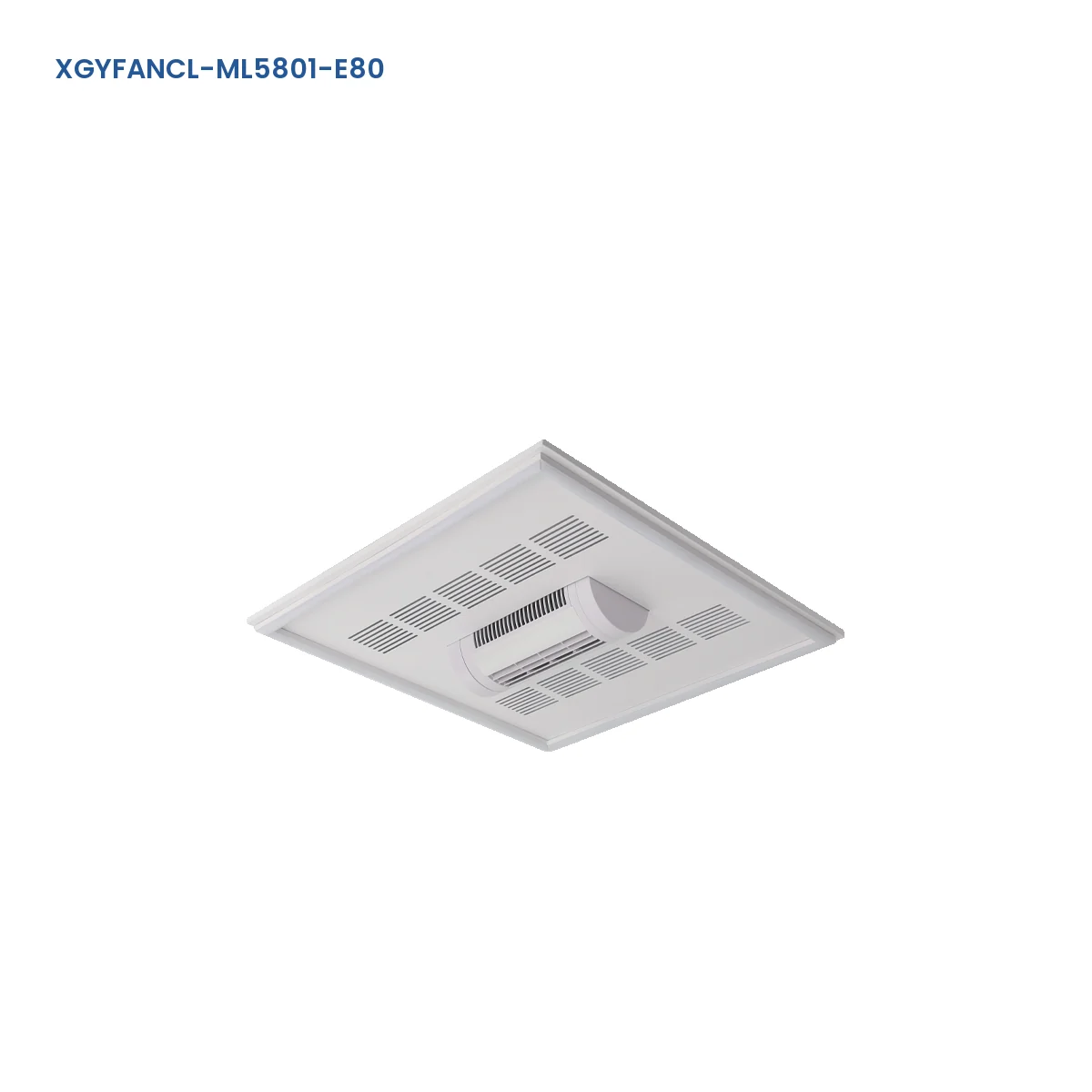

| XGYFANCL-ML5801-E80 | 600×600×70 mm | Max 25 W × 2 | Max 30 W HF | 80 lm/W | 3000/4000/6500 K | Iron art + acrylic + silicone |
Product Description
Product Details
Product Construction

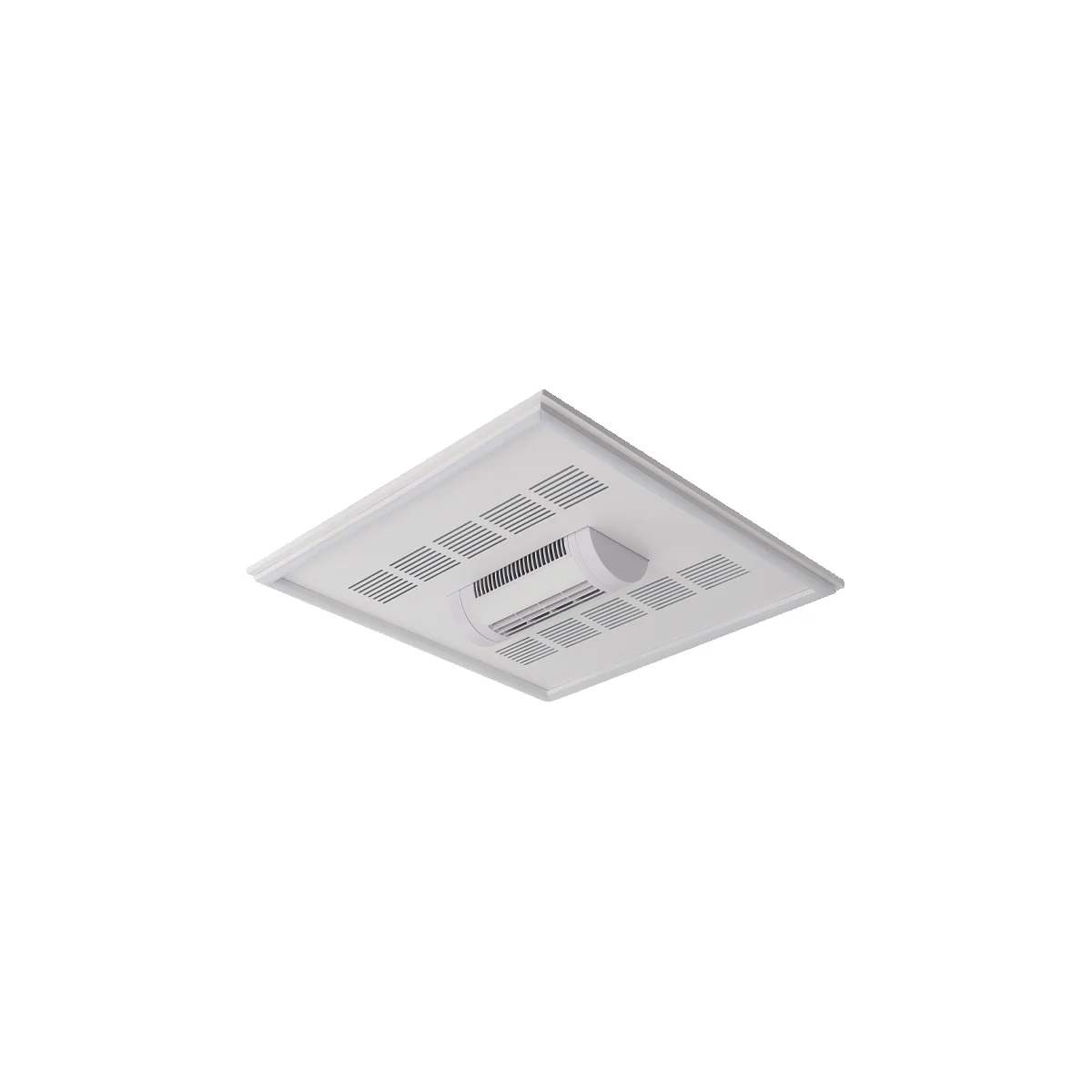

The ML5801-E80 uses a 600 × 600 × 70 mm rectangular body that combines the light assembly and an enclosed fan. The construction combines iron art, acrylic and silicone components.
Selection & Installation Notes
Plan for the full 600 × 600 mm ceiling footprint and 70 mm body depth. Confirm the supporting substrate, mounting hardware, electrical supply and maintenance access before installation. The IP20 configuration is for dry, protected interiors. Compare related products in our bladeless fan lights range.
Recommended Application
Applications

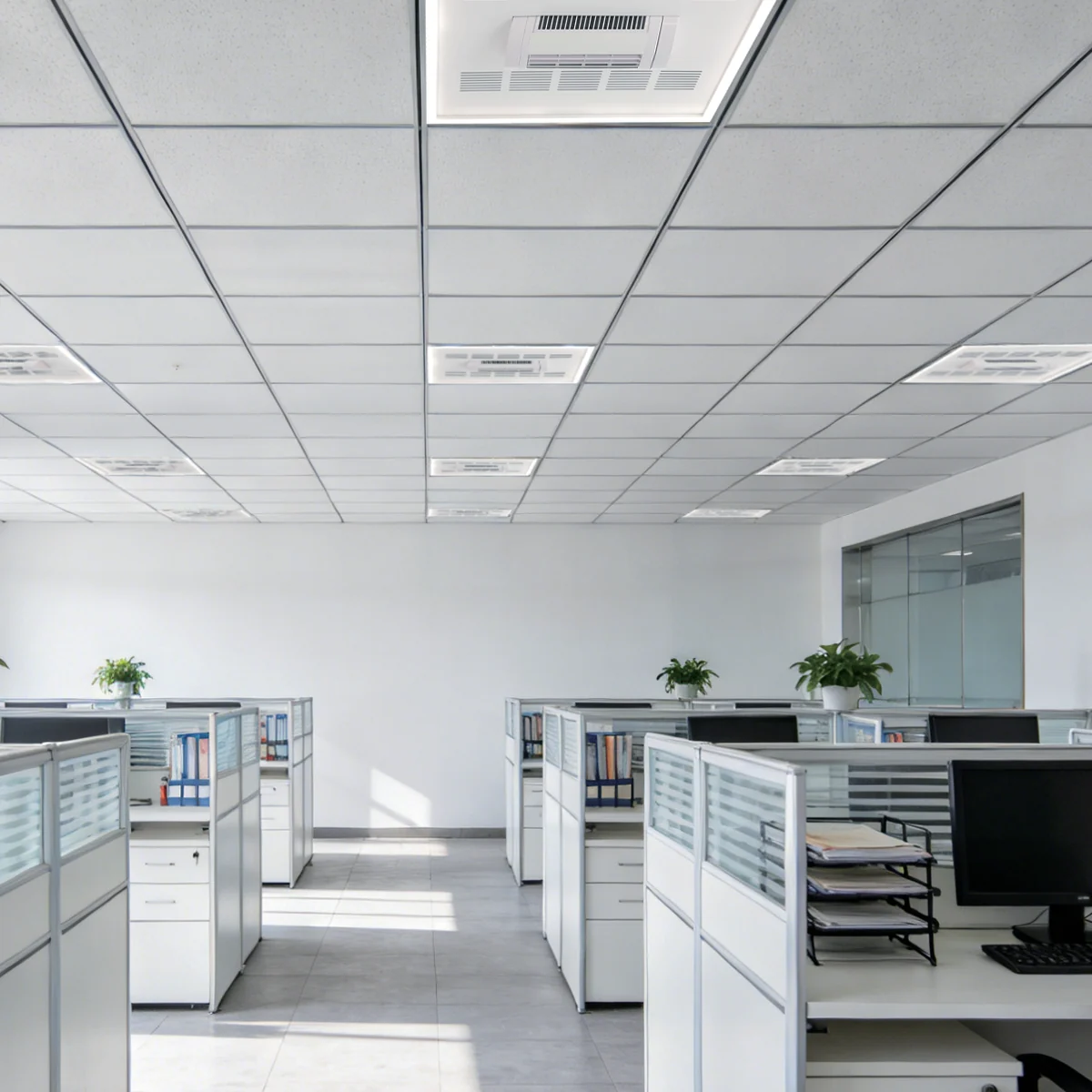

- Open-plan Offices: The 600 × 600 mm format suits coordinated ceiling layouts where the mounting structure supports the fan light.
- Meeting Rooms: Selectable CCT and remote fan settings support different presentation and occupancy conditions.
- Reception Areas: The hidden fan keeps the ceiling profile visually compact while providing local air movement.
- Protected Commercial Interiors: Use only in dry indoor spaces.
