XGYFANCL-KSSL07-E79 Hidden-Blade Ceiling Fan Light

The XGYFANCL-KSSL07-E79 Hidden-Blade Ceiling Fan Light places a light section and enclosed fan assembly within one round ceiling fixture. Confirm the electrical, control and mounting definition for the ordered version before installation.

Unified Overhead Position: Lighting and air-circulation functions share one designated ceiling location.
Compact Rotor Placement: Active fan parts do not project beyond the surrounding silhouette.
Dual-Purpose Room Element: One overhead product serves both illumination and air movement.
Order-Defined Operation: The approved configuration fixes electrical and operating boundaries before production.

Dimensions	Φ510 × 210 mm
Light load / output	Max 56 W / 2500 lm
Fan load	Max 23 W HF
CCT	3000–6000 K

Material	Plastic + metal
Control	IR remote: brightness, CCT, six-step fan, reverse, timer
Use boundary	IP20 / dry indoor ceiling

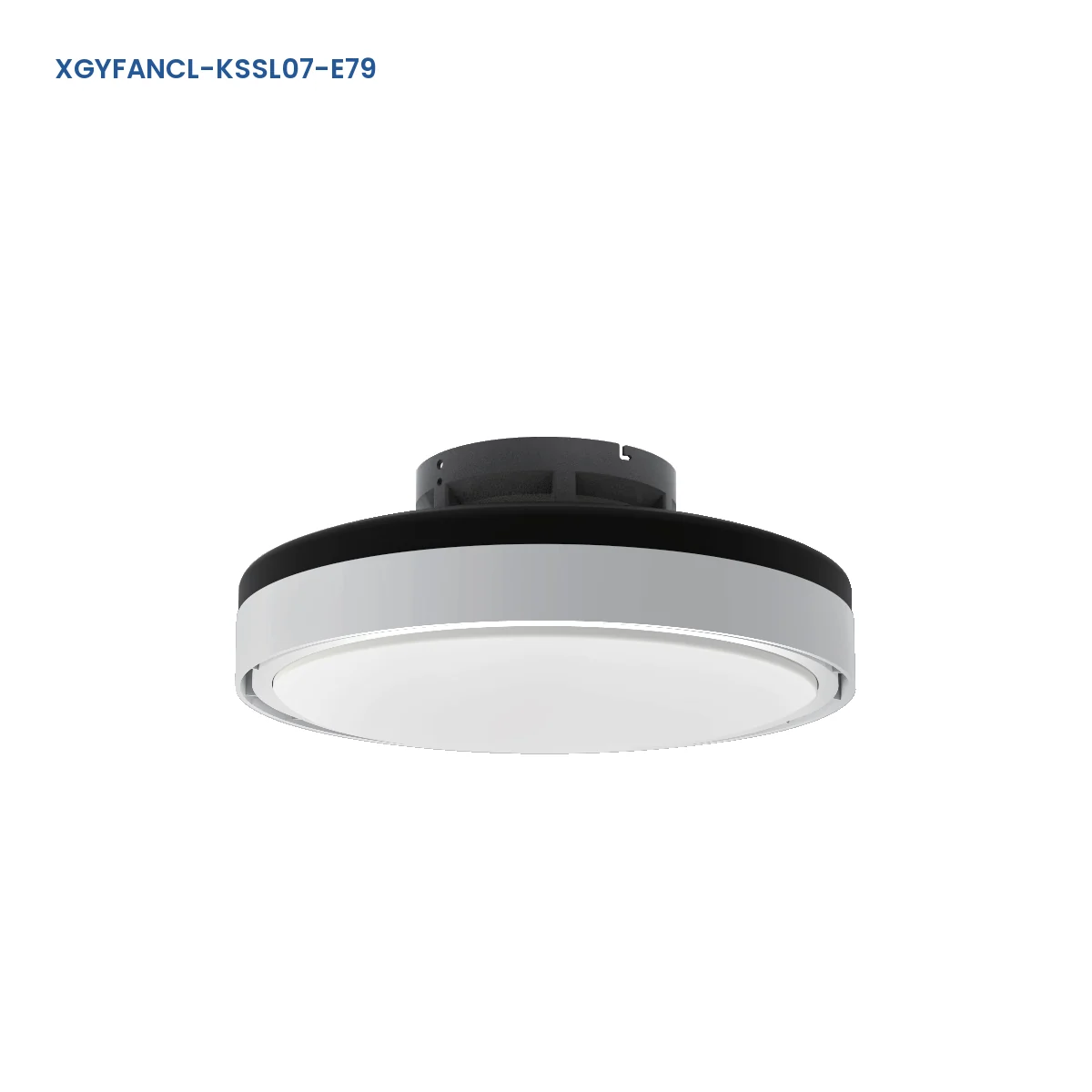

XGYFANCL-KSSL07-E79 Bladeless Hidden Ceiling-Mount LED Fan Light model

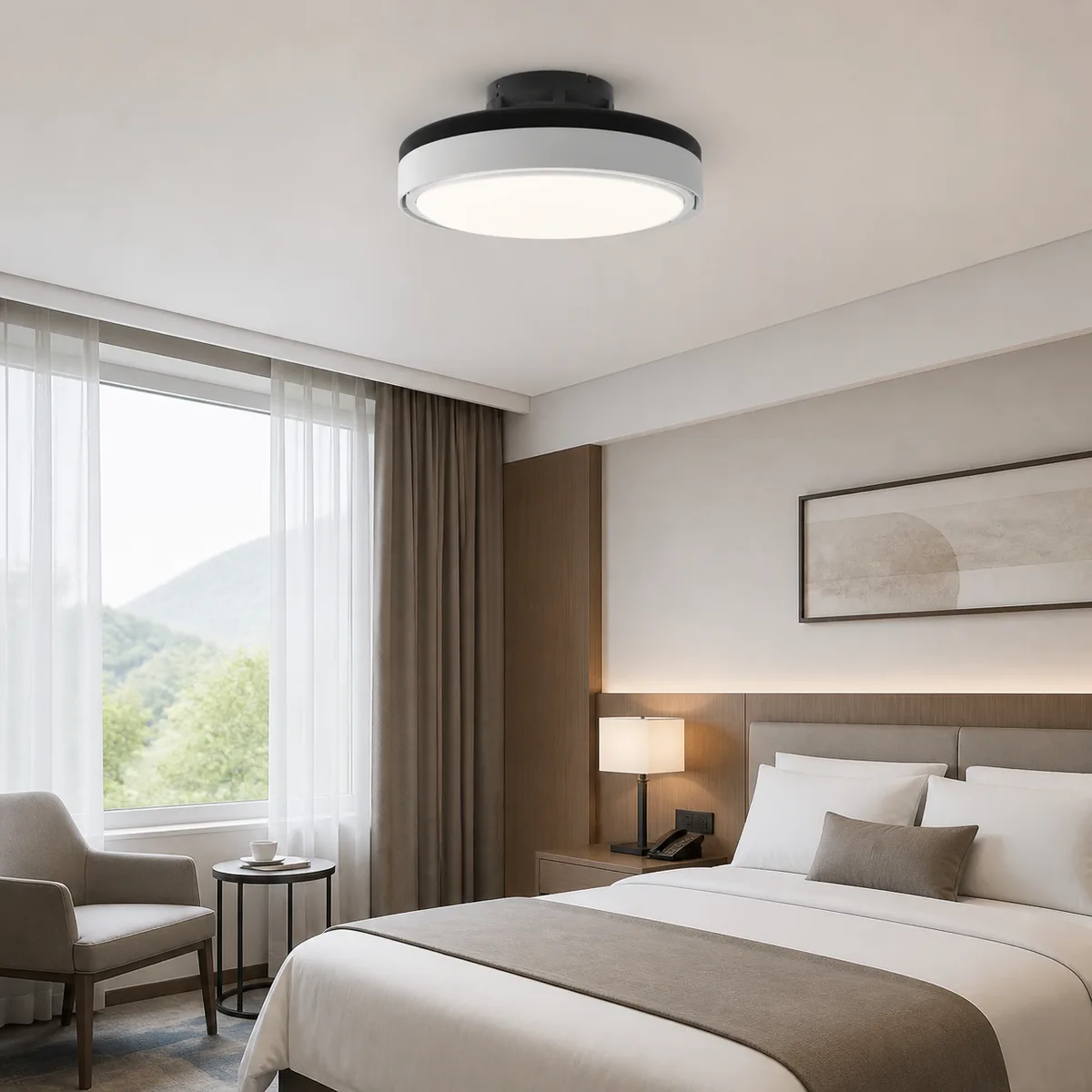

XGYFANCL-KSSL07-E79 hidden-blade ceiling fan light installed in a hotel guest room

Technical Specifications

Model Specifications

Model	Dimensions	Light Power	Fan Power	Output	CCT	Material
XGYFANCL-KSSL07-E79	Φ510 × 210 mm	Max 56 W	Max 23 W HF	2500 lm	3000–6000 K	Plastic + metal

Shared family controls include IR brightness, CCT, six-step fan speed, reverse and timer. Confirm the ordered 220–240 V or 185–265 V input before sampling.

Product Description

Product Details

Product Construction

A circular ceiling housing contains the fan assembly and presents the light section on its lower face. The moving assembly stays inside the fixture outline instead of projecting as exposed radial blades.

Selection & Installation Notes

Match the full model code to the room schedule. Verify the ordered electrical definition, control method, ceiling interface, structural support, clearance, maintenance access and included hardware against the approved drawing and sample. Review adjacent options in our bladeless fan light range.

Recommended Application

Applications

Bedroom Ceiling Plans: Use the approved unit where the design calls for one combined light and fan fixture.
Hotel Guest Rooms: Coordinate the model with the room layout, ceiling detail and confirmed operating method.
Residential Living Areas: Install the selected fixture at its assigned overhead connection and support point.
OEM Multi-Room Schedules: Repeat the approved product definition across rooms with matching project requirements.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What does hidden-blade describe on the KSSL07-E79?

It identifies the layout in which the moving blade assembly stays within the fixture outline. It does not by itself establish airflow, noise or safety performance.

Are airflow, speed and noise figures defined by the product name?

No. Confirm any required performance figures in the approved technical specification and verify the selected sample.

How is the fan light controlled?

Confirm the control method and available functions for the selected configuration. Check the supplied controller and operating behavior on the approved sample.

What electrical supply does the fixture require?

Follow the electrical definition approved for the order. Cross-check the product marking, project schedule and sample before installation.

What should be checked before ceiling installation?

Check the ceiling interface, structural support, mounting hardware, clearance, maintenance access and included accessories against the approved drawing and installation instructions.

Which certifications apply to this model?

Confirm the certificate document, covered model and destination-market requirements before relying on any certification claim.
