Dimming Solar Landscape Flood Light with Separate Panel
- Flexible Collection Placement: The energy collection position can be chosen independently of the aiming direction.
- Independent Beam Aiming: Direct the light without rotating the collection surface.
- Two-Point Ground Layout: The linked units occupy separate ground positions.
- Visible Connection Route: The external lead keeps the component link identifiable during installation.
| Structure | Separate staked panel and flood head with cabled connection |
|---|---|
| Dimensions | 91 × 125 × 42 mm |
| Output Stages | 800 / 480 / 240 lm |
| Solar Panel / Battery | 3.7 V / 4.5 W / 2 × 18650 1800 mAh |
|---|---|
| Mode / Protection | DIM / IP65 |
Technical Specifications
Model Specifications
| Model | Dimensions | Solar Panel | Output Stages | Mode | Battery | Protection |
|---|---|---|---|---|---|---|
| XGYFL-LC-XRSLDC01 | 91 x 125 x 42 mm | 3.7 V / 4.5 W | 800 / 480 / 240 lm | DIM | 2 x 18650 1800 mAh | IP65 |
Product Description
Product Details
Product Construction

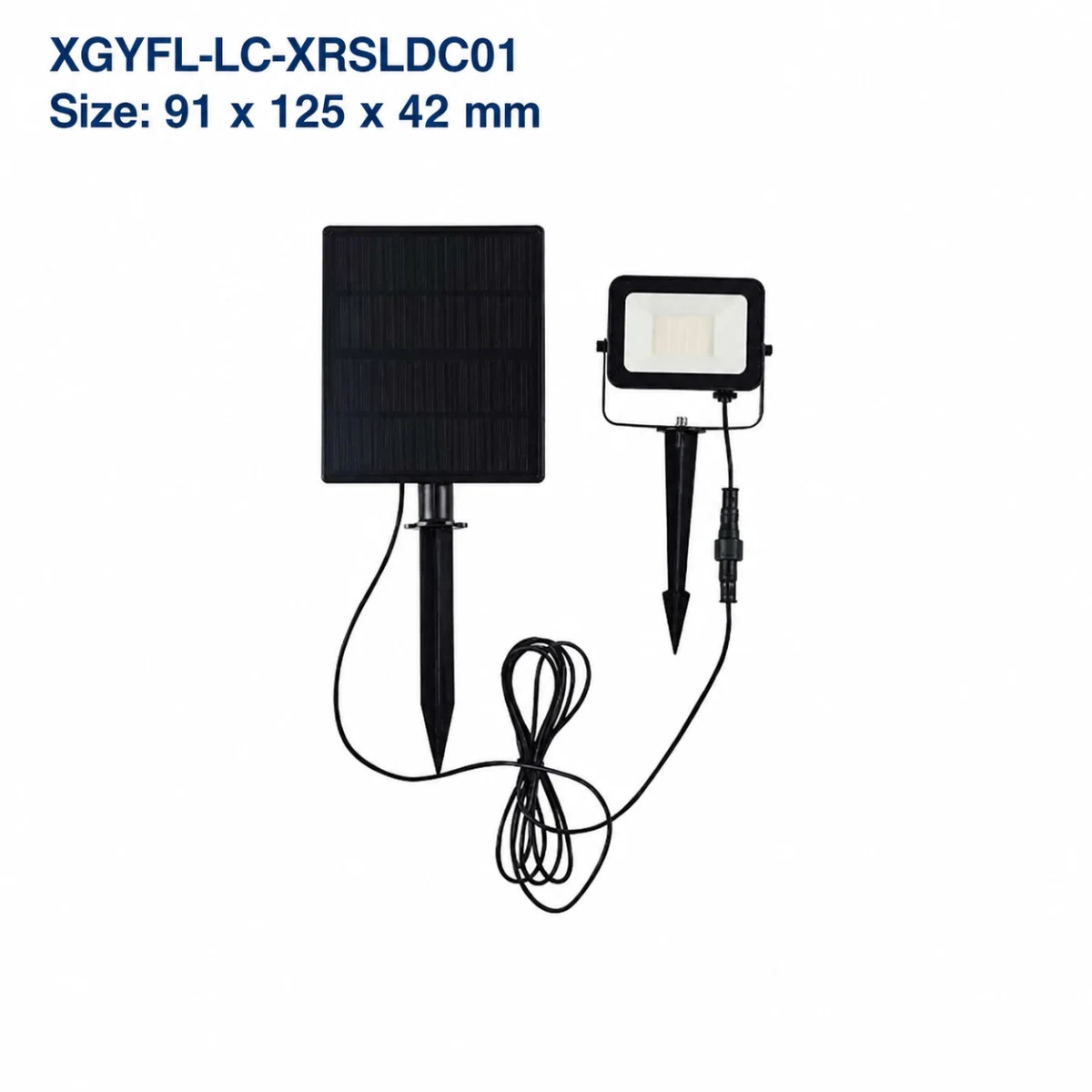

XGYFL-LC-XRSLDC01 comprises a rectangular photovoltaic module on one spike and a flood head held in a U-shaped yoke on a second spike. An inline connector joins the lead between the units. The energy set combines a 3.7 V / 4.5 W panel with two 18650 1800 mAh batteries.
Selection & Installation Notes
Set the photovoltaic module where it receives useful daylight, orient the luminaire toward the intended landscape area and lay the lead without strain or a trip point. DIM is the catalogue mode label; its switching sequence and timing are not specified. Compare related products in our solar flood lights range.
Recommended Application
Applications

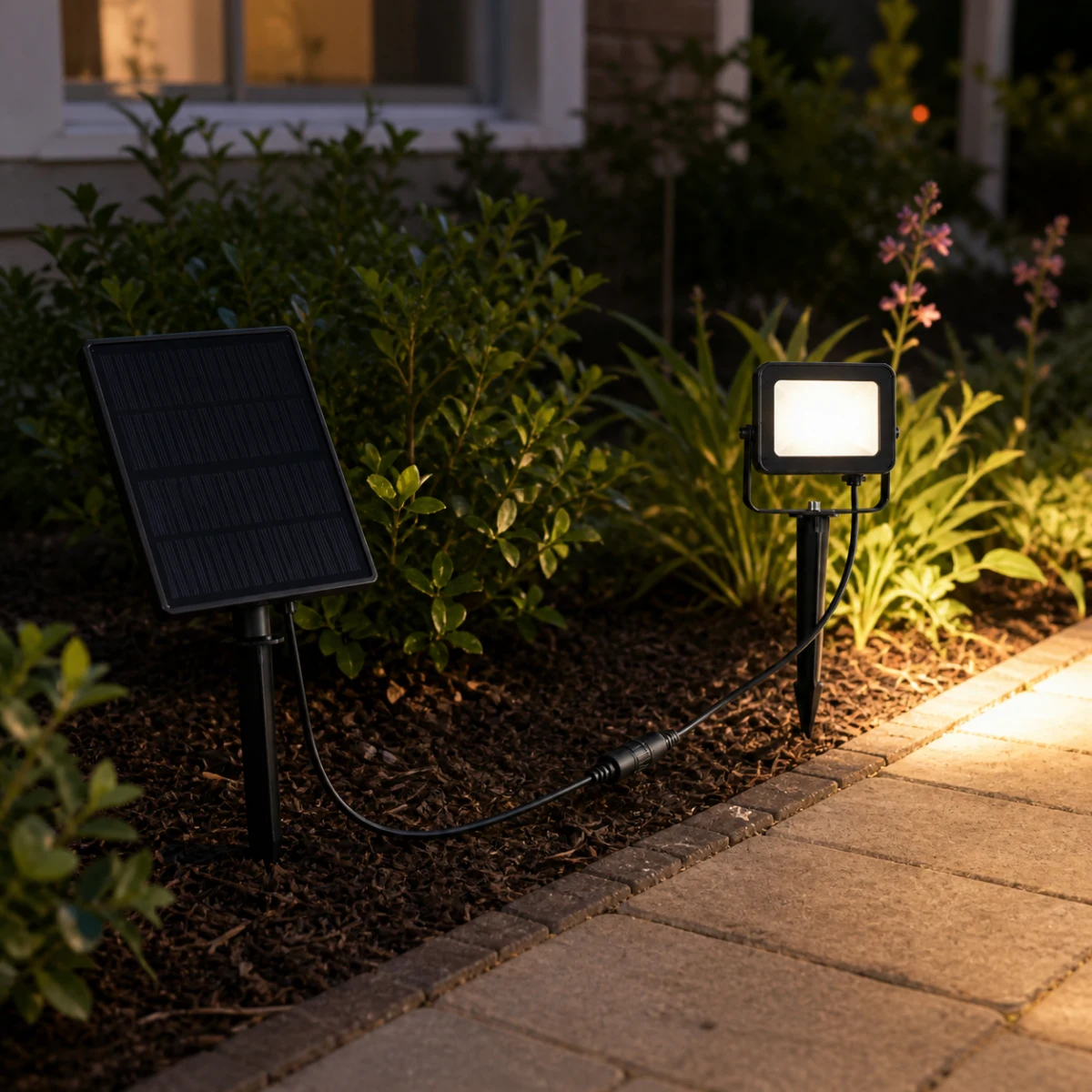

- Garden Paths: Directs the separately aimed flood head along planted paths while the panel occupies a useful daylight position.
- Planting Beds: Adds focused landscape illumination around planting beds with independent panel placement.
- Entrance Landscaping: Places directed solar lighting beside residential entrance planting and approach areas.
- Landscape Features: Aims the flood head at a selected garden feature while the panel remains separately positioned.
