New Lights

Protective-Cage LED Wall Lights – XGYWL-NZ44-NZ51

The XGYWL-NZ44 to NZ51 family combines four protective-cage housing designs with paired 6 W and 12 W integrated LED models. Each cage pair includes Ø110 mm and Ø165 mm versions at 60 lm/W.
  • Four Cage Geometries: Round, angular and framed forms provide four distinct exterior choices.
  • Paired Diameter Options: Each cage design is available in compact Ø110 mm and larger Ø165 mm formats.
  • Integrated LED Assembly: The protective housing and light source form one assembled wall fitting.
Rated Power6 W / 12 W
Nominal DiameterØ110 mm / Ø165 mm
Luminous Efficacy60 lm/W
CCT Options3000 / 4000 / 6500 K
ProtectionIP44 / Class I
Request a Quote

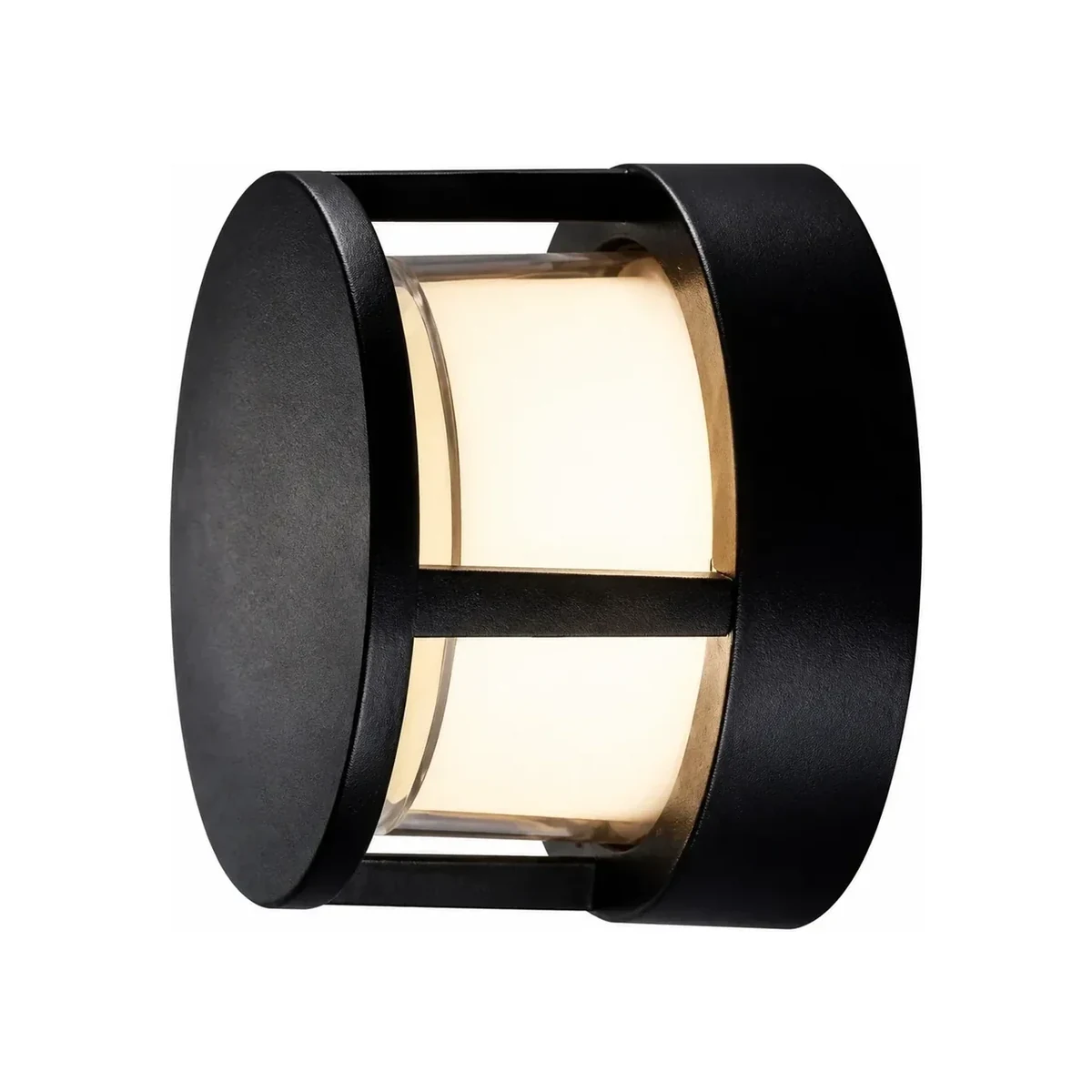

Black protective-cage LED wall light on white background

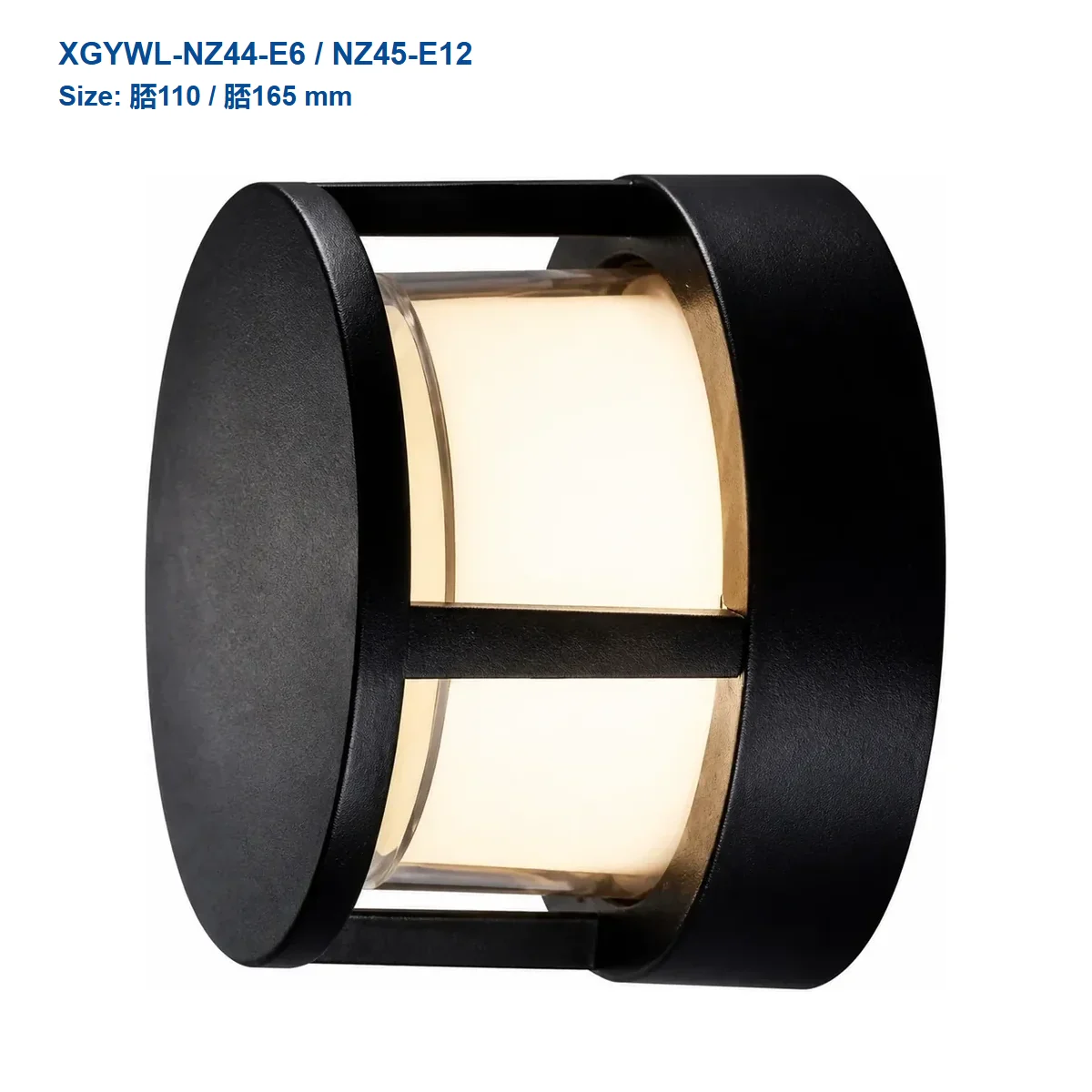

XGYWL-NZ44-E6 / NZ45-E12 protective-cage LED wall lights, 脴110 / 脴165 mm

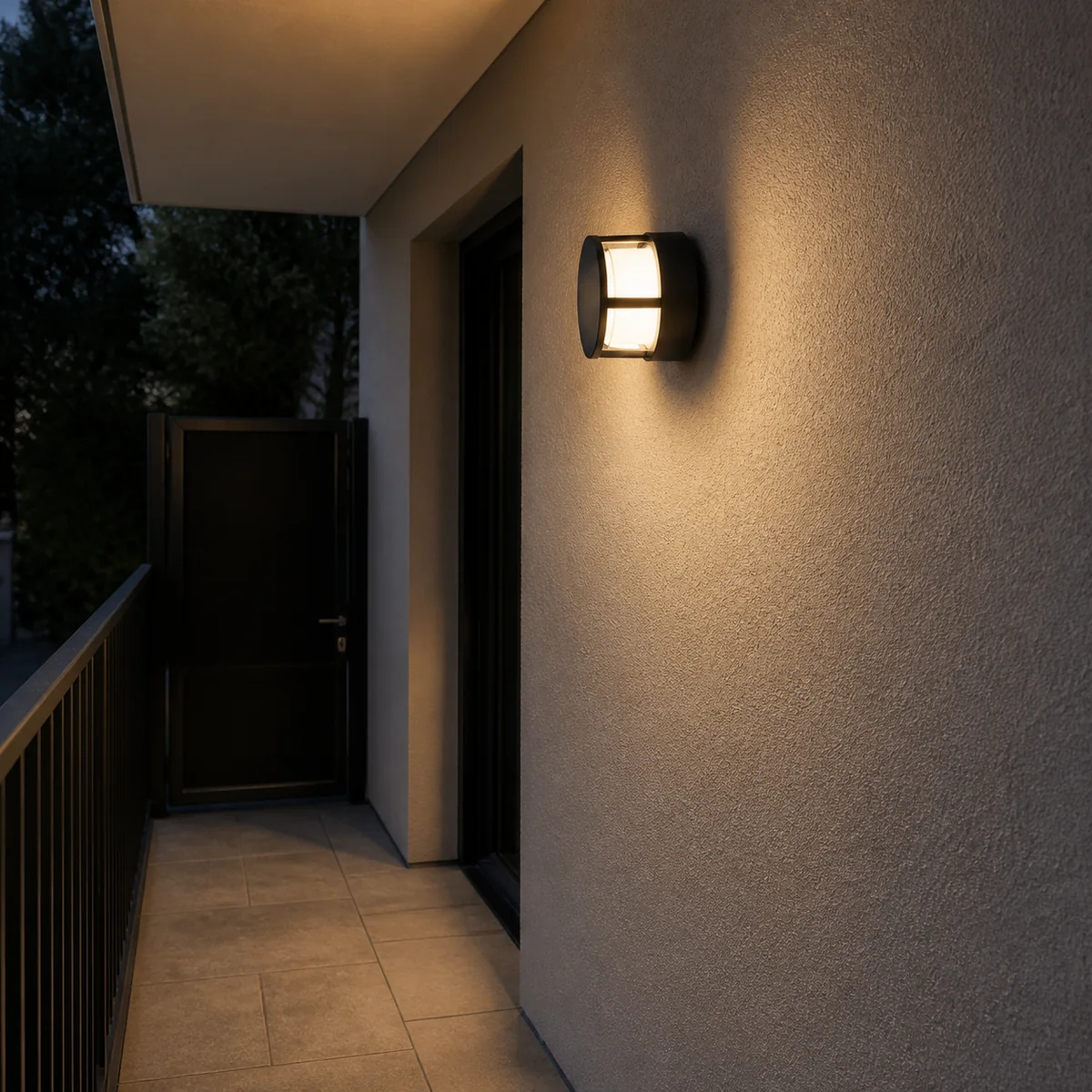

XGYWL-NZ44-E6 protective-cage LED wall light installed beside a sheltered entrance

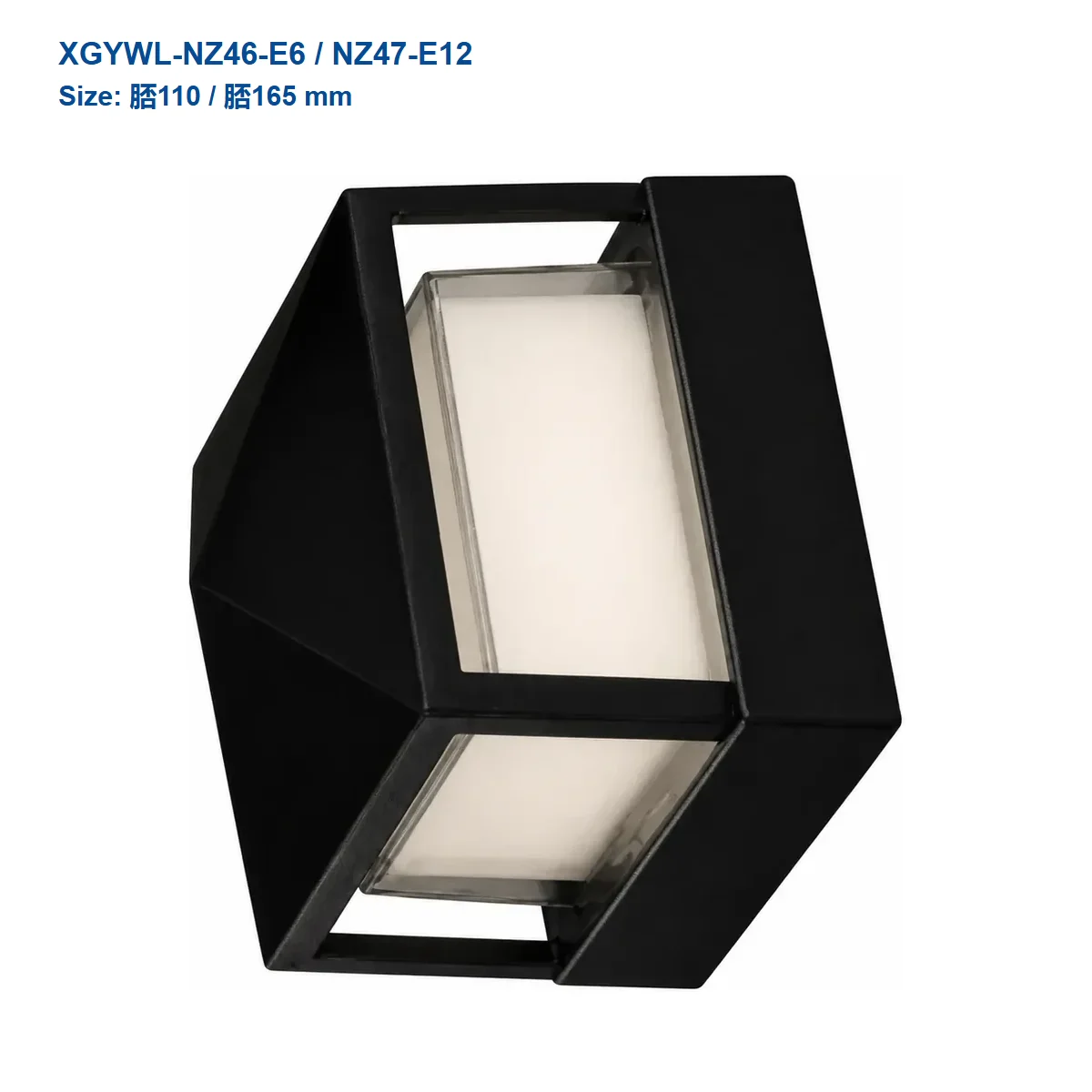

XGYWL-NZ46-E6 / NZ47-E12 protective-cage LED wall lights, 脴110 / 脴165 mm

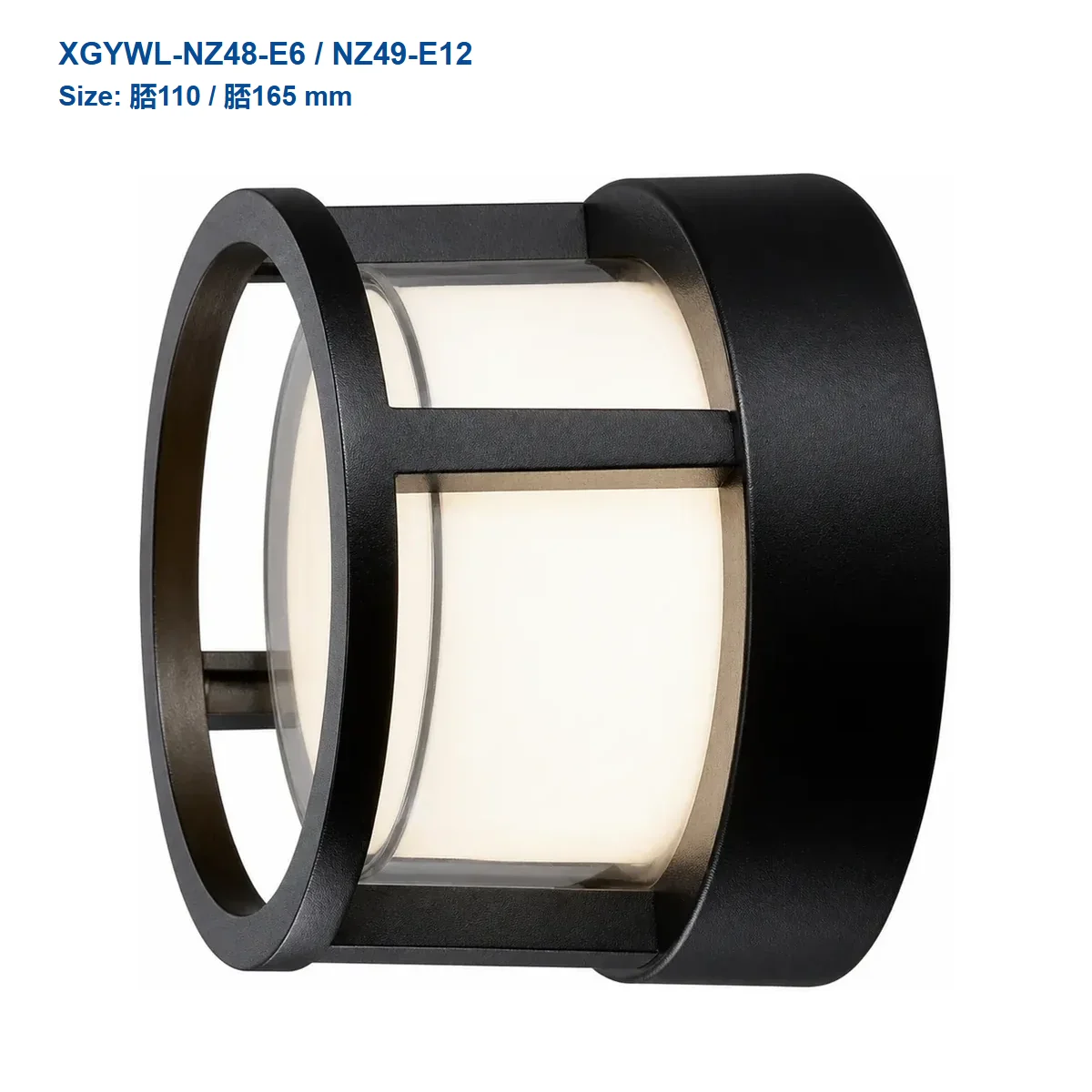

XGYWL-NZ48-E6 / NZ49-E12 protective-cage LED wall lights, 脴110 / 脴165 mm

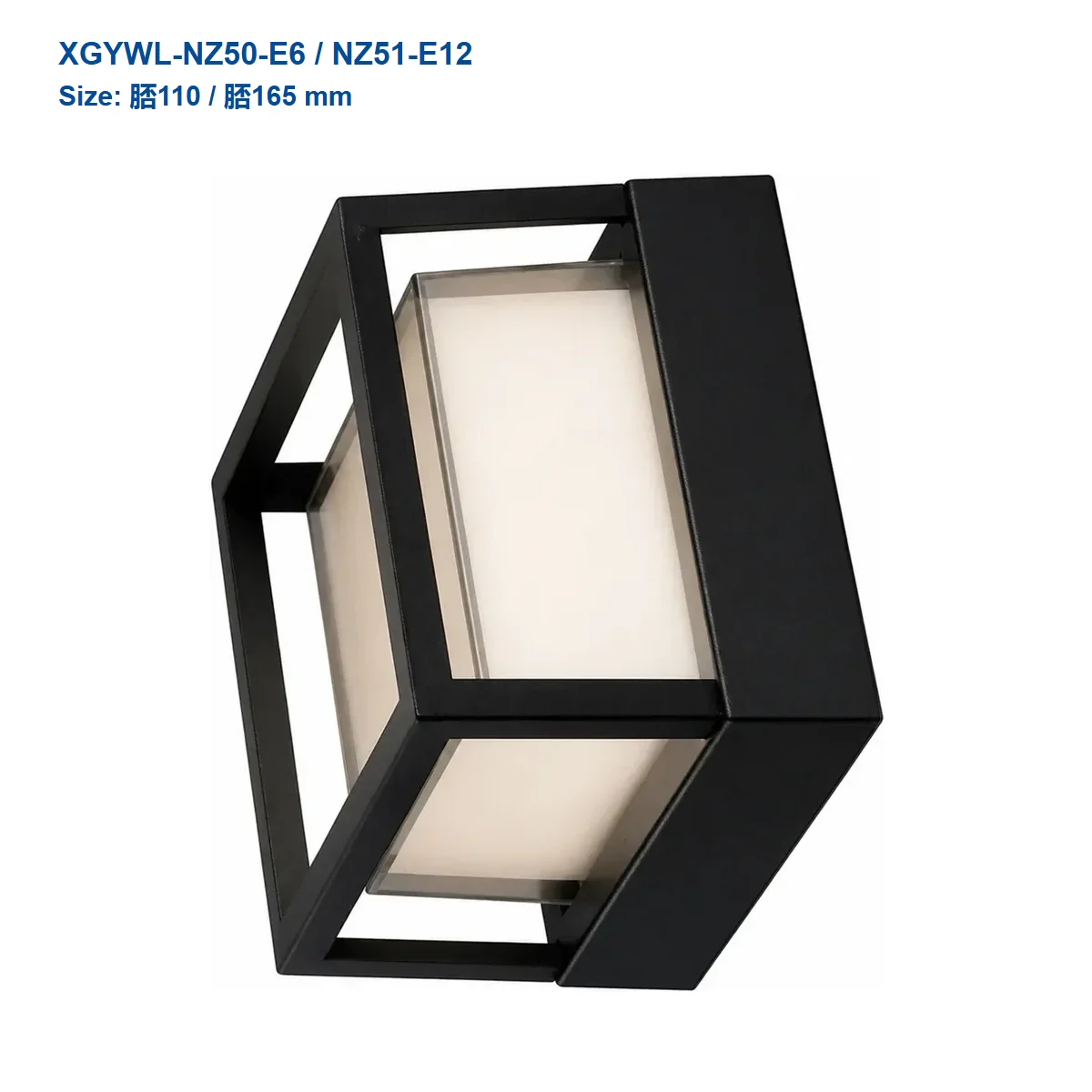

XGYWL-NZ50-E6 / NZ51-E12 protective-cage LED wall lights, 脴110 / 脴165 mm

Technical Specifications

Model Specifications

ModelHousing DesignDiameterRated PowerLuminous EfficacyCCT OptionsProtection
XGYWL-NZ44-E6NZ44 / NZ45 cage脴110 mm6 W60 lm/W3000 / 4000 / 6500 KIP44, Class I
XGYWL-NZ45-E12NZ44 / NZ45 cage脴165 mm12 W60 lm/W3000 / 4000 / 6500 KIP44, Class I
XGYWL-NZ46-E6NZ46 / NZ47 cage脴110 mm6 W60 lm/W3000 / 4000 / 6500 KIP44, Class I
XGYWL-NZ47-E12NZ46 / NZ47 cage脴165 mm12 W60 lm/W3000 / 4000 / 6500 KIP44, Class I
XGYWL-NZ48-E6NZ48 / NZ49 cage脴110 mm6 W60 lm/W3000 / 4000 / 6500 KIP44, Class I
XGYWL-NZ49-E12NZ48 / NZ49 cage脴165 mm12 W60 lm/W3000 / 4000 / 6500 KIP44, Class I
XGYWL-NZ50-E6NZ50 / NZ51 cage脴110 mm6 W60 lm/W3000 / 4000 / 6500 KIP44, Class I
XGYWL-NZ51-E12NZ50 / NZ51 cage脴165 mm12 W60 lm/W3000 / 4000 / 6500 KIP44, Class I

Product Description

Product Details

Product Construction

Shared performance and electrical data are 60 lm/W efficacy, three CCT options, IP44 ingress protection and Class I construction.

Selection & Installation Notes

NZ44/NZ45, NZ46/NZ47, NZ48/NZ49 and NZ50/NZ51 are the four model pairs. Within each pair, the E6 version is rated 6 W and the E12 version is rated 12 W. Select the exact model and CCT before ordering, then preserve protective earth, cable entry and the enclosure during installation. Compare related products in our integrated LED wall lights range.

Recommended Application

Applications

  • Apartment Corridors: Coordinates protective-cage wall lighting along residential circulation routes.
  • Sheltered Entrances: Places an integrated cage fitting beside covered exterior doorways.
  • Service Access Areas: Adds local wall illumination at protected service positions.
  • Hospitality Approaches: Repeats a selected cage form along guest arrival routes.
Keep
in touch
  • No.5 Fenghuang Road Qianjiang Industrial Area Dingqiao Town Haining Zhejiang 314413 China
  • +86-18358315743
  • R.KOO@NEW-LIGHTS.COM

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

By submitting this form, you ask New Lights Lighting Technology Co., Ltd. to use the information you provide to respond to your inquiry and manage related business communications. See our Privacy Policy. Optional marketing emails require the separate choice below.

Facebook Youtube Linkedin Instagram

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What is the difference between the E6 and E12 models?

E6 models are Ø110 mm and rated 6 W; E12 models are Ø165 mm and rated 12 W.

Which models share the same cage design?

NZ44/NZ45, NZ46/NZ47, NZ48/NZ49 and NZ50/NZ51 are the four cage pairs.

Does 60 lm/W mean the product produces 60 lumens?

No. It is the luminous-efficacy value; total lumen output is not specified in the reviewed source.

Which CCT options are available?

The available CCT options are 3000 K, 4000 K and 6500 K.

What protection data apply?

All eight models use IP44 ingress protection and Class I construction.

What should be confirmed before installation?

Confirm the exact cage pair, diameter, rated power, CCT, wall position, protective earth and sealed cable entry.
