IP65 T10 Fishing Boat LED Tubes
- Wide Linear Light Distribution: A 160-degree beam spreads illumination across the work surface rather than concentrating it in a narrow spot.
- Release-from-Clip Service: The lamp can be removed from its external holders without dismantling the enclosed light body.
- Rounded Low-Profile Form: The slim cylindrical envelope follows overhead and bulkhead surfaces without a separate metal fixture housing.
- Flexible Mounting Spans: Short, medium and long bodies cover compact task zones or extended work passages within one product family.
| Tube & Ingress | Full-PC T10 tube; IP65 in the specified assembled configuration |
|---|---|
| Input Voltage | AC/DC 12-24 V |
| Dimensions | D 36 x L 350 / 550 / 750 mm |
| Rated Power | 10 / 20 / 30 W |
| Efficacy & CCT | 80-130 lm/W; 3000-8000 K |
|---|---|
| Versions | Fixed or M10 interconnectable |
| Interconnection Limit | Maximum 3 lamps |
Technical Specifications
Model Specifications
| Model No. | Dimensions D x L (mm) | Rated Power | Version | Efficacy | CCT |
|---|---|---|---|---|---|

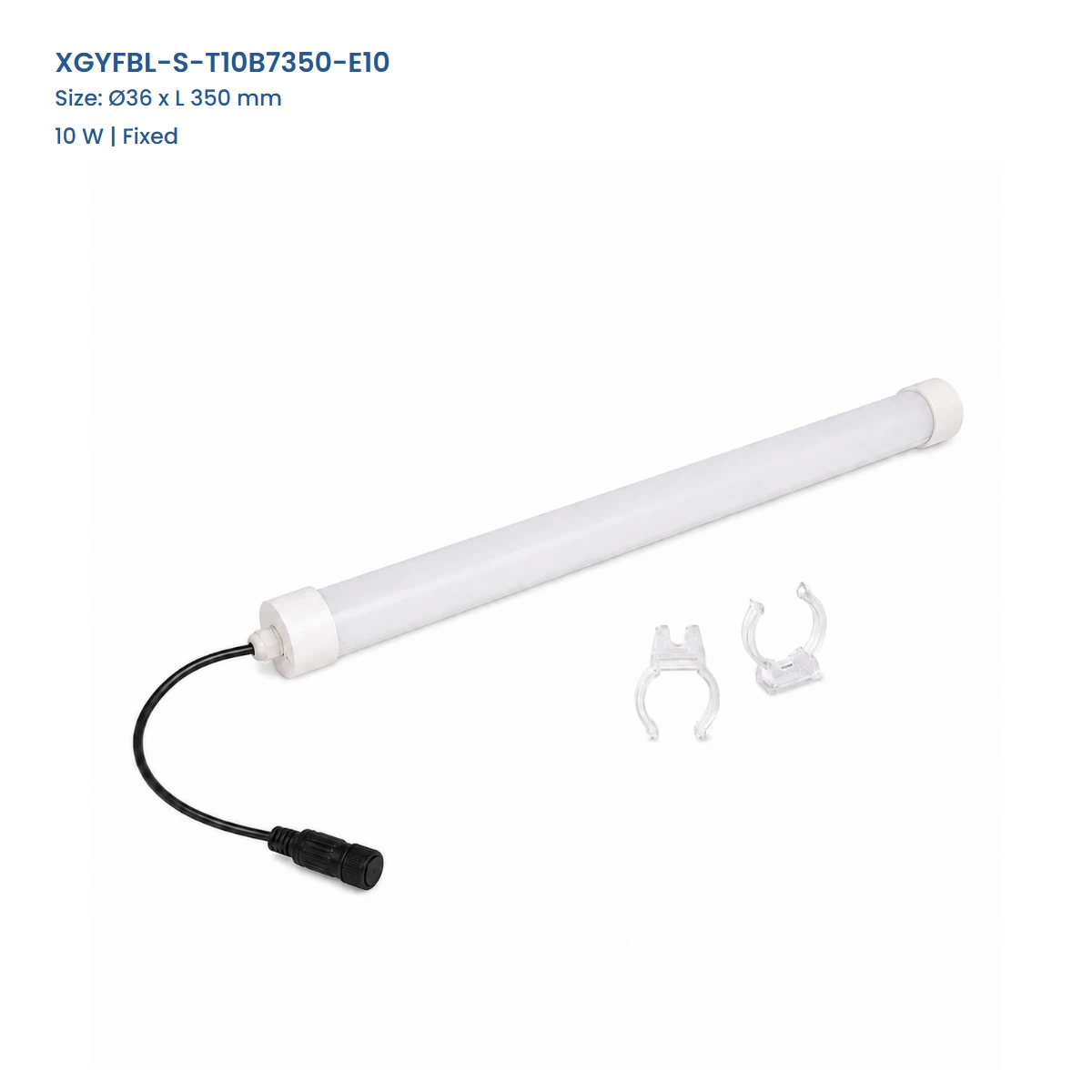

| XGYFBL-S-T10B7350-E10 | 36 x 350 | 10 W | Fixed | 80-130 lm/W | 3000-8000 K |
| XGYFBL-S-T10B7550-E20 | 36 x 550 | 20 W | Fixed | 80-130 lm/W | 3000-8000 K |
| XGYFBL-S-T10B7750-E30 | 36 x 750 | 30 W | Fixed | 80-130 lm/W | 3000-8000 K |

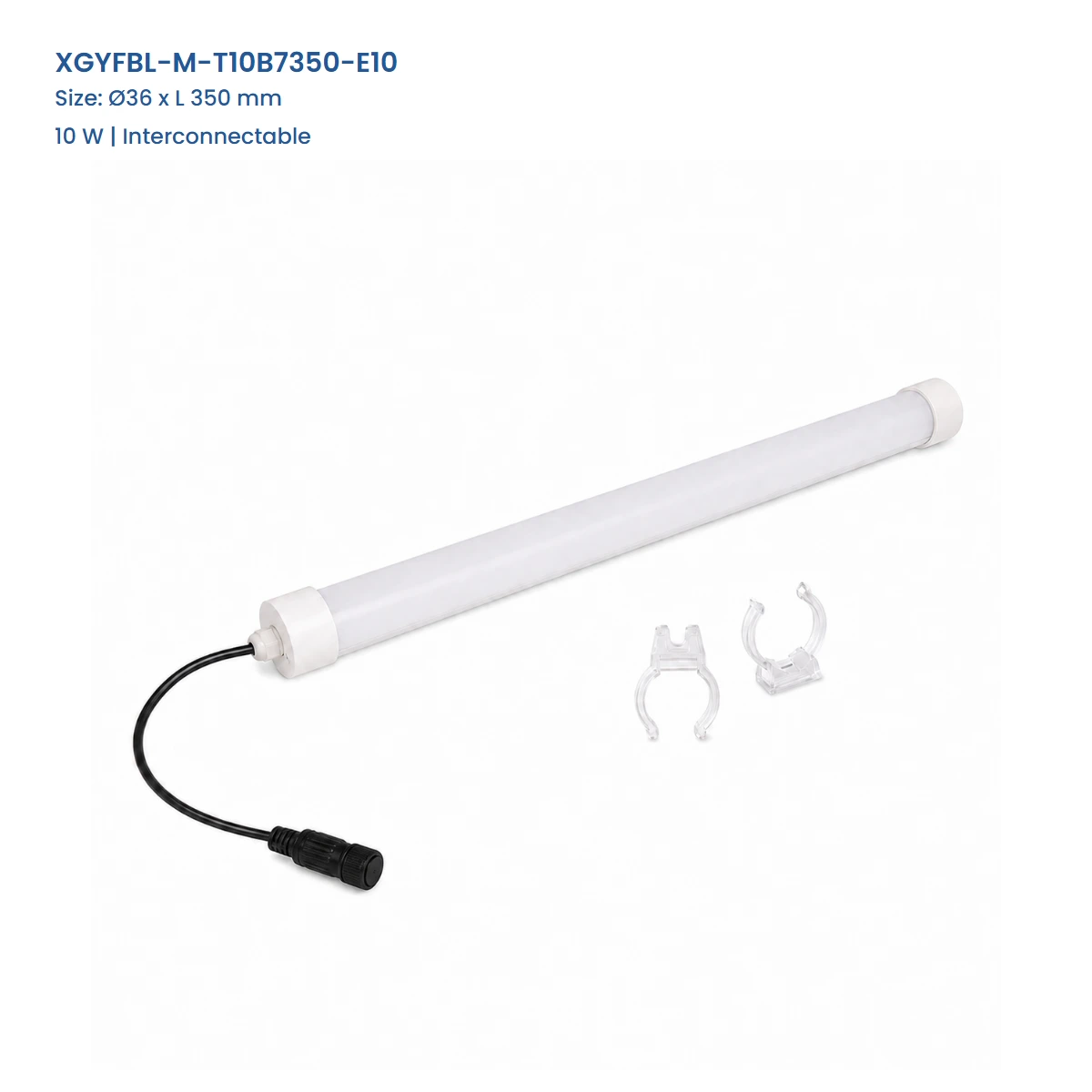

| XGYFBL-M-T10B7350-E10 | 36 x 350 | 10 W | Interconnectable | 80-130 lm/W | 3000-8000 K |
| XGYFBL-M-T10B7550-E20 | 36 x 550 | 20 W | Interconnectable | 80-130 lm/W | 3000-8000 K |

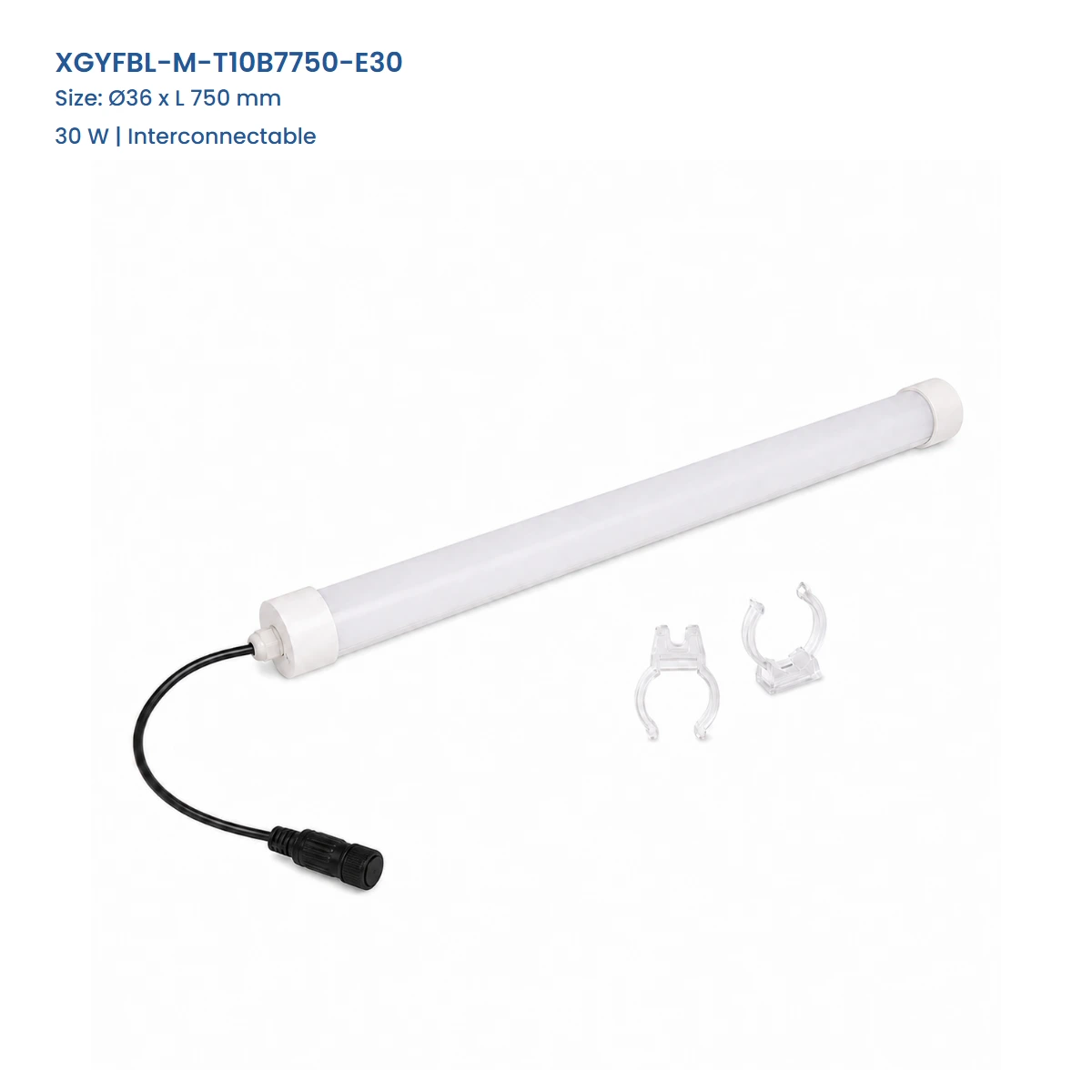

| XGYFBL-M-T10B7750-E30 | 36 x 750 | 30 W | Interconnectable | 80-130 lm/W | 3000-8000 K |
IP65 applies to the specified assembled lamp, cable and connector configuration. Interconnectable runs are limited to three lamps.
Product Description
Product Details
Product Construction

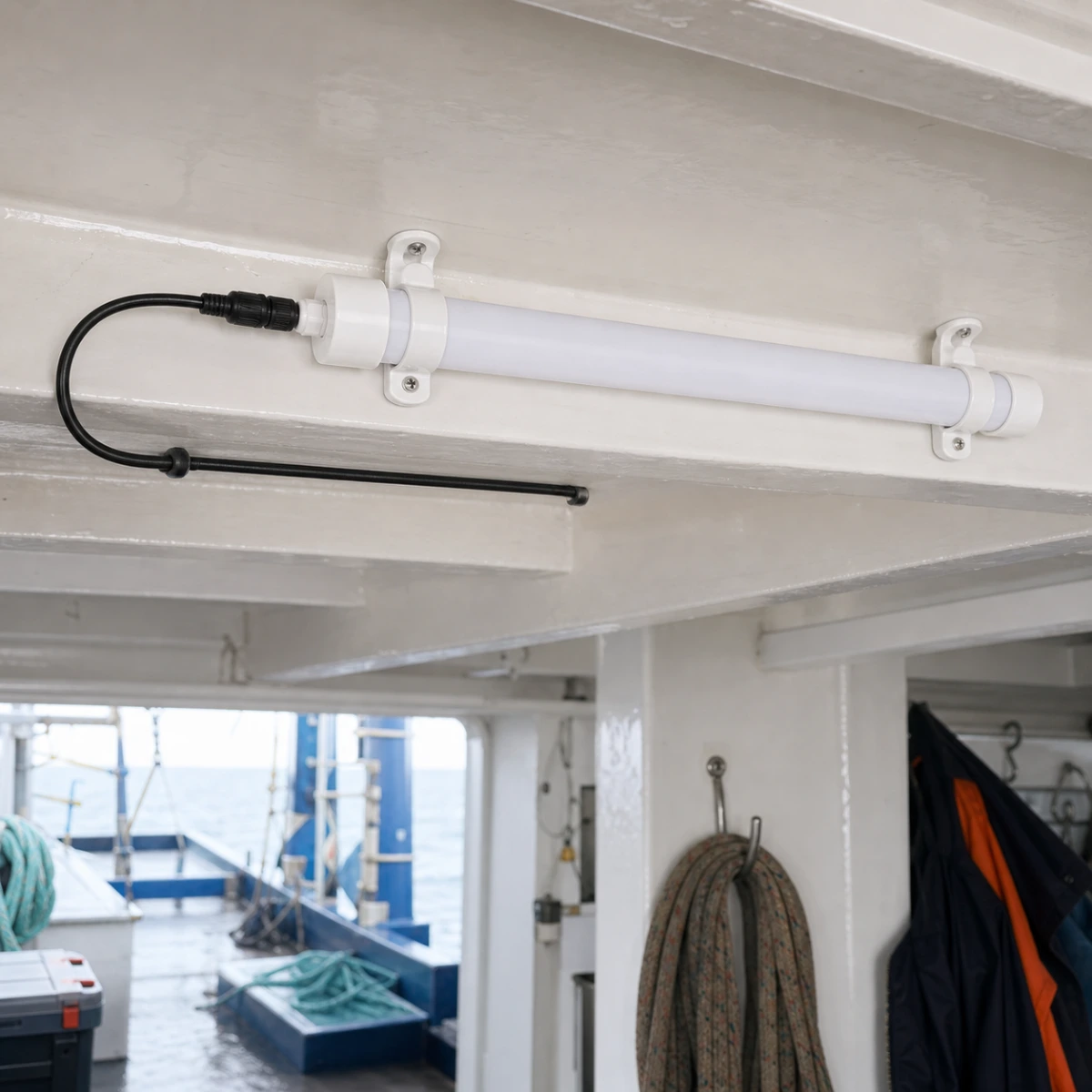

The LED assembly is enclosed inside a polycarbonate cylinder. A gasketed inlet and threaded low-voltage coupling terminate the lead, while external supports secure the assembly to the mounting surface.
Selection & Installation Notes
Match the 350, 550 or 750 mm length and its corresponding 10, 20 or 30 W model, then choose the fixed or interconnectable version. IP65 applies to the specified assembled lamp, cable and connector arrangement; interconnectable runs are limited to three lamps, and the 12-24 V supply, cable size and voltage drop must suit the complete run.
Recommended Application
Applications
- Fishing Boat Cabins: Provide low-voltage linear lighting in enclosed cabins and onboard service spaces.
- Covered Work Decks: Mount the sealed tube beneath covered fishing-vessel work areas where spray and damp conditions occur.
- Ferry Service Areas: Use the fixed or linked versions in covered ferry passages and utility zones.
- Underground Walkways: Install linear runs along damp pedestrian passages using the specified sealed connections.
