Six-Head Suspended Integrated LED Spotlight

This six-head suspended integrated LED spotlight arranges six compact spotlight forms along one horizontal body. Its long, balanced composition creates a clear overhead feature for interiors with extended display or gathering zones.
  • Extended Overhead Rhythm: Six repeated forms establish a consistent sequence across a long horizontal axis.
  • Clear Vertical Separation: The suspended composition distinguishes the lower lighting line from the ceiling plane.
  • Balanced End-to-End Proportion: Even spacing maintains an organized appearance across the full visible length.
  • Layered Aperture Detail: Recessed front faces add depth to each spotlight form.
Installation / EnvelopeCeiling-suspended; 800 x 158 x 1205 mm, source order
Head ConfigurationSix integrated LED optical heads
Rated Power / Output3.5 W x6; 400 lm x6 module lumen
CCT Options3000K-6500K
Input / Dimming220-240 V; dimmable
Optics / Indoor Use40 degrees; Ra80; IP20; no flicker
Request a Quote

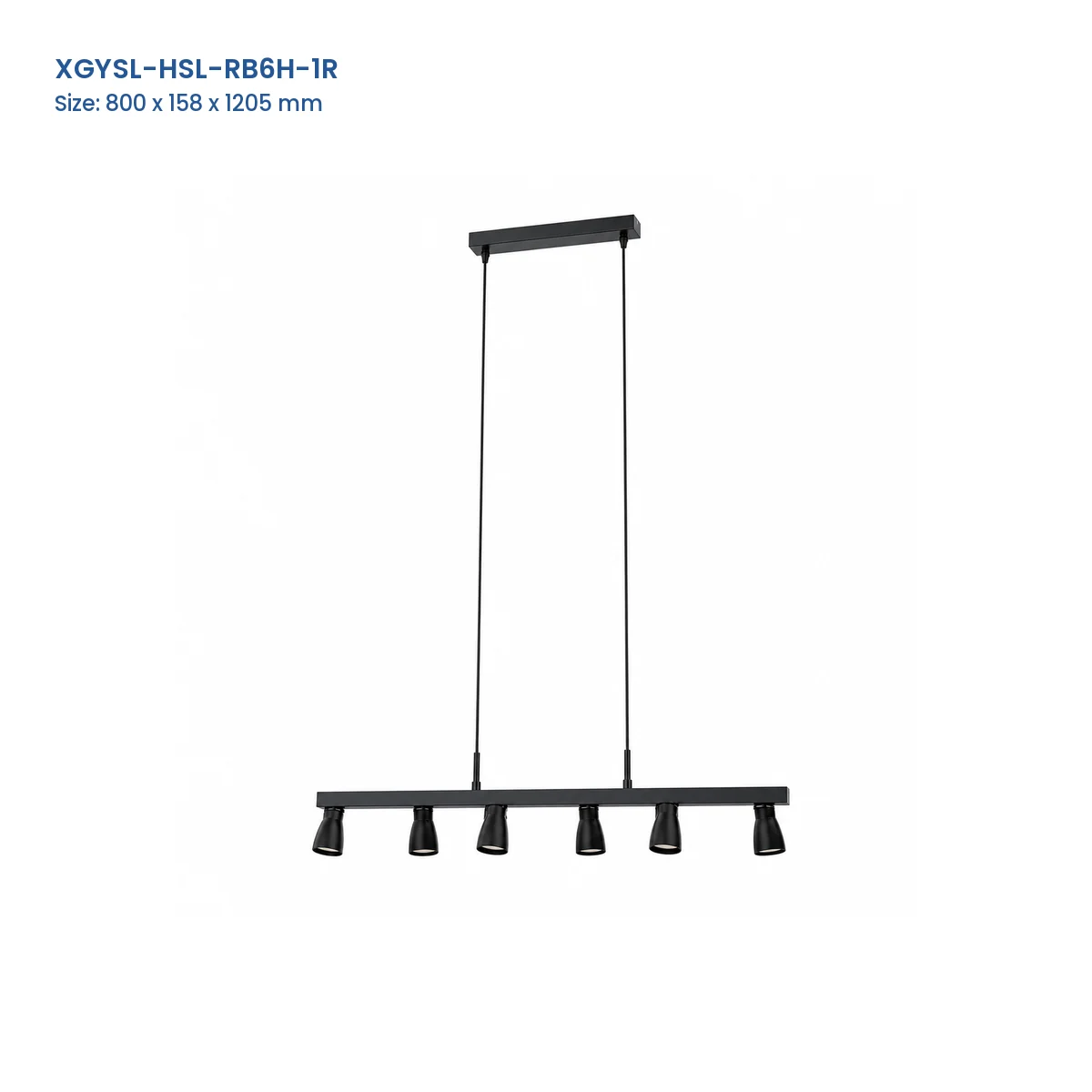

XGYSL-HSL-RB6H-1R six-head suspended integrated LED spotlight, 800 x 158 x 1205 mm

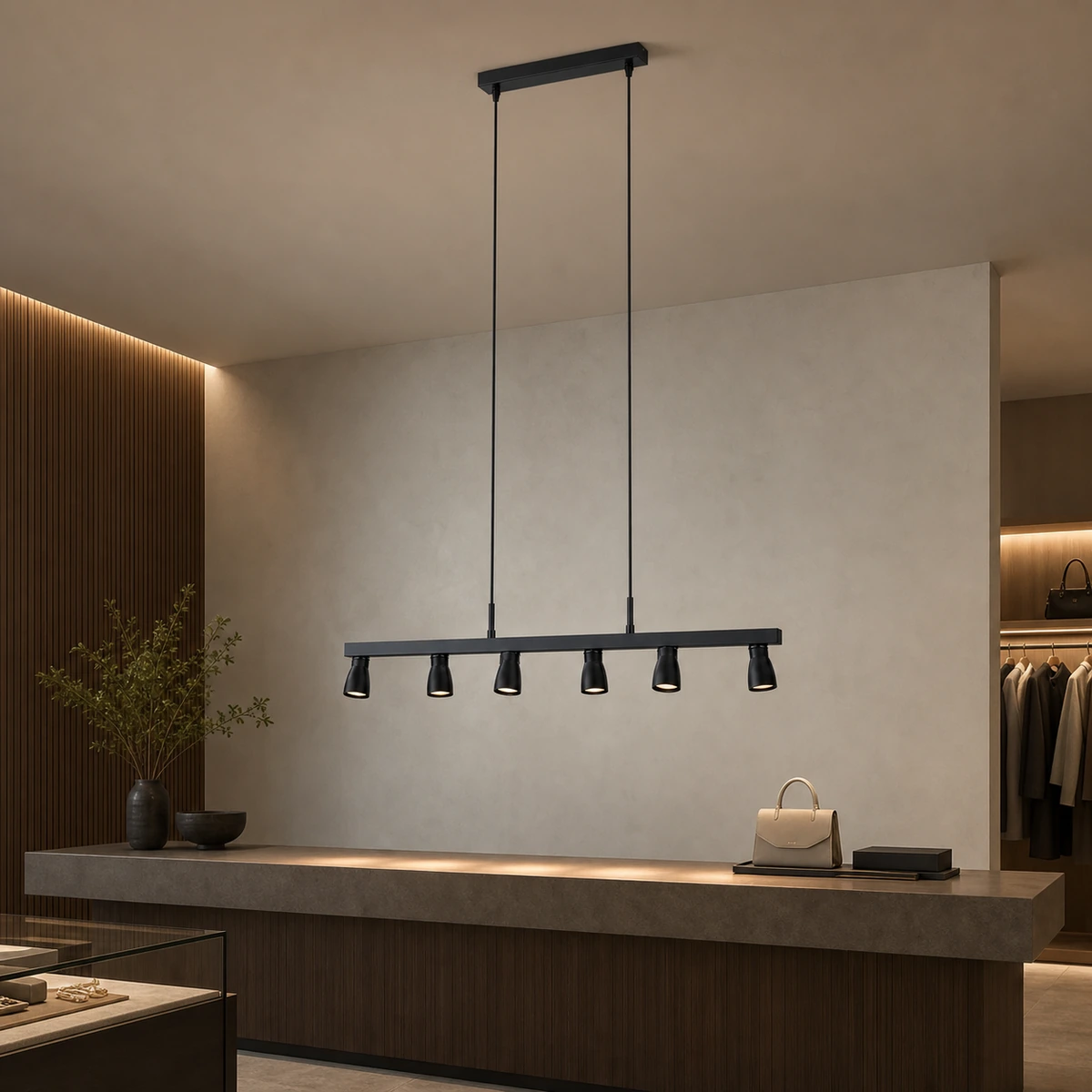

HSL-RB6H six-head integrated LED spotlight suspended above an indoor retail counter

Technical Specifications

Model Specifications

Model No.Catalog OptionDimensions (Source Order, mm)Power / Module LumenCCTBody MaterialHead AdjustmentInput / Beam / CRI / IP / Life
XGYSL-HSL-RB6H-1R800 x 158 x 12053.5 W x6 / 400 lm x63000K-6500KMetal base / PC lens; PC spot headRotatable; flippable220-240 V / 40 degrees / Ra80 / IP20 / 25,000 h

The primary model remains XGYSL-HSL-RB6H; catalog option -1R forms the complete catalog reference XGYSL-HSL-RB6H-1R. Dimensions remain in source order. The integrated LED series also lists dimmable, no-flicker and indoor operation.

Product Description

Product Details

Product Construction

The luminaire is presented as one suspended integrated product rather than a collection of separate housings. Its visible components form the completed overhead assembly.

Selection & Installation Notes

Use the complete reference and approved project drawing to verify the overall envelope, finished position, ceiling interface and required electrical package. Confirm every required overhead, suspension and fixing component before ordering. Compare related formats in our integrated LED spotlight range.

Recommended Application

Applications

  • Retail Display Runs: Position the long suspended composition above merchandise counters and coordinated presentation areas.
  • Hospitality Service Counters: Use the repeated linear form above reception desks, bars and service zones.
  • Gallery Presentation Lines: Establish a consistent overhead feature alongside artwork and curated display sequences.
  • Residential Dining Areas: Place the suspended fixture above a long dining table or open-plan gathering zone.
Keep
in touch
  • No.5 Fenghuang Road Qianjiang Industrial Area Dingqiao Town Haining Zhejiang 314413 China
  • +86-18358315743
  • R.KOO@NEW-LIGHTS.COM

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

By submitting this form, you ask New Lights Lighting Technology Co., Ltd. to use the information you provide to respond to your inquiry and manage related business communications. See our Privacy Policy. Optional marketing emails require the separate choice below.

Facebook Youtube Linkedin Instagram

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What does the six-head description identify?

It identifies one suspended integrated LED spotlight with six visible spotlight forms arranged along the lower body. Use the complete product reference for ordering.

Is a complete suspension hardware package defined?

No complete hardware package is established by the product title. Confirm every required overhead, suspension and fixing component in the approved project submittal.

Is this presented as an integrated LED spotlight?

Yes. The product is identified as an integrated LED spotlight. Confirm its exact electrical and optical specification against the selected reference and approved project documents.

How does this format differ from a surface-mounted spotlight?

The visible spotlight assembly is suspended below the ceiling plane instead of sitting directly against it. Compare the overall envelope and finished position on the project drawing.

What should be checked for ceiling coordination?

Check the approved drawing, overall envelope, finished position, ceiling interface, surrounding clearances and every required suspension component before work begins.

What should be confirmed before sampling or production?

Confirm the complete reference, visible finish, approved drawing, finished position, electrical documentation and required overhead, suspension and fixing components.
