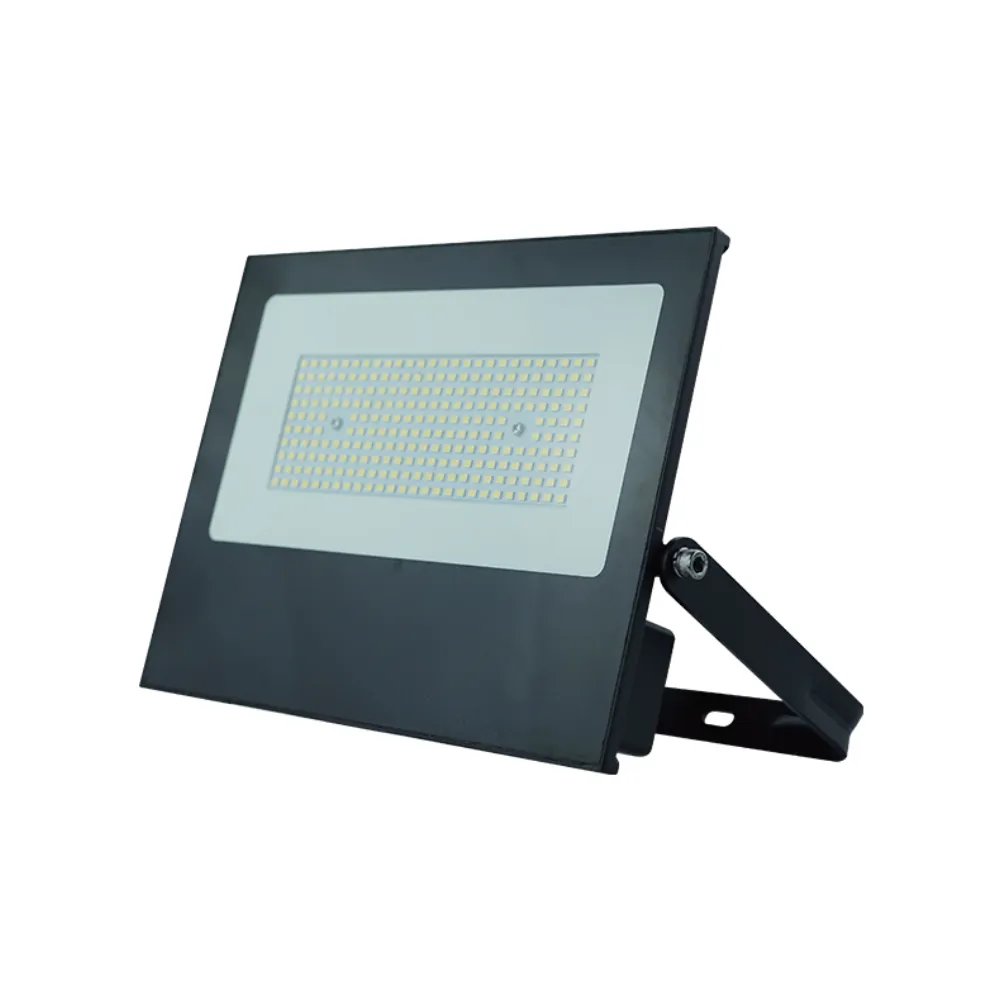

ErP Class C High-Efficacy LED Flood Light
- Four Scaled Housings: Housing length and height increase with each higher-output reference, while depth remains nearly consistent across the family.
- Metal and Glass Assembly: A die-cast aluminum body supports the tempered-glass front across the family.
- Broad Flood Distribution: The wide beam provides general outdoor area coverage rather than narrow long-throw aiming.
- Outdoor Rubber Lead: Each reference includes an H05RN-F3G rubber cable for the external supply connection.
| Rated power | 60 W / 85 W / 120 W / 160 W |
|---|---|
| Listed efficacy | 170–180 lm/W across the four source ranges |
| Color temperature | 4000–6500 K |
| Protection | IP66 |
| Input | 165–265 V |
|---|---|
| CRI | Ra80 |
| Power factor | 0.95 |
Technical Specifications
Model Specifications
| Model | L×H×W (mm) | Power | Efficacy | CCT | Cable |
|---|---|---|---|---|---|
| XGYFL-XRGL-E10 | 230 × 162 × 35 | 60 W | 175–170 lm/W | 4000–6500 K | 0.95 m H05RN-F3G 1.00 mm² rubber |
| XGYFL-XRGL-E20 | 276 × 206 × 36 | 85 W | 175–170 lm/W | 4000–6500 K | 0.95 m H05RN-F3G 1.00 mm² rubber |
| XGYFL-XRGL-E30 | 306 × 235 × 36 | 120 W | 175–170 lm/W | 4000–6500 K | 0.95 m H05RN-F3G 1.00 mm² rubber |
| XGYFL-XRGL-E50 | 360 × 290 × 36 | 160 W | 180–175 lm/W | 4000–6500 K | 0.95 m H05RN-F3G 1.00 mm² rubber |
Product Description
Product Details
Product Construction
Each reference is a complete bracket-mounted flood luminaire with one fixed rated power. Select the corresponding reference for the required wattage; the product is not field-adjustable between the four listed power levels.
Selection & Installation Notes
Choose the reference by the required lighting result and available mounting area, then compare the exact body dimensions, 165 to 265 V input, CCT and mounting clearance. Secure the bracket to a suitable support and terminate the supply outside the luminaire with protection appropriate to the installation. For related form factors and output ranges, compare our general LED flood lights.
Recommended Application
Applications
- Commercial Exteriors: Provides broad-area illumination for entrances, facades and surrounding outdoor circulation zones.

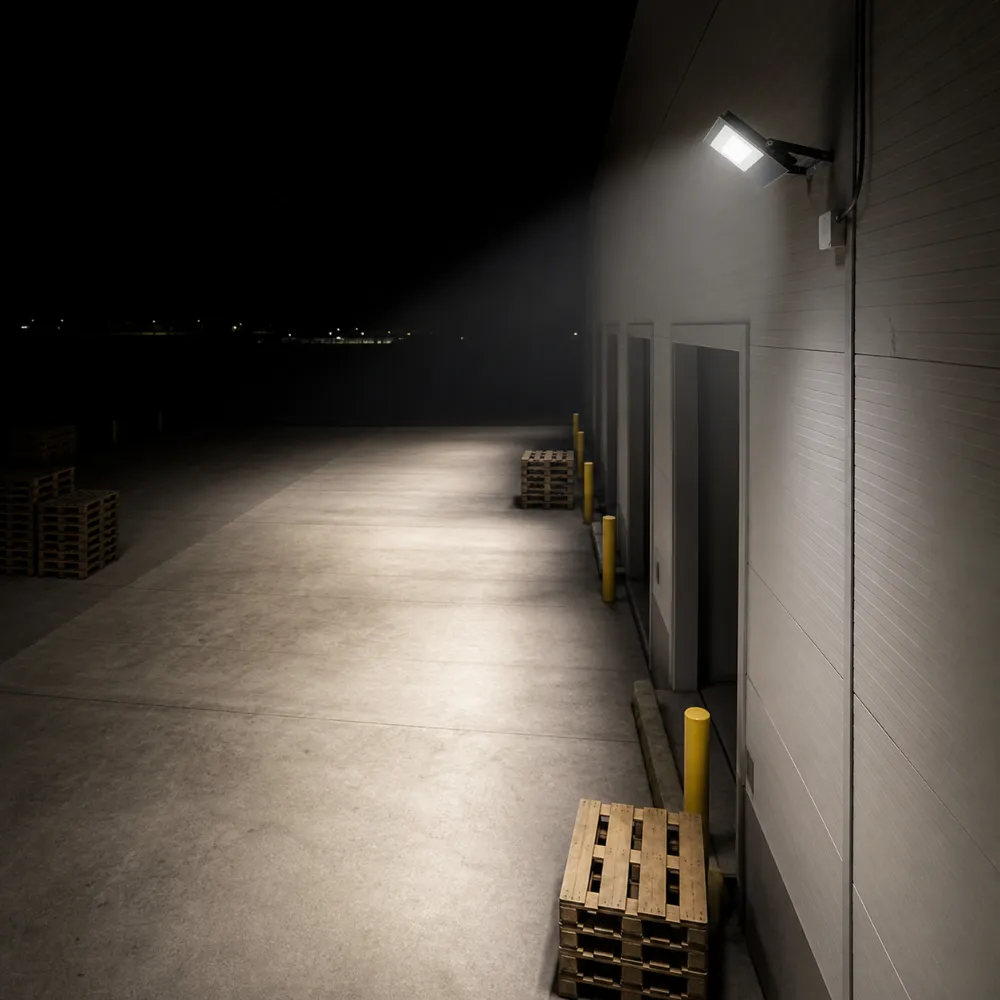

- Loading Areas: Lights loading docks, delivery approaches and exterior handling spaces.
- Factory Yards: Supports general outdoor illumination around industrial buildings and service areas.
- Parking Areas: Covers parking edges and vehicle circulation areas with a broad flood distribution.
