Fixed Diffuser Downlight
- Controlled Source View: The front treatment conceals direct view into the luminous aperture.
- Finish Integration: Two face-colour options coordinate with light and dark surrounding surfaces.
- Stable Downward Alignment: The non-adjustable format keeps each installed unit in a consistent orientation.
| Installation | Fixed recessed / non-adjustable |
|---|---|
| Rated power | 8 / 15 / 24 / 30 W |
| Dimensions | D90-D220 mm; height 45-56 mm |
| Ceiling cutout | D75 / D95 / D145 / D200 mm |
|---|---|
| Efficacy / CCT | 80 lm/W / 3000-6500 K |
| Material / input | Die-cast aluminum / 220-240 V |
Technical Specifications
Model Specifications
| Model | Dimensions | Power | Efficacy | CCT | Cutout |
|---|---|---|---|---|---|
| XGY-ITFT18-E8 | D90 x 45 mm | 8 W | 80 lm/W | 3000-6500 K | D75 mm |
| XGY-ITFT18-E15 | D125 x 45 mm | 15 W | 80 lm/W | 3000-6500 K | D95 mm |
| XGY-ITFT18-E24 | D170 x 49.5 mm | 24 W | 80 lm/W | 3000-6500 K | D145 mm |
| XGY-ITFT18-E30 | D220 x 56 mm | 30 W | 80 lm/W | 3000-6500 K | D200 mm |
| Parameter | Value |
|---|---|
| Material | Die-cast aluminum |

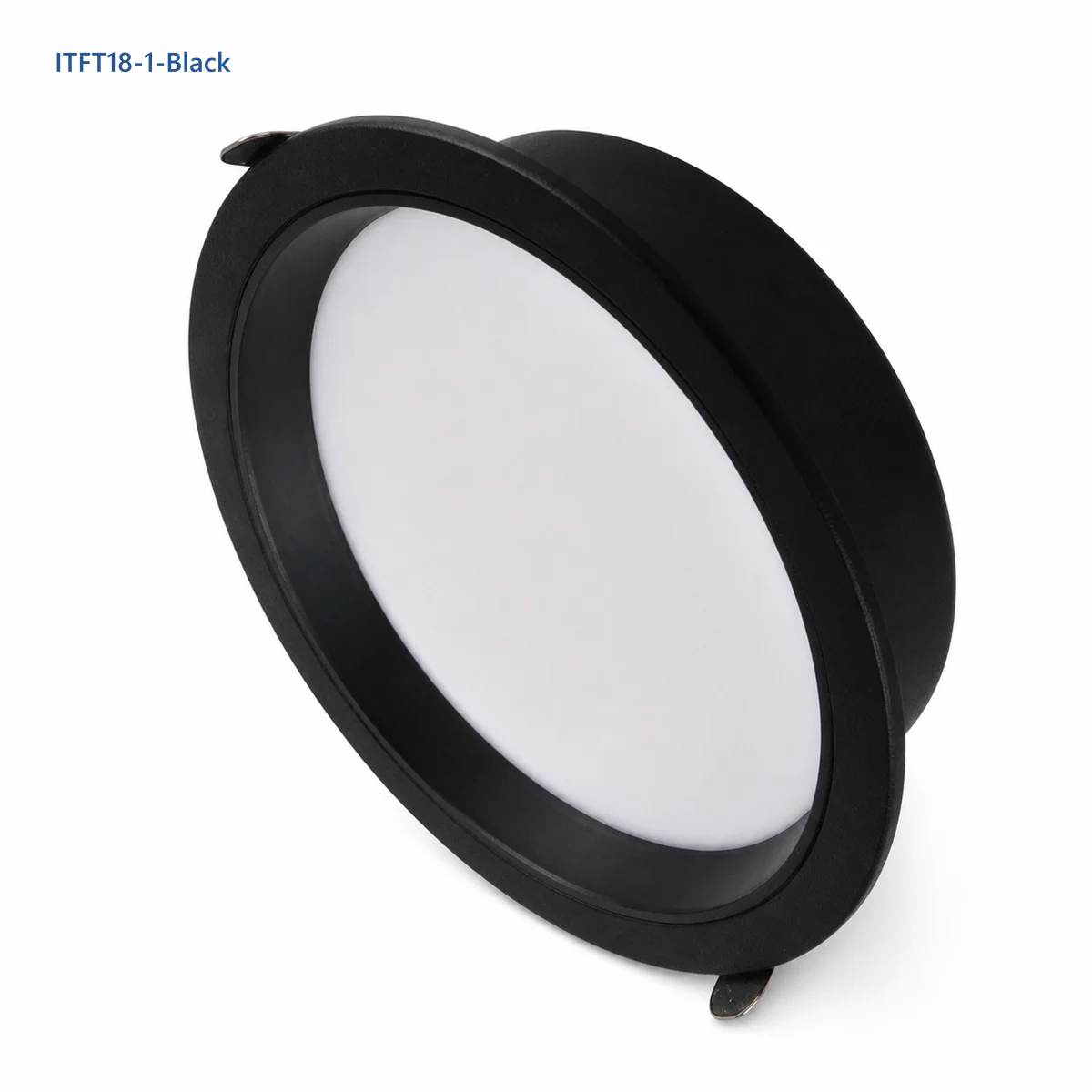

| Trim finishes | White / Black |
| Input | 220-240 V |
| Color rendering | Ra80 |
| Rated life | 25,000 h |
| Power factor | 0.5 |
| Dimming range | 0-100% |
| Light output | No Flicker |
| Use | Indoor |
The ITFT18 family lists 120° / 60°-90° optical options without assigning a beam angle to each appearance. Confirm the ordered optical distribution on the drawing and sample.
Product Description
Product Details
Product Construction

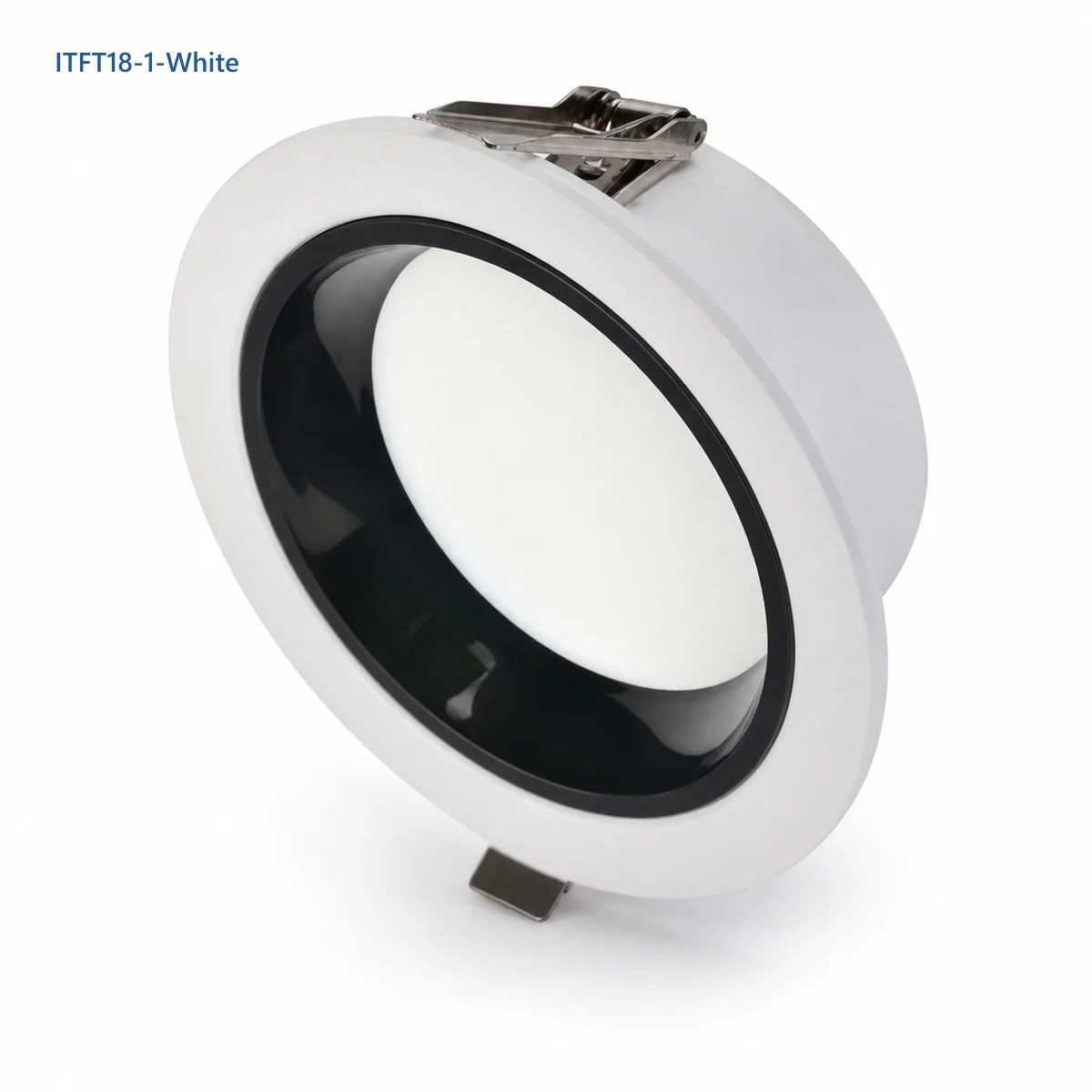

The circular front assembly encloses the light source behind the ITFT18-1 diffuser. A die-cast aluminium body and rear spring retainers form the recessed assembly.
Selection & Installation Notes
Use the technical table and project drawing to confirm the complete electrical reference, body dimensions, required ceiling opening and available recess depth. Record the driver and control requirements before production. Compare related formats in our recessed LED downlight range.
Recommended Application
Applications

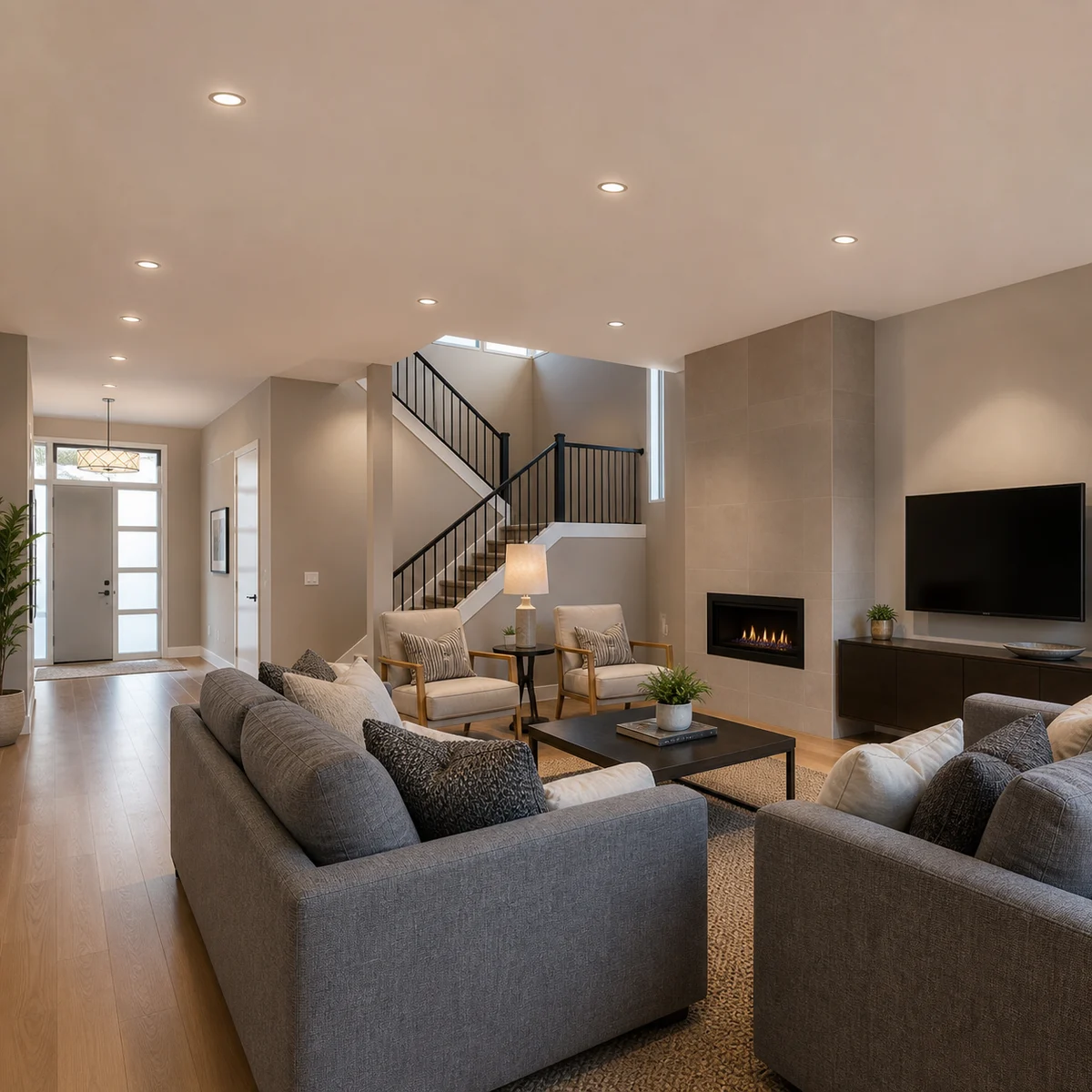

- Residential Living Areas: Provide fixed recessed ceiling lighting in lounges, dining spaces and circulation areas.
- Hospitality Corridors: Create a consistent covered-face ceiling layout through hotel and guest-house corridors.
- Retail Service Areas: Use fixed downward lighting in counters, circulation zones and back-of-house spaces.
- Apartment Common Areas: Coordinate white or black trims with shared entrance halls and internal corridors.
