Metal-Base Super-Slim Surface-Mounted LED Ceiling Light
- Low-Profile Ceiling Presence: The shallow silhouette keeps visual bulk restrained in compact interiors.
- Soft Full-Face Illumination: The broad luminous surface avoids a concentrated point-source appearance.
- Comfortable Everyday Output: The driver design prevents visible pulsing during normal use.
- Interior Style Choice: Multiple face patterns let the round family coordinate with different room finishes.
- Scalable Room Coverage: Several diameters let one visual family serve smaller and larger indoor zones.
| Power & Size | 18-48 W; Dia. 250-470 x H 55 mm |
|---|---|
| Light Output | 70 lm/W; 3000-6500 K |
| Optical Performance | 160-degree beam; Ra80 / Ra90; no flicker |
| Electrical | 185-265 V; PF 0.5 |
|---|---|
| Construction | Iron base; PVC cover; PMMA lens |
| Control & Protection | Optional dimming; IP20; 25,000-hour rated life |
Technical Specifications
Model Specifications
| Model No. | Size Dia. x H | Power | Efficacy | CCT | Input | CRI | IP |
|---|---|---|---|---|---|---|---|

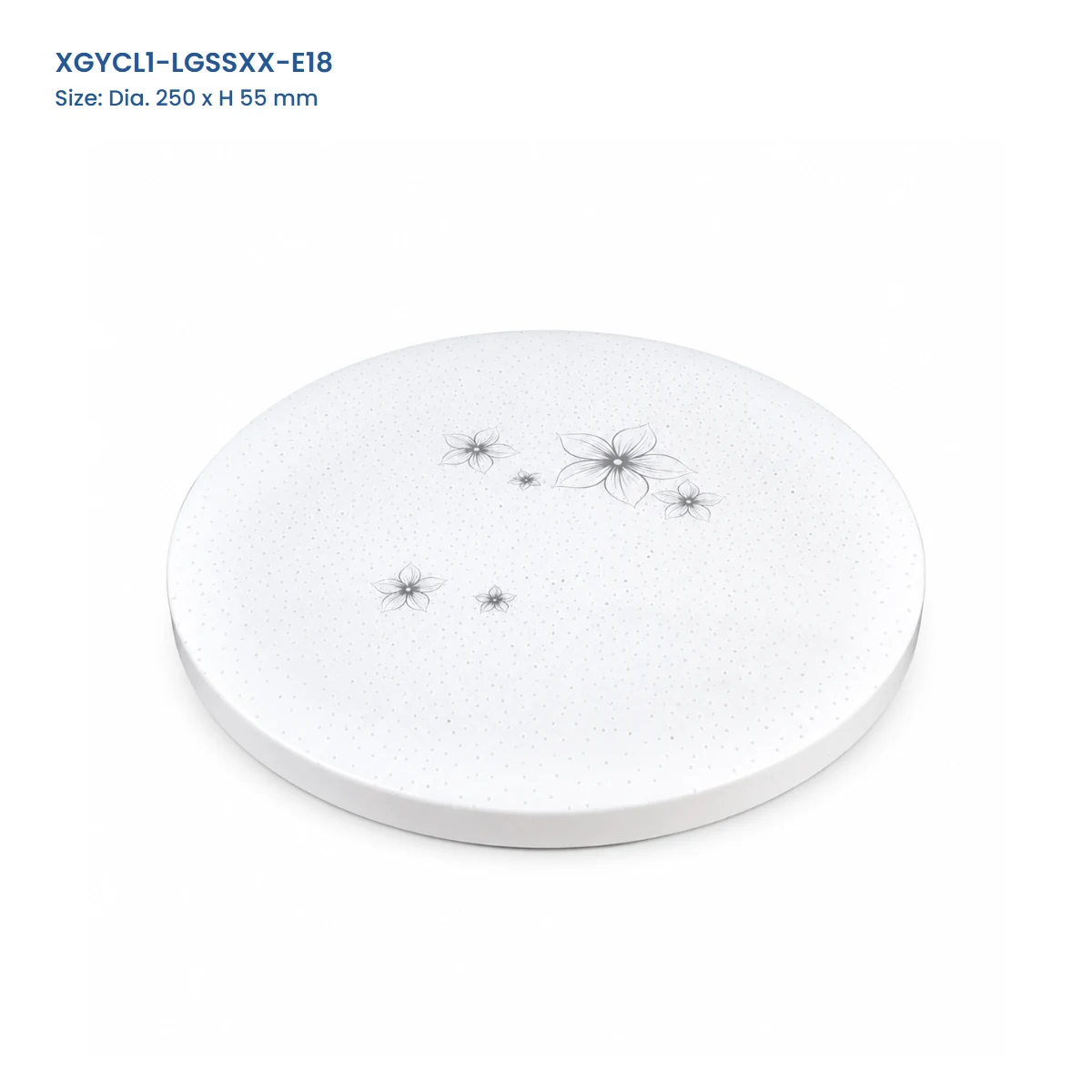

| XGYCL1-LGSSXX-E18 | 250 x 55 mm | 18 W | 70 lm/W | 3000-6500 K | 185-265 V | Ra80/90 | IP20 |
| XGYCL1-LGSSXX-E24 | 320 x 55 mm | 24 W | 70 lm/W | 3000-6500 K | 185-265 V | Ra80/90 | IP20 |
| XGYCL1-LGSSXX-E36 | 370 x 55 mm | 36 W | 70 lm/W | 3000-6500 K | 185-265 V | Ra80/90 | IP20 |

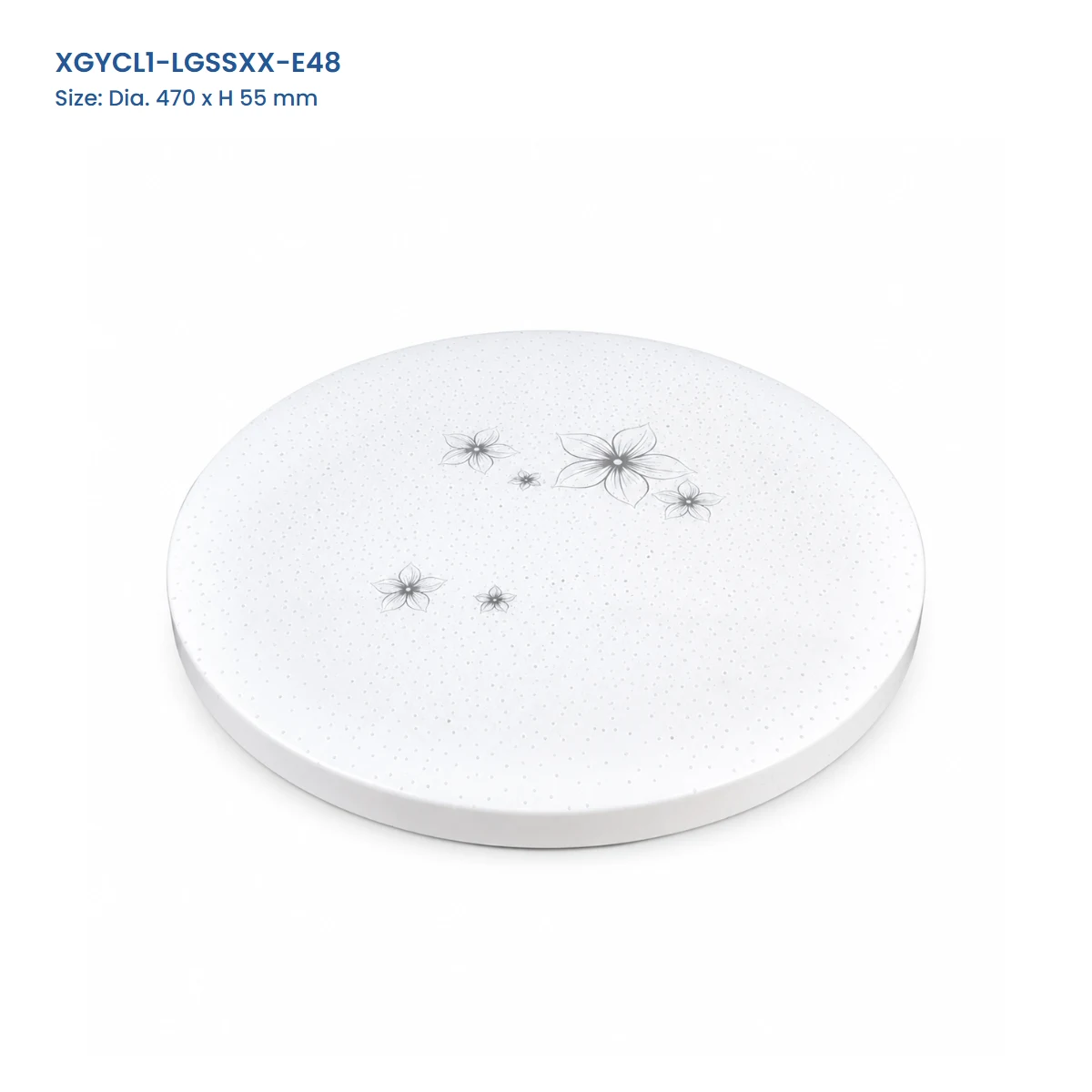

| XGYCL1-LGSSXX-E48 | 470 x 55 mm | 48 W | 70 lm/W | 3000-6500 K | 185-265 V | Ra80/90 | IP20 |
Shared series specifications: XX denotes decorative cover patterns SS01-SS10; 160-degree beam, PF 0.5, no-flicker operation, optional dimming and 25,000-hour rated life.
Product Description
Product Details
Product Construction
An iron mounting base supports the PVC outer cover and PMMA optical element. The components form a complete round fixture for direct surface mounting on a ceiling.
Selection & Installation Notes
Select the exact model by diameter and rated power: 250 mm at 18 W, 320 mm at 24 W, 370 mm at 36 W or 470 mm at 48 W. Install the IP20 fixture on a flat dry-indoor ceiling, and specify the required SS01-SS10 cover reference, CCT, CRI and optional dimming configuration when ordering.
Recommended Application
Applications

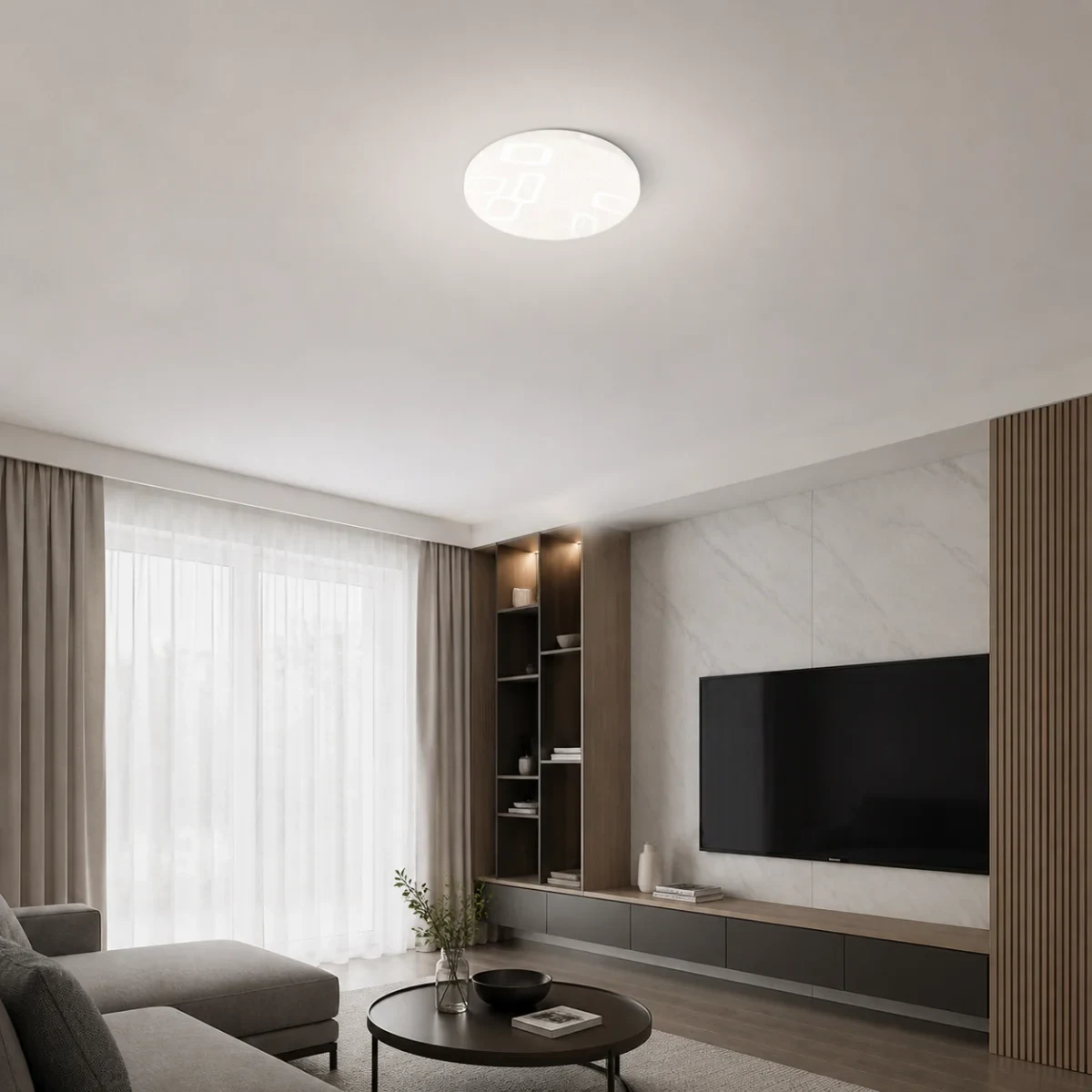

- Living Rooms: Provide broad overhead illumination with a shallow round ceiling fixture.
- Bedroom Lighting: Use the patterned cover to combine everyday ambient light with a decorative ceiling finish.
- Hotel Guest Rooms: Add low-profile general lighting to protected indoor ceilings.
- Corridors And Landings: Select the diameter and power that match the circulation area.
