T5 HE & HO Fluorescent Tubes
T5 HE and T5 HO fluorescent tubes are replaceable linear lamps supplied under separate order references. Match each tube to the luminaire geometry and specified control gear before installation.
- Linear Glass Lamp Form: The straight cylindrical envelope supports continuous illumination along the tube axis.
- Separate HE and HO Families: Distinct reference groups keep the two product families clear during selection and replacement.
- Circumferential Light Surface: The cylindrical lamp presents an illuminated surface around the tube.
- Replaceable Lamp Role: The tube remains an independent service component inside a compatible linear luminaire.
| Tube Families | T5 HE and T5 HO |
|---|---|
| Tube Diameter | 16 mm |
| Cap | G5 bi-pin |
| Power Range | 4-80 W |
| Length Range | 135.9-1449 mm |
|---|---|
| CCT Range | 2700-6500 K |
| Supply Boundary | Fluorescent tube only; luminaire, lampholders and control gear are separate |
Technical Specifications
Model Specifications
| Model | Tube Family | Tube Dia. × Overall Length | Cap | Rated Power | Total Lumen | CCT |
|---|---|---|---|---|---|---|

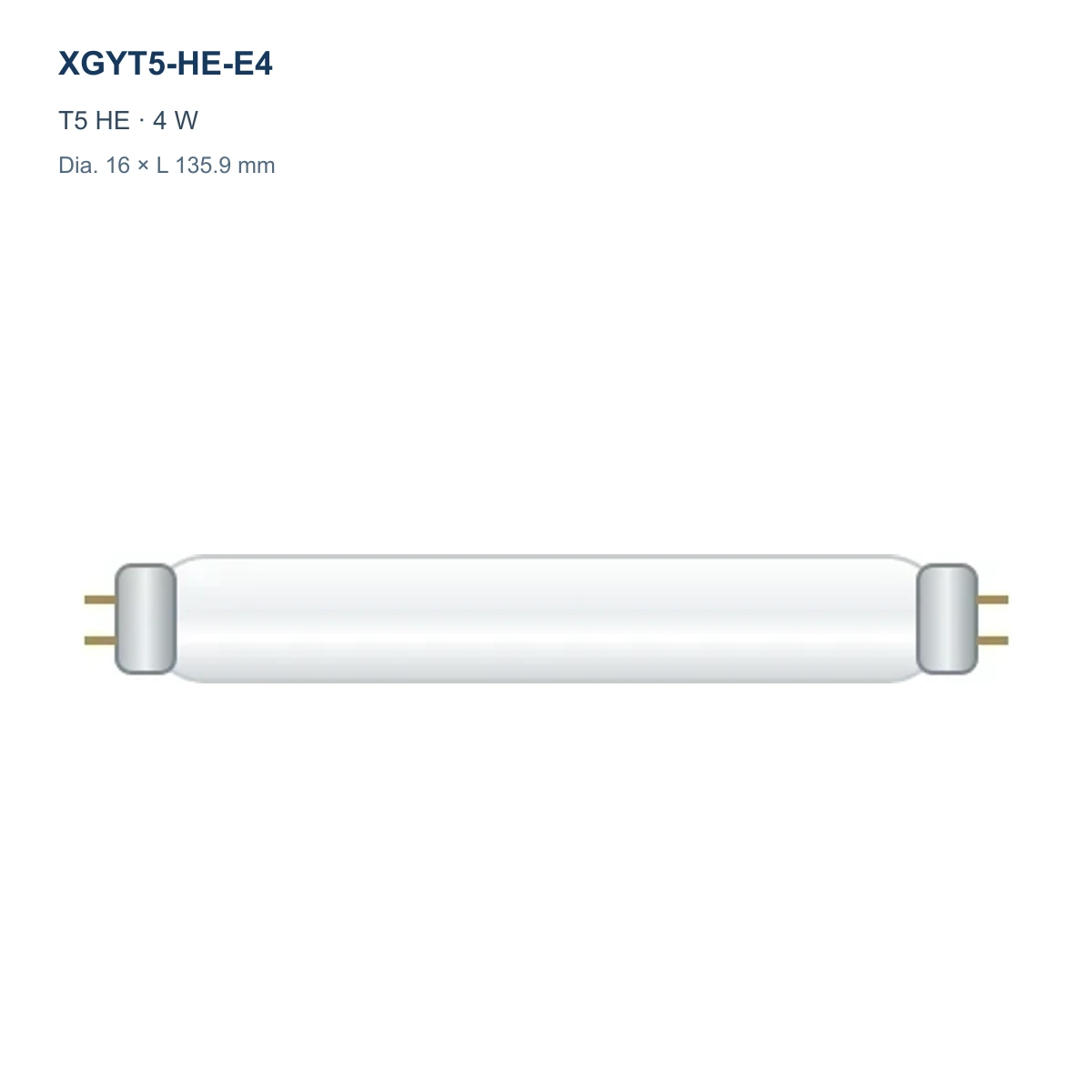

| XGYT5-HE-E4 | T5 HE | Φ16 × 135.9 mm | G5 | 4 W | 180–220 lm | 2700–6500 K |
| XGYT5-HE-E6 | T5 HE | Φ16 × 212.1 mm | G5 | 6 W | 360–400 lm | 2700–6500 K |

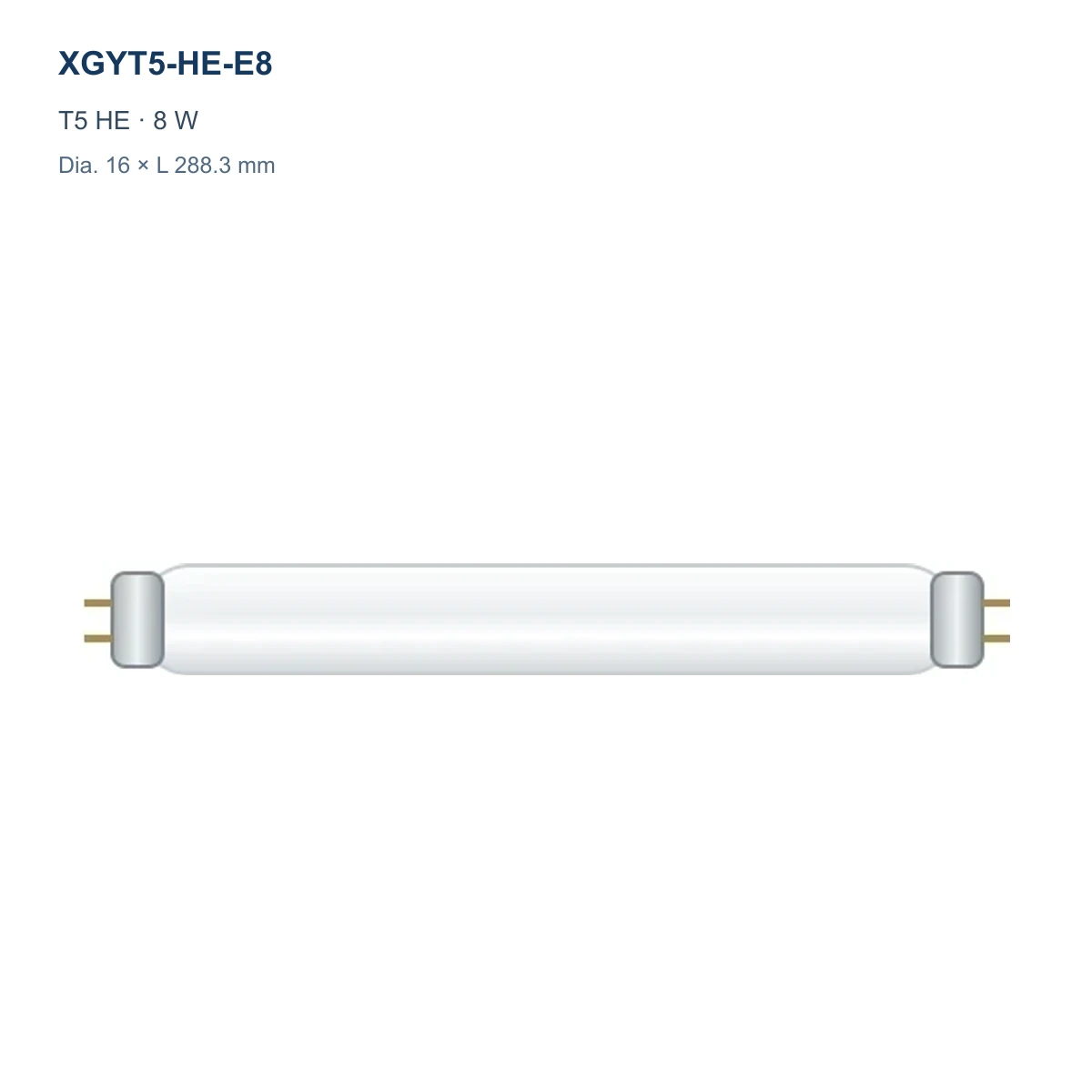

| XGYT5-HE-E8 | T5 HE | Φ16 × 288.3 mm | G5 | 8 W | 480–520 lm | 2700–6500 K |
| XGYT5-HE-E13 | T5 HE | Φ16 × 516.9 mm | G5 | 13 W | 900–1000 lm | 2700–6500 K |
| XGYT5-HE-E14 | T5 HE | Φ16 × 549 mm | G5 | 14 W | 1100–1250 lm | 2700–6500 K |
| XGYT5-HE-E18 | T5 HE | Φ16 × 713 mm | G5 | 18 W | 1450–1550 lm | 2700–6500 K |
| XGYT5-HE-E21 | T5 HE | Φ16 × 849 mm | G5 | 21 W | 1750–2000 lm | 2700–6500 K |
| XGYT5-HE-E26 | T5 HE | Φ16 × 1000 mm | G5 | 26 W | 2050–2300 lm | 2700–6500 K |
| XGYT5-HE-E28 | T5 HE | Φ16 × 1149 mm | G5 | 28 W | 2400–2700 lm | 2700–6500 K |
| XGYT5-HE-E35 | T5 HE | Φ16 × 1449 mm | G5 | 35 W | 3100–3400 lm | 2700–6500 K |

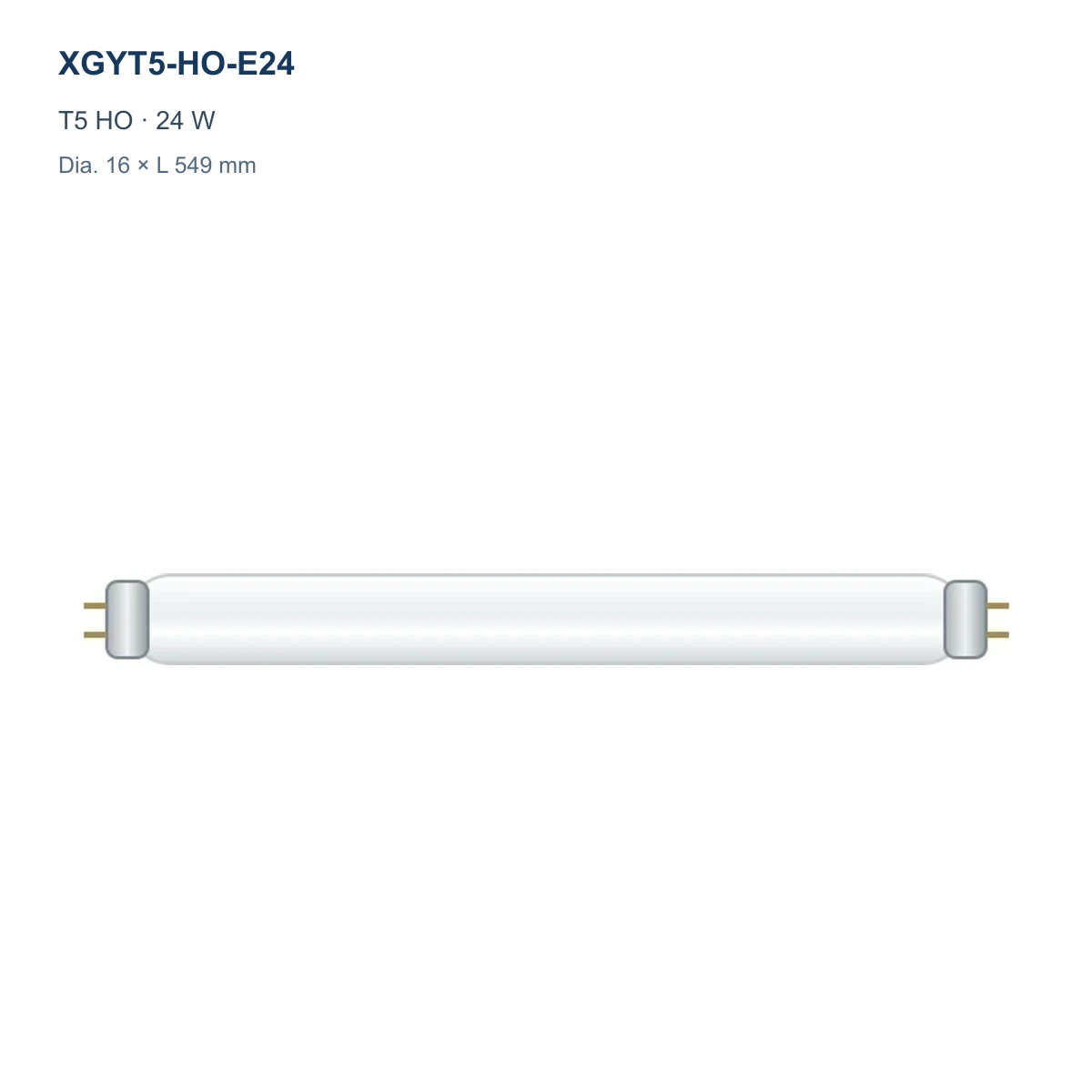

| XGYT5-HO-E24 | T5 HO | Φ16 × 549 mm | G5 | 24 W | 1590–1635 lm | 2700–6500 K |

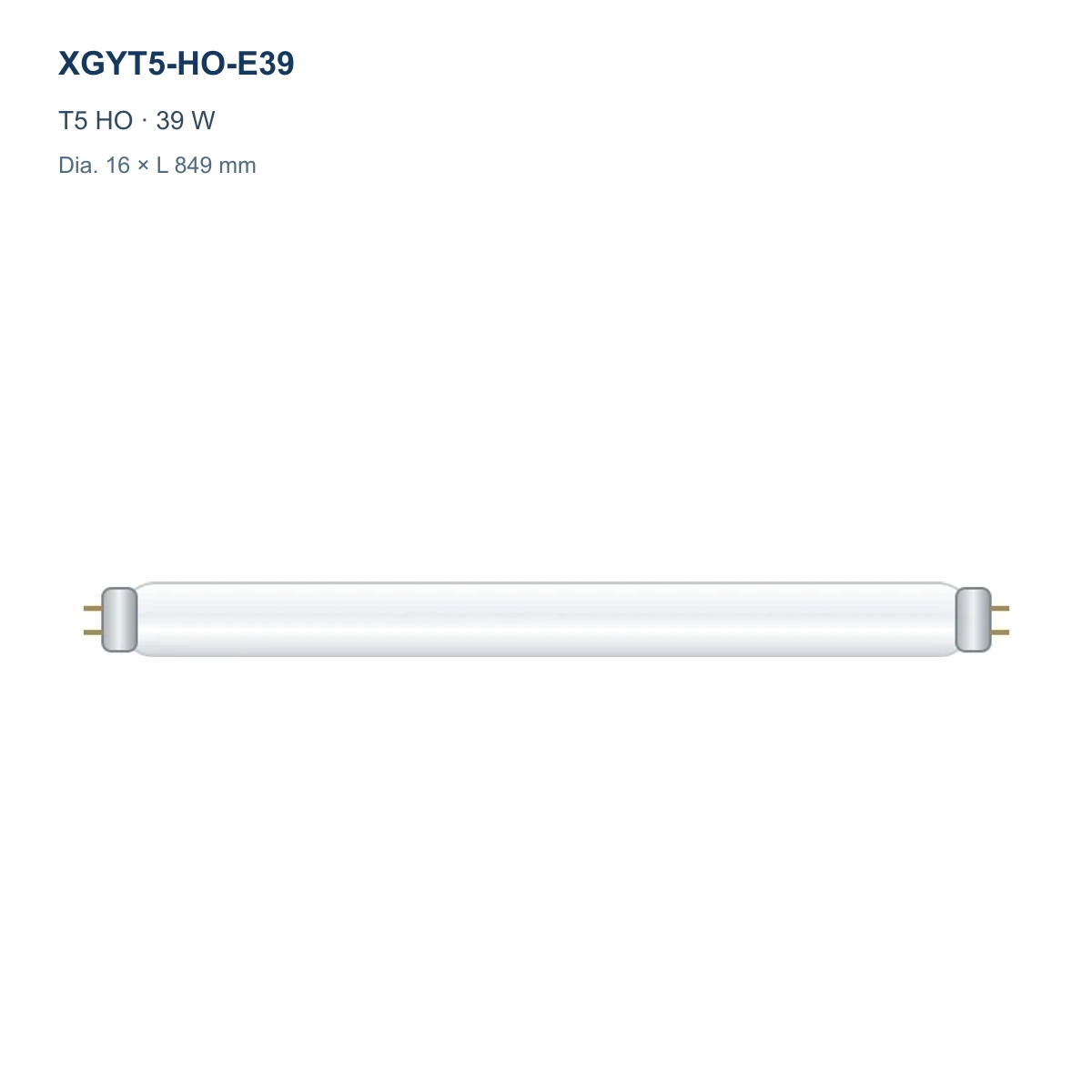

| XGYT5-HO-E39 | T5 HO | Φ16 × 849 mm | G5 | 39 W | 2760–2925 lm | 2700–6500 K |
| XGYT5-HO-E54 | T5 HO | Φ16 × 1149 mm | G5 | 54 W | 3930–4200 lm | 2700–6500 K |
| XGYT5-HO-E49 | T5 HO | Φ16 × 1449 mm | G5 | 49 W | 3900–4300 lm | 2700–6500 K |
| XGYT5-HO-E80 | T5 HO | Φ16 × 1449 mm | G5 | 80 W | 5500–5850 lm | 2700–6500 K |
Product Description
Product Details
Product Construction
The assembly contains the light-producing medium between opposed electrical terminations.
Selection & Installation Notes
Before work begins, verify socket spacing, circuit type, control equipment, supply isolation and service procedure against the fixture records. Confirm the required light appearance and complete order code. Compare related linear fluorescent tubes.
Recommended Application
Applications

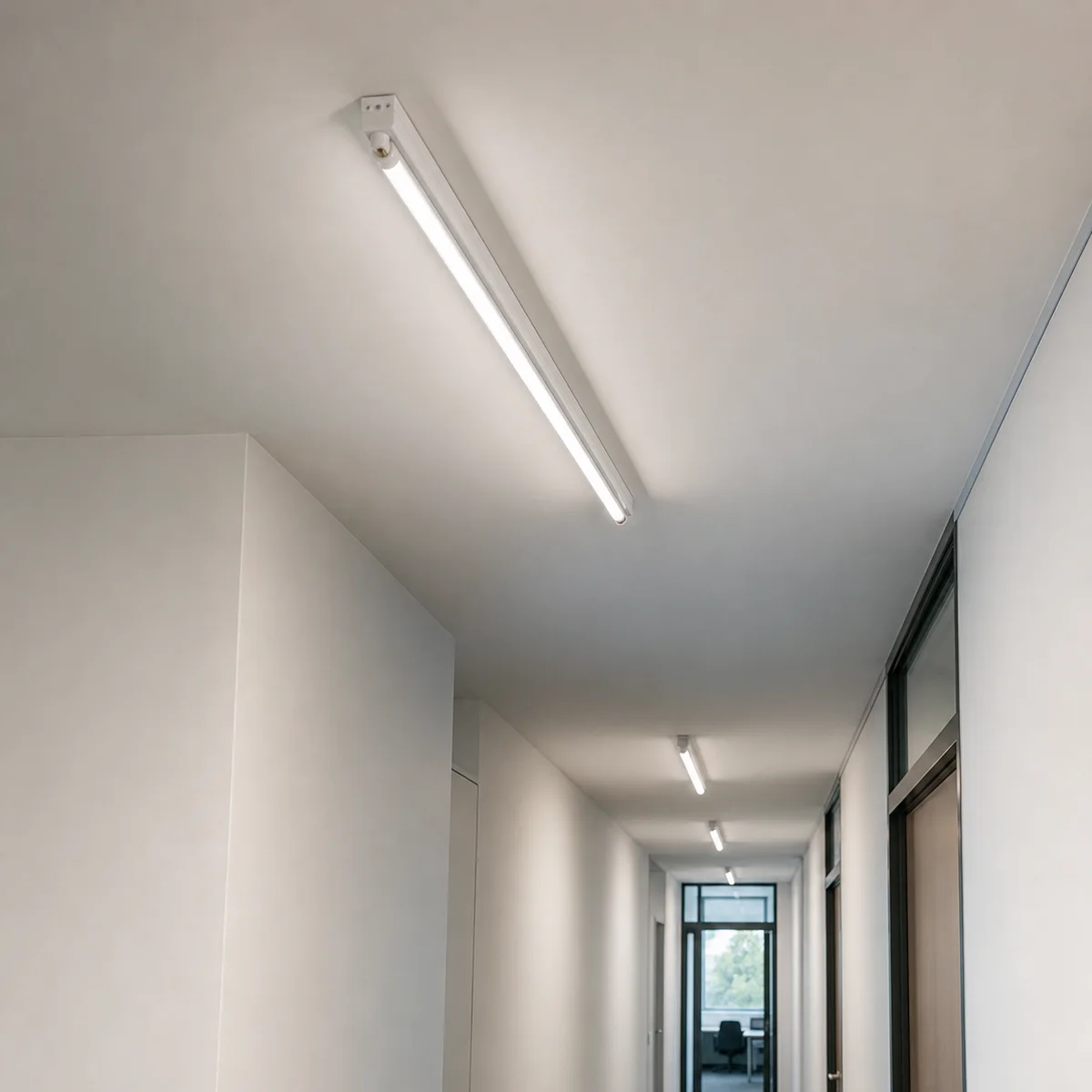

- Office Linear Luminaires: Use the selected tube in compatible indoor office fittings and ceiling battens.
- Commercial Corridors: Apply linear lamps in matched indoor fixtures along circulation routes.
- Retail Service Areas: Install the approved reference in compatible stockroom and back-of-house luminaires.
- Maintenance Relamping: Replace an existing lamp only after matching the complete tube reference and equipment documentation.
