2D Butterfly Fluorescent Lamps
- Shallow Square Footprint: The folded tube uses fixture width efficiently where enclosure depth is limited.
- Broad Emitting Surface: Two adjacent loops distribute the luminous tube across more of the fitting face.
- Holder-Specific Connection: Distinct two-pin and four-pin cap formats support the matching lampholder architecture.
- Serviceable Lamp Format: The lamp can be replaced separately from a suitable luminaire and its operating gear.
| Lamp Format | T4 or T5 2D butterfly fluorescent lamp |
|---|---|
| Power Range | 16-55 W |
| Cap Choices | GR8 two-pin or GR10Q four-pin |
| Color Temperature | 2700-6500 K |
|---|---|
| Operating Gear | Compatible external electronic ballast required |
| Overall Height | 136-203 mm |
Technical Specifications
Model Specifications
| Model | Tube Diameter (mm) | Overall Width (mm) | Overall Height (mm) | Tube Section (mm) | Cap Options | Rated Power | Total Lumen |
|---|---|---|---|---|---|---|---|

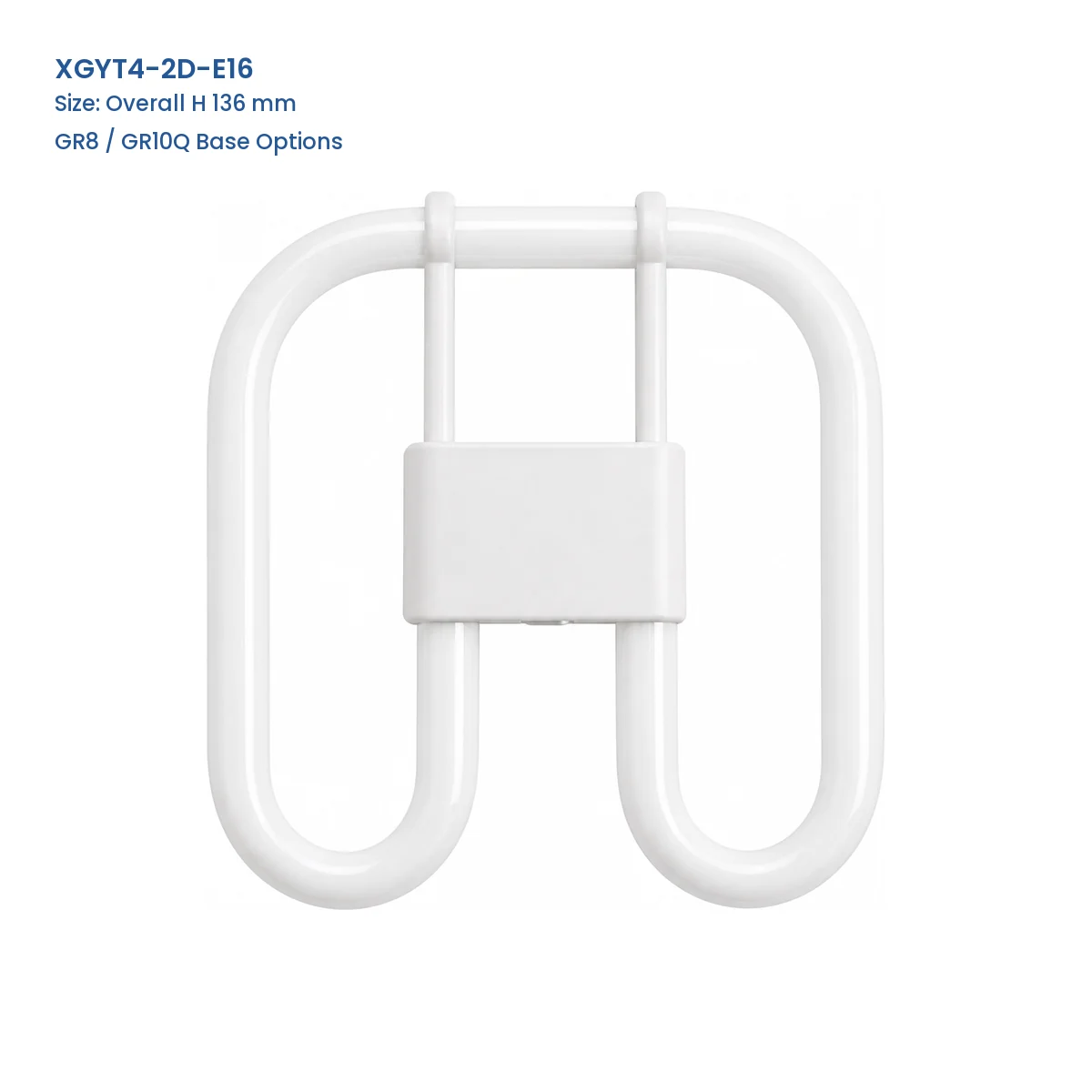

| XGYT4-2D-E16 | 13 | 133 | 136 | 26 | GR8 / GR10Q | 16 W | 950-1056 lm |

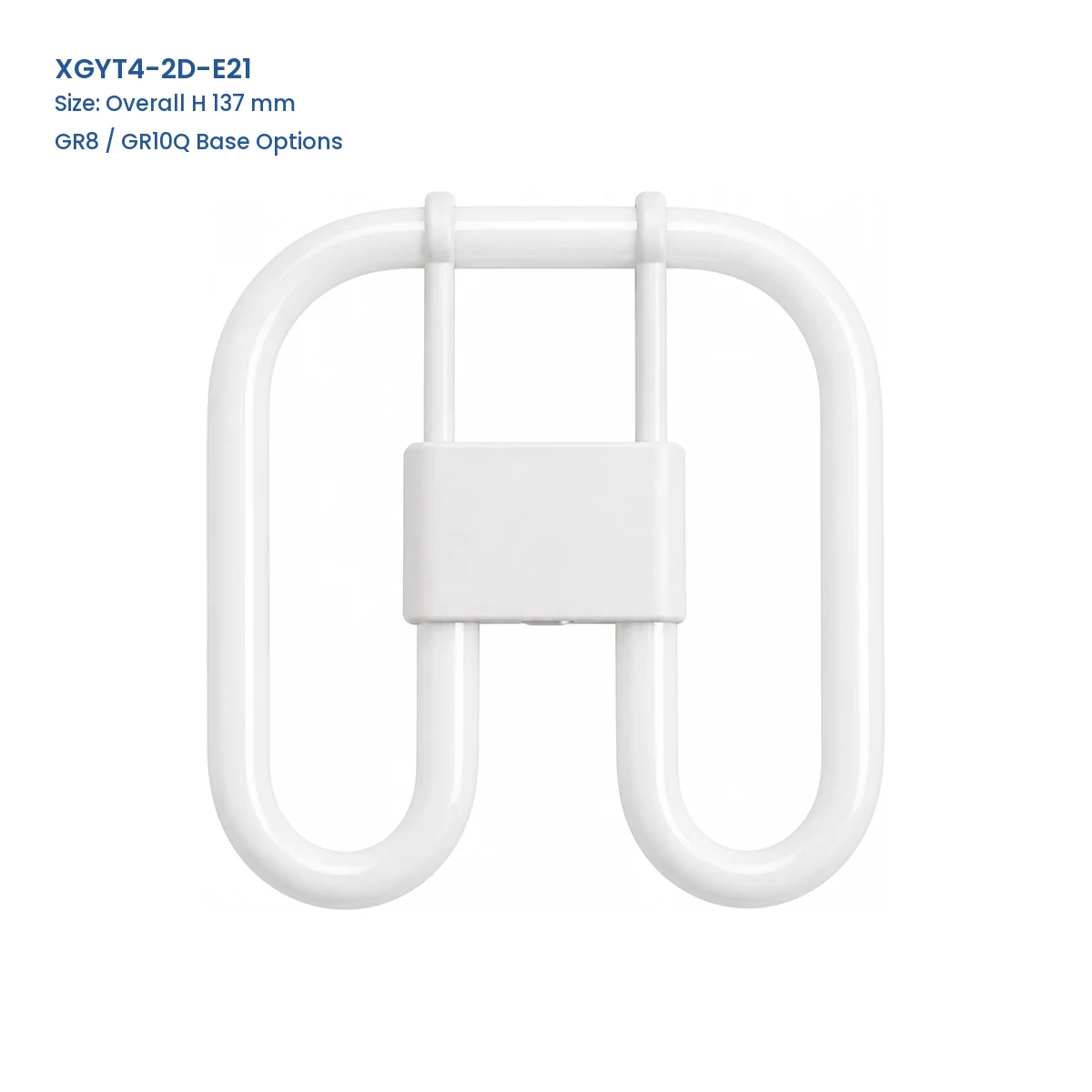

| XGYT4-2D-E21 | 13 | 134 | 137 | 26 | GR8 / GR10Q | 21 W | 1210-1344 lm |

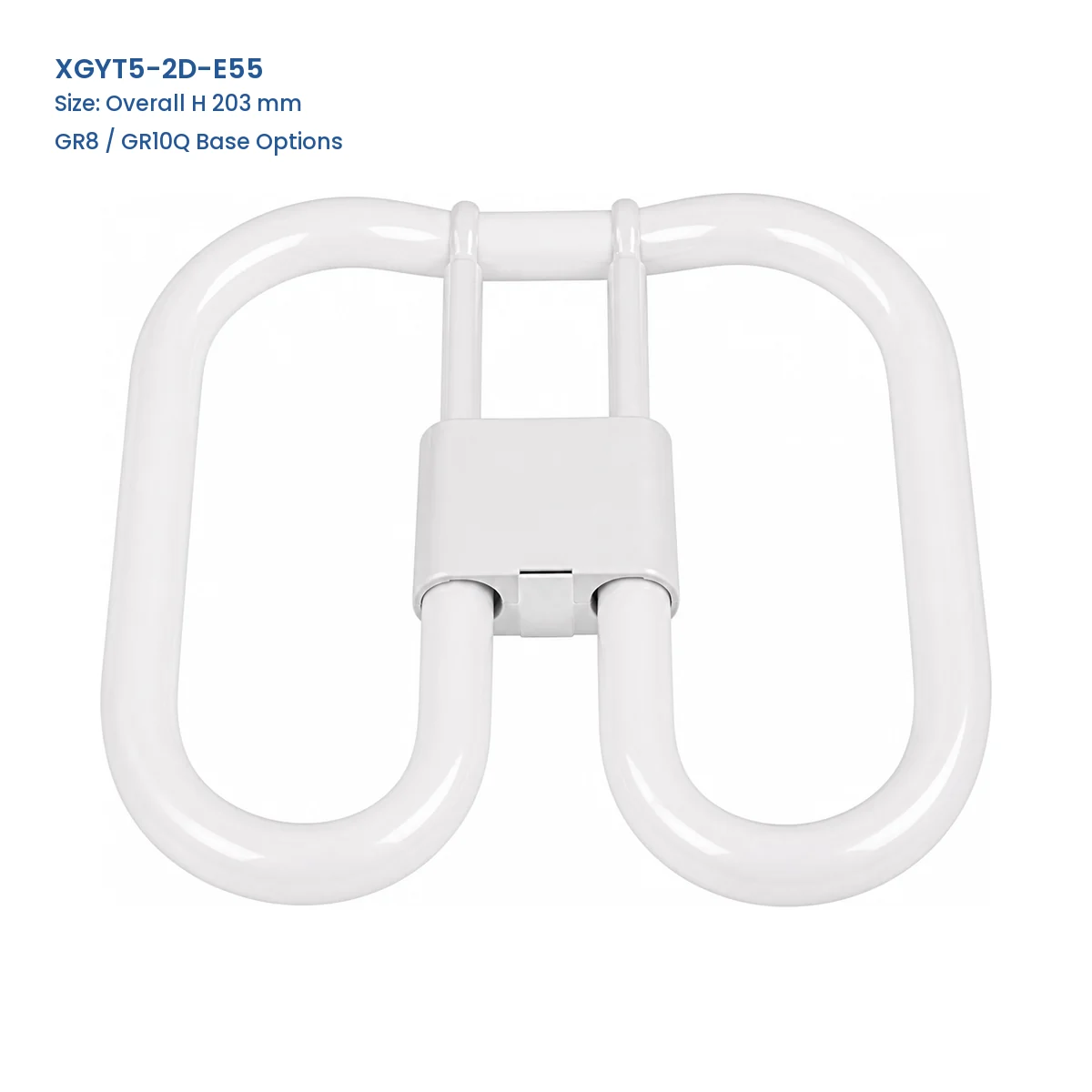

| XGYT5-2D-E28 | 17 | 200 | 203 | 31 | GR8 / GR10Q | 28 W | 1840-2044 lm |
| XGYT5-2D-E38 | 17 | 200 | 203 | 31 | GR8 / GR10Q | 38 W | 2428-2698 lm |
| XGYT5-2D-E55 | 17 | 200 | 203 | 31 | GR8 / GR10Q | 55 W | 3515-3905 lm |
Product Description
Product Details
Product Construction
A continuous fluorescent glass tube forms two adjacent loops and terminates at a central molded cap body. T4 versions use a 13 mm tube diameter, while T5 versions use a 17 mm tube diameter.
Selection & Installation Notes
Choose the model by rated power, lumen range, overall width and height, tube diameter and tube section. Match the GR8 or GR10Q cap to the fixture holder and pair the lamp with compatible external electronic control gear. Compare related formats in our circular and 2D lamp range.
Recommended Application
Applications

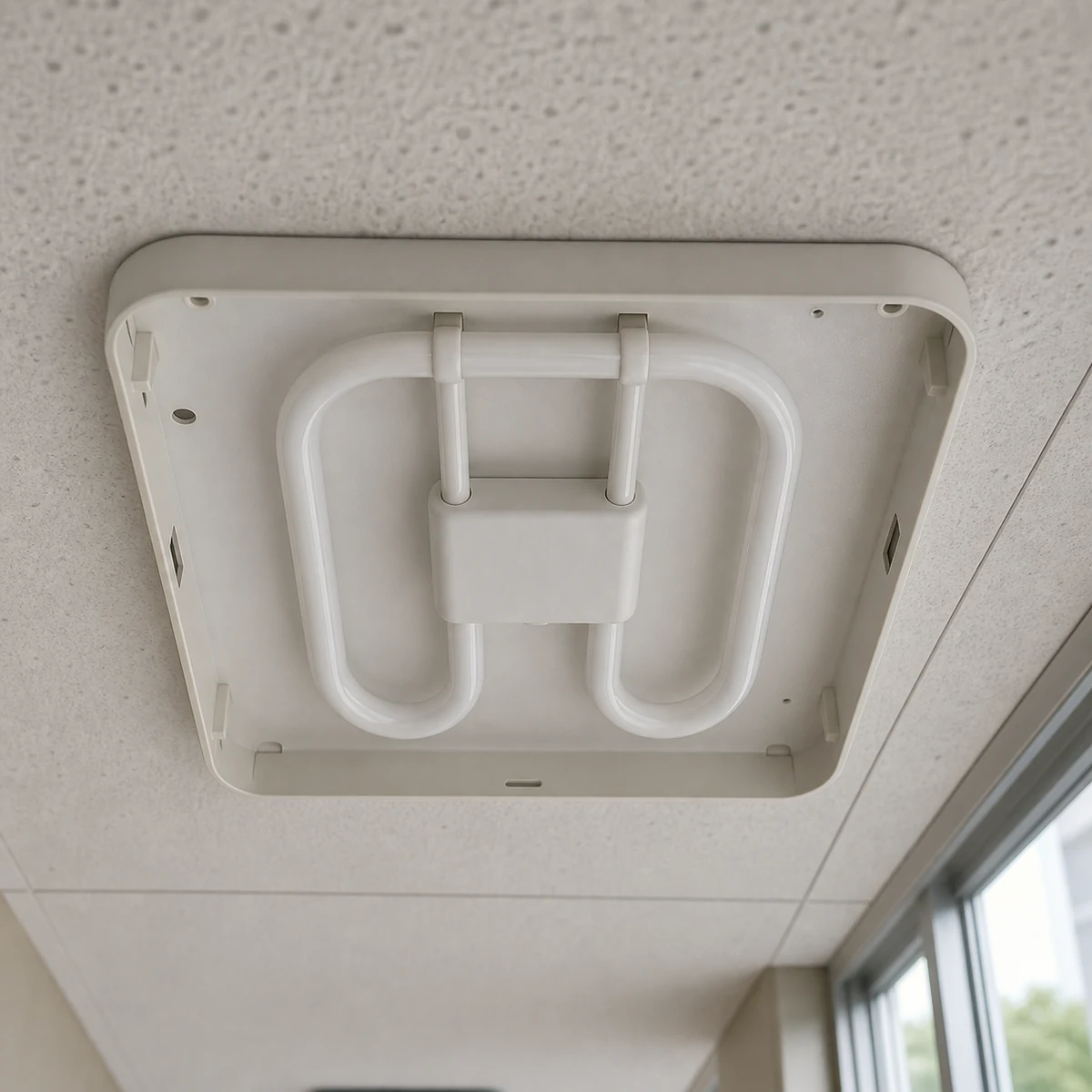

- Ceiling Bulkhead Fixtures: Fits shallow indoor ceiling bulkheads designed for 2D lamps and external electronic gear.
- Wall Bulkhead Fixtures: Provides a broad square light source in enclosed indoor wall fittings.
- Corridor Ceiling Lights: Supports replacement programs for corridor luminaires that use T4 or T5 2D lamps.
- Commercial Utility Areas: Serves back-of-house luminaires built around GR8 or GR10Q holders and an external electronic ballast.
