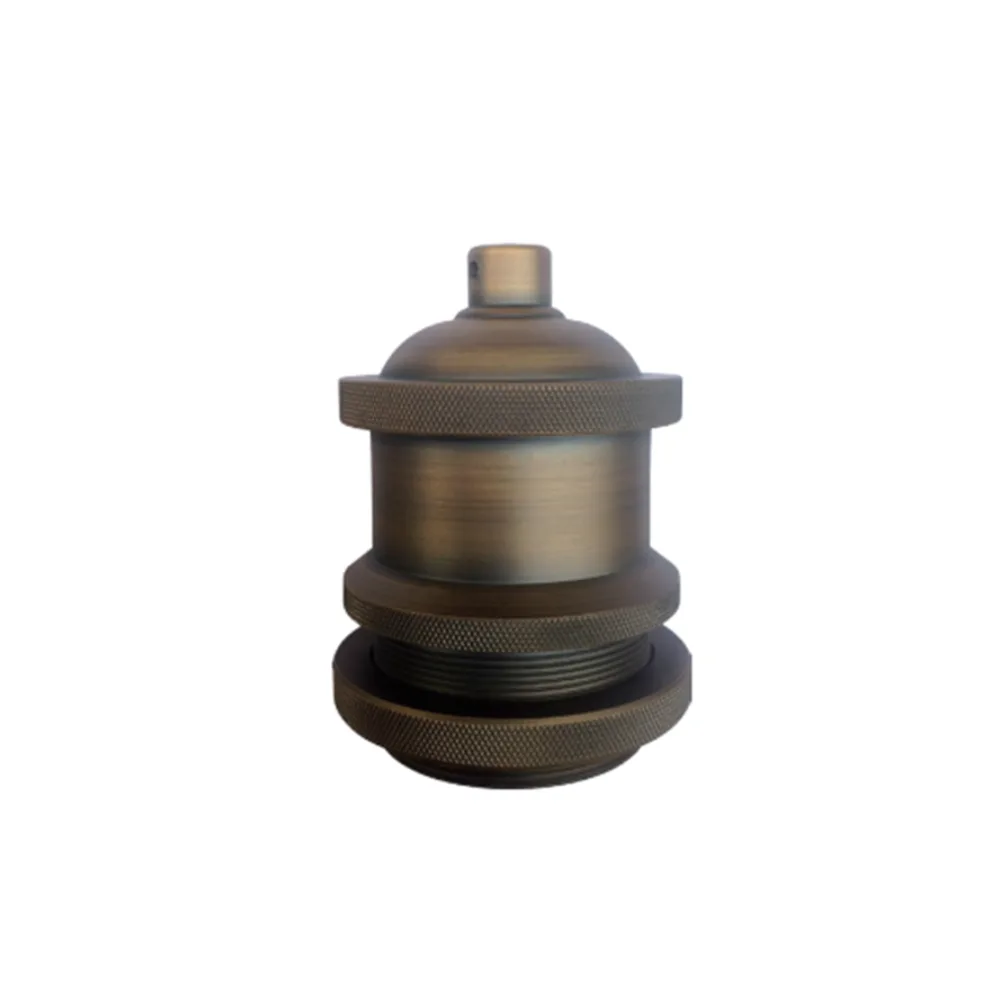

Antique E26/E27/E40 Lamp Holder Series
This antique-style lamp-holder family includes fixed E26, E27 and E40 socket configurations for decorative fixture assemblies. Select the holder, lamp base, ring or switch features and finish as one approved component set.
- Separate Socket Versions: E26, E27 and E40 are distinct holder configurations and must be matched to the intended lamp base.
- Model-Specific Ring and Switch Features: Retaining-ring and switch provisions vary across the available holder groups.
- Replaceable-Lamp Format: The matched screw-base lamp remains removable from its holder for routine lamp replacement.
- Project-Level Electrical Checks: Conductor termination, cord anchorage and protective provisions are resolved in the finished luminaire design.
| Sockets | E26 / E27 / E40 |
|---|---|
| Shade ring | Available by configuration |
| Dimensions | Ø38×55 to Ø80×105 mm |
| Finishes | Bronze / chrome / gold / copper / colors |
|---|---|
| Use | Decorative fixture assembly |
Technical Specifications
Model Specifications
| Model No. | Dimensions | Socket | Control / Ring | Finish |
|---|---|---|---|---|
| XGYLB4002-1~6 | Ø48×88 Ø48×74 (5) mm | E26 / E27 | Outside Ring | Glossy (1/3/5); matte antique (2/4); aluminium |
| XGYLB4002-7~11 | Ø38×70 mm | E26 | Rotaing Switch Outside Ring (10) | Pearl black / chrome / antique bronze / gold / copper |
| XGYLB4002-12~17 | Ø38×70(11|12|13) Ø38×55 (14|15|16) mm | E26 | Chain Switch (11) Outside Ring (12|14|15) | Gold / copper |
| XGYLB4002-35 | Ø42×90 mm | E26 / E27 | PVC Ceiling Rose | 12 silicone-covered colors |
| XGYLB4002-E40 | Ø80×105 mm | E40 | not specified | Matte antique gold / bronze; aluminium |
| XGYLB4002-43 | Ø80×90 mm | E26/E27 | Outside Ring | Bronze / chrome / gold / rose gold / black / gunmetal / aluminium |
Product Description
Product Details
Product Construction
Each unit combines a contact section and outer housing within a compact mounting component. Body shape and attachment details vary across the family.
Selection & Installation Notes
Use approved drawings to confirm available space, connector arrangement, restraint, protection class and heat management before production. Compare related components in our lamp holders and bases range.
Recommended Application
Applications
- Exposed-Bulb Pendants: Integrate the selected holder into a suspended fixture with a matching lamp base and approved connection assembly.
- Table and Floor Lamps: Select the holder configuration around the fixture structure, lamp base and intended user interface.
- Decorative Shade Assemblies: Match the retaining-ring thread and shade opening where the selected holder includes a ring.
- Hospitality Feature Lighting: Standardize the approved holder, lamp base and visible finish across the specified indoor fixture family.
