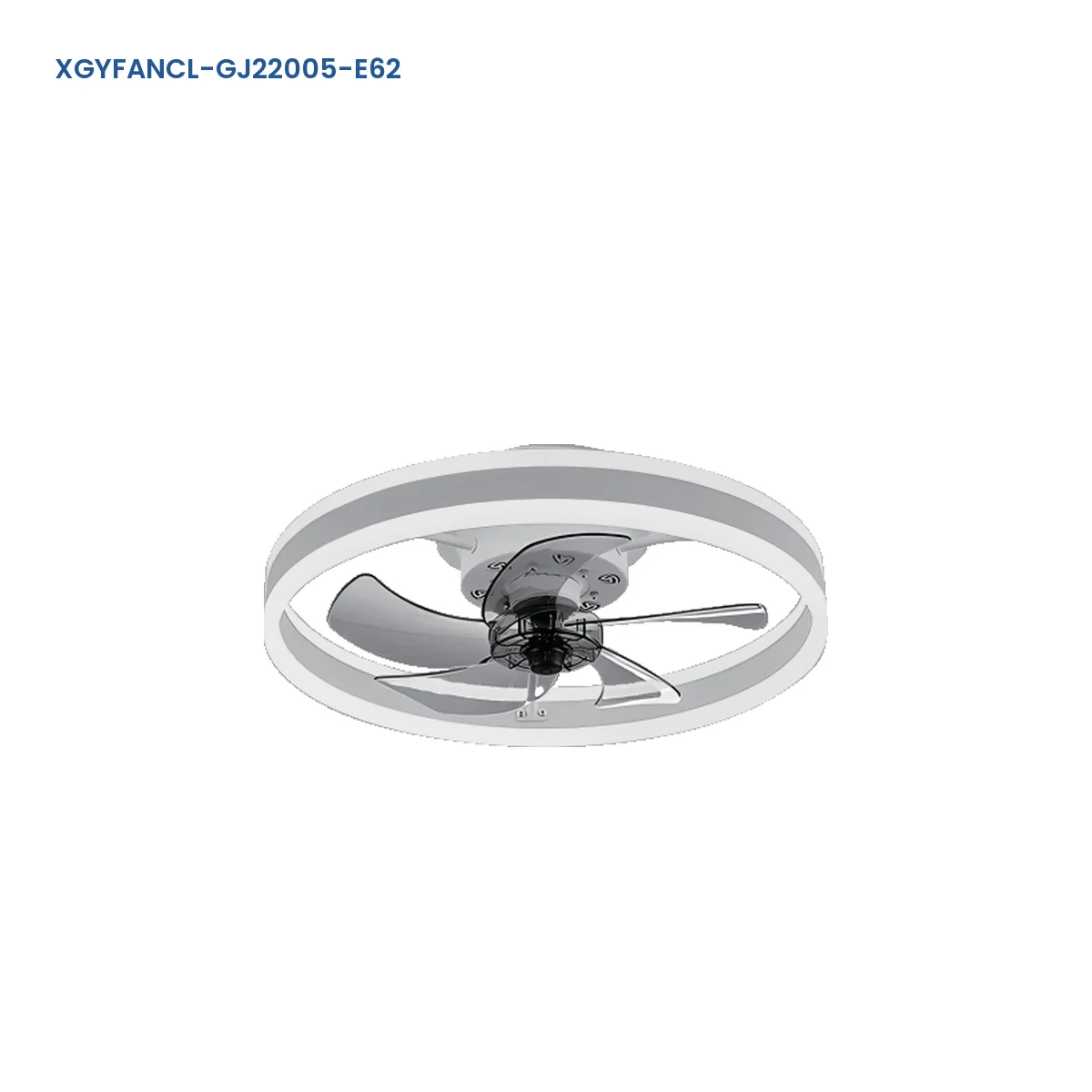

Ceiling-Mount LED Fan Light without Grid
- Grid-Free Front Format: The fan area remains free of an enclosing face grid.
- Luminous Room Element: The integrated source supplies general interior illumination.
- Two-in-One Placement: Illumination and air movement occupy one overhead room position.
| Dimensions | Φ500 × 170 mm |
|---|---|
| Light / fan load | Max 42 W / Max 20 W HF |
| Efficacy / CCT | 60 lm/W / 3500–6800 K |
| Input | AC 220–240 V |
| Material | Iron + aluminium + PS |
|---|---|
| Control | IR remote: brightness, CCT, six-step fan, reverse, timer |
| Optics & use | 120° / Ra80 / PF 0.9 / IP20 indoor |
Technical Specifications
Model Specifications
| Model | Dimensions | Light Power | Fan Power | Efficacy | CCT | Material |
|---|---|---|---|---|---|---|
| XGYFANCL-GJ22005-E62 | Φ500 × 170 mm | Max 42 W | Max 20 W HF | 60 lm/W | 3500–6800 K | Iron + aluminium + PS |
Shared conditions: AC 220–240 V, Ra80, 120° beam angle, PF 0.9 and IP20 indoor protection.
Product Description
Product Details
Product Construction
The product combines an LED light section and fan within one ceiling-mounted body. The fan section is presented without an enclosing front grid.
Selection & Installation Notes
Use the complete sales model on the room schedule, and confirm the required face appearance and finish against the approved sample. Before installation, verify the electrical supply, control method, ceiling interface, structural support, rotating clearance, service access and included hardware. Compare related products in our ceiling fan light range.
Recommended Application
Applications

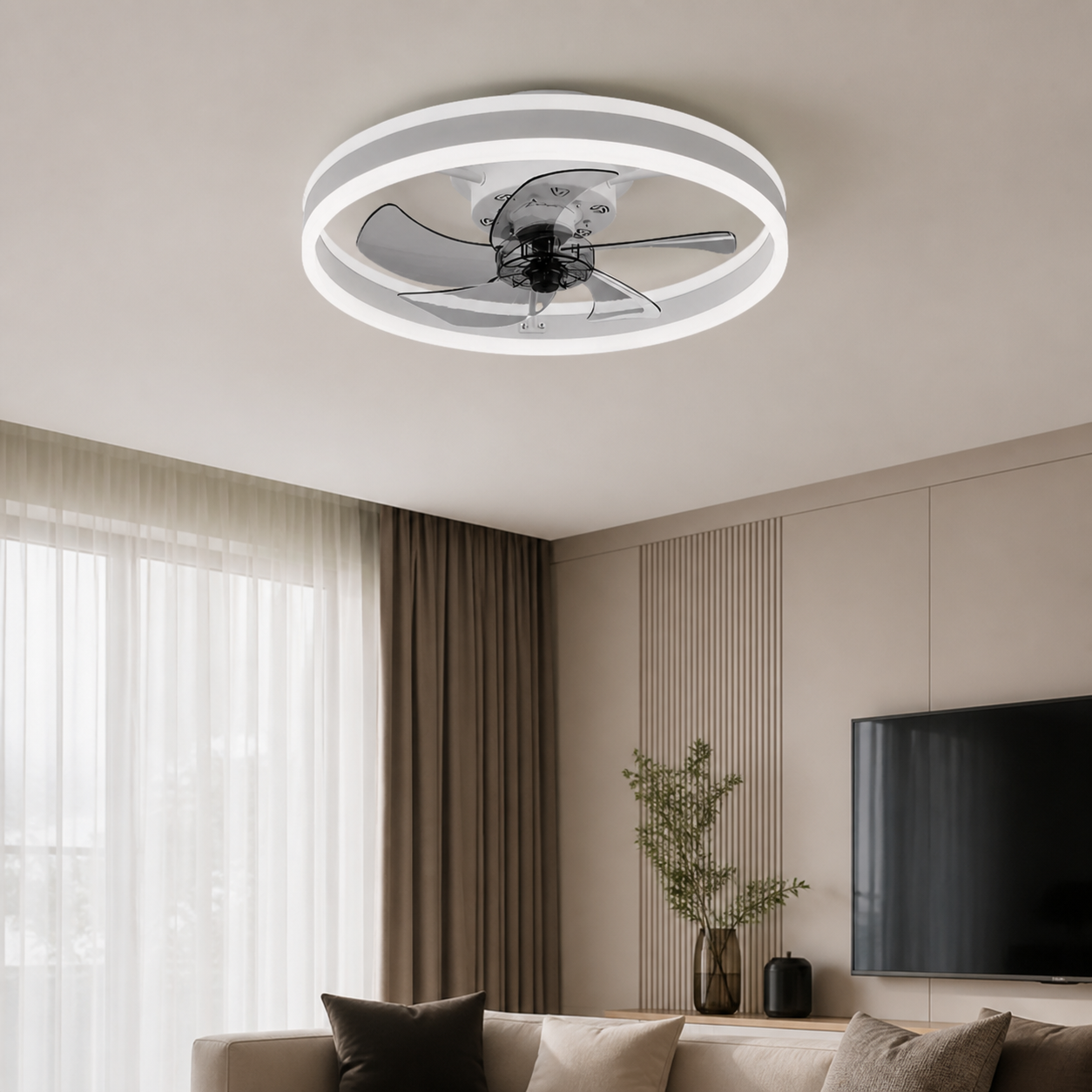

- Residential Bedrooms: The combined ceiling product provides normal room lighting and air movement from one overhead position.
- Living Room Ceilings: The grid-free format suits spaces planned around a central light-and-fan fixture.
- Hotel Guest Rooms: One ceiling product supports repeatable room layouts that require lighting and air movement.
- Home Workspaces: General light and air movement come from the same ceiling location.
