IP65 LED Bulkhead Lights
IP65 LED bulkhead lights in round and oval surface-mounted housings, with black or white frame options. The 8–25 W range covers 480–2500 lm for corridors, entrances, stairwells and utility areas.
- Direct-Fix Luminaire: The complete fitting attaches onto the finished substrate without a recessed aperture.
- Paired Size Progression: Oval and round versions each step through three body envelopes.
- Wall Or Ceiling Placement: The surface-mounted format supports either position around circulation and utility areas.
- Coordinated Frame Choice: Black and white frames suit light or dark surrounding surfaces.
| Protection | IP65 |
|---|---|
| Shapes | Round / Oval |
| Rated Power | 8 / 10 / 12 / 15 / 20 / 25 W |
| Luminous Output | 480–2500 lm |
|---|---|
| CCT | 2700–6500 K |
| Frame Colors | Black / White |
Technical Specifications
Model Specifications
| Model No. | Dimensions | Power | Frame | Output | CCT |
|---|---|---|---|---|---|
| XGYBH-O-E8 | 155×80×55 mm | 8 W | Black/White | 480 lm | 2700 K–6500 K |
| XGYBH-O-E10 | 155×80×55 mm | 10 W | Black/White | 800 lm | 2700 K–6500 K |
| XGYBH-O-E12 | 175×87×55 mm | 12 W | Black/White | 1200 lm | 2700 K–6500 K |
| XGYBH-O-E15 | 175×87×55 mm | 15 W | Black/White | 1500 lm | 2700 K–6500 K |
| XGYBH-O-E20 | 198×98×55 mm | 20 W | Black/White | 2000 lm | 2700 K–6500 K |
| XGYBH-O-E25 | 198×98×55 mm | 25 W | Black/White | 2500 lm | 2700 K–6500 K |
| XGYBH-R-E8 | Ø140×55 mm | 8 W | Black/White | 480 lm | 2700 K–6500 K |
| XGYBH-R-E10 | Ø140×55 mm | 10 W | Black/White | 800 lm | 2700 K–6500 K |
| XGYBH-R-E12 | Ø155×55 mm | 12 W | Black/White | 1200 lm | 2700 K–6500 K |
| XGYBH-R-E15 | Ø155×55 mm | 15 W | Black/White | 1500 lm | 2700 K–6500 K |
| XGYBH-R-E20 | Ø175×55 mm | 20 W | Black/White | 2000 lm | 2700 K–6500 K |
| XGYBH-R-E25 | Ø175×55 mm | 25 W | Black/White | 2500 lm | 2700 K–6500 K |
Product Description
Product Details
Product Construction
A broad luminous cover sits over a shallow enclosure. The oval family uses 155, 175 or 198 mm lengths, while the round family uses 140, 155 or 175 mm diameters.
Selection & Installation Notes
Choose the exact reference from the dimensional and lumen requirements, then specify the required CCT. Preserve the IP65 boundary at the mounting surface and cable entry, and compare related formats in our bulkhead lights range.
Recommended Application
Applications

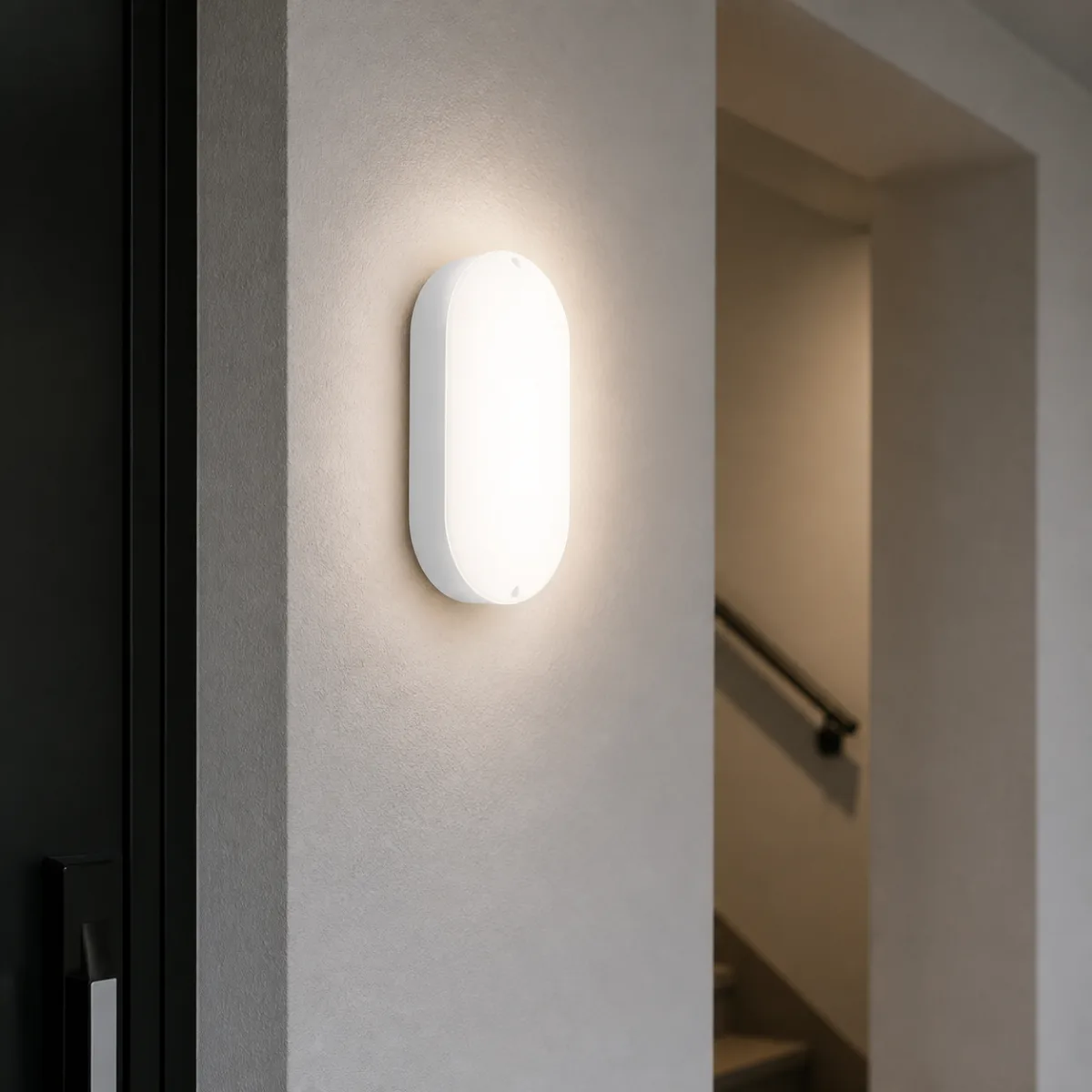

- Covered Entrances: The IP65 surface-mounted housing provides general illumination at sheltered building entrances.
- Apartment Corridors: Round or oval housings fit wall and ceiling positions along residential circulation routes.
- Commercial Stairwells: The available output levels support landings and enclosed stair circulation areas.
- Indoor Utility Areas: Black or white housings provide practical surface-mounted lighting in service and storage spaces.
