IP65 Solar Wall Light with Motion Sensor

XGYSWL-MYSW-HY03-E6.7 is a 6.7 W IP65 solar wall light with a 900 lm maximum output, integrated solar charging, and light and motion sensing.

No-Mains Wall Lighting: The integrated energy system supports exterior wall lighting without a mains supply cable.
Approach-Area Sensor Layout: Front-facing sensing elements are positioned toward the route beneath the luminaire.
Downward-Facing Diffuser: The horizontal diffuser band directs the luminous face toward the wall and ground below.
Compact Integrated Assembly: Charging, energy storage, sensing and illumination are contained in one wall-mounted body.

Dimensions	254×97×108 mm
Rated Power / Maximum Output	6.7 W / 900 lm max
Solar Panel	5 V / 2.5 W

Battery	18650 3600 mAh
Housing / Protection	ABS + PC / IP65
Sensor	Light / motion sensor

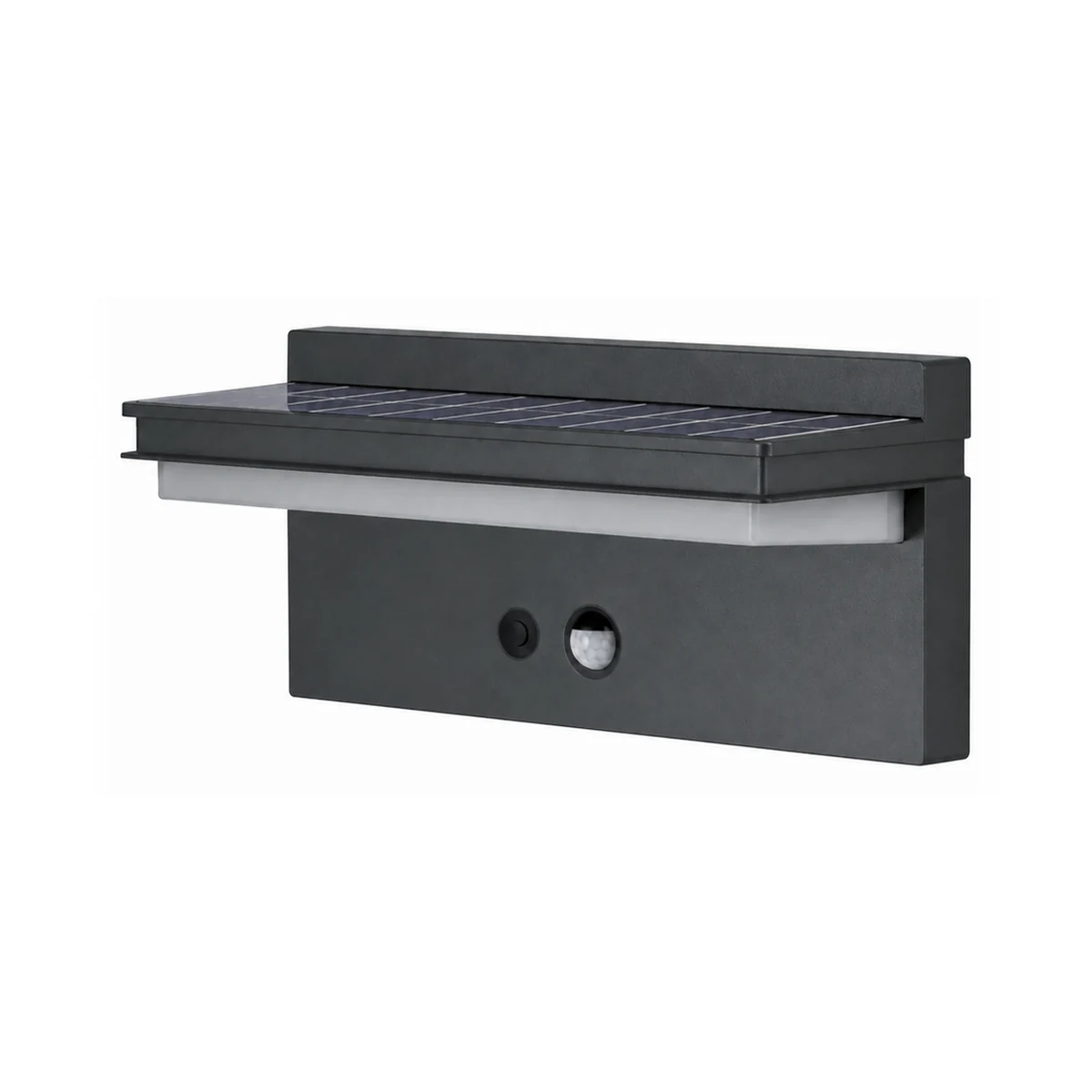

Black solar wall light with motion sensor on white background

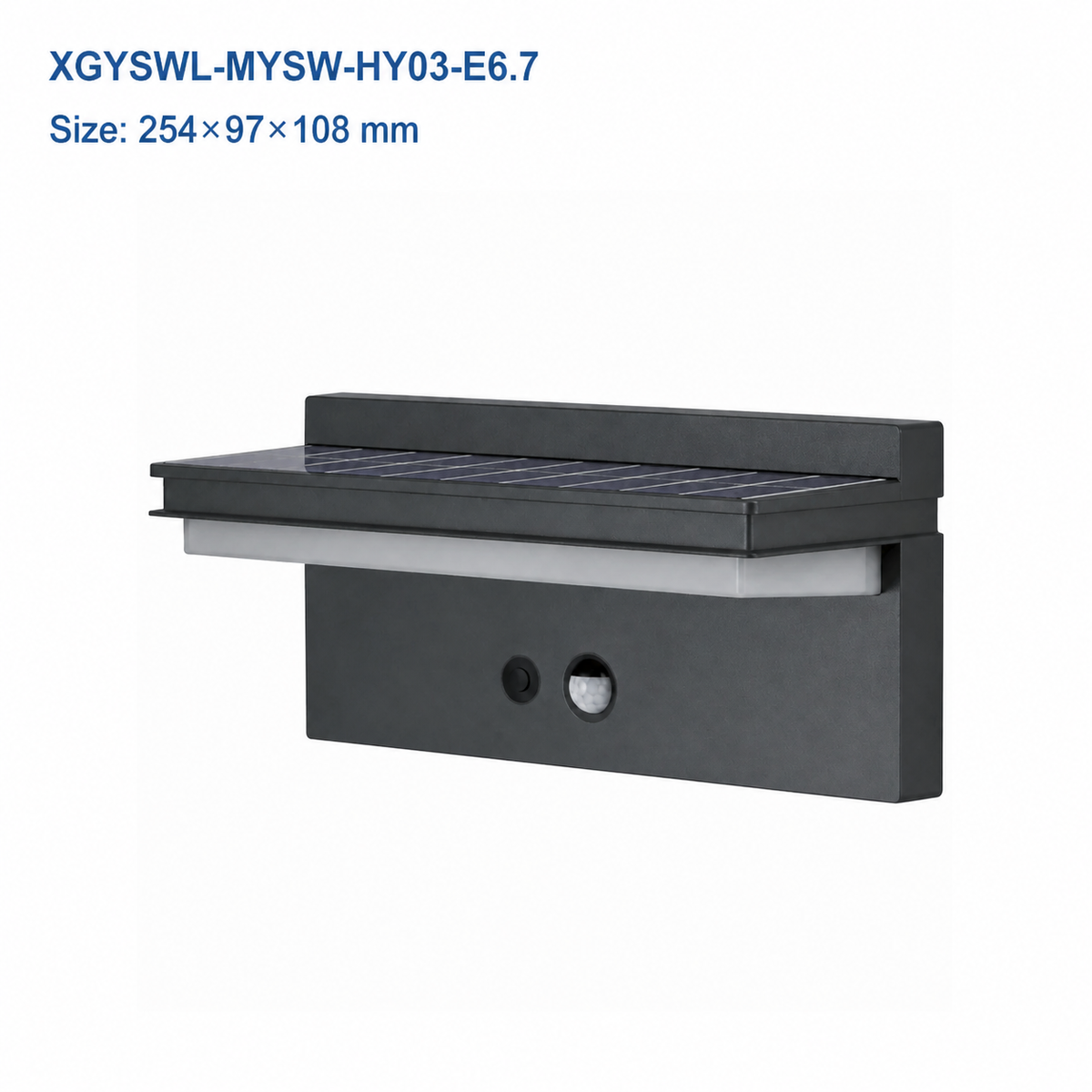

XGYSWL-MYSW-HY03-E6.7 IP65 solar wall light, 254×97×108 mm

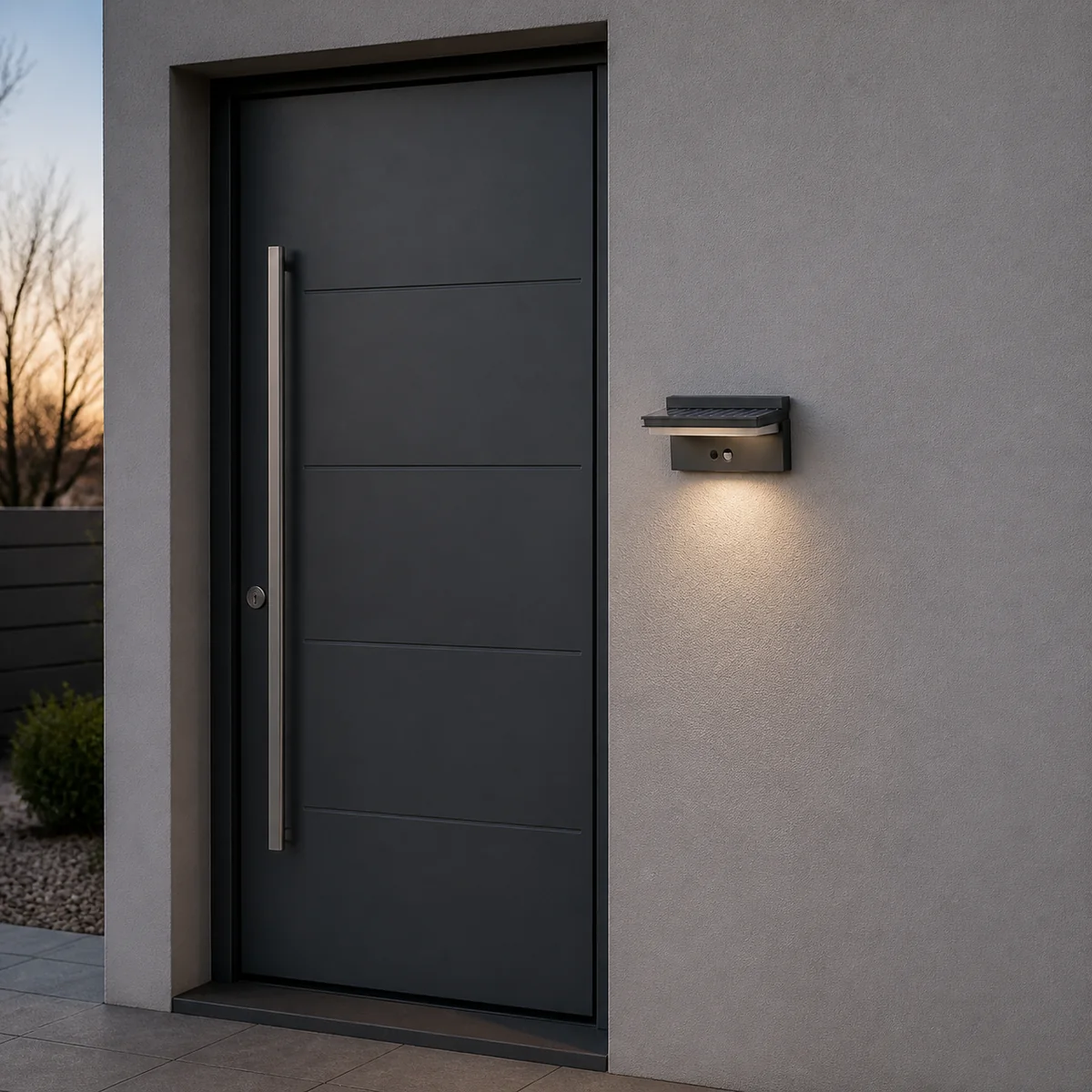

XGYSWL-MYSW-HY03-E6.7 solar wall light installed beside an exterior entrance

Technical Specifications

Model Specifications

Model	Dimensions	Rated Power	Maximum Output	Solar Panel	Battery	Housing / Protection	Sensor
XGYSWL-MYSW-HY03-E6.7	254×97×108 mm	6.7 W	900 lm max	5 V / 2.5 W	18650 3600 mAh	ABS + PC / IP65	Light / motion sensor

Product Description

Product Details

Product Construction

The 254 × 97 × 108 mm housing uses ABS and PC components in a fixed wall-mounted form.

Selection & Installation Notes

Choose a stable fixing surface with unobstructed daylight exposure, allow clearance for the projecting body, and preserve the IP65 sealing arrangement during mounting. Confirm the required detection sequence and timing before ordering. Compare related products in our solar wall lights range.

Recommended Application

Applications

Residential Entrances: Provides solar-powered wall lighting near doors and exterior entry routes.
Garden Paths: Adds sensor-assisted lighting beside garden paths from an adjacent wall or post.
Side Passages: Supports movement-responsive lighting along narrow exterior passages.
Remote Outbuildings: Provides wall-mounted solar lighting where a suitable daylight position is available.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What output does this solar wall light provide?

The XGYSWL-MYSW-HY03-E6.7 is rated at 6.7 W with a maximum output of 900 lm.

Where should the solar panel be positioned?

Position the integrated panel where it receives useful daylight and is not persistently shaded by eaves, walls, or vegetation.

Which sensors are integrated?

The product includes light and motion sensing. Confirm the required mode sequence, hold time and detection range in the order specification.

What does the IP65 rating mean for installation?

IP65 is the ingress-protection rating. Preserve the enclosure sealing and use an appropriate fixed mounting method on the exterior wall.

What battery is used?

It uses an 18650 battery rated at 3600 mAh.

Does the standard product include selectable sensor modes?

Selectable sensor modes are not confirmed for the standard configuration. Define any required sensing sequence or timing in the order specification.
