Compact Pivot-Head Surface-Mounted GU10/MR16 Spotlight Housings

Compact pivot-head surface-mounted GU10/MR16 spotlight housings combine a concise overhead body with a distinct head-connection profile for interior accent layouts. Define the complete housing reference, lamp-holder interface, electrical package and ceiling connection from approved project documents.

Compact Overhead Form: The concise housing profile limits visual bulk within the ceiling composition.
Pivot-Head Identity: A compact connection detail defines the visible silhouette between the base and head body.
Housing Platform: The body is prepared around the lamp-holder and electrical package selected for the project.

Page Scope	Compact surface-mounted spotlight housing family
Order Basis	Complete reference and approved drawing
Source Interface	Record separately for the chosen reference

Electrical Record	Supply, driver and control requirements
Ceiling Record	Connection location and available envelope
Access Record	Surrounding clearance and service access

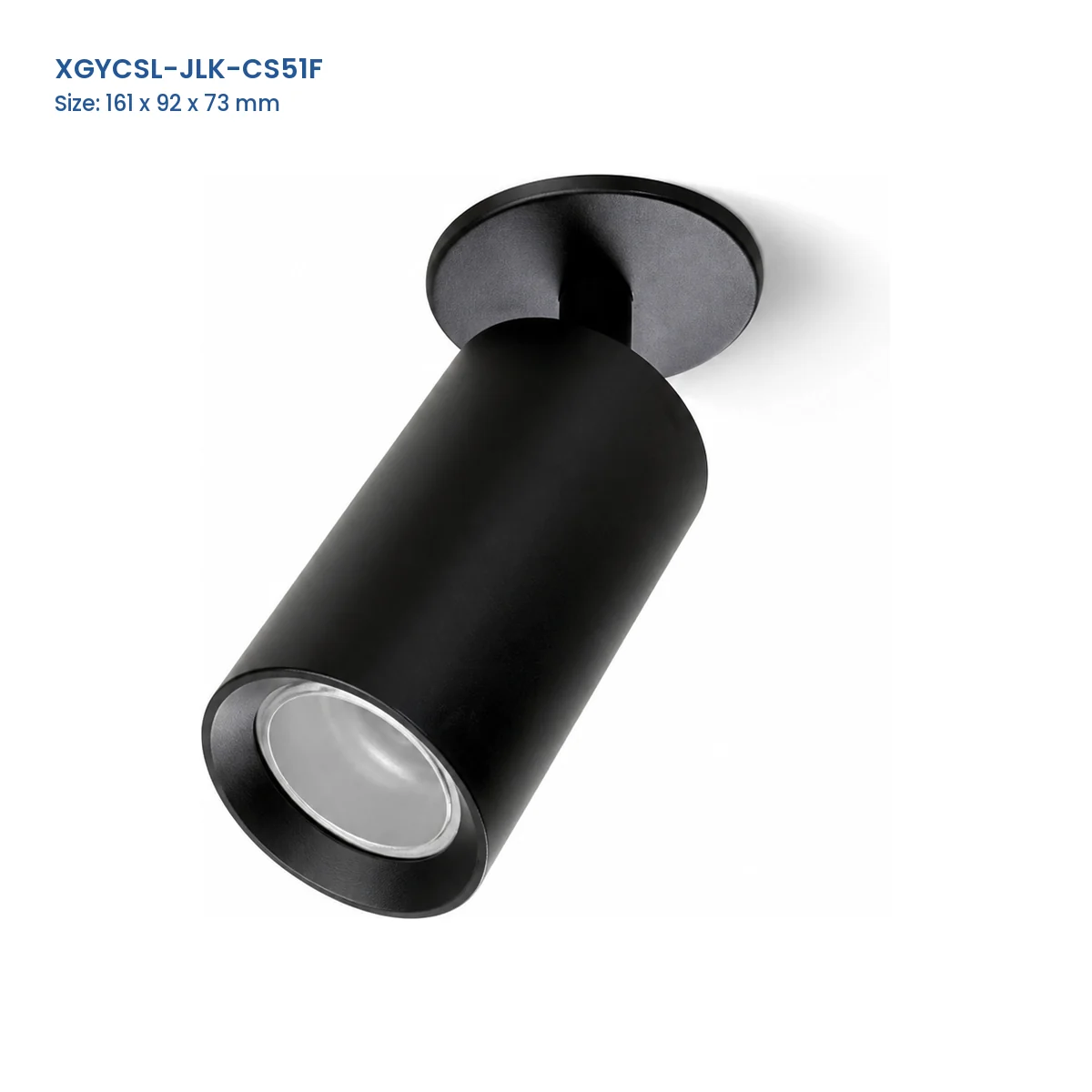

XGYCSL-JLK-CS51F compact spotlight housing with Model and Size labels

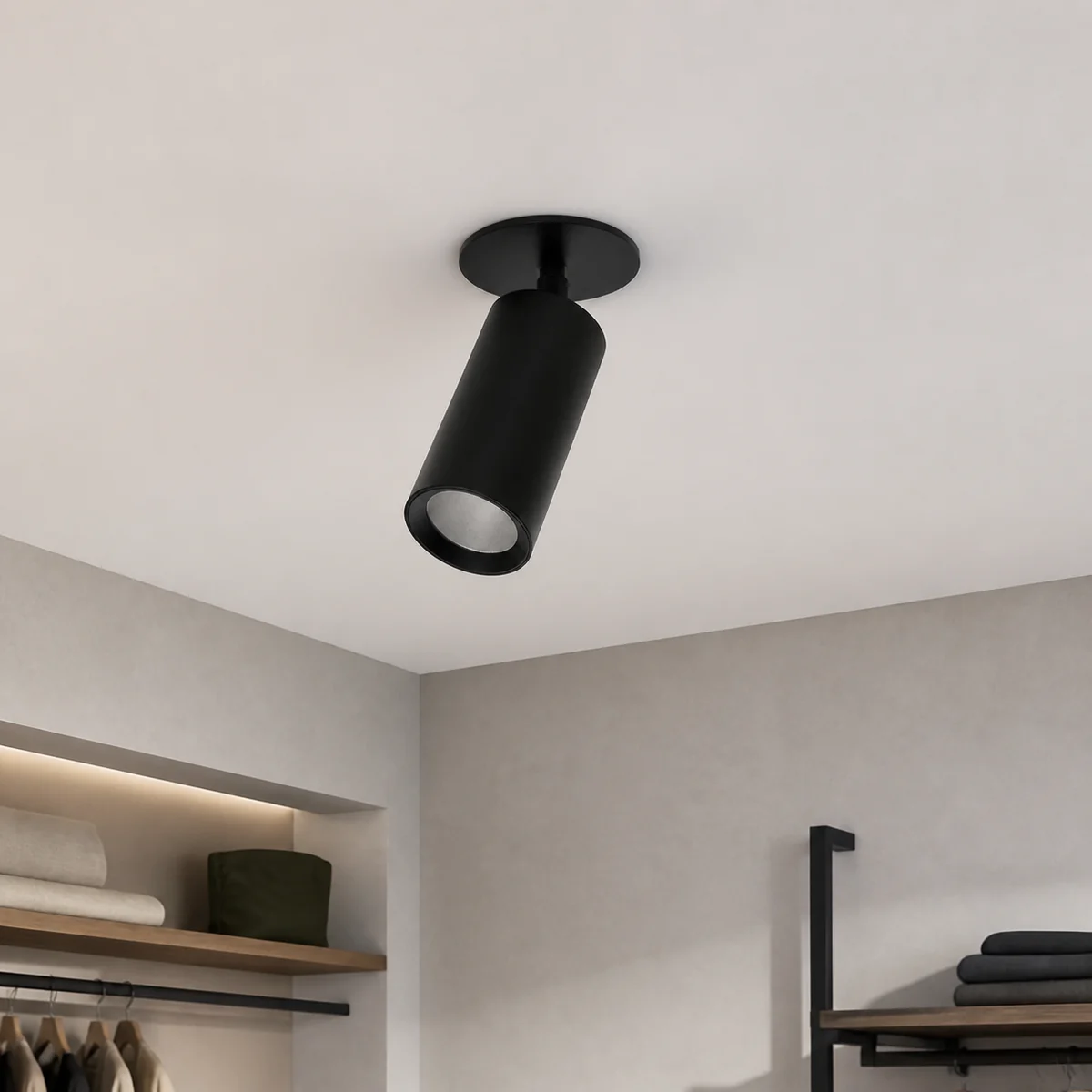

CS51F-style single-head surface-mounted spotlight housing in a dry indoor boutique

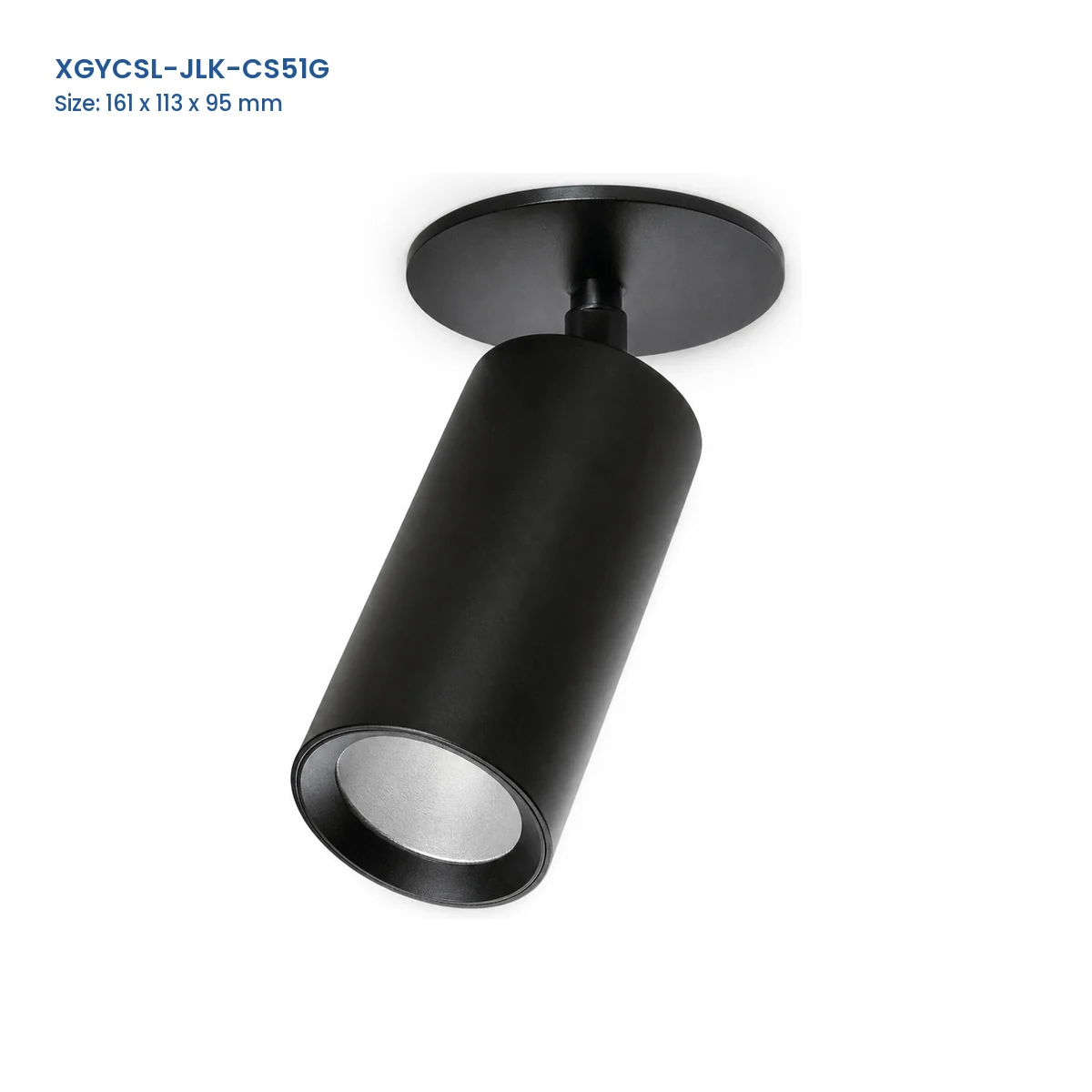

XGYCSL-JLK-CS51G compact spotlight housing with Model and Size labels

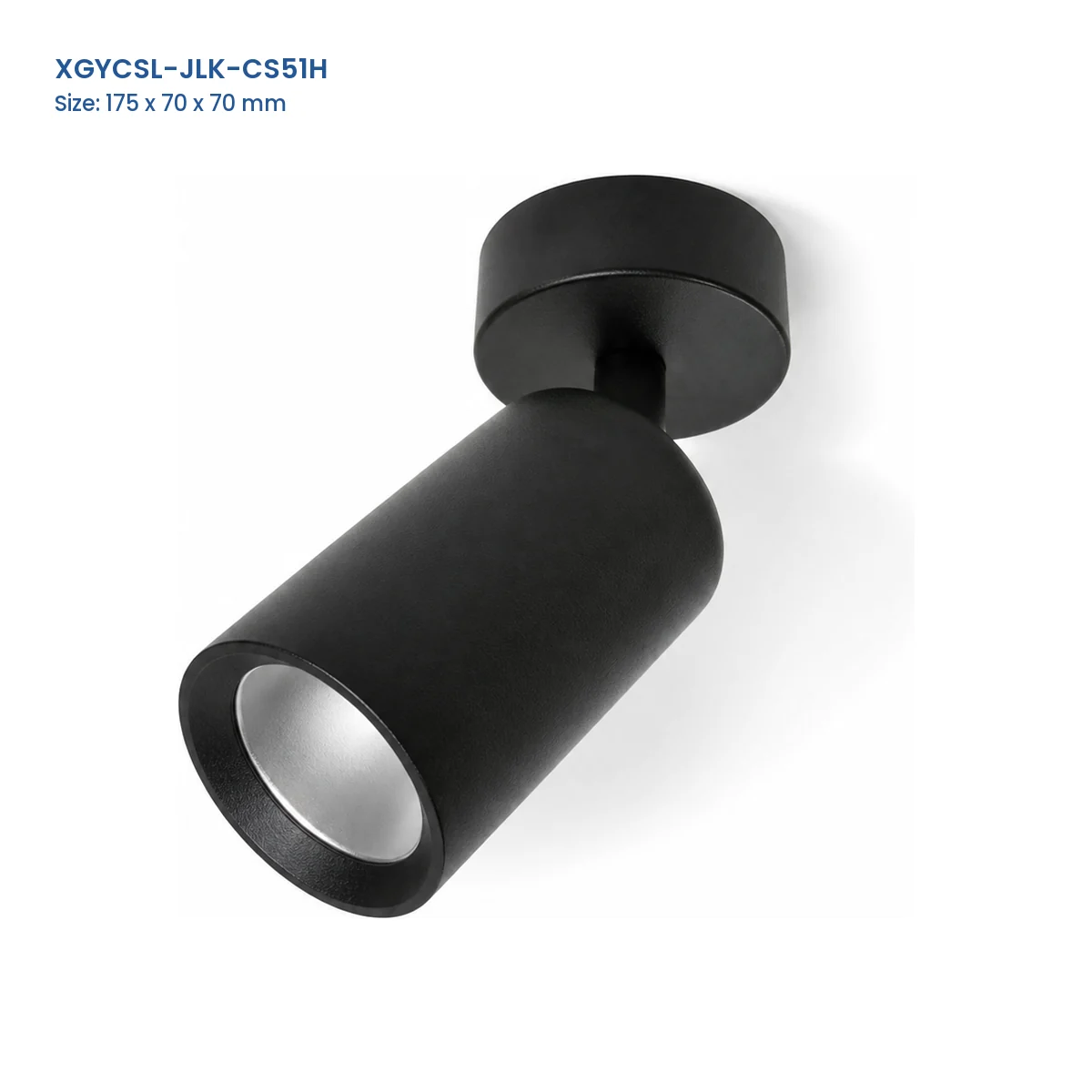

XGYCSL-JLK-CS51H compact spotlight housing with Model and Size labels

Technical Specifications

Model Specifications

Model	Visible Profile	Dimensions (Source Order, mm)	Body Material
XGYCSL-JLK-CS51F	Integrated angled connection	161 x 92 x 73	B/W Aluminium
XGYCSL-JLK-CS51G	Exposed short pivot	161 x 113 x 95	B/W Aluminium
XGYCSL-JLK-CS51H	Compact rounded connection	175 x 70 x 70	B/W Aluminium

Product Description

Product Details

Product Construction

The exterior assembly includes a ceiling-side casing, a lamp-facing shell and an intermediary connector. Internal source, electrical and mechanical interfaces are recorded in the approved production specification.

Selection & Installation Notes

Select the complete order reference from the project schedule, then check the approved drawing for the overall envelope, ceiling connection, surrounding clearance, cable entry and service access. Record the source interface, supply, driver and control requirements for the ordered reference rather than assigning them from the family name. Compare related formats in our GU10, MR16 and E27 housing range.

Recommended Application

Applications

Retail Display Areas: Places compact spotlight housings above merchandise walls, counters and feature zones.
Hospitality Reception Areas: Adds a concise overhead fixture profile above reception and service spaces.
Residential Feature Zones: Coordinates compact housings with dining, artwork and shelving layouts.
Gallery Display Runs: Organizes distinct spotlight positions along artworks and curated displays.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What defines this compact pivot-head spotlight housing family?

The defining form is a compact surface-mounted body with a distinct head-connection profile. Use the complete order reference for the exact configuration.

Does the family name confirm the GU10 or MR16 holder for every reference?

No. Confirm the lamp-holder interface for the exact ordered reference instead of assigning it from the family name.

Does pivot-head identify an adjustment range?

No. The name identifies the visible connection profile only. Confirm any movement function or range on the approved drawing and sample.

Can the spotlight heads be aimed?

An adjustment function or range is not established for the complete family. Confirm any required movement on the approved drawing and sample.

What should be checked at the installation point?

Check the available envelope, ceiling connection, cable entry, surrounding clearance and future service access against the approved drawing.

What should an OEM/ODM order record?

Record the complete order reference, housing drawing, lamp-holder interface, electrical package, finish, mounting interface, markings and packaging before production.
