GU10 LED Downlight Module Series
- Maintenance Flexibility: Renewal of the light source does not require changing the visible ceiling finish.
- Appearance Options: External metalwork is chosen separately to suit the ceiling design.
- Two Distribution Styles: Wide-area and concentrated light patterns cover general and accent layouts.
- Two White-Light Strategies: One version supports on-site choice while the other supplies one predetermined appearance.
| Product Format | 50 mm replaceable GU10-format LED downlight module |
|---|---|
| Assembly Boundary | Separate compatible recessed fixture ring required |
| Power / Optics | 6 W with 60° lens; 7 W with 38° lens |
| CCT / Control | Three-CCT dimmable and fixed 3000K options |
|---|---|
| Construction | White PA body; PC lens; back emission recessed |
| Ingress Boundary | Front IP44 / back IP20 at module orientation |
Technical Specifications
Model Specifications
| Model No. | Size DxH (mm) | Power | Lens | Efficacy | CCT | Configuration |
|---|---|---|---|---|---|---|

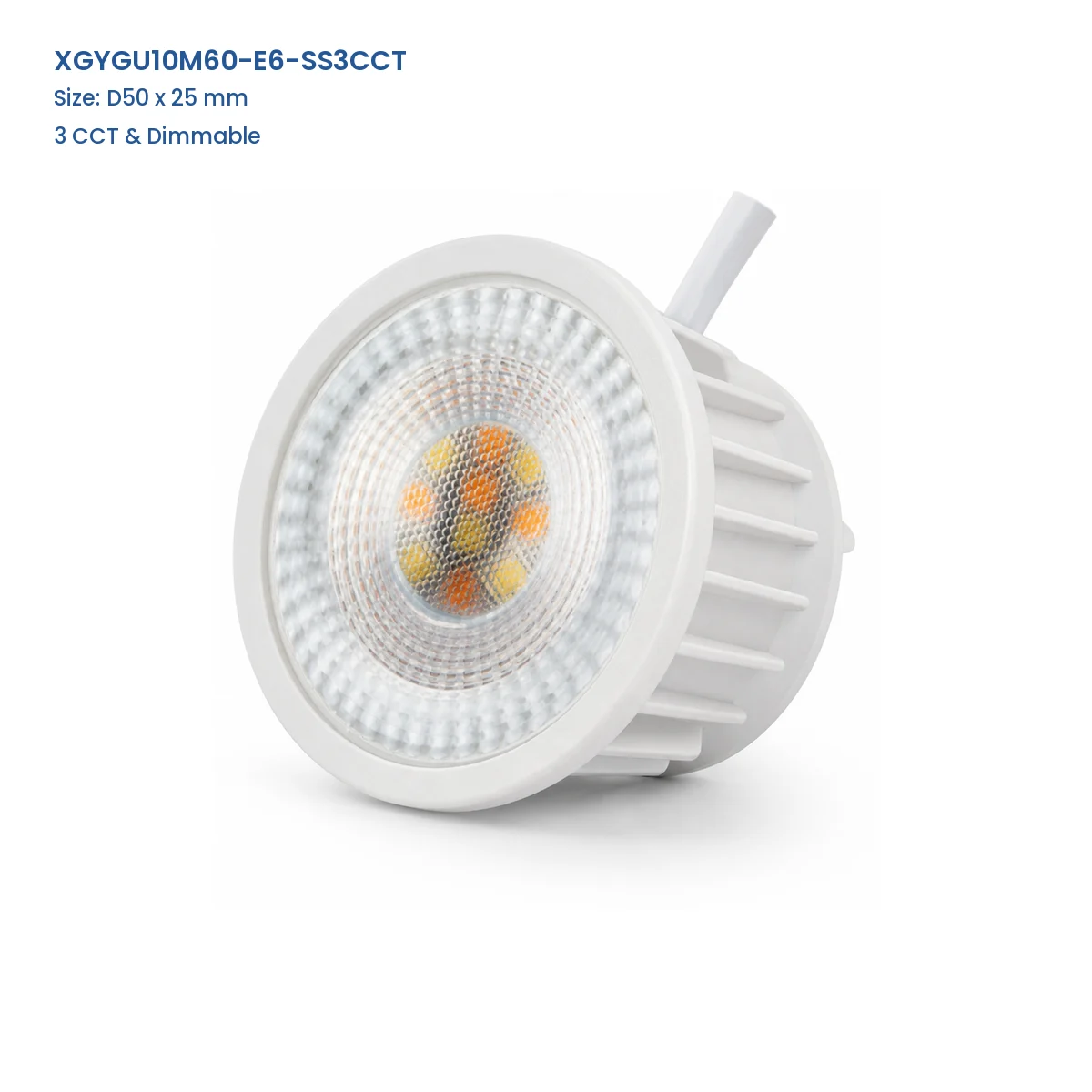

| XGYGU10M60-E6-SS3CCT | D50 x 25 | 6 W | 60° | 90 lm/W | 3000 / 4000 / 6500K | 3 CCT & Dimmable |

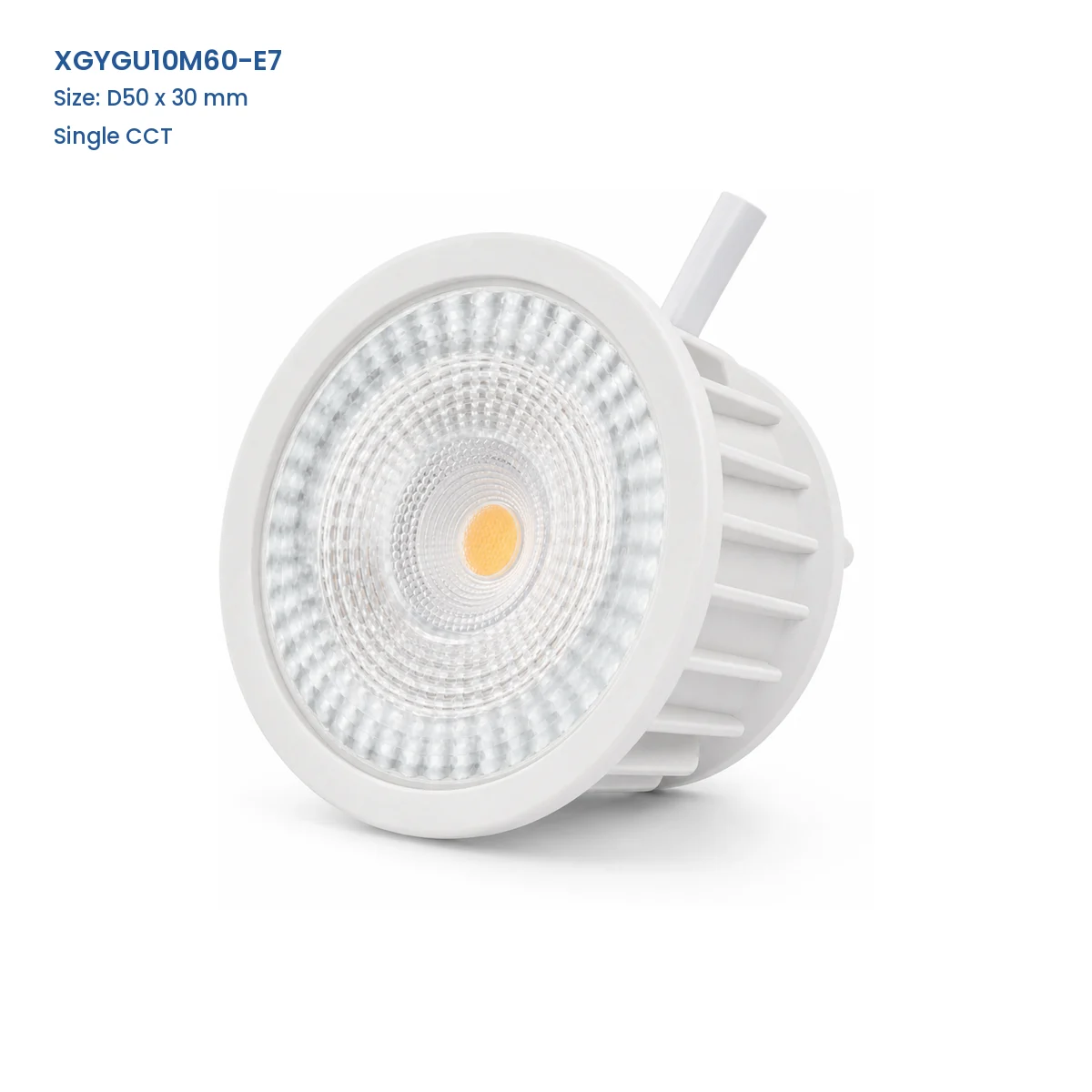

| XGYGU10M60-E7 | D50 x 30 | 7 W | 38° | 90 lm/W | 3000K | Single CCT |
Both references use a white PA body, PC lens and recessed back-emission construction. Confirm the fixture-ring fit and driver/control package on the complete approved assembly.
Product Description
Product Details
Product Construction
Both references use a white PA body with radial rear ribs, a circular PC lens, a rear lead and recessed back-emission orientation.
Selection & Installation Notes
Verify the 50 mm diameter, 25 or 30 mm body height, retaining method, rear clearance and removal access against the chosen fixture ring. Match the 6 W or 7 W electrical package to the ordered driver and approve the complete assembly before production. Compare compatible options in our GU10 modules and trim rings range.
Recommended Application
Applications

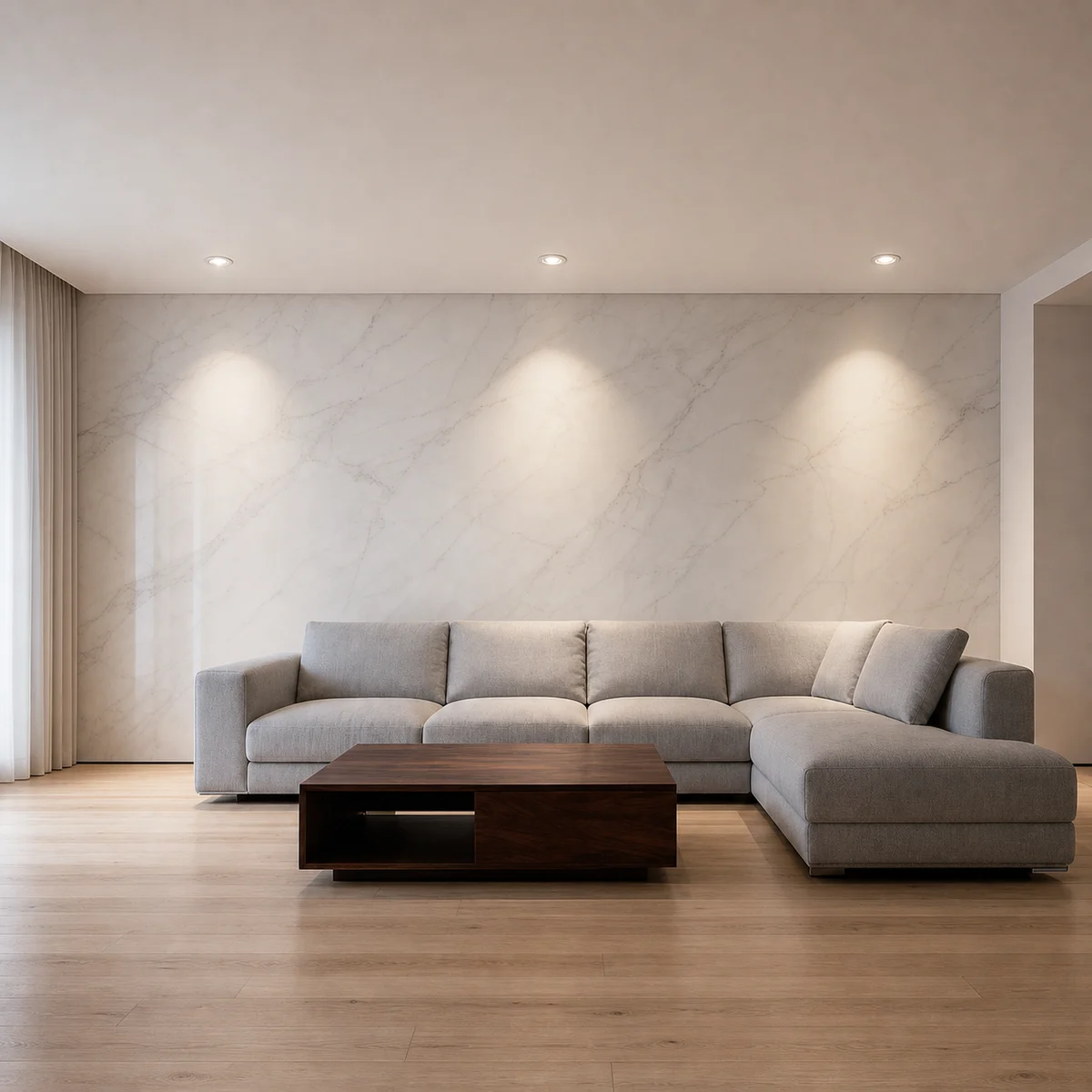

- Residential Recessed Lighting: Pair the selected module with a compatible recessed ring for living rooms, kitchens and circulation ceilings.
- Hospitality Guest Rooms: Use the 60° or 38° package to coordinate general or more concentrated recessed lighting positions.
- Retail Display Ceilings: Specify the required beam package and matching ring for replaceable recessed display-lighting points.
- Maintenance-Led Refits: Use the separate module-and-trim arrangement where the light source must remain independently replaceable.
