RGB Backlight Flush-Mount Ceiling Light

This ultra-slim flush-mount ceiling light combines a white front diffuser with a rear RGB halo. Five IP20 models cover 12-40 W and 230-540 mm for dry indoor rooms.

Edge-Lit White Diffuser: The optical layout provides a broad 160-degree white distribution from the slim round front.
Rear RGB Ambient Layer: A separate rear light path throws colored accent light across the ceiling behind the fixture.
No-Flicker Driver Design: The integrated driver is specified for stable white-light operation without visible flicker.
Connected Lighting Support: Wi-Fi and Tuya variants work with Amazon Alexa, Google Assistant and Smart Life.

Power & Efficacy	12 / 18 / 24 / 32 / 40 W; 100 lm/W
Size Range	Dia. 230-540 x H 30-35 mm
CCT & Beam	3000-6500 K; 160 degrees

Electrical & CRI	185-265 V; Ra80; PF 0.5
Construction & Rating	Full PP; IP20; IK08
Smart Control	Wi-Fi / Tuya; Alexa / Google Assistant / Smart Life

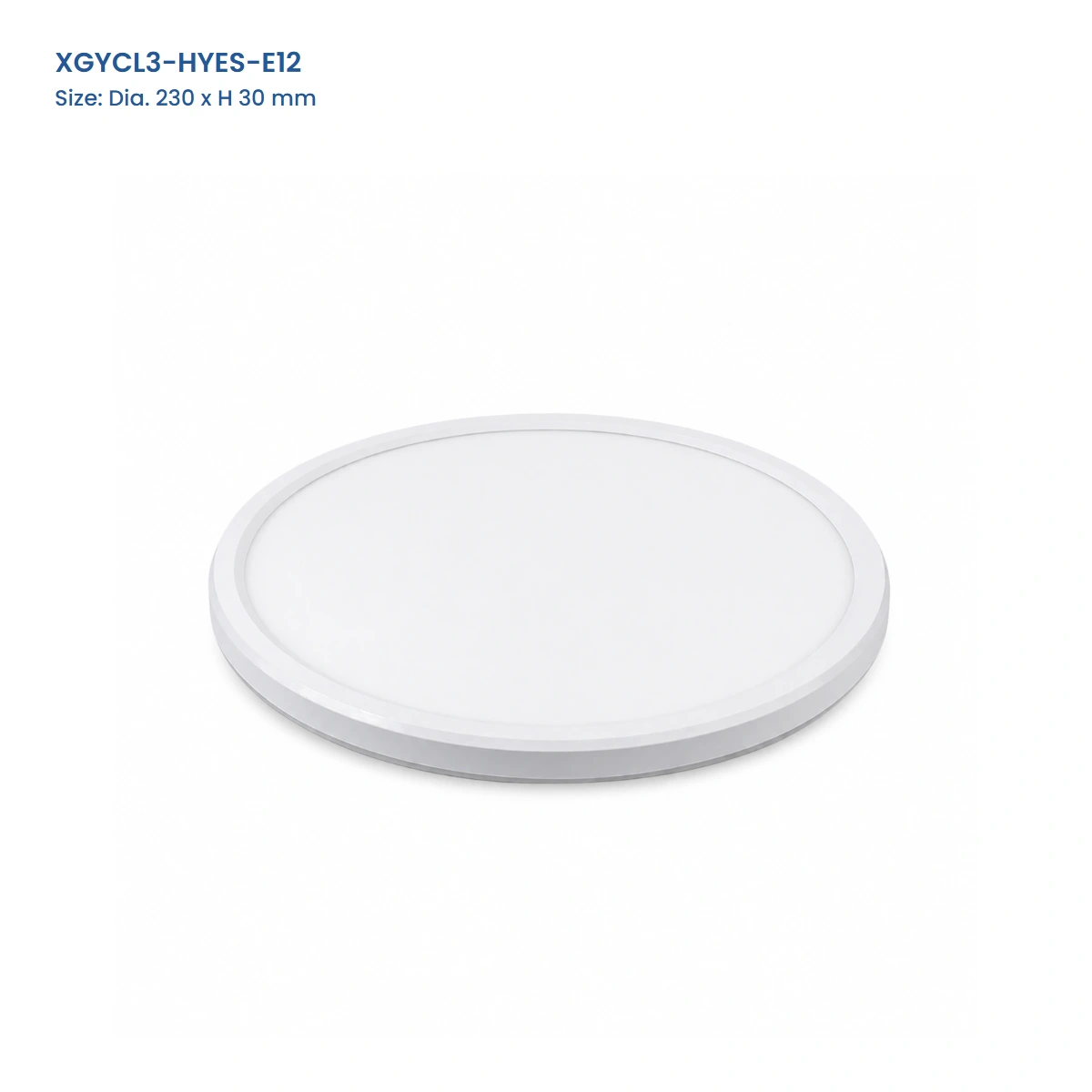

XGYCL3-HYES-E12 RGB backlight flush-mount ceiling light, 230 mm diameter by 30 mm high

White HYES flush-mount ceiling light installed in a bedroom with front white light and a subtle blue rear RGB ceiling halo

XGYCL3-HYES-E18 RGB backlight flush-mount ceiling light, 300 mm diameter by 30 mm high

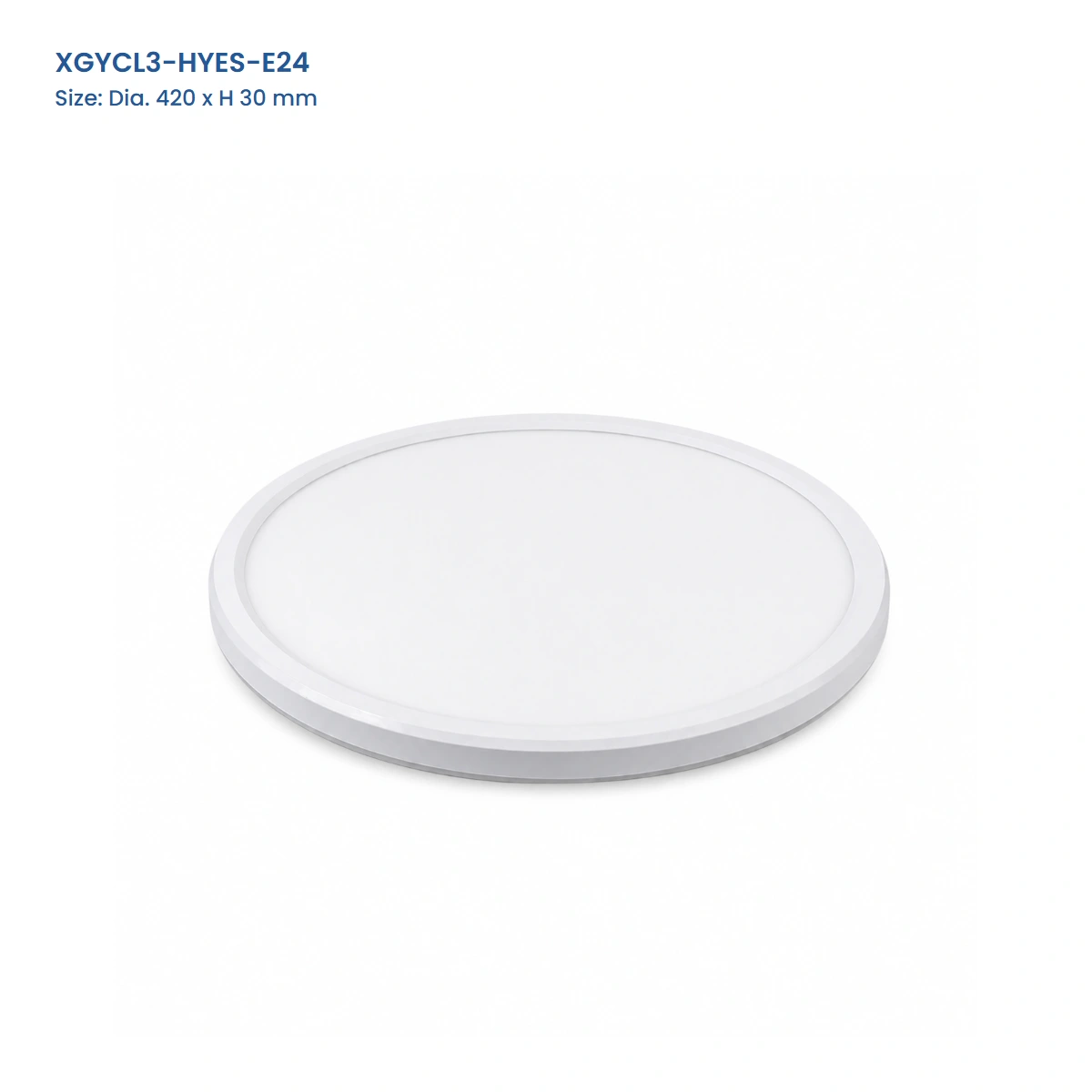

XGYCL3-HYES-E24 RGB backlight flush-mount ceiling light, 420 mm diameter by 30 mm high

XGYCL3-HYES-E32 RGB backlight flush-mount ceiling light, 540 mm diameter by 35 mm high

XGYCL3-HYES-E40 RGB backlight flush-mount ceiling light, 540 mm diameter by 35 mm high

Technical Specifications

Model Specifications

Model No.	Size D x H (mm)	Power	Efficacy	CCT	Input / CRI / Beam	Material	IP
XGYCL3-HYES-E12	230 x 30	12 W	100 lm/W	3000-6500 K	185-265 V; Ra80; 160 degrees	Full PP	IP20
XGYCL3-HYES-E18	300 x 30	18 W	100 lm/W	3000-6500 K	185-265 V; Ra80; 160 degrees	Full PP	IP20
XGYCL3-HYES-E24	420 x 30	24 W	100 lm/W	3000-6500 K	185-265 V; Ra80; 160 degrees	Full PP	IP20
XGYCL3-HYES-E32	540 x 35	32 W	100 lm/W	3000-6500 K	185-265 V; Ra80; 160 degrees	Full PP	IP20
XGYCL3-HYES-E40	540 x 35	40 W	100 lm/W	3000-6500 K	185-265 V; Ra80; 160 degrees	Full PP	IP20

Series features: no-flicker operation, optional dimming, 25,000-hour rated life, PF 0.5, IK08 and dry indoor use. Wi-Fi/Tuya configurations support Amazon Alexa, Google Assistant and Smart Life. XGYCL3-HYES-E32 and E40 share the same 540 x 35 mm housing.

Product Description

Product Details

Product Construction

A full-PP shell combines the LED boards, mounting plate and diffuser in one surface-mounted assembly. Fastening points are located on the rear face so the room-side surface remains uninterrupted.

Selection & Installation Notes

Select the model by diameter, overall height and rated power. XGYCL3-HYES-E32 and XGYCL3-HYES-E40 share the same 540 x 35 mm housing but use different 32 W and 40 W electrical configurations. Use the IP20 product on a dry indoor ceiling with a compatible 185-265 V supply, and isolate power before installation.

Recommended Application

Applications

Living Room Lighting: Combine white general lighting with a colored ceiling halo for everyday use and ambient settings.
Bedroom Lighting: Use the low-profile fixture for daily white light and a softer RGB backdrop around the ceiling.
Home Theater Rooms: Add indirect color behind the fixture while retaining a separate white-light source for normal room use.
Kids Bedroom Lighting: Create adjustable color ambience around the ceiling with full white illumination available for play and study.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What does RGB backlight mean on this ceiling light?

The front diffuser provides white room lighting, while the separate rear RGB channel projects colored ambience onto the ceiling behind the fixture.

Can the front white light and RGB backlight operate together?

Yes. The product is designed with front white light and rear RGB ambience in the same fixture. Available operating modes follow the selected control package.

What is the difference between XGYCL3-HYES-E32 and E40?

Both use the same 540 x 35 mm housing. E32 is rated at 32 W and E40 at 40 W, so the exact model must be stated with the order.

Which smart-control platforms are supported?

The HYES series supports Wi-Fi and Tuya control, Amazon Alexa, Google Assistant and Smart Life integration.

Is every HYES model dimmable?

No. Dimming is optional, so select the dimmable configuration and matching control package when required.

Can this IP20 ceiling light be used outdoors or in wet areas?

No. The standard HYES models are IP20 products for dry indoor ceilings, not outdoor or wet-area installations.
