EU ErP Class A LED Filament Bulbs

EU ErP Class A LED filament bulbs form a general-lighting product family for compatible residential, workplace, retail and hospitality fixtures. Select the bulb form and ordered configuration to suit the intended fitting.

LED Filament Source: The family uses a filament-style LED light source.
Fixture-Led Form Selection: Bulb form selection follows fixture openings and shade proportions.
General Lighting Role: The range serves everyday room-lighting applications.

Shapes	C35 / C35T / G45 / A60 / ST64 / G80 / G95 / G125
Rated Power	2.2–7.2 W
Total Lumen	470–1521 lm

CCT	2700–6500 K
CRI	Ra80+
Size Range	Dia. 35–125 mm

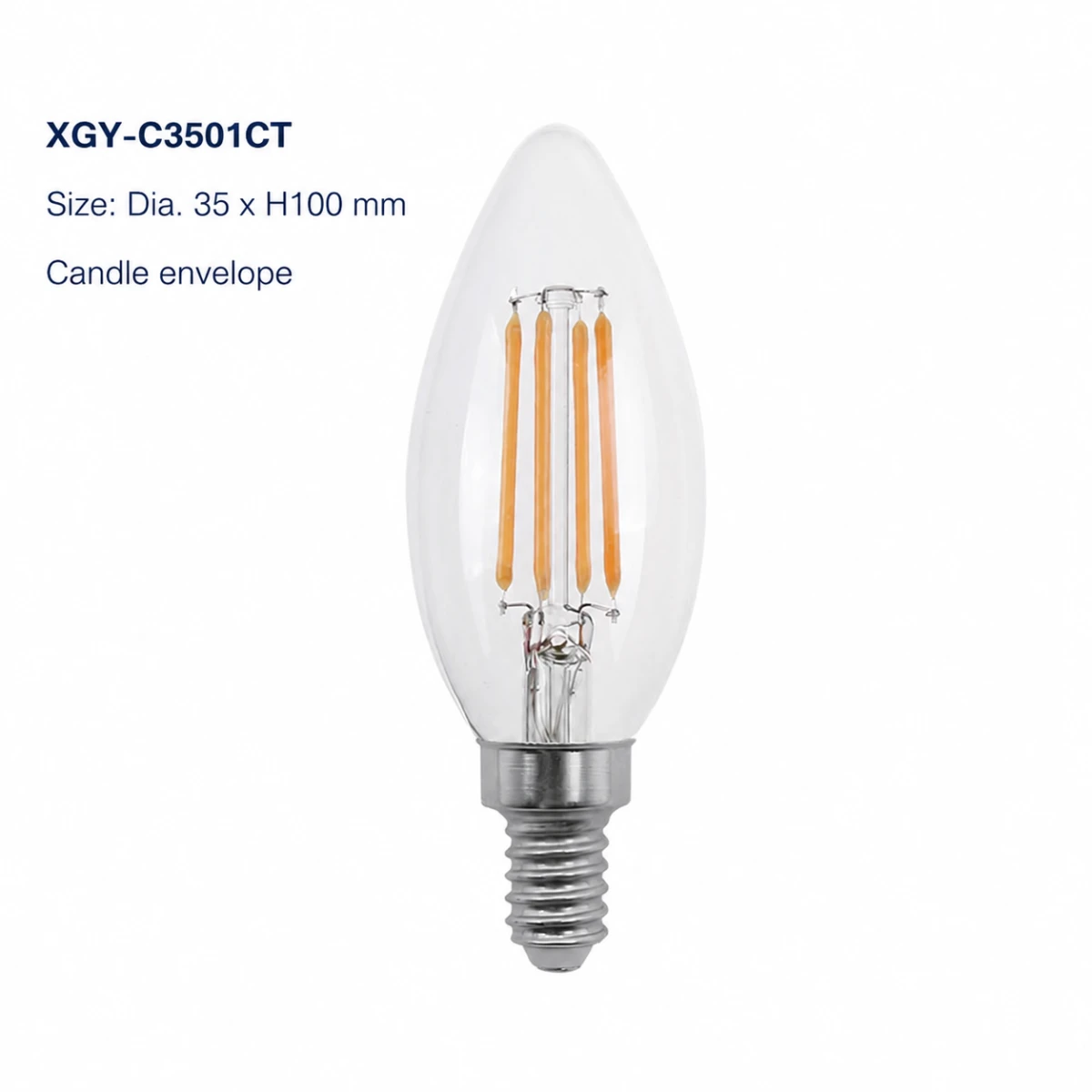

XGY-C3501CT-E2.2/3.8 clear LED filament bulb, size Ø35 × 100 mm

Clear EU ErP Class A LED filament bulb in an indoor bedside table lamp

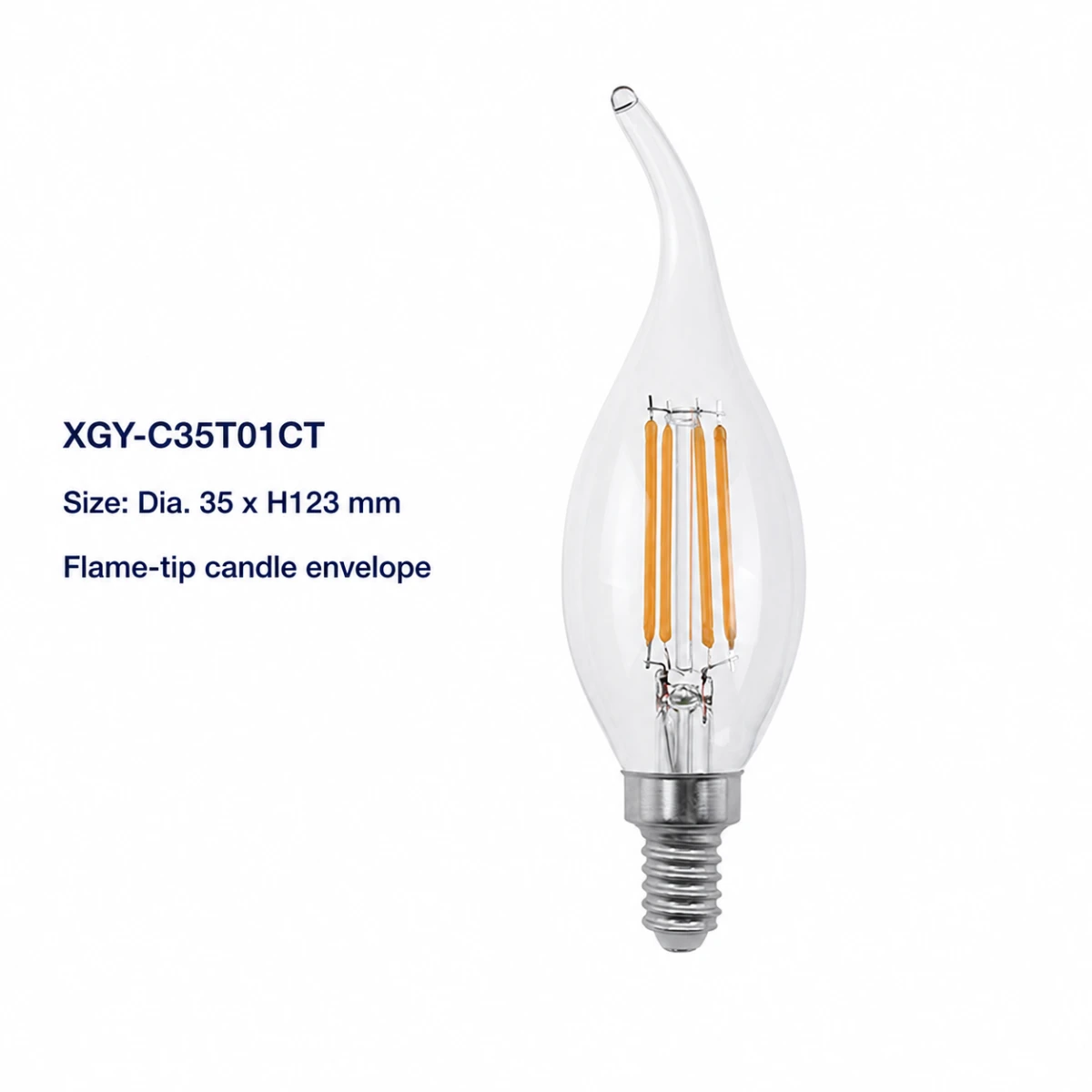

XGY-C35T01CT-E2.2/3.8 clear LED filament bulb, size Ø35 × 123 mm

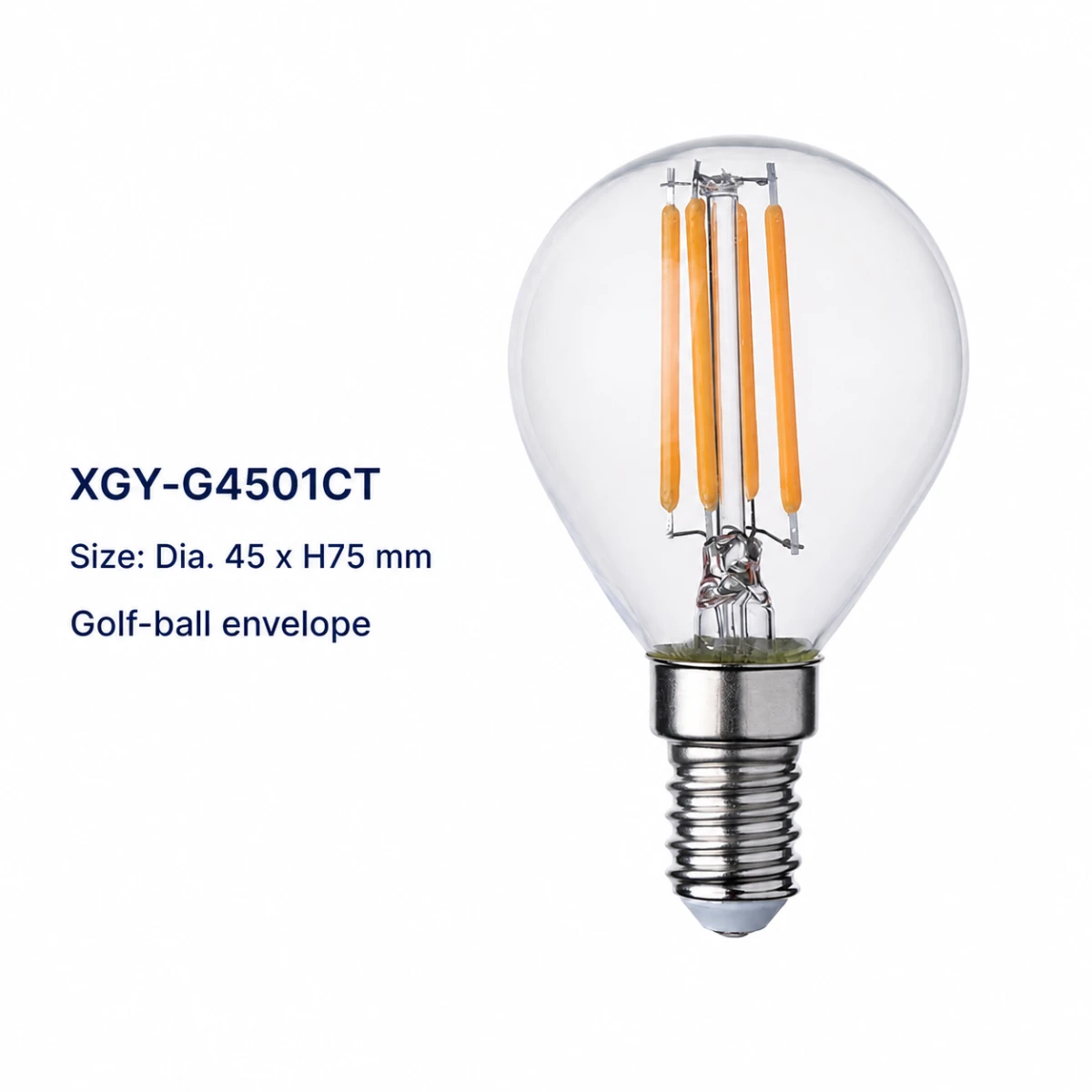

XGY-G4501CT-E2.2/3.8 clear LED filament bulb, size Ø45 × 75 mm

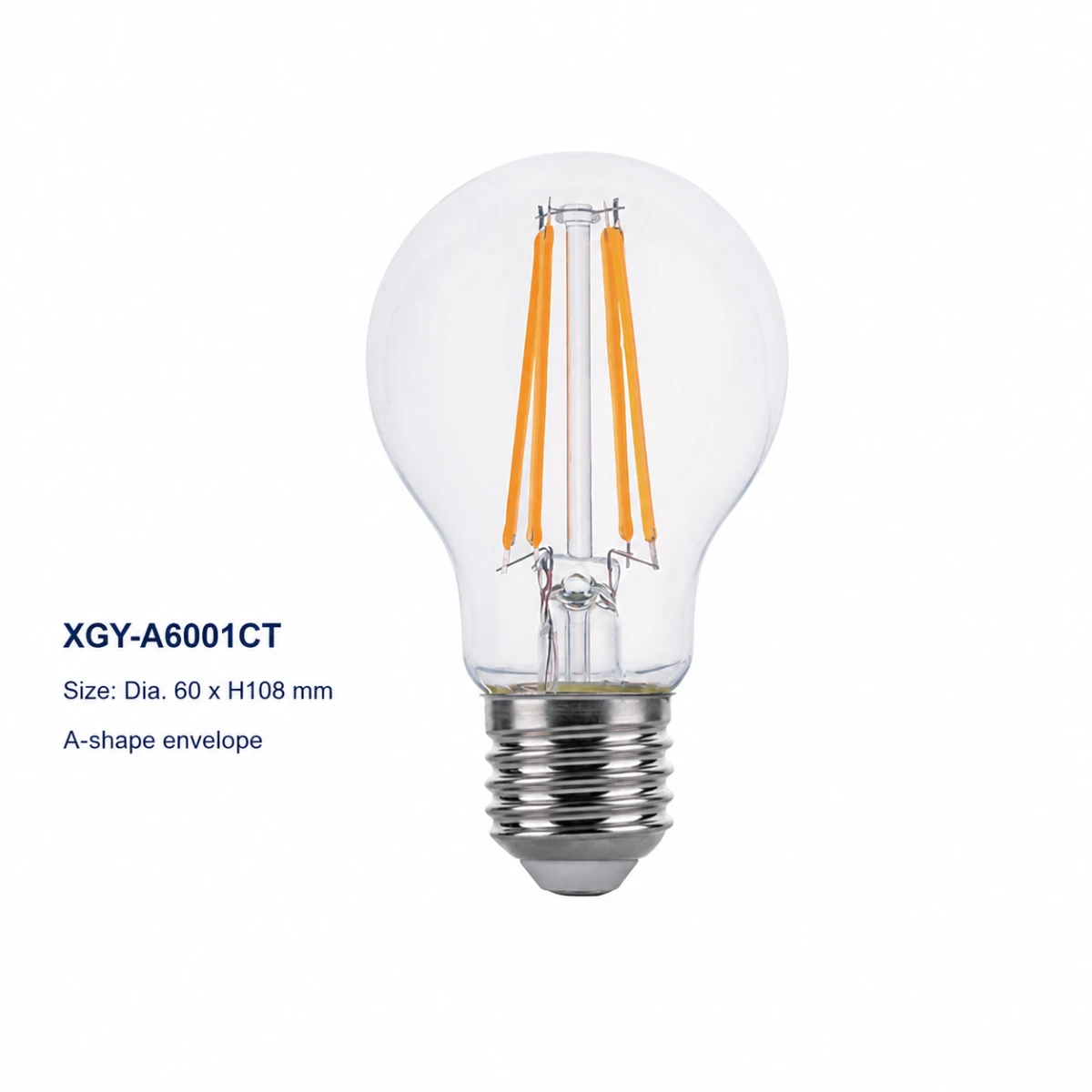

XGY-A6001CT-E3.8/5/7.2 clear LED filament bulb, size Ø60 × 108 mm

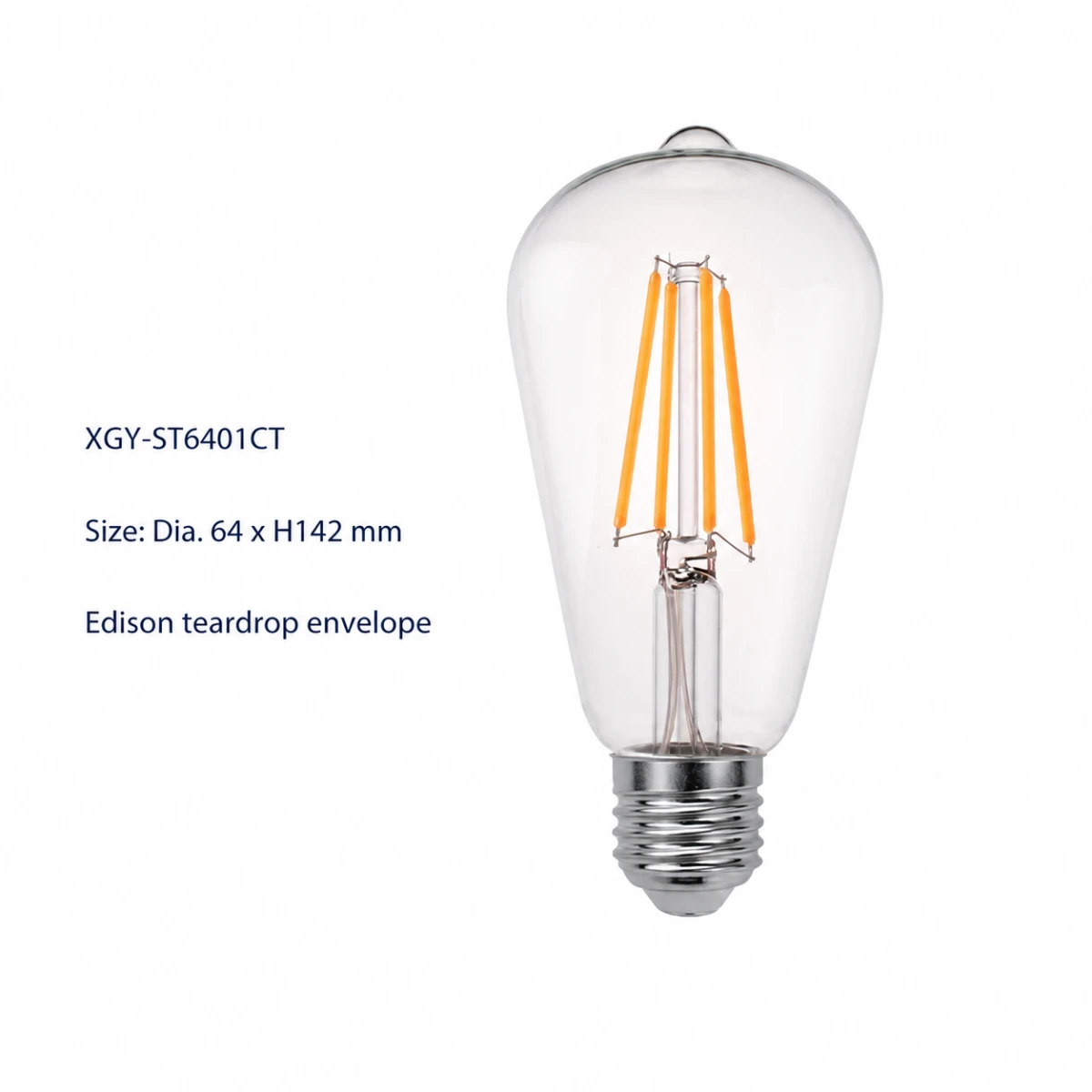

XGY-ST6401CT-E3.8/5/7.2 clear LED filament bulb, size Ø64 × 142 mm

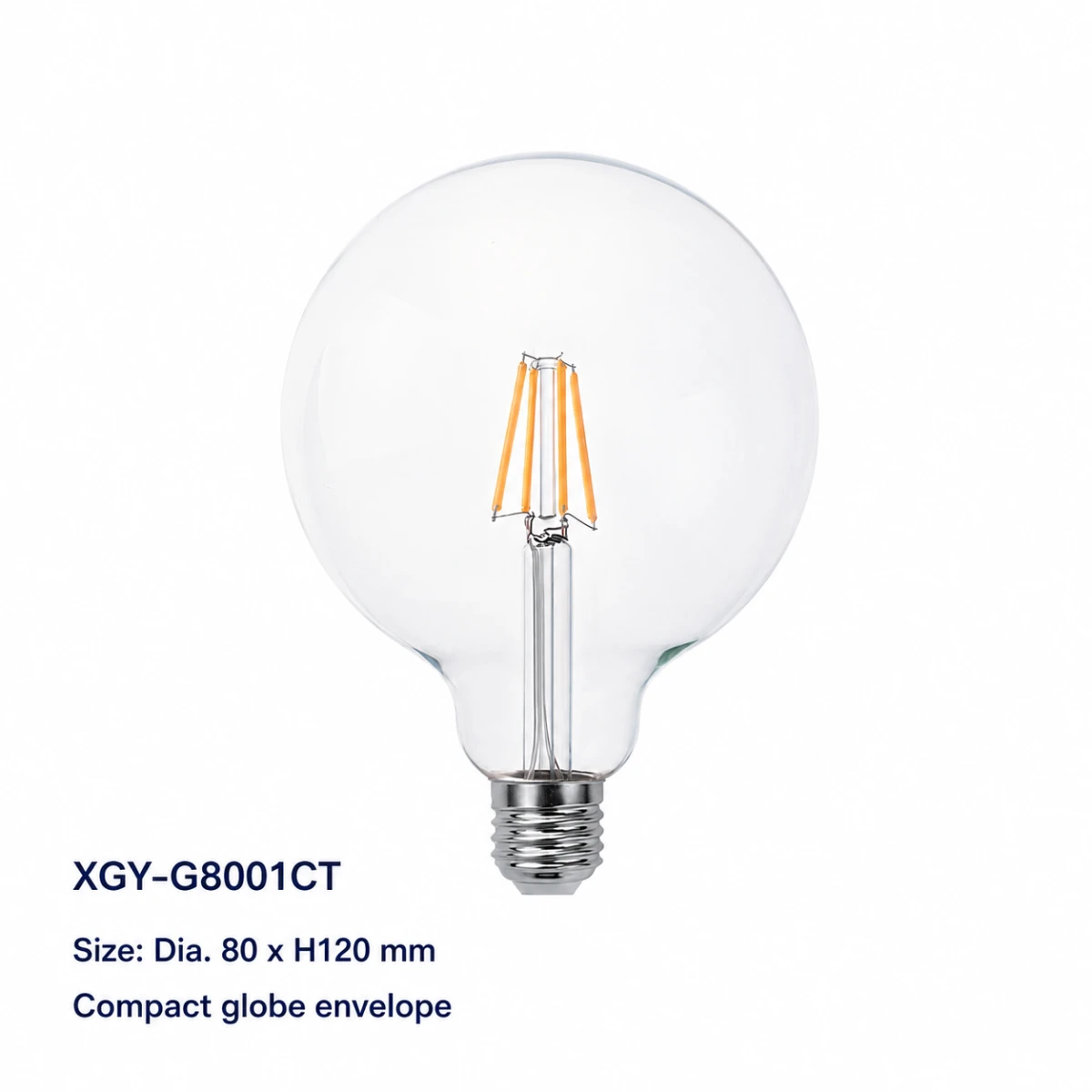

XGY-G8001CT-E3.8/5/7.2 clear LED filament bulb, size Ø80 × 120 mm

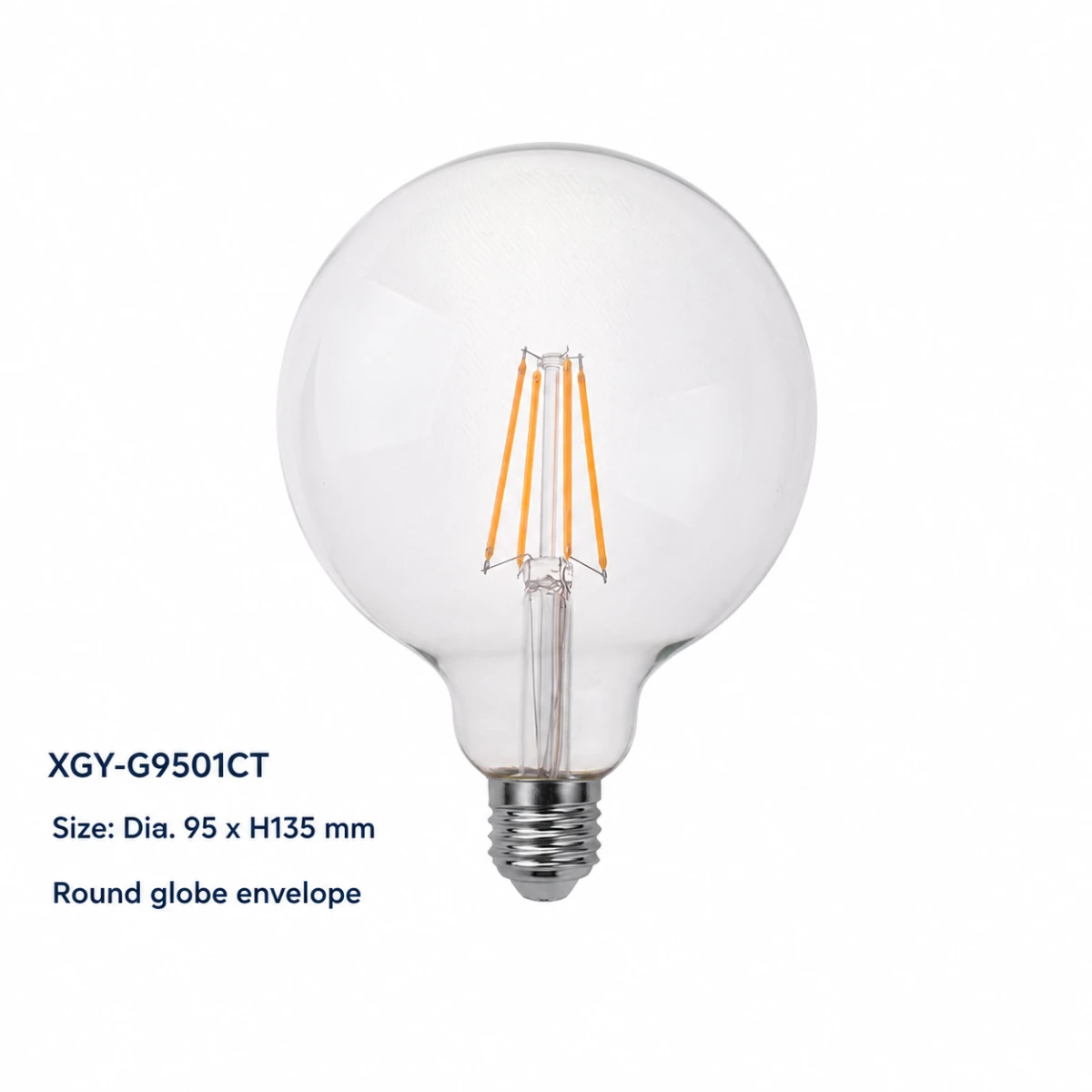

XGY-G9501CT-E3.8/5/7.2 clear LED filament bulb, size Ø95 × 135 mm

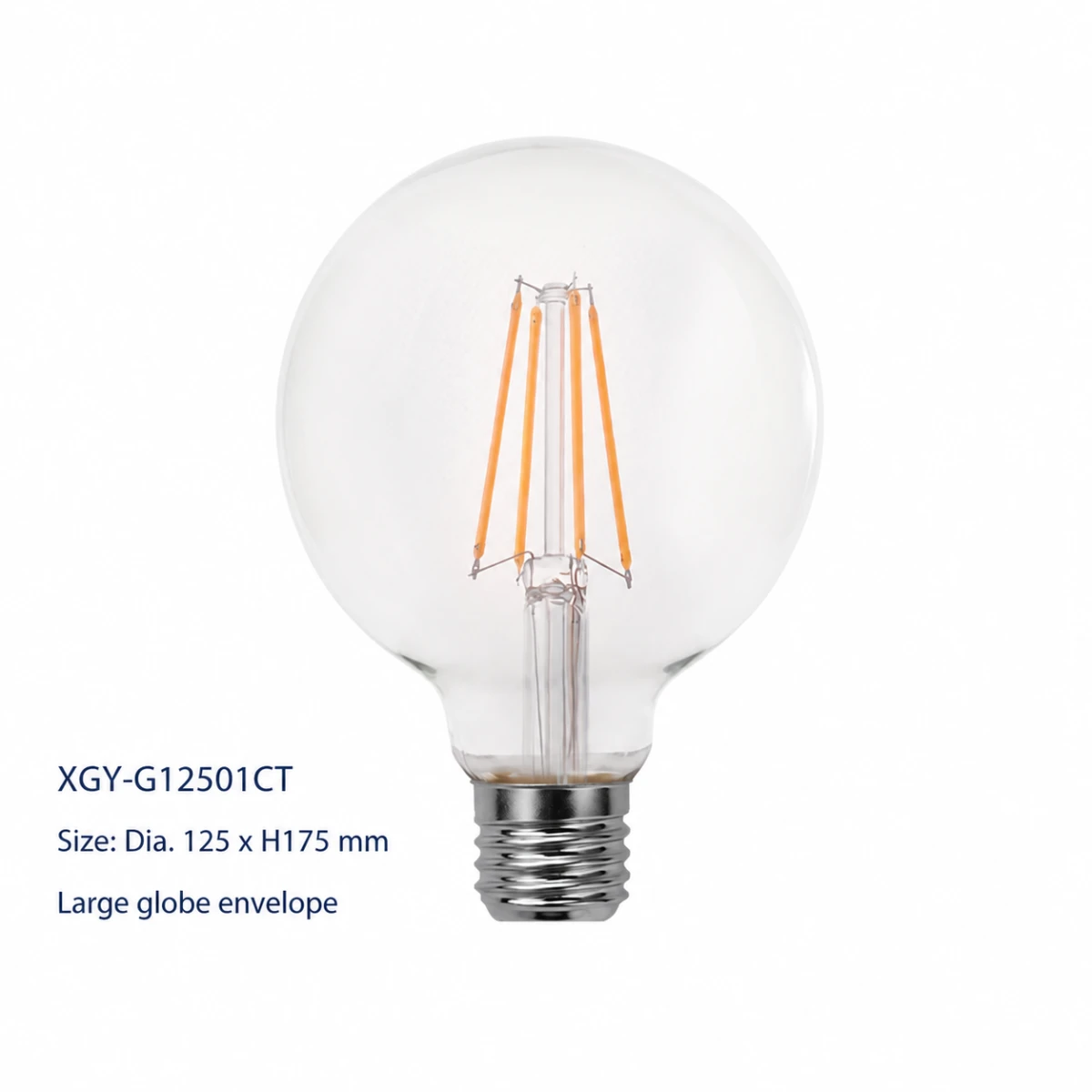

XGY-G12501CT-E3.8/5/7.2 clear LED filament bulb, size Ø125 × 175 mm

Technical Specifications

Model Specifications

Model / Power	Shape	Dimensions	Rated Power	Total Lumen	CCT
XGY-C3501CT-E2.2/3.8 (2.2 W)	C35	Ø35 × 100 mm	2.2 W	470 lm	2700–6500 K
XGY-C3501CT-E2.2/3.8 (3.8 W)	C35	Ø35 × 100 mm	3.8 W	806 lm	2700–6500 K
XGY-C35T01CT-E2.2/3.8 (2.2 W)	C35T	Ø35 × 123 mm	2.2 W	470 lm	2700–6500 K
XGY-C35T01CT-E2.2/3.8 (3.8 W)	C35T	Ø35 × 123 mm	3.8 W	806 lm	2700–6500 K
XGY-G4501CT-E2.2/3.8 (2.2 W)	G45	Ø45 × 75 mm	2.2 W	470 lm	2700–6500 K
XGY-G4501CT-E2.2/3.8 (3.8 W)	G45	Ø45 × 75 mm	3.8 W	806 lm	2700–6500 K
XGY-A6001CT-E3.8/5/7.2 (3.8 W)	A60	Ø60 × 108 mm	3.8 W	806 lm	2700–6500 K
XGY-A6001CT-E3.8/5/7.2 (5 W)	A60	Ø60 × 108 mm	5 W	1055 lm	2700–6500 K
XGY-A6001CT-E3.8/5/7.2 (7.2 W)	A60	Ø60 × 108 mm	7.2 W	1521 lm	2700–6500 K
XGY-ST6401CT-E3.8/5/7.2 (3.8 W)	ST64	Ø64 × 142 mm	3.8 W	806 lm	2700–6500 K
XGY-ST6401CT-E3.8/5/7.2 (5 W)	ST64	Ø64 × 142 mm	5 W	1055 lm	2700–6500 K
XGY-ST6401CT-E3.8/5/7.2 (7.2 W)	ST64	Ø64 × 142 mm	7.2 W	1521 lm	2700–6500 K
XGY-G8001CT-E3.8/5/7.2 (3.8 W)	G80	Ø80 × 120 mm	3.8 W	806 lm	2700–6500 K
XGY-G8001CT-E3.8/5/7.2 (5 W)	G80	Ø80 × 120 mm	5 W	1055 lm	2700–6500 K
XGY-G8001CT-E3.8/5/7.2 (7.2 W)	G80	Ø80 × 120 mm	7.2 W	1521 lm	2700–6500 K
XGY-G9501CT-E3.8/5/7.2 (3.8 W)	G95	Ø95 × 135 mm	3.8 W	806 lm	2700–6500 K
XGY-G9501CT-E3.8/5/7.2 (5 W)	G95	Ø95 × 135 mm	5 W	1055 lm	2700–6500 K
XGY-G9501CT-E3.8/5/7.2 (7.2 W)	G95	Ø95 × 135 mm	7.2 W	1521 lm	2700–6500 K
XGY-G12501CT-E3.8/5/7.2 (3.8 W)	G125	Ø125 × 175 mm	3.8 W	806 lm	2700–6500 K
XGY-G12501CT-E3.8/5/7.2 (5 W)	G125	Ø125 × 175 mm	5 W	1055 lm	2700–6500 K
XGY-G12501CT-E3.8/5/7.2 (7.2 W)	G125	Ø125 × 175 mm	7.2 W	1521 lm	2700–6500 K

Product Description

Product Details

Product Construction

The finished unit combines its light-producing assembly, outer envelope and electrical interface. Included components follow the approved order record.

Selection & Installation Notes

Confirm socket type, available clearance, ventilation, electrical supply and control requirements against the approved installation record. See our related lighting styles for adjacent decorative formats.

Recommended Application

Applications

Home Living Areas: Use selected bulbs in compatible general-lighting fixtures.
Office Workspaces: Coordinate bulb form and light appearance with workplace fixtures.
Hospitality Guest Rooms: Match bulb proportions to table lamps, pendants and wall fixtures.
Retail Interiors: Use filament bulbs in compatible ambient and decorative fixtures.

Keep
in touch

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

What type of lighting is this bulb family intended for?

It is an LED filament bulb family for general-lighting applications in compatible fixtures.

How should the bulb form be selected?

Match it to the fixture opening, internal height, shade clearance and intended visual scale.

Can these bulbs be used in an existing fixture?

Only when the socket, physical clearance, electrical supply and fixture conditions match the selected bulb configuration.

Is dimming included with every configuration?

Treat dimming as configuration-specific and approve the selected bulb and dimmer combination before installation.

Can these bulbs be used in outdoor fixtures?

Use them outdoors only within a fixture and installation whose environmental protection is suitable for the site.

What should be approved before production?

Approve the bulb form, fixture interface, lighting and electrical configuration, labels and packaging on the project record.
