Microwave Sensor Integrated Solar Flood Light

This integrated solar flood light combines a hinged solar panel, lamp, battery and microwave sensing in one compact assembly. Confirm the exact sensing, control and electrical configuration for the ordered model and installation.
  • Integrated Solar Assembly: The collection panel, lamp housing and internal energy storage share one compact unit.
  • Hinged Two-Part Form: The upper collection surface and lower light head can be positioned for the installation.
  • Microwave Sensing: The concealed sensor supports motion-responsive control without a visible PIR dome.
  • No Separate Panel Cable: The integrated construction keeps the energy source and lamp together at the mounting point.
Dimensions124.4 x 42.3 x 90.7 mm
Light Output800 / 400 / 150 lm
Solar Panel5 V / 1.7 W monocrystalline silicon
Battery18650 1800 mAh
CCT3000-6500 K
ProtectionIP65
Request a Quote

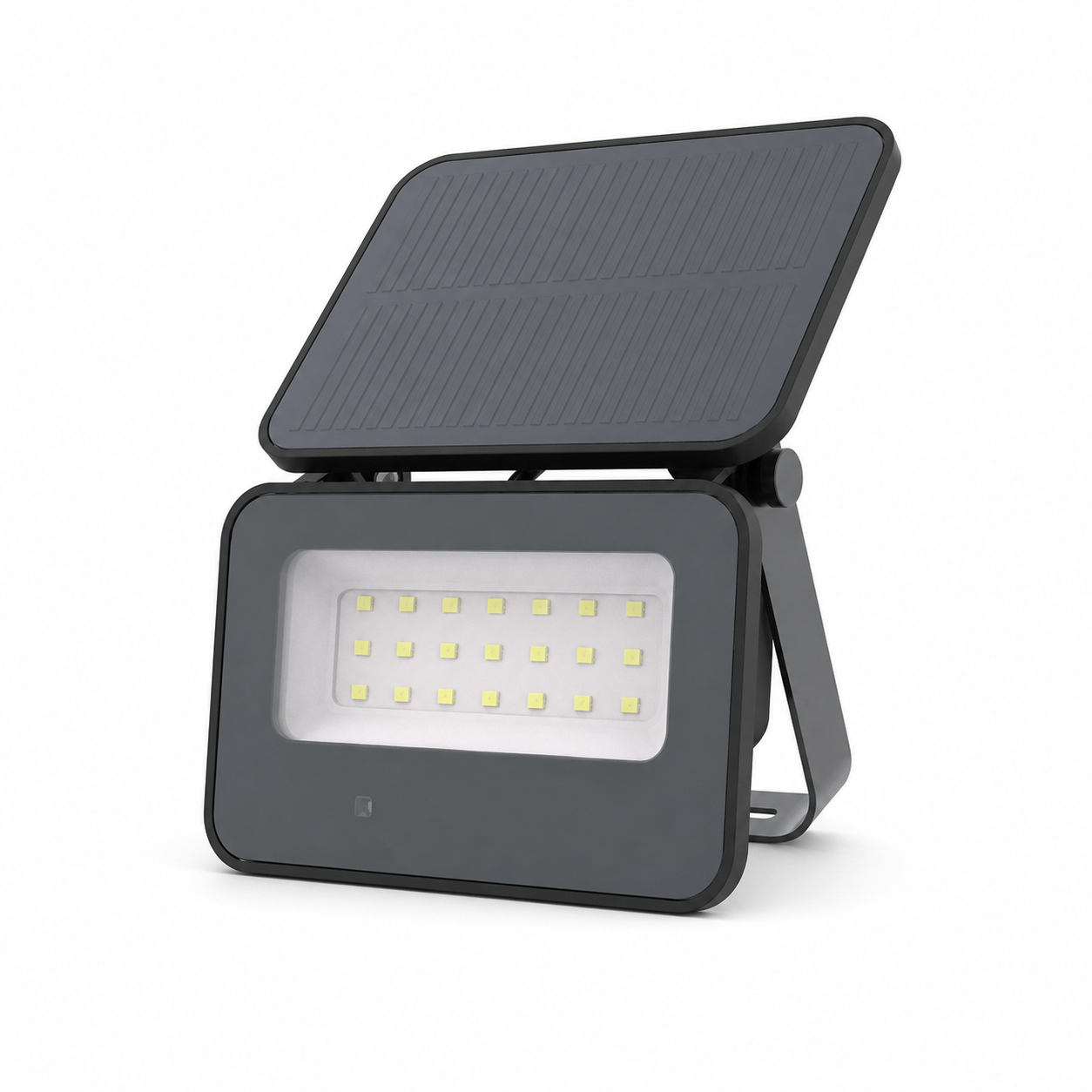

XGYFL-LC-XRSL03 integrated solar flood light with hinged panel

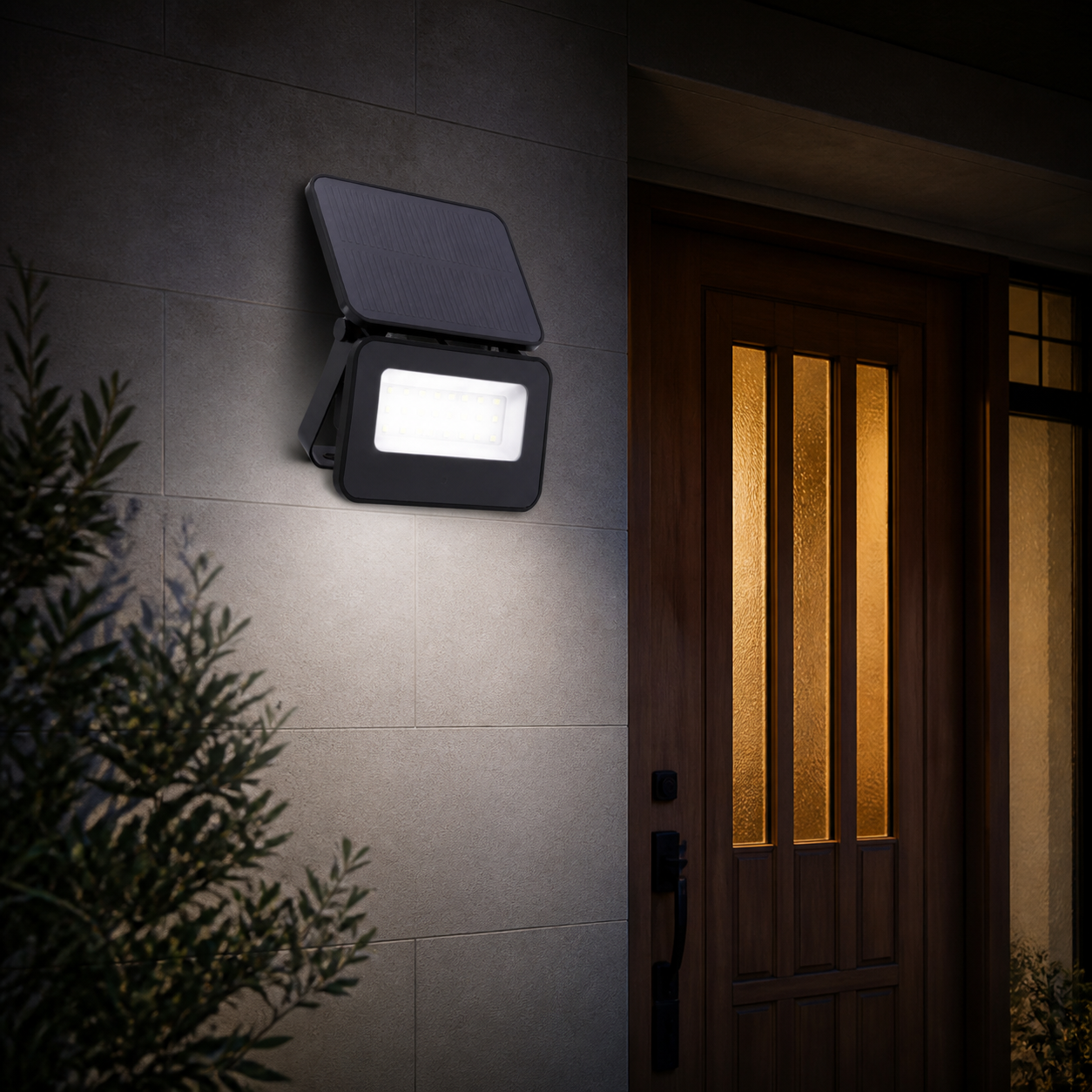

XGYFL-LC-XRSL03 solar flood light beside a residential entrance

Technical Specifications

Model Specifications

Model No.DimensionsSolar PanelSensor / ModeLight OutputBatteryMaterialsProtection
XGYFL-LC-XRSL03124.4 x 42.3 x 90.7 mm5 V / 1.7 W monocrystalline siliconMicrowave; DIM 100% / 50% / 20%800 / 400 / 150 lm18650 1800 mAhABS and glassIP65

Product Description

Product Details

Product Construction

The collector is joined by an adjustable pivot to the luminaire body. Energy storage and detection electronics sit inside the self-contained enclosure.

Selection & Installation Notes

Choose a stable wall position with useful daylight on the collector face and direct the head toward the local task. Avoid persistent shade, then verify the activation sequence on site before final fixing. Compare related solar flood lights.

Recommended Application

Applications

  • Residential Entrances: Place the integrated unit where it receives daylight and serves the immediate doorway area.
  • Side Passages: Add motion-responsive local light along exterior routes beside buildings.
  • Garden Utility Areas: Mount a self-contained fitting near sheds, bins or outdoor service points.
  • Detached Outbuildings: Provide local entrance light where a separate solar-panel cable is undesirable.
Keep
in touch
  • No.5 Fenghuang Road Qianjiang Industrial Area Dingqiao Town Haining Zhejiang 314413 China
  • +86-18358315743
  • R.KOO@NEW-LIGHTS.COM

Tell Us Your Market and Product Needs

Share your market, product interest, application, or estimated quantity. Our team can help you move faster from product selection to quotation and sample discussion.

By submitting this form, you ask New Lights Lighting Technology Co., Ltd. to use the information you provide to respond to your inquiry and manage related business communications. See our Privacy Policy. Optional marketing emails require the separate choice below.

Facebook Youtube Linkedin Instagram

Frequently Asked Questions?

Find clear answers to common questions about product specifications, model selection, applications, and quotation requirements. For project-specific needs, send us your target market, required quantity, and key specifications.

Does this integrated solar flood light require mains wiring?

The self-contained design does not require a separate mains cable at the mounting point. Confirm the supplied charging and battery configuration for the ordered model.

How should the mounting position be selected?

Choose a stable location with useful daylight on the collection surface and a suitable aim toward the local task. Avoid persistent shade and physical obstructions.

What sensing distance and detection area are provided?

No universal sensing distance or detection area is stated in this copy. Test the approved sensor configuration at the intended height, angle and position.

How long will charging and night operation take?

No fixed charging time or runtime is promised here. Available daylight, season, temperature, control behavior and battery condition affect actual operation.

What outdoor protection and coverage does the light provide?

Confirm the environmental rating for the exact ordered configuration. No mounting-area coverage is guaranteed; aim, installation height and the local task determine the result.

What should be confirmed for an OEM/ODM order?

Confirm the sensing response, control sequence, battery and charging configuration, light appearance, housing finish, marking and packaging against the approved sample.
