Dimmable T8 LED Tube with Switching or Dimmer Control
- Three Levels without a Dimmer: The switching version cycles through 20%, 50% and 100% output using the specified switch sequence.
- Continuous Output Adjustment: The dimmer-control version provides 0-100% adjustment when paired with a compatible dimmer system.
- Broad 320-Degree Distribution: The cylindrical diffuser spreads light around most of the tube instead of concentrating it into a narrow forward strip.
- High-CRI Options: Ra80 is available alongside Ra90 and Ra97 choices for projects that need stronger color distinction.
| Size Range | Dia. 26 x L 590 / 1199 / 1499 mm |
|---|---|
| Power & Replacement | 9 / 18 / 22 W; 18 / 36 / 58 W equivalent |
| Control Options | 20% / 50% / 100% switching or 0-100% dimmer control |
| Input & PF | 180-265 V standard / 85-265 V universal; PF 0.5 |
|---|---|
| Efficacy & CCT | 80-160 lm/W customizable; 3000-8000 K |
| Light & Base | No flicker; Ra80 with Ra90/Ra97 options; 320 degrees; G13; 25,000 hours |
Technical Specifications
Model Specifications
| Model No. | Size D x L (mm) | Power | Replacement | Efficacy | CCT | Control Range |
|---|---|---|---|---|---|---|
| XGYT8B102DIM-E9 (SDIM) | 26 x 590 | 9 W | 18 W | 80-160 lm/W | 3000-8000 K | 0-100% / 20-50-100% |
| XGYT8B104DIM-E18 (SDIM) | 26 x 1199 | 18 W | 36 W | 80-160 lm/W | 3000-8000 K | 0-100% / 20-50-100% |
| XGYT8B105DIM-E22 (SDIM) | 26 x 1499 | 22 W | 58 W | 80-160 lm/W | 3000-8000 K | 0-100% / 20-50-100% |
Shared series data: G13 base, no-flicker driver, PF 0.5, 320-degree beam and 25,000-hour rated life. Select either the 20% / 50% / 100% switching version or the 0-100% dimmer-control version and confirm the matching input and control device.
Product Description
Product Details
Product Construction

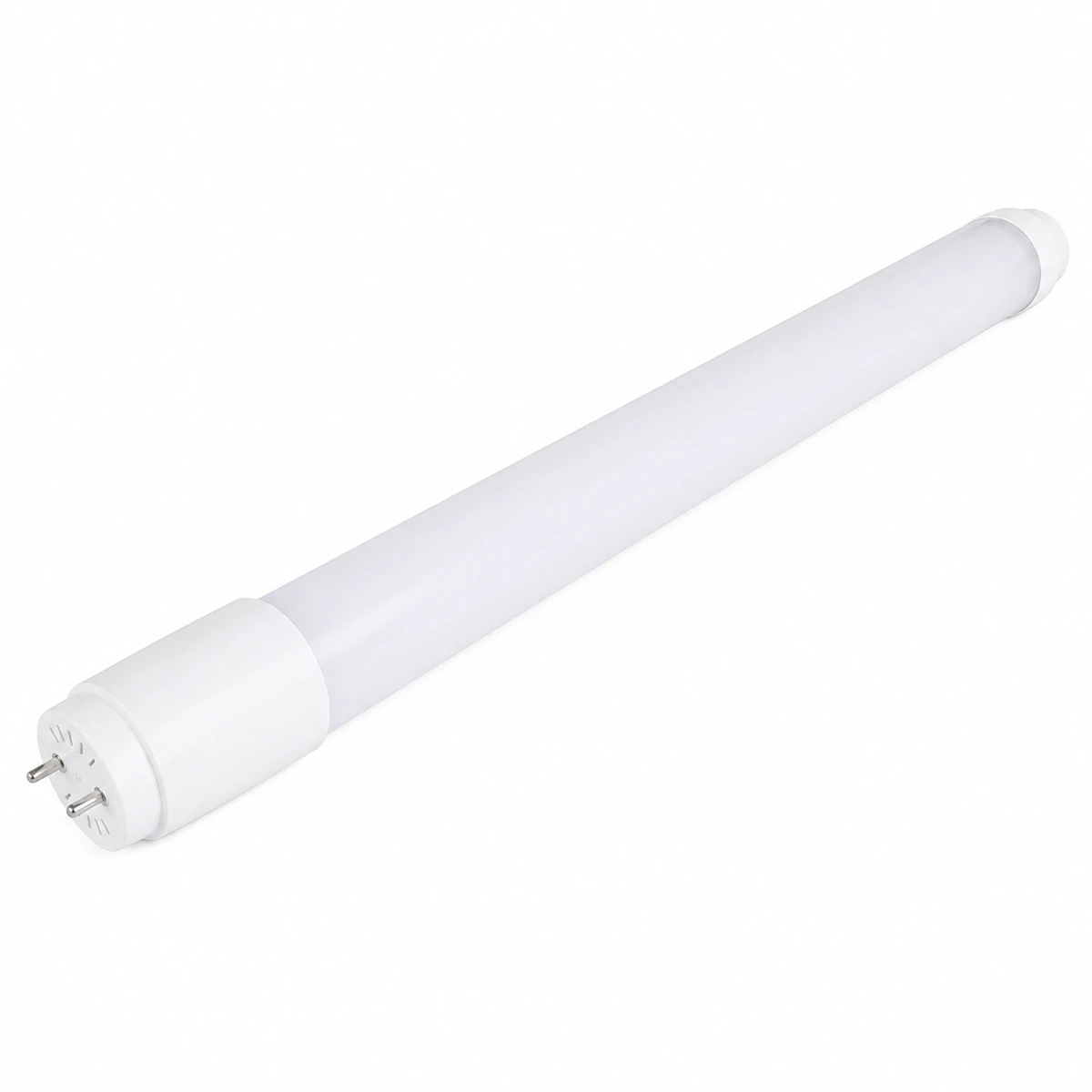

The 26 mm T8 lamp uses a straight white opal diffuser, internal LED board, driver and G13 end caps in a familiar indoor linear tube format. The electrical components remain inside the lamp body, with no external control module shown as part of the standard tube.
Selection & Installation Notes
Match the 590, 1199 or 1499 mm length and 9, 18 or 22 W rating to the fixture. Confirm the required 180-265 V or 85-265 V input range, G13 holder spacing, fixture wiring and intended operating interface before installation; the available sources do not establish universal ballast or dimmer compatibility.
Recommended Application
Applications
- Meeting Rooms: Set practical brightness levels for presentations, discussions and general room use.
- Classrooms & Libraries: Adjust tube output for reading, teaching and shared study areas.
- Retail Stores: Change ambient brightness across compatible linear fixtures above merchandise and circulation areas.
- Hospitality Interiors: Use selectable light output in compatible indoor tube fixtures across dining and guest spaces.
