T8 Integrated LED Fixture

Home / Products / LED Fixture / Linear Fixture / T8 Integrated LED Fixture

Products

OEM T8 Integrated LED Fixture Manufacturers

T8 Integrated LED Fixture
  • T8 Integrated LED Fixture
  • T8 Integrated LED Fixture
  • T8 Integrated LED Fixture
  • T8 Integrated LED Fixture
  • T8 Integrated LED Fixture
  • T8 Integrated LED Fixture

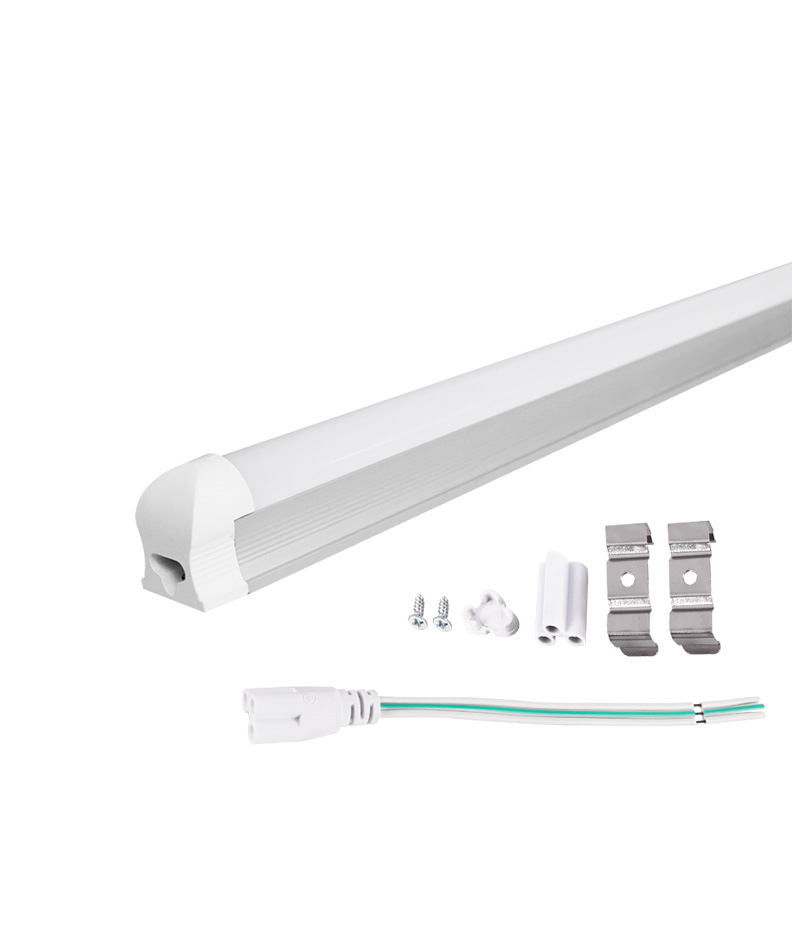

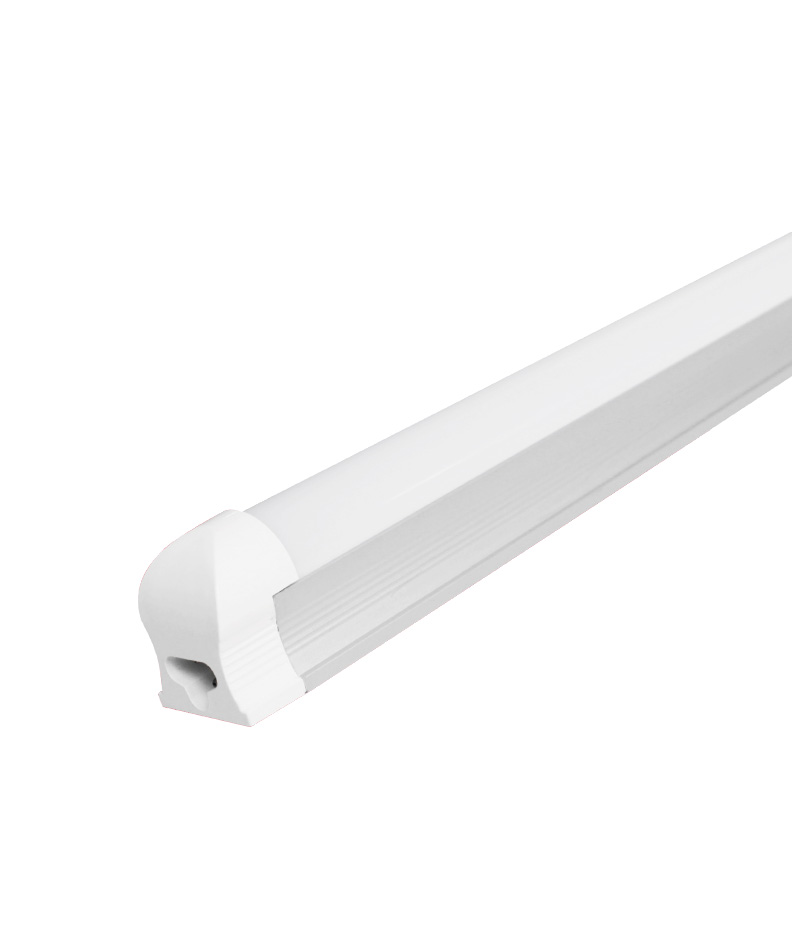

T8 Integrated LED Fixture

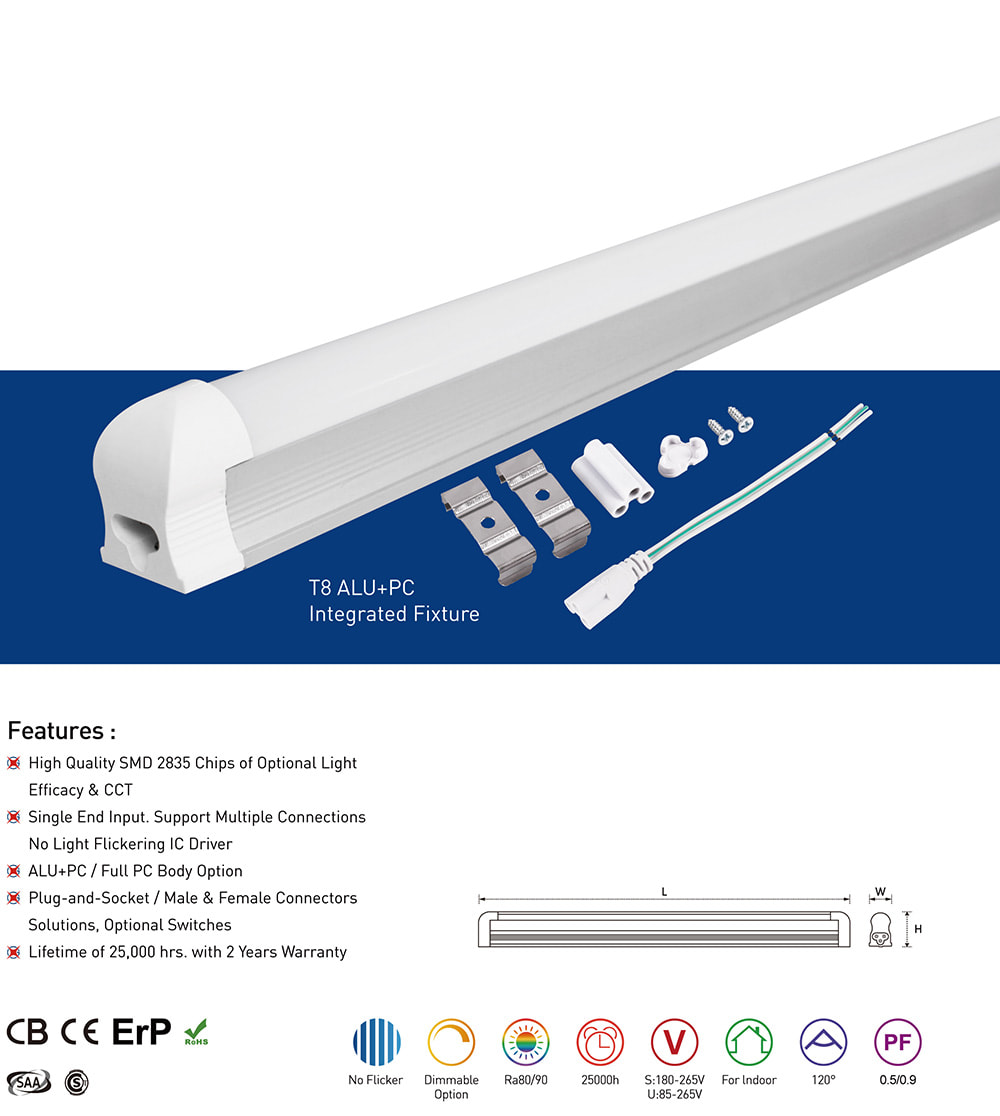

Features :

  • High Quality SMD 2835 Chips of Optional Light Efficacy & CCT
  • Single End Input. Support Multiple Connections No Light Flickering IC Driver
  • ALU+PC / Full PC Body Option

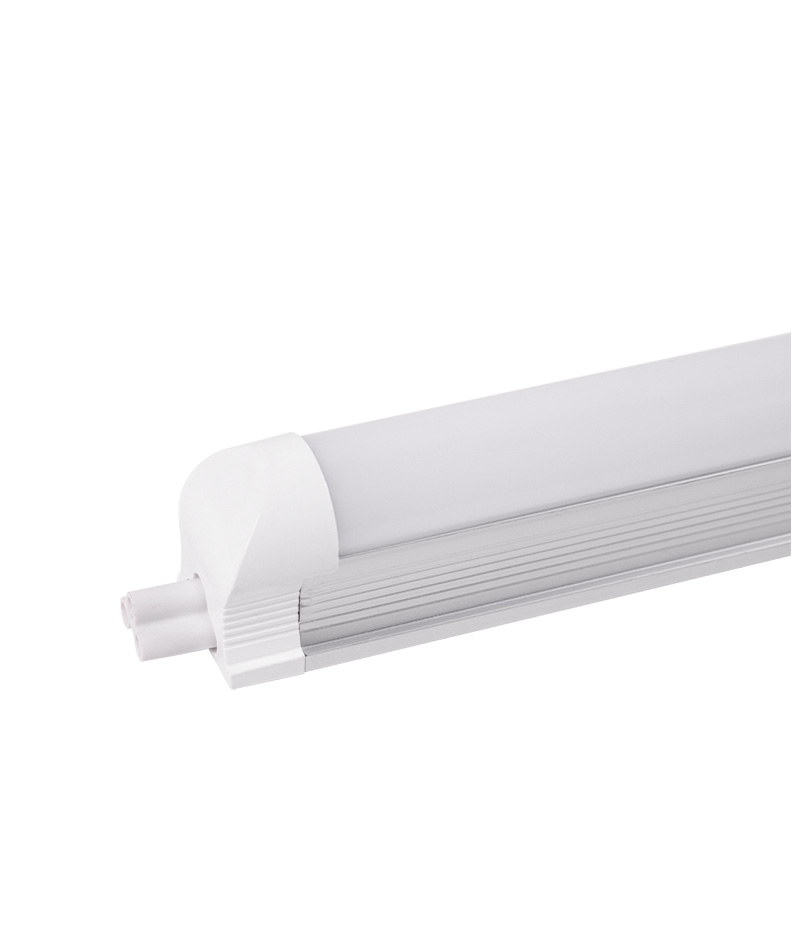

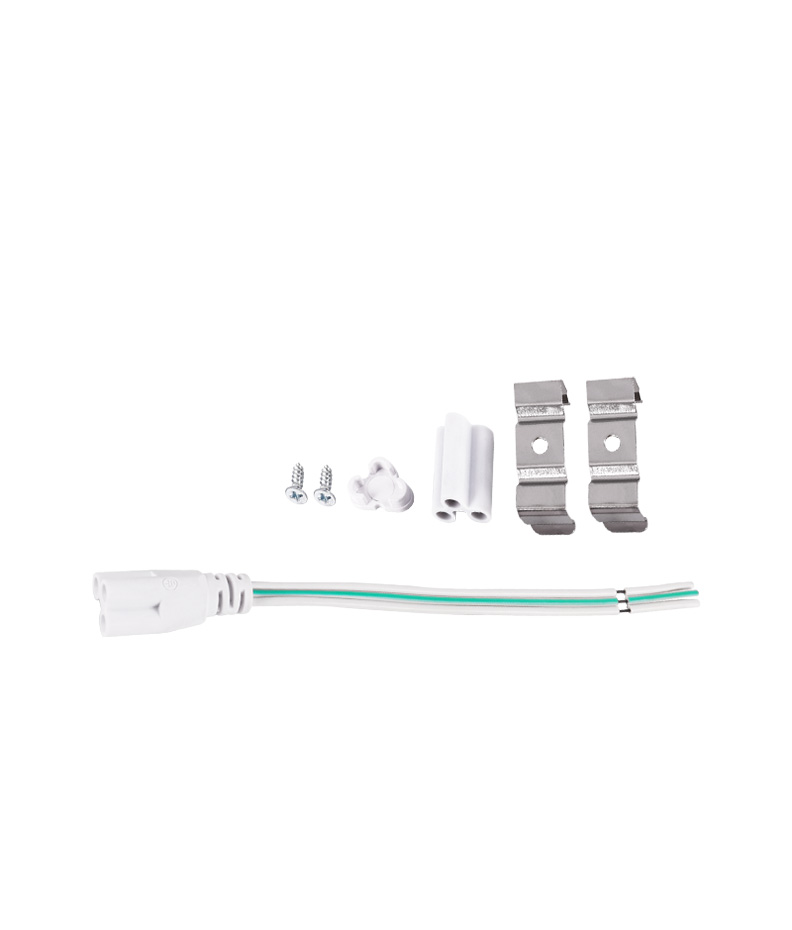

  • Plug-and-Socket / Male & Female Connectors Solutions, Optional Switches
  • Lifetime of 25,000 hrs. with 2 Years Warranty

Applications ：

  • Advertisement Boxes & Billboards
  • Office & Residential Buildings
  • Hotels & Restaurants
  • Supermarkets & Malls
  • Hotels & Restaurants
  • school & Hospital
Contact Us

T8 Integrated LED Fixture







Model No.

Dimension

LxWxH(mm)

Body Material

Rated Power


Lumen Efficacy

Color Temp.

PCS/CTN

CTN MEAS.

XGYT8F201-E5
XGYT8F701-E5

300x30x36

 ALU+PC
Full PC		 5W 80-150lm/W 3000K-8000K 25 36x20.5x18
XGYT8F202-E9
XGYT8F702-E9		 572x30x36 ALU+PC
Full PC		 9W 80-150lm/W 3000K-8000K 25 64x20.5x18
XGYT8F203-E12
XGYT8F703-E12		 880x30x36 ALU+PC
Full PC		 12W 80-150lm/W 3000K-8000K 25 94x20.5x18
XGYT8F204-E18
XGYT8F704-E18		 1178x30x36 ALU+PC
Full PC		 18W 80-150lm/W 3000K-8000K 25 124x20.5x18
XGYT8F205-E22/24
XGYT8F705-E22/24		 1478x30x34 ALU+PC
Full PC		 22/24W 80-150lm/W 3000K-8000K 25 154x20.5x18
