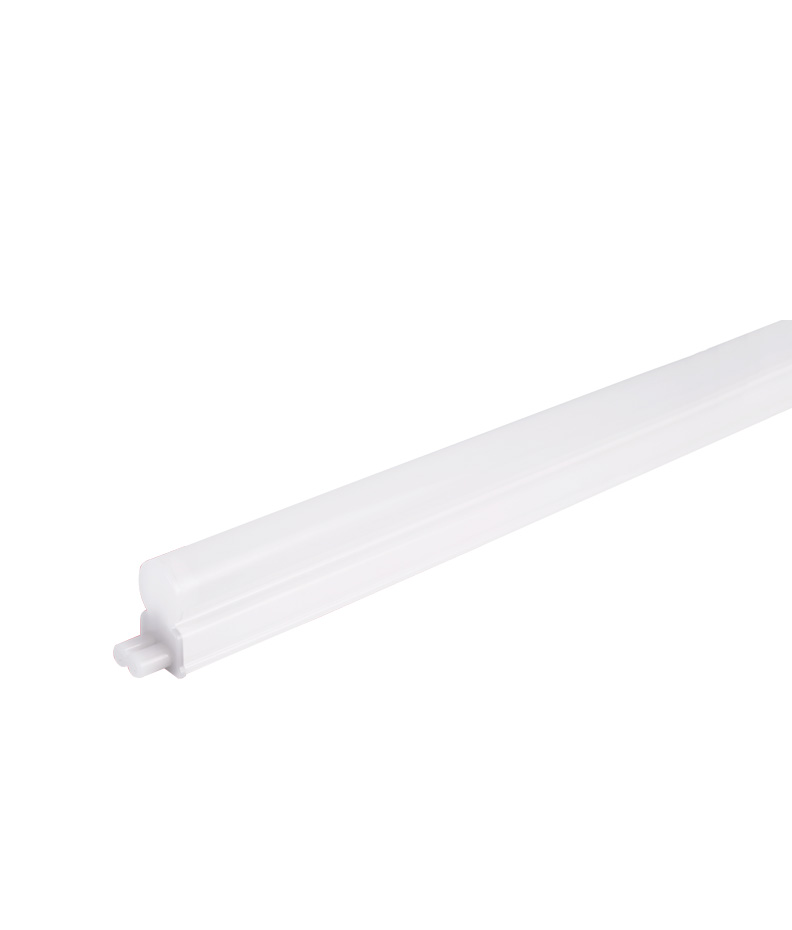

T5 Integrated LED Fixture

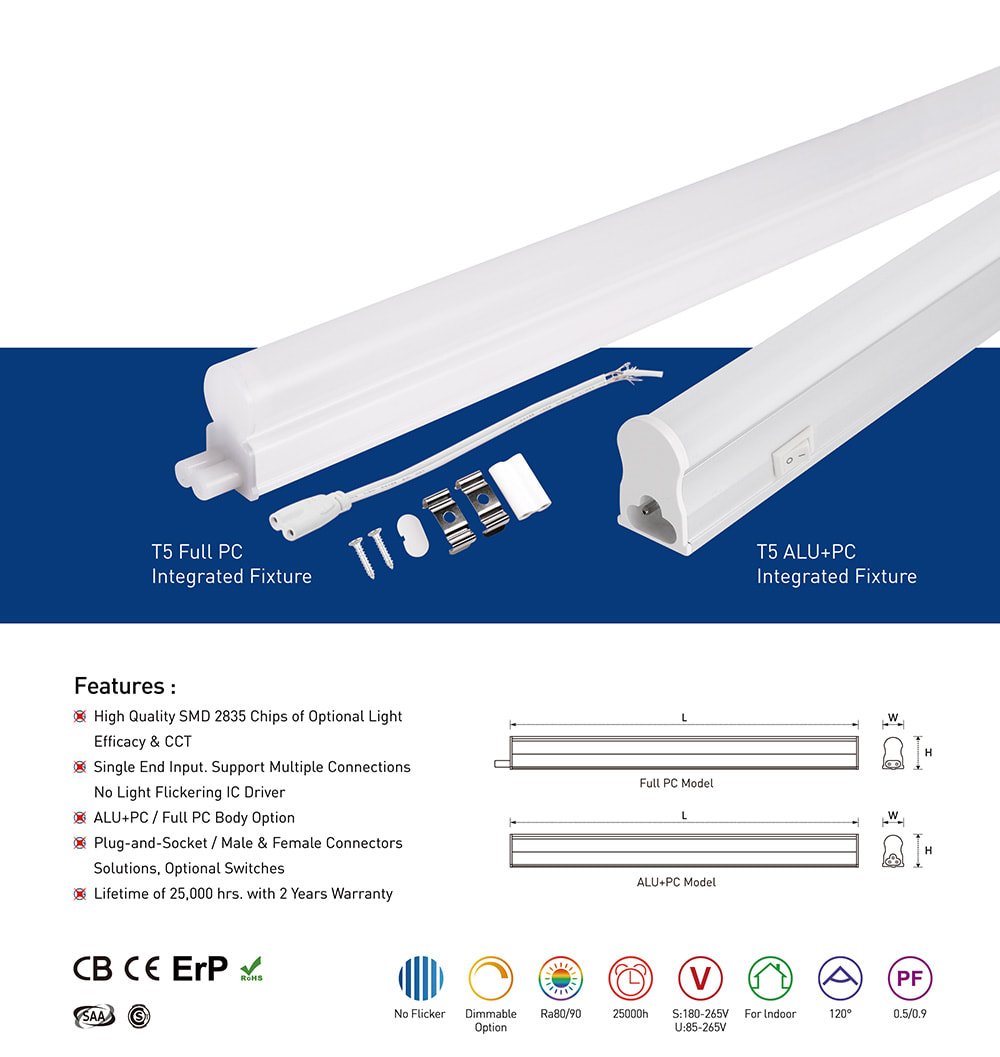

Features :

  • High Quality SMD 2835 Chips of Optional Light Efficacy & CCT
  • Single End Input. Support Multiple Connections No Light Flickering IC Driver

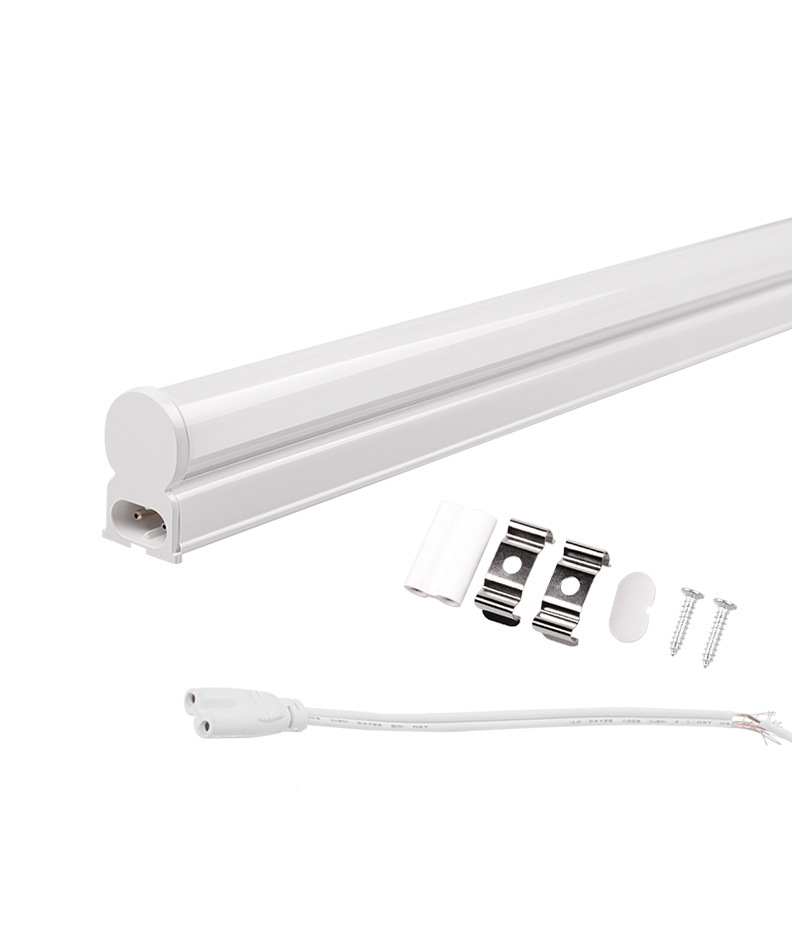

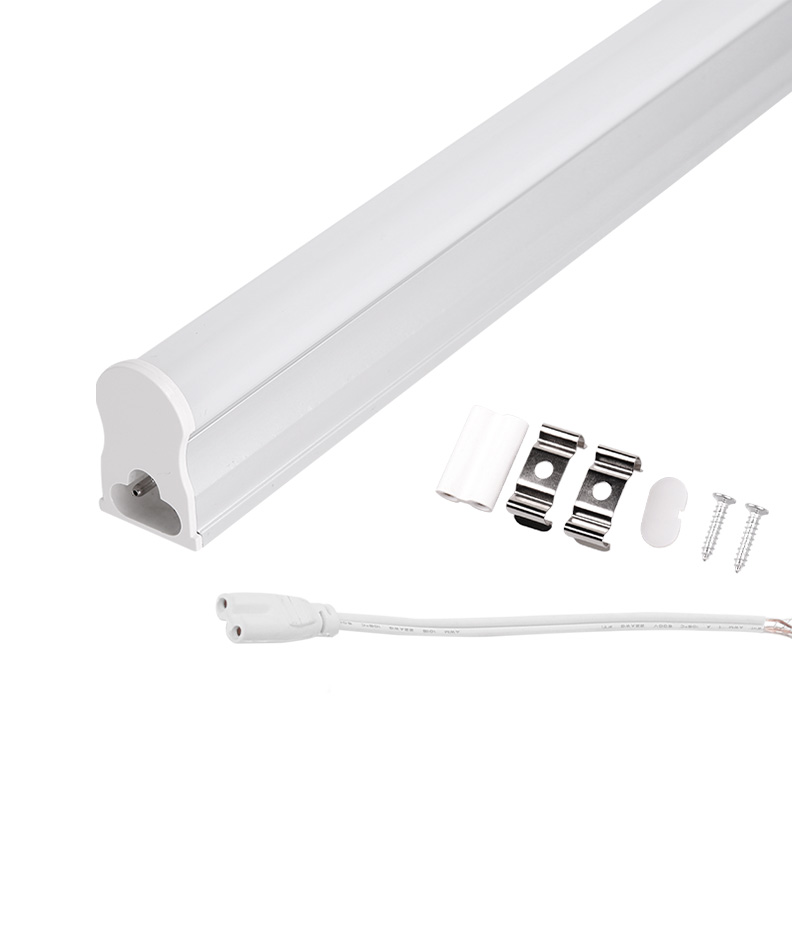

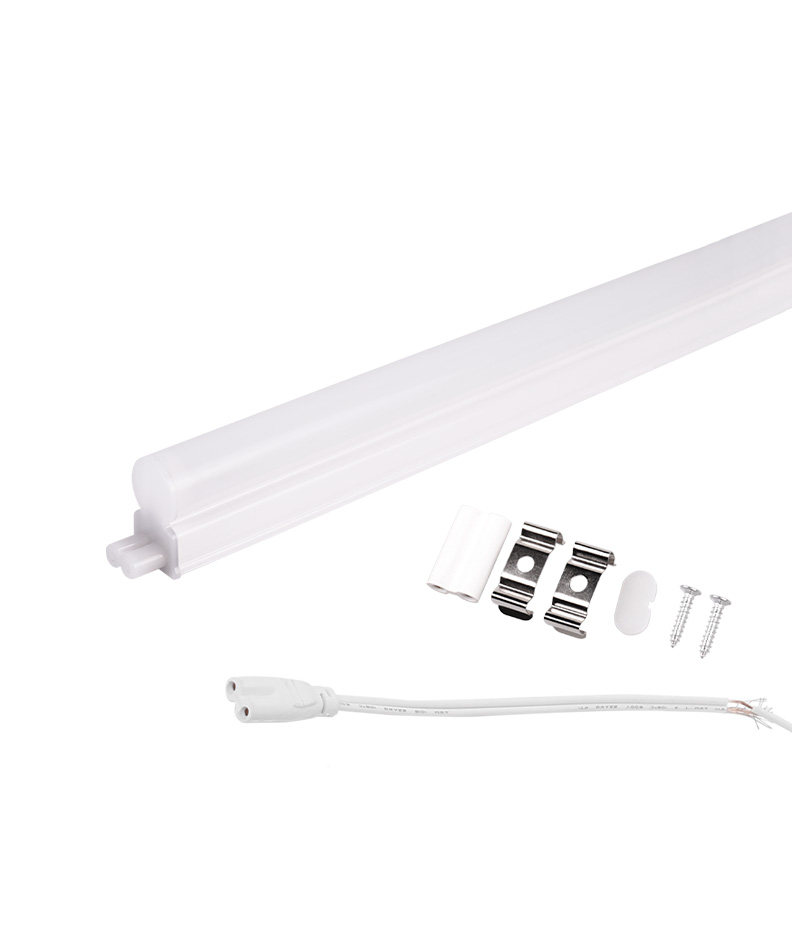

  • ALU+PC / Full PC Body Option

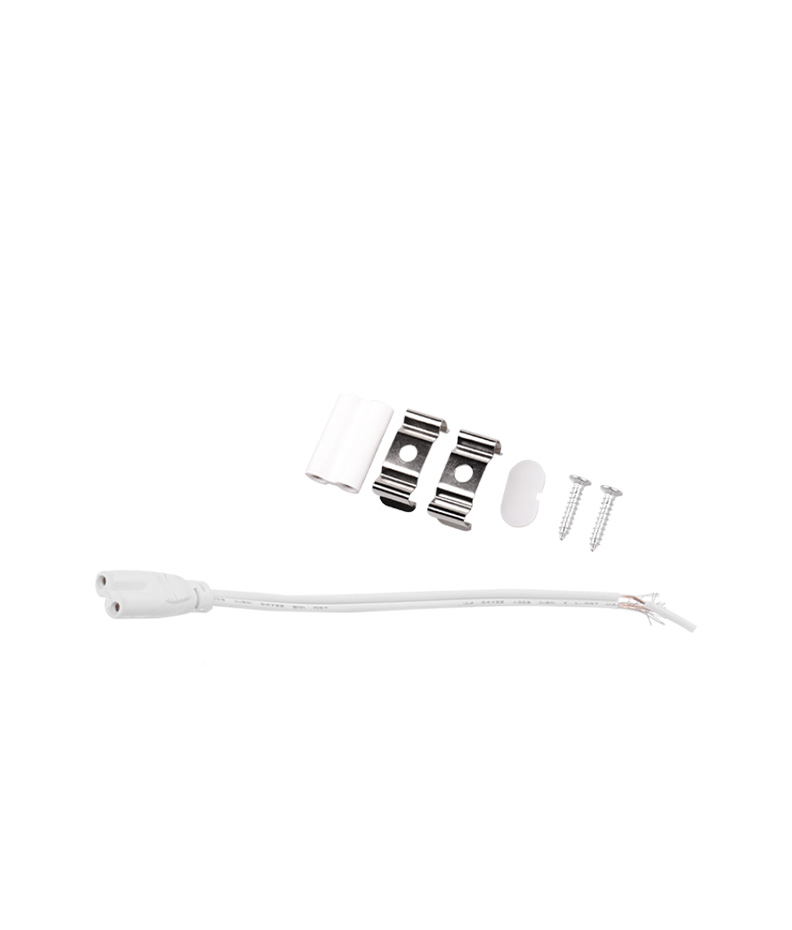

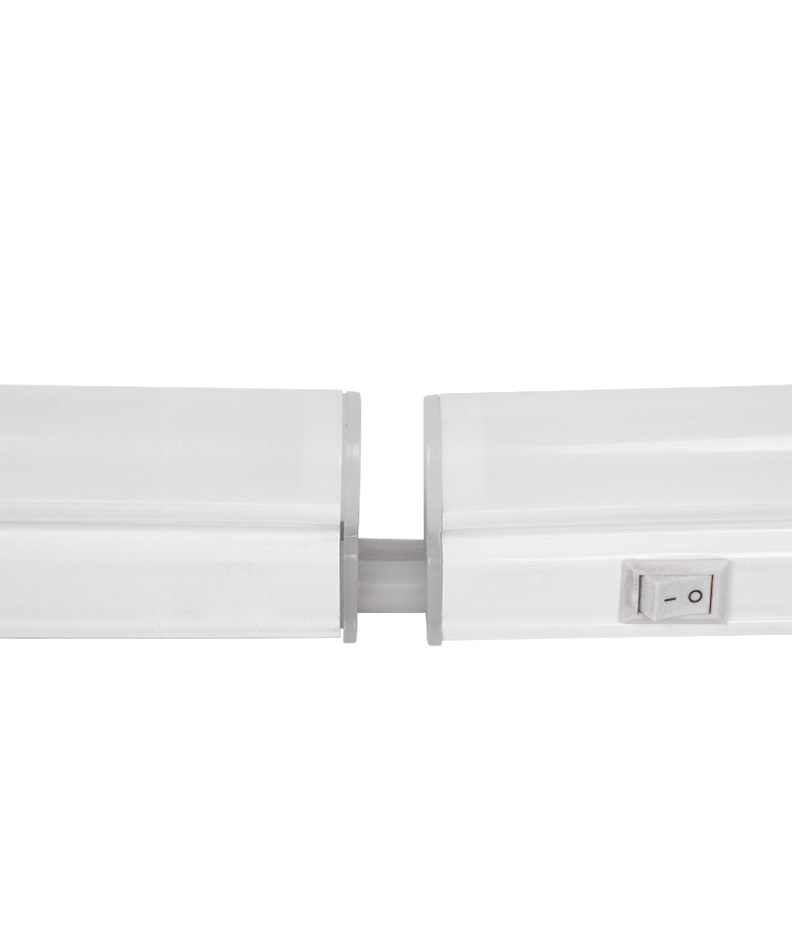

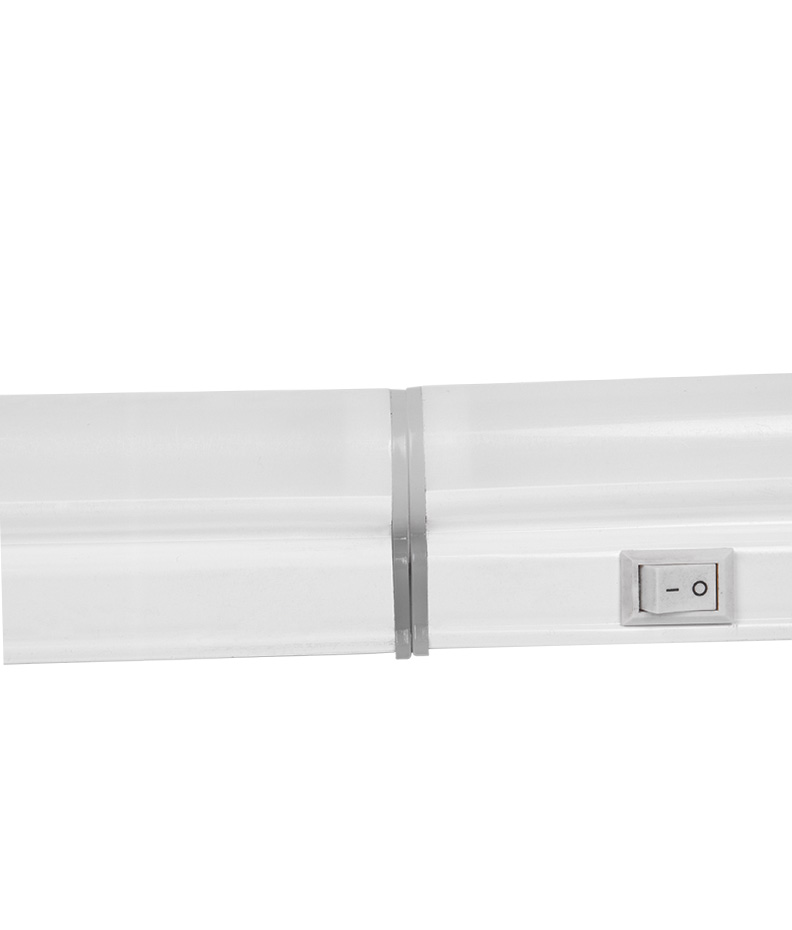

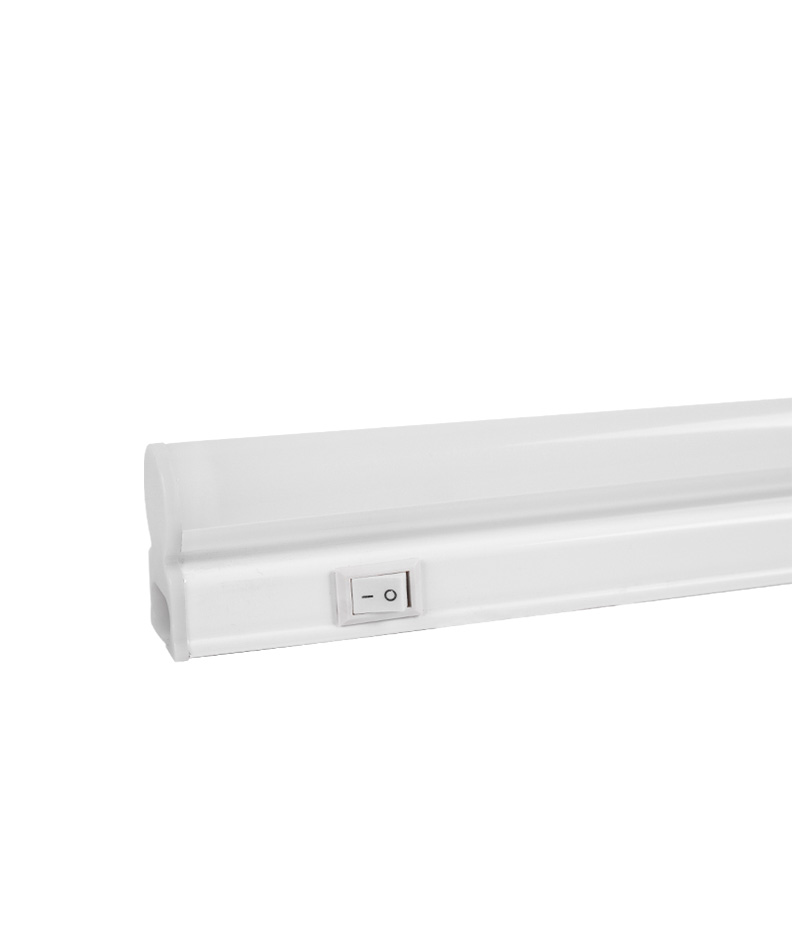

  • Plug-and-Socket / Male & Female Connectors Solutions, Optional Switches
  • Lifetime of 25,000 hrs. with 2 Years Warranty

Applications ：

  • Advertisement Boxes & Billboards
  • Office & Residential Buildings
  • Supermarkets & Malls
  • Hotels & Restaurants
  • school & Hospital
Contact Us

T5 Integrated LED Fixture







Model No.

Dimension

LxWxH(mm)

Body Material

Rated Power


Lumen Efficacy

Color Temp.

PCS/CTN

CTN MEAS.

XGYT5F201-E5
XGYT5F701-E5

300x23x34

 ALU+PC
Full PC		 5W 80-150lm/W 3000K-8000K 25 36x21x14
XGYT5F202-E9
XGYT5F702-E9		 572x23x34 ALU+PC
Full PC		 9W 80-150lm/W 3000K-8000K 25

 64x21x14
XGYT5F203-E12
XGYT5F703-E12		 880x23x34 ALU+PC
Full PC		 12W 80-150lm/W 3000K-8000K 25

 94x21x14
XGYT5F204-E18
XGYT5F704-E18		 1178x23x34 ALU+PC
Full PC		 18W 80-150lm/W 3000K-8000K 25

 124x21x14
XGYT5F205-E22
XGYT5F705-E22		 1478x23x34 ALU+PC
Full PC		 22W 80-150lm/W 3000K-8000K 25 154x21x14
